• When you think Sprockets - Think Browning

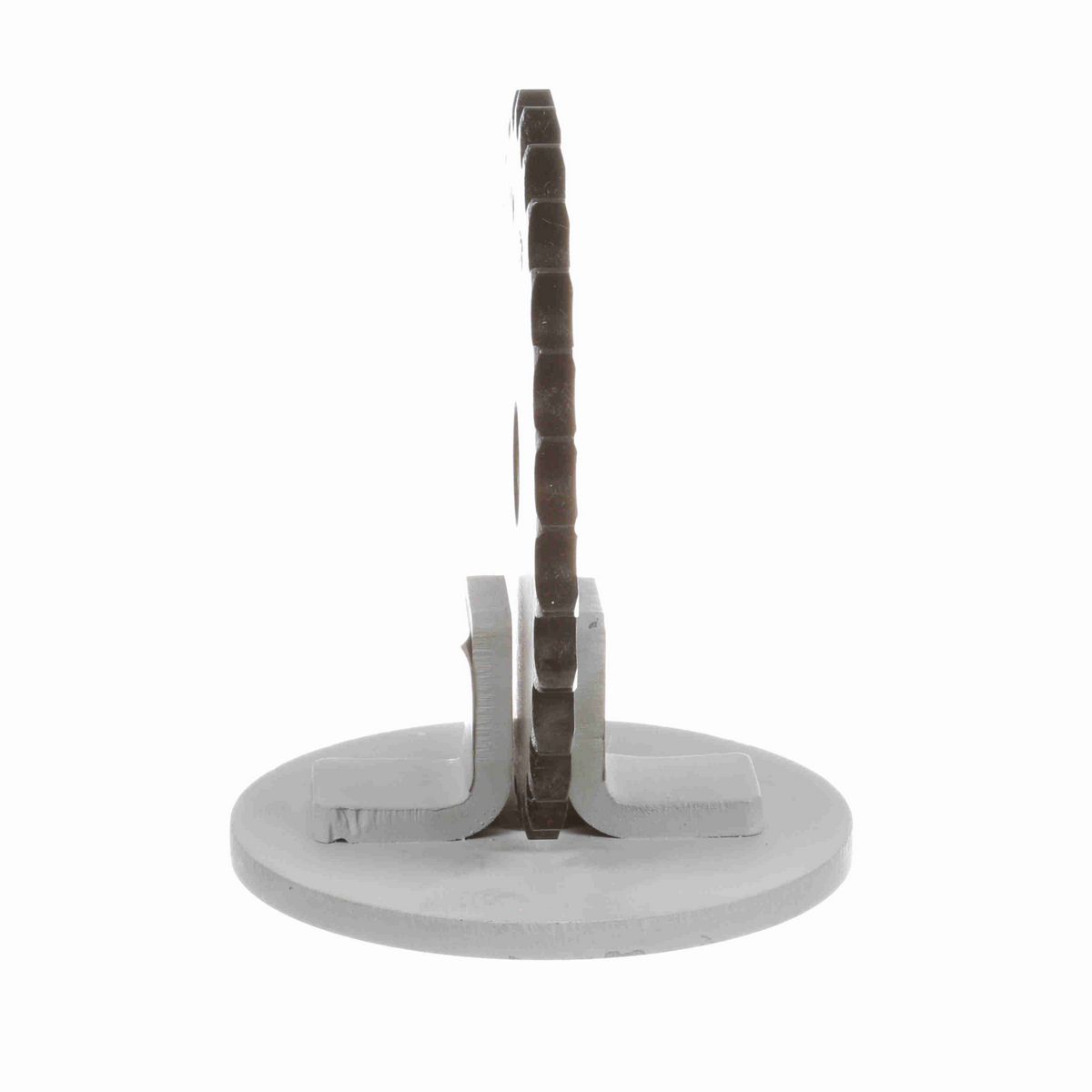

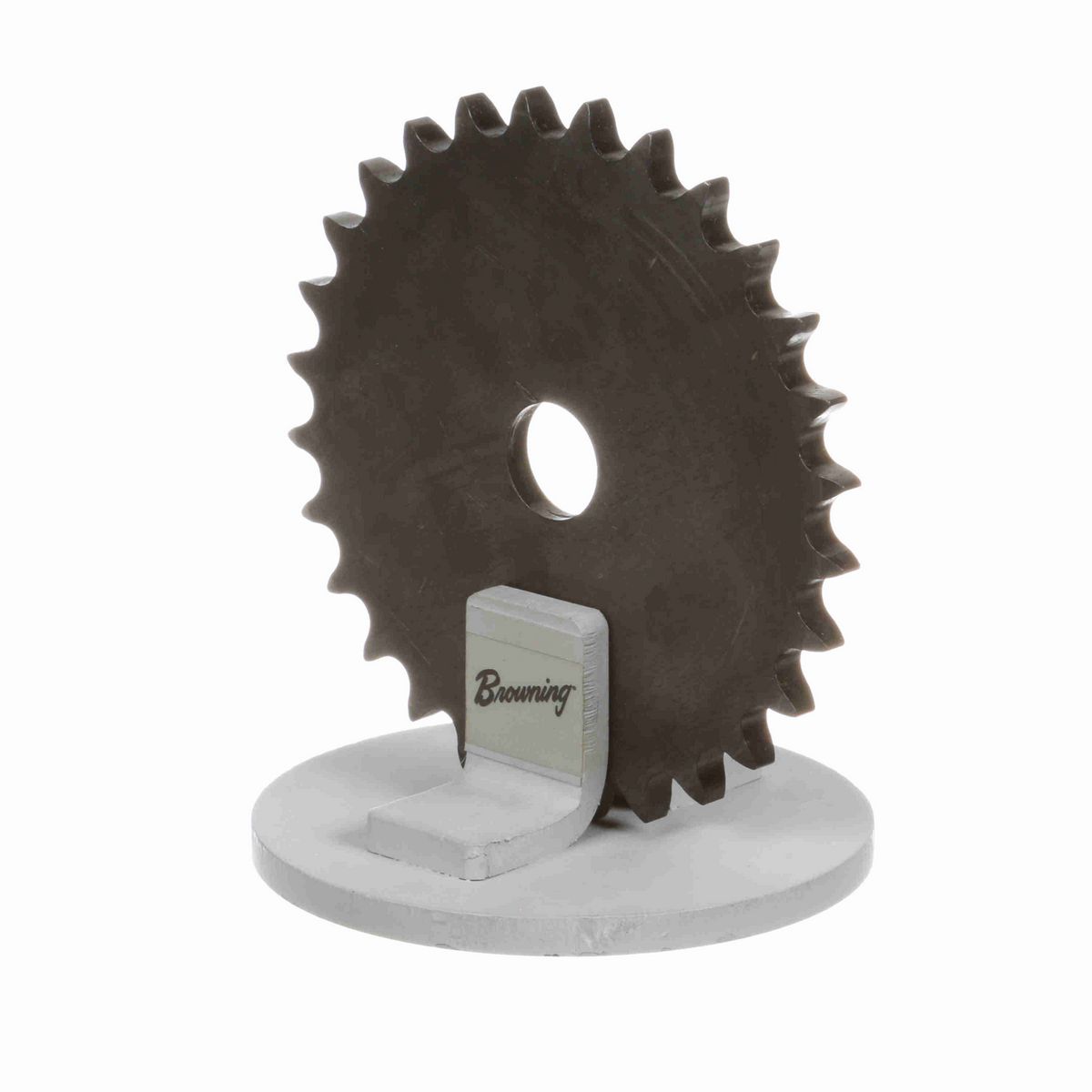

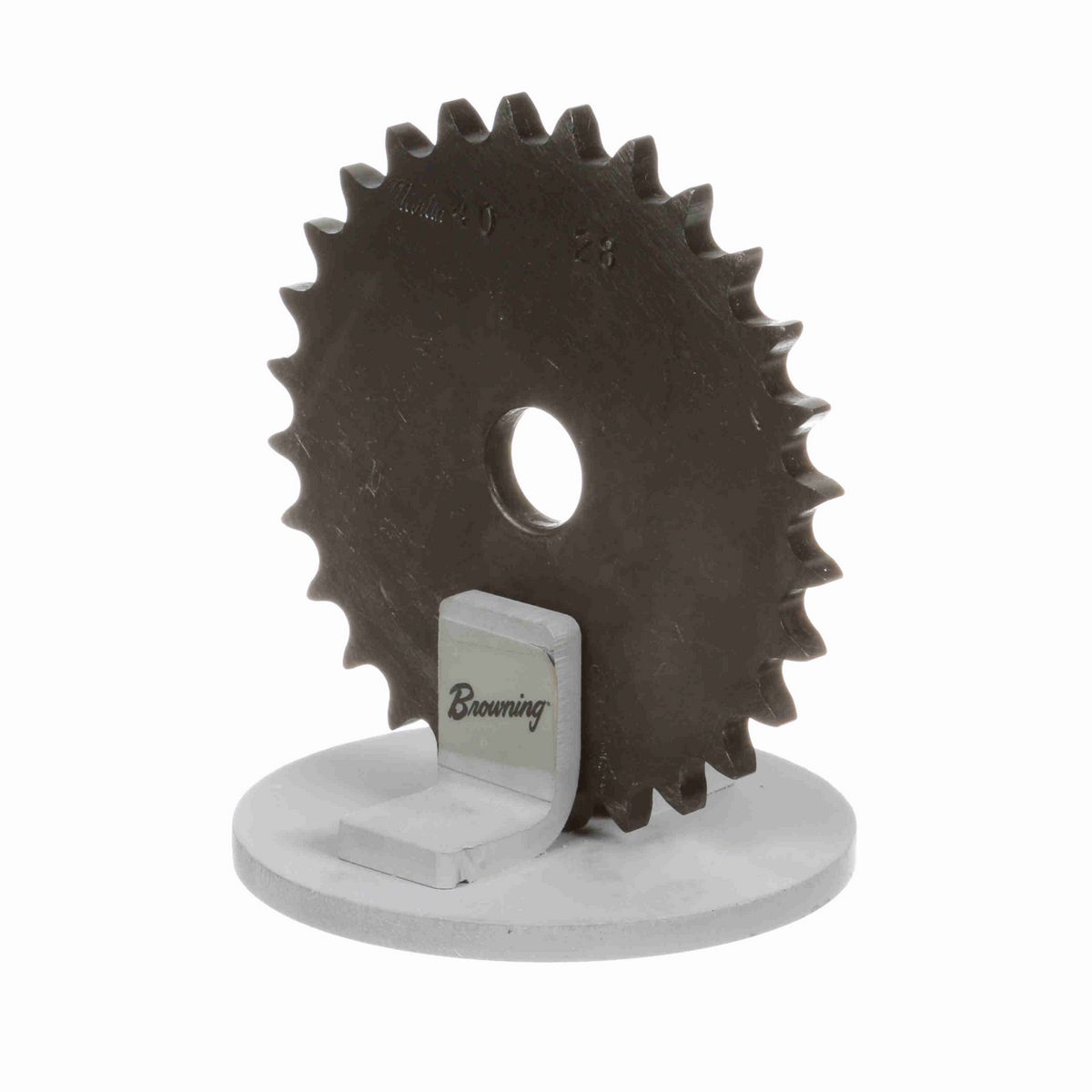

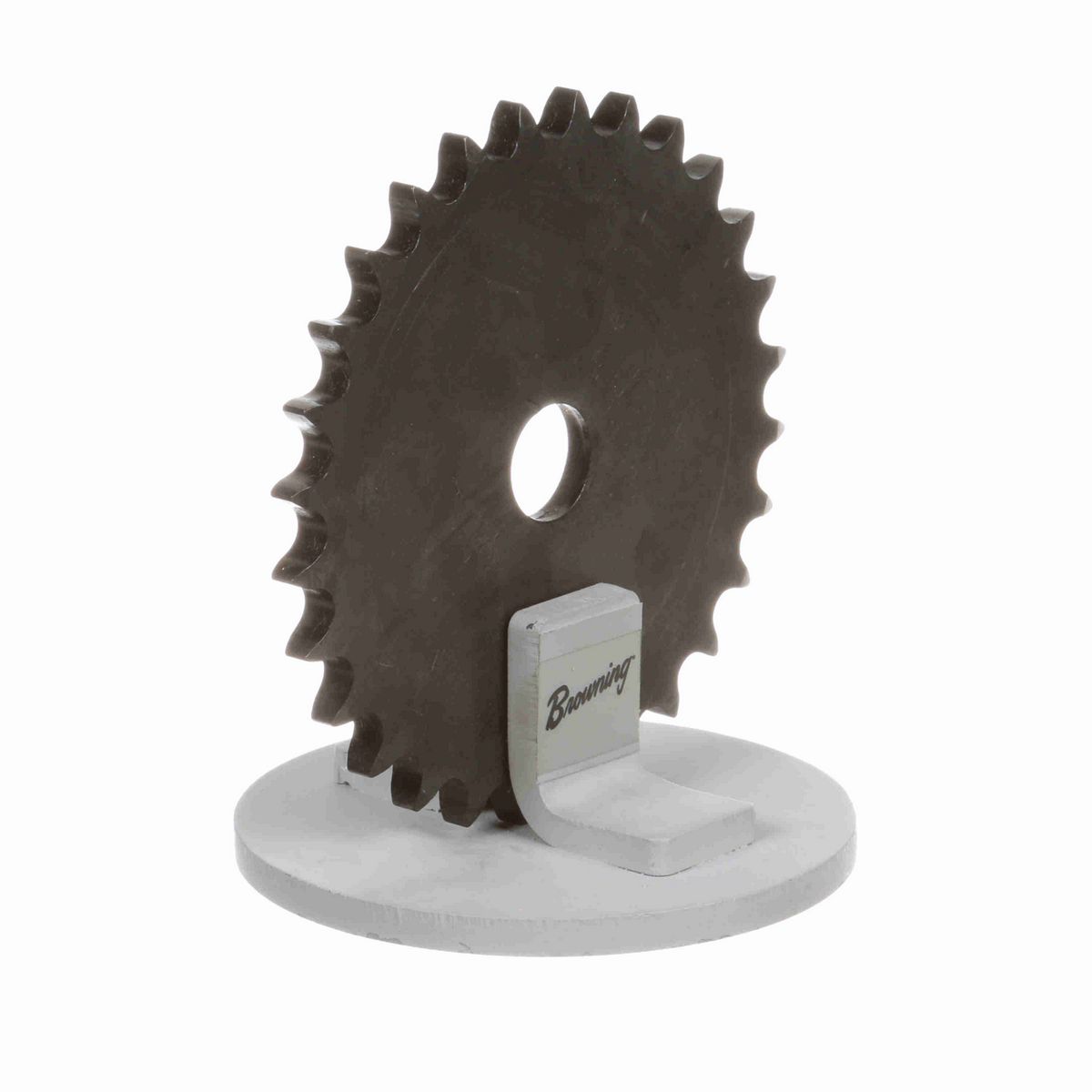

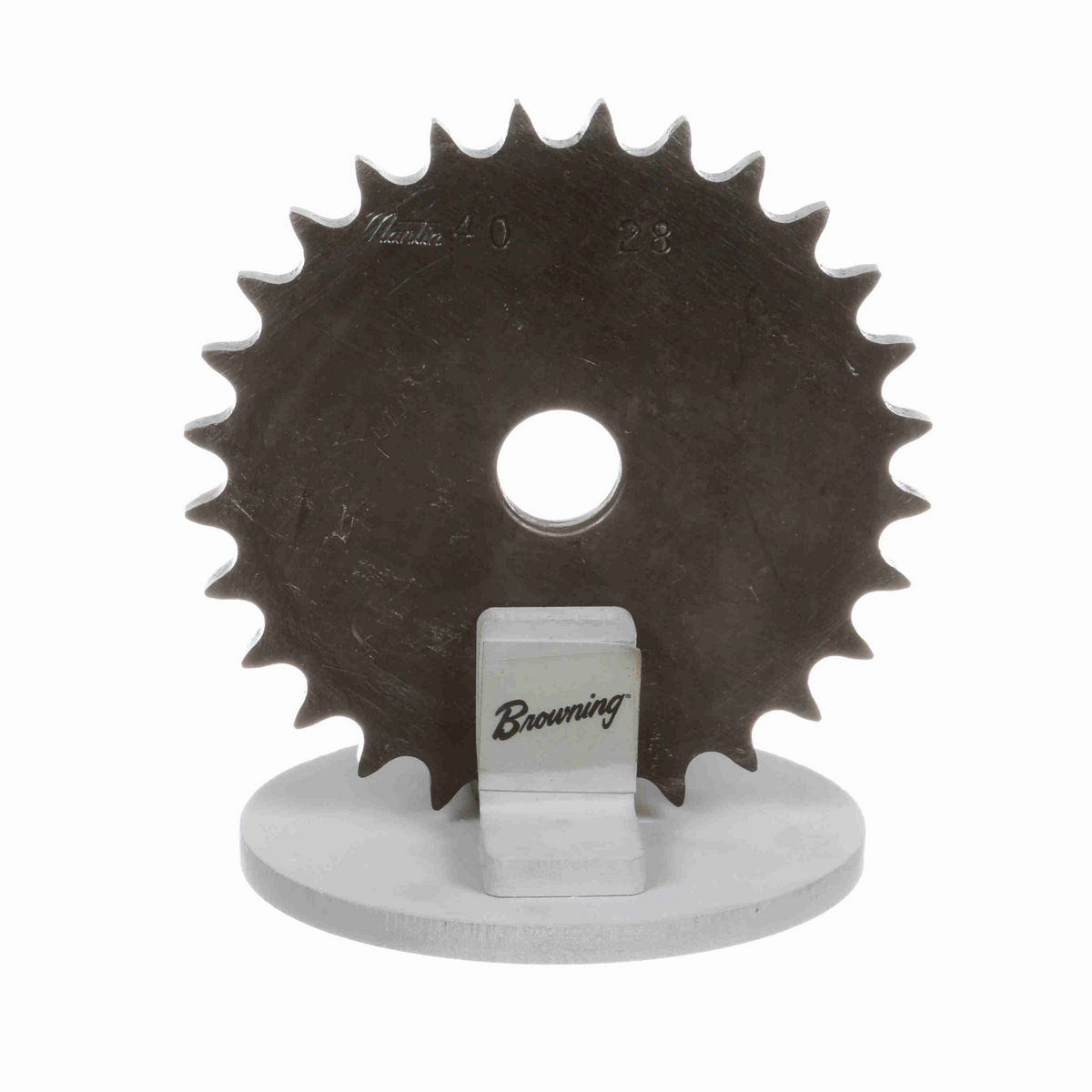

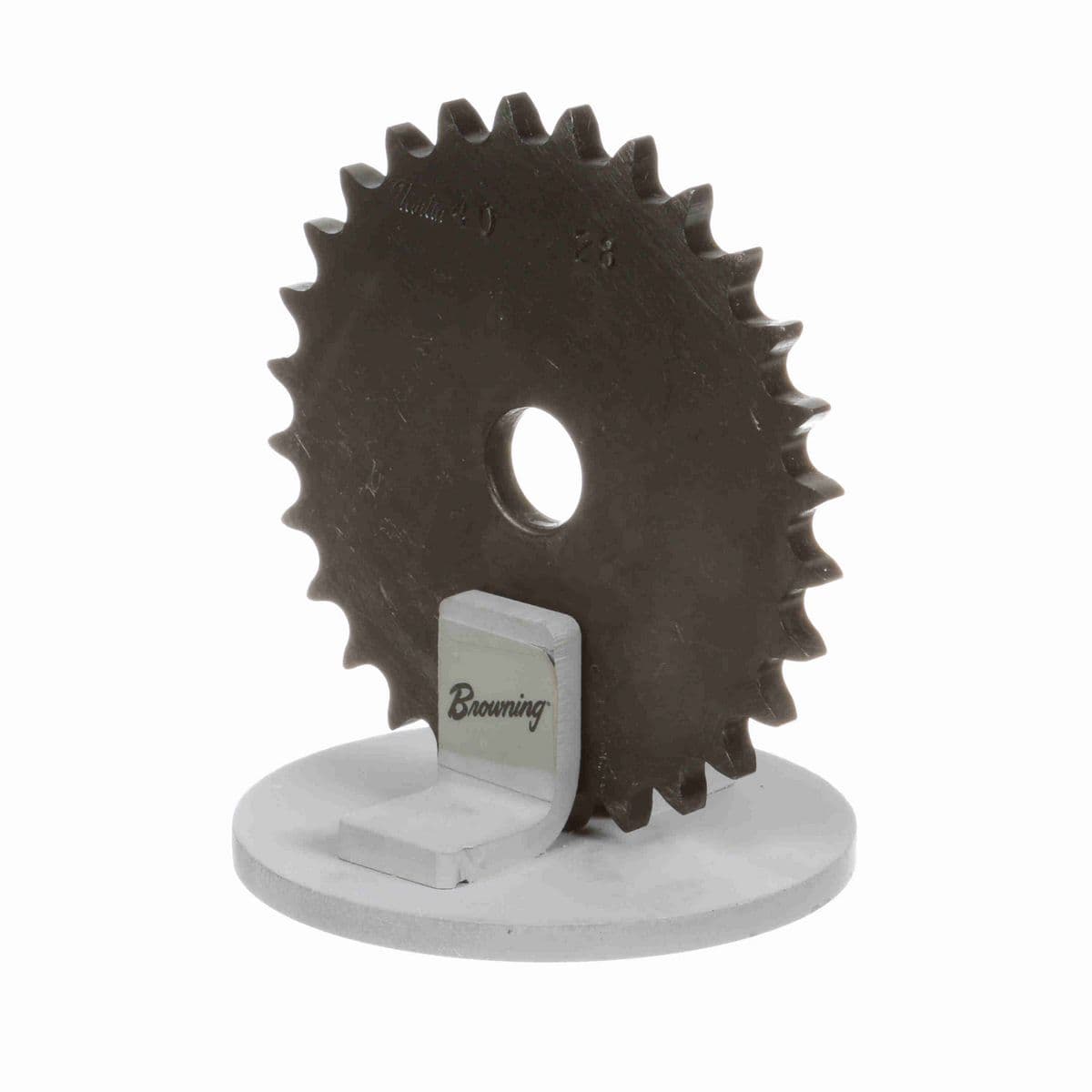

• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Product Type	Type "A" Plate Sprocket
Chain Pitch (in)	0.5 in
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Material	Steel
Number of Teeth	28
Length Through Bore (in)	0.284 in
Overall Length (in)	0.284 in
Outside Diameter (in)	4.738 in
Tooth Width (in)	0.284 in
Sprocket Material	Steel, Hardened Teeth
Bore Type	Minimum Plain Bore
Hub Type	Type A
Chain Number	No. 40, 1/2 in. Pitch ANSI Chain
Pitch Diameter (in)	4.465702 in
Number of Strands/Width	1
Bore Diameter (in)	0.625 in
Maximum Bore (in)	2.25 in
Minimum Bore (mm)	16 mm
Maximum Bore (mm)	57 mm
Hardened Teeth	With Hardened Teeth
Number of Hubs	0

General Specifications

UPC	662289120994
Weight	1.00 LB
Packaged Length	9.25 IN
Packaged Width	9.25 IN
Packaged Height	3.75 IN
HTC	8483.90.1050
Country of Origin	China
