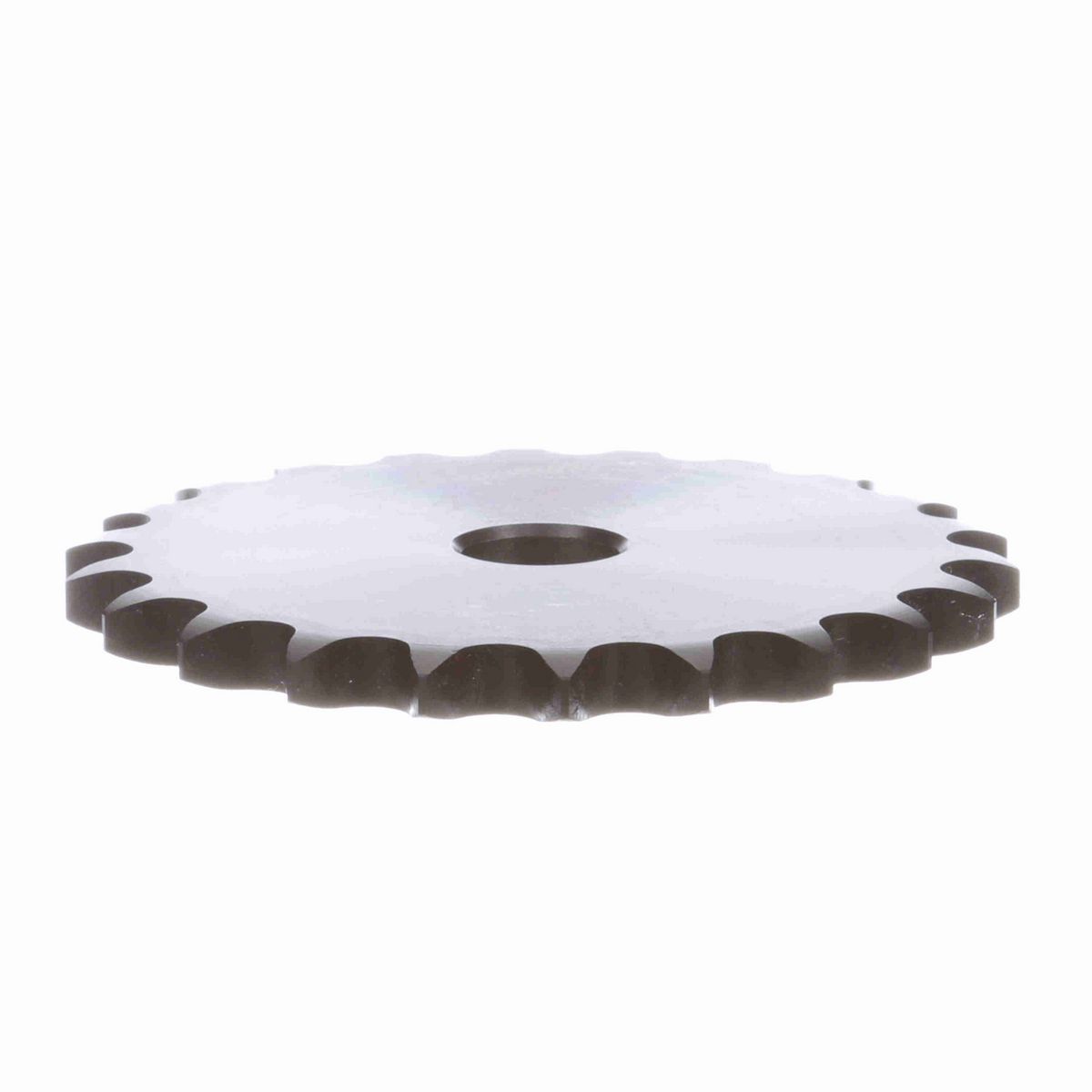

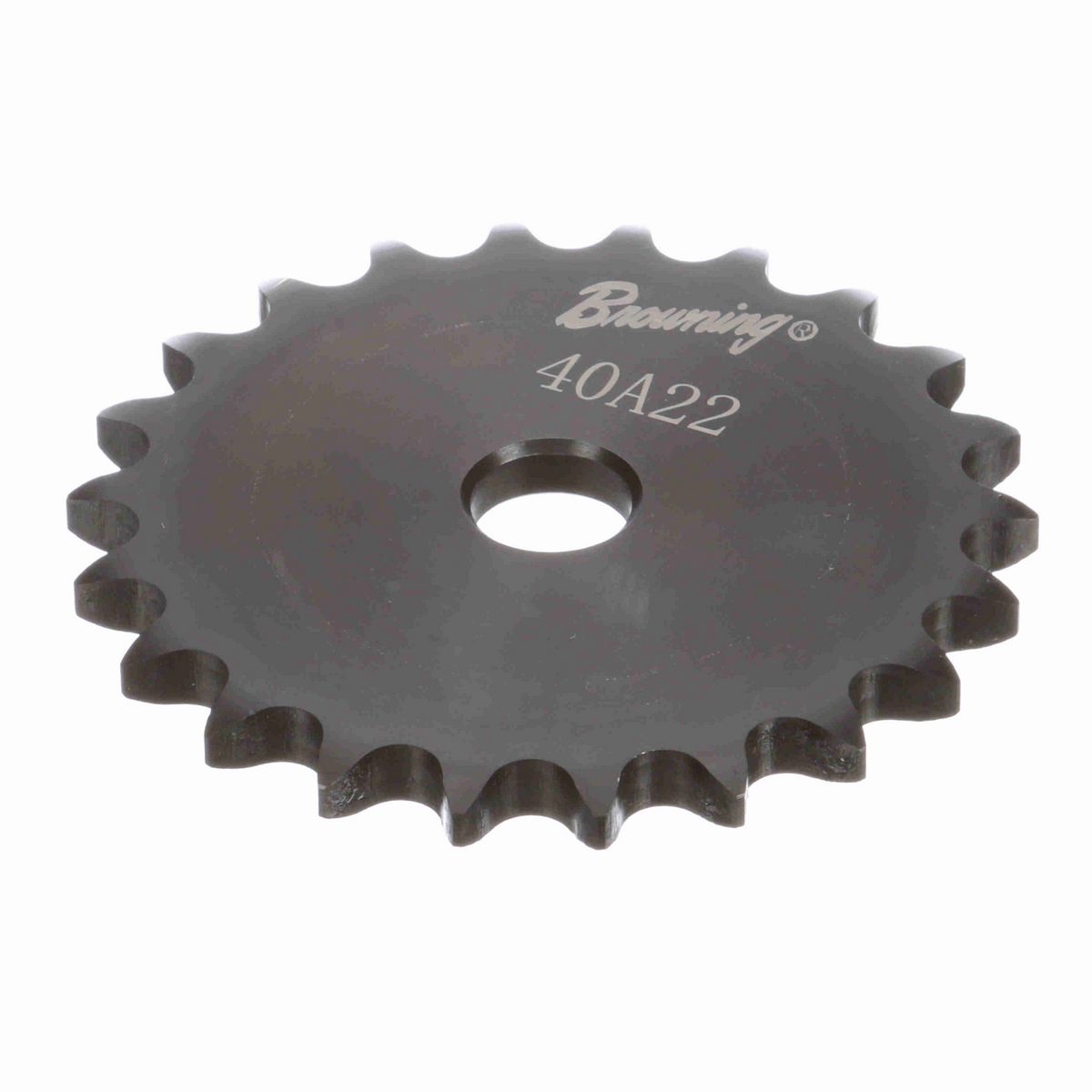

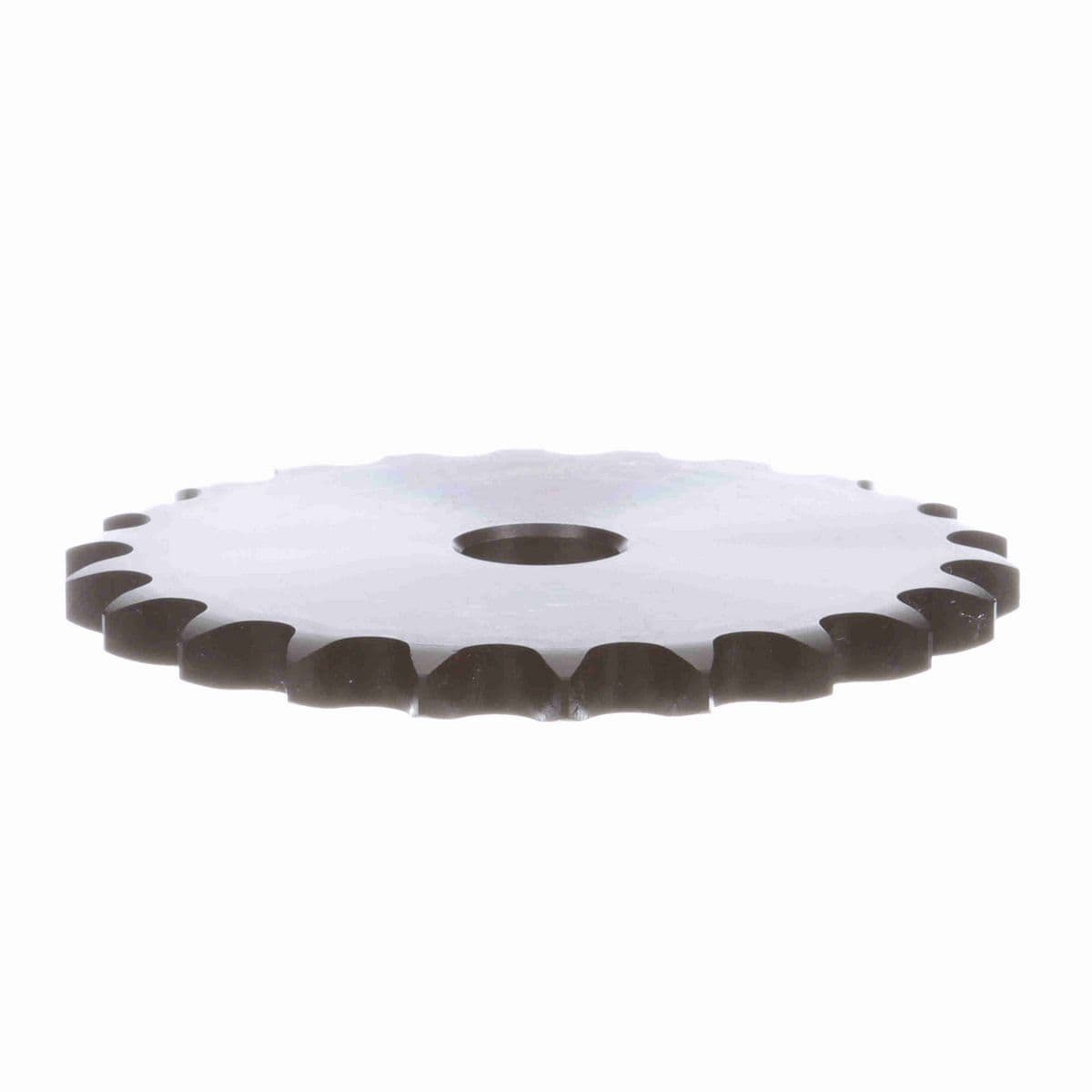

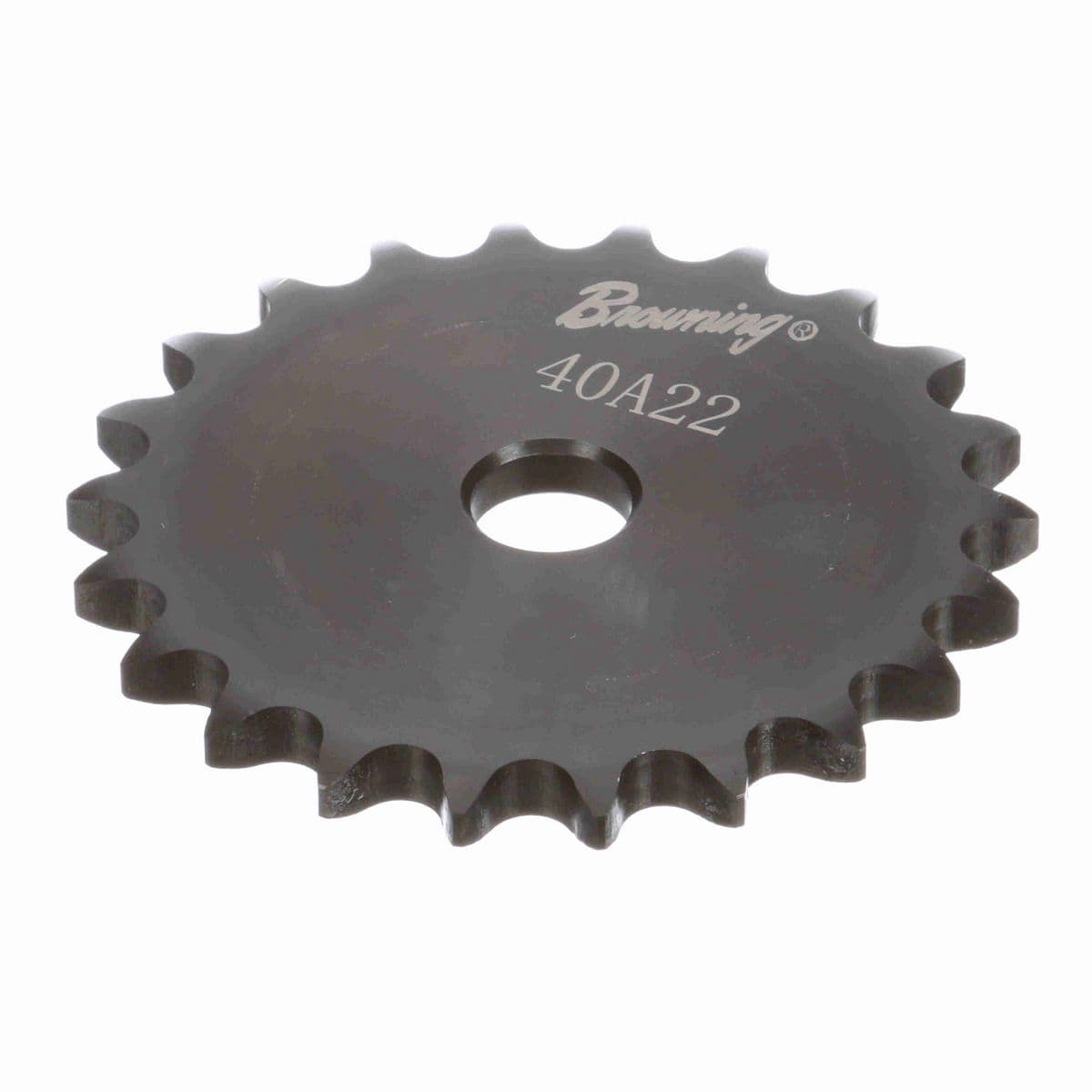

• When you think Sprockets - Think Browning
• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Chain Pitch (in)	0.5 in
Material	Steel
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Product Type	Type "A" Plate Sprocket
Number of Teeth	22
Bore Type	Minimum Plain Bore
Outside Diameter (in)	3.778 in
Pitch Diameter (in)	3.513337 in
Bore Diameter (in)	0.625 in
Number of Strands/Width	1
Length Through Bore (in)	0.284 in
Hub Type	Type A
Maximum Bore (in)	1.875 in
Minimum Bore (mm)	16 mm
Maximum Bore (mm)	47 mm
Hardened Teeth	With Hardened Teeth
Number of Hubs	0

General Specifications

UPC	662289300907
Weight	0.73 LB
Packaged Length	4.00 IN
Packaged Width	3.70 IN
Packaged Height	0.50 IN
HTC	8483.90.1050
Country of Origin	China
