• When you think Sprockets - Think Browning

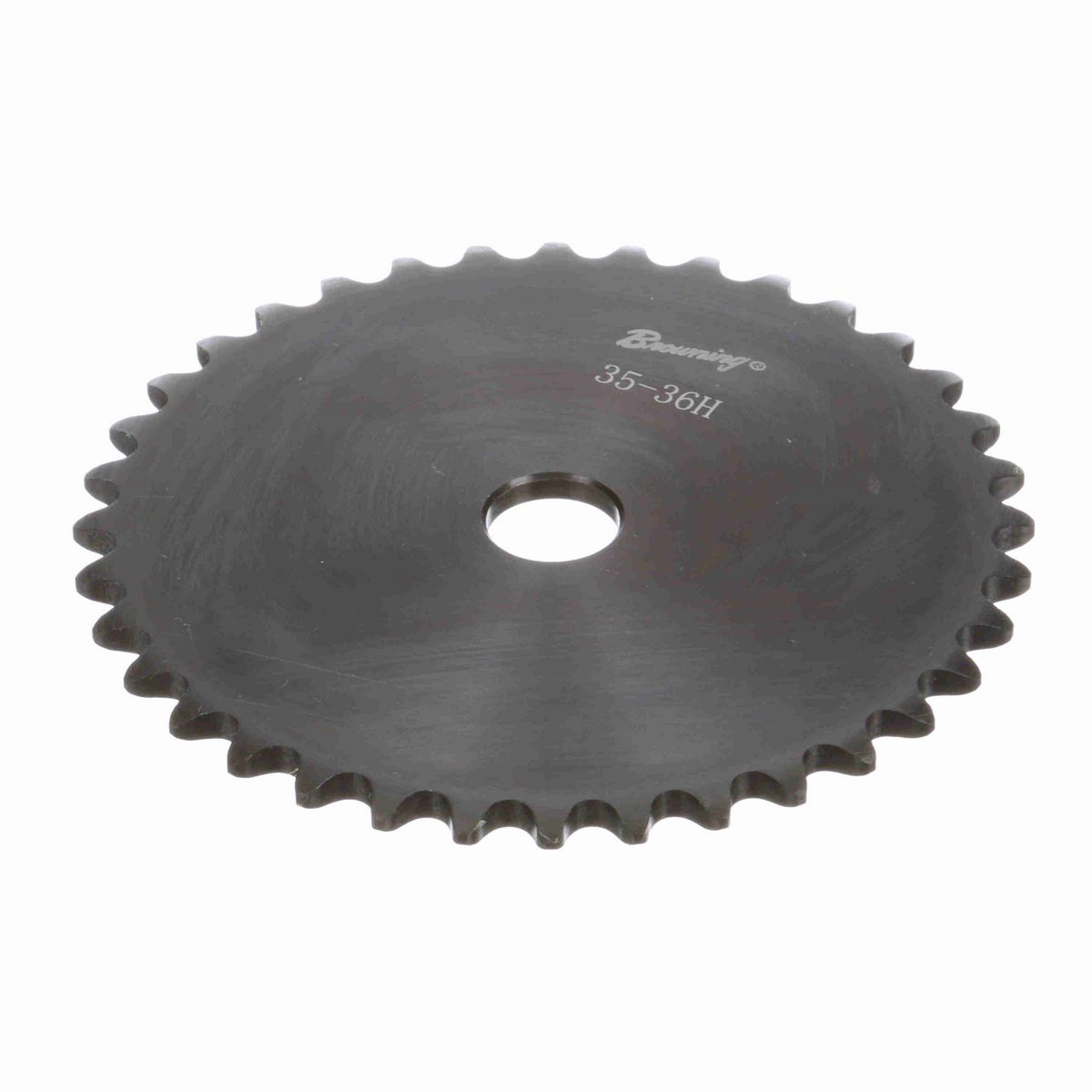

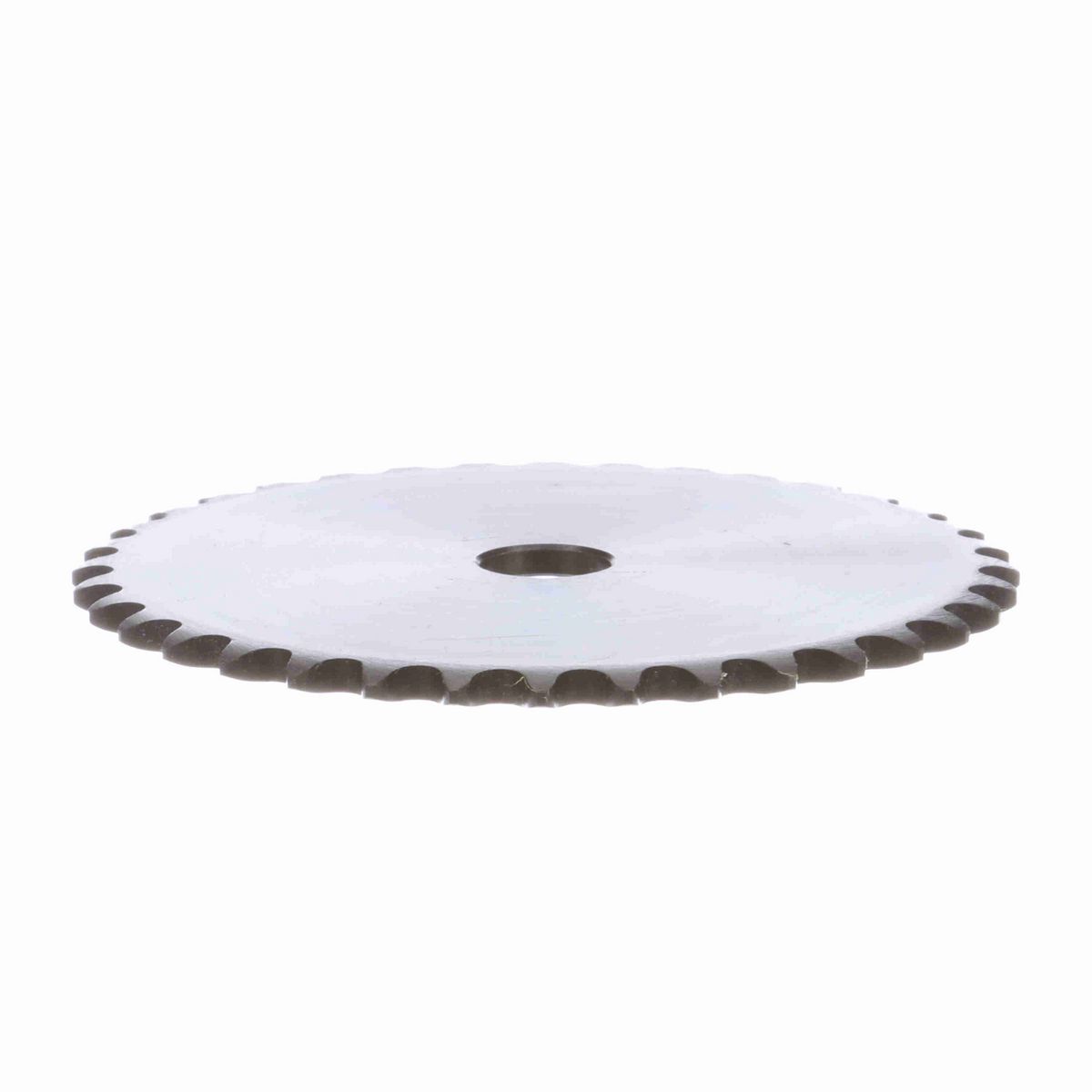

• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Chain Pitch (in)	0.375 in
Product Type	Type "A" Plate Sprocket
Chain Used	No. 35, 3/8 in. Pitch ANSI Chain
Number of Teeth	36
Material	Steel
Tooth Width (in)	0.168 in
Overall Length (in)	0.168 in
Bore Type	Minimum Plain Bore
Length Through Bore (in)	0.169 in
Sprocket Material	Steel, Hardened Teeth
Outside Diameter (in)	4.511 in
Hub Type	Type A
Chain Number	No. 35, 3/8 in. Pitch ANSI Chain
Pitch Diameter (in)	4.302642 in
Bore Diameter (in)	0.625 in
Number of Strands/Width	1
Maximum Bore (in)	2 in
Maximum Bore (mm)	50 mm
Minimum Bore (mm)	16 mm
Number of Hubs	0
Hardened Teeth	With Hardened Teeth

General Specifications

UPC	662289210572
Weight	1.38 LB
Packaged Length	5.10 IN
Packaged Width	4.90 IN
Packaged Height	1.30 IN
HTC	8483.90.1050
Country of Origin	China
