• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Bushing Used	Split Taper
Max Bore (in)	3.625 in
Chain Pitch (in)	1.5 in
Min Bore (in)	1.375 in
Number of Teeth	40
Material	Steel
Chain Used	No. 120, 1-1/2 in. Pitch ANSI Chain
Pitch Diameter (in)	19.118 in

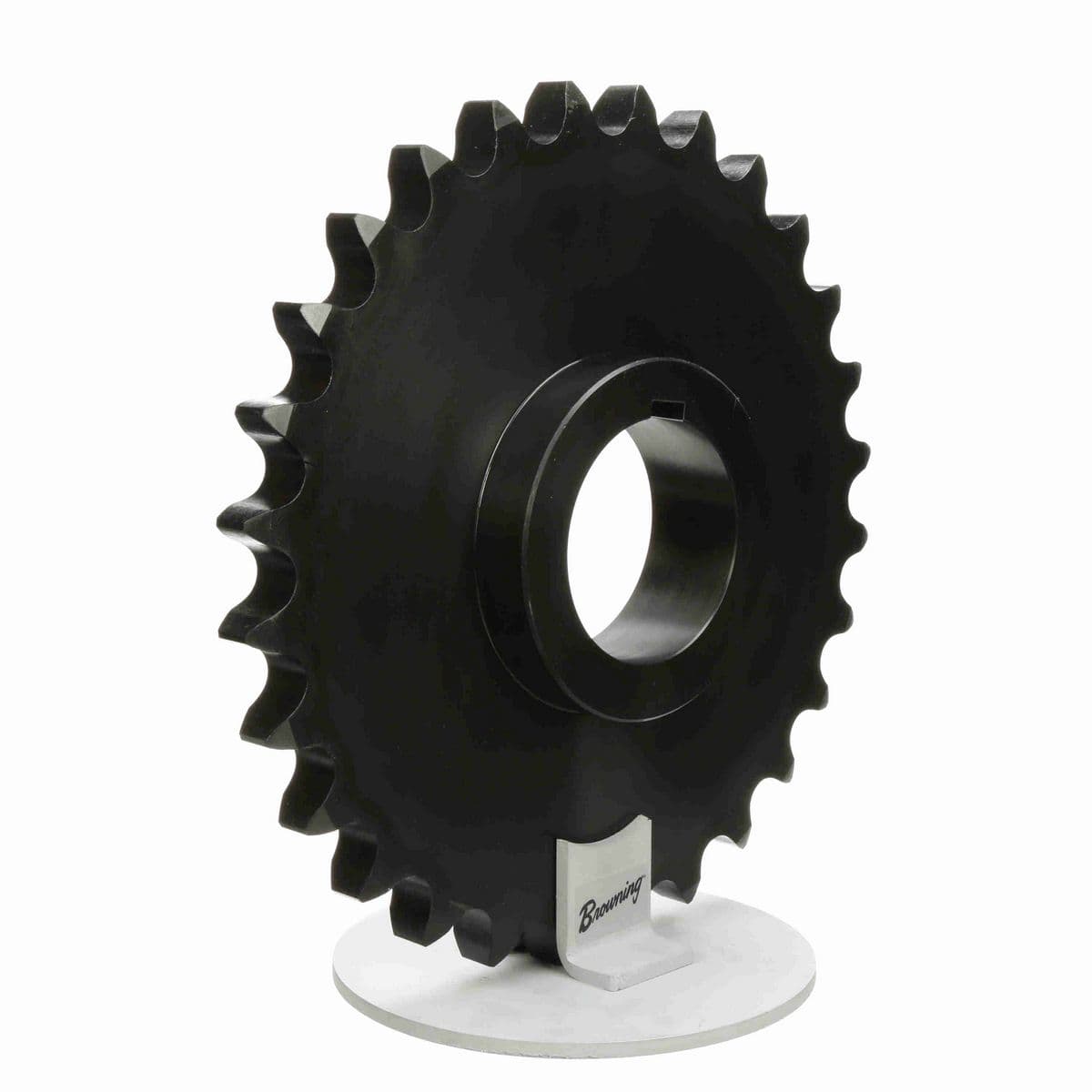

Product Type	Bushed Roller Chain Sprocket
Overall Length (in)	5.219375 in
Outside Diameter (in)	19.975 in
Bore Type	Bushed Bore
Number of Strands/Width	1
Hub Diameter (in)	5.375 in
Maximum Bore (in)	3.625 in
Minimum Bore (mm)	35 mm
Maximum Bore (mm)	90 mm
Number of Hubs	2
Pitch Type	Single

General Specifications

UPC	662289167807
Weight	94.00 LB
Packaged Length	19.96 IN
Packaged Width	19.96 IN
Packaged Height	5.16 IN
HTC	8483.90.1050
Country of Origin	China
