• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Material	Steel
Pitch Diameter (in)	13.945 in
Chain Pitch (in)	1.25 in

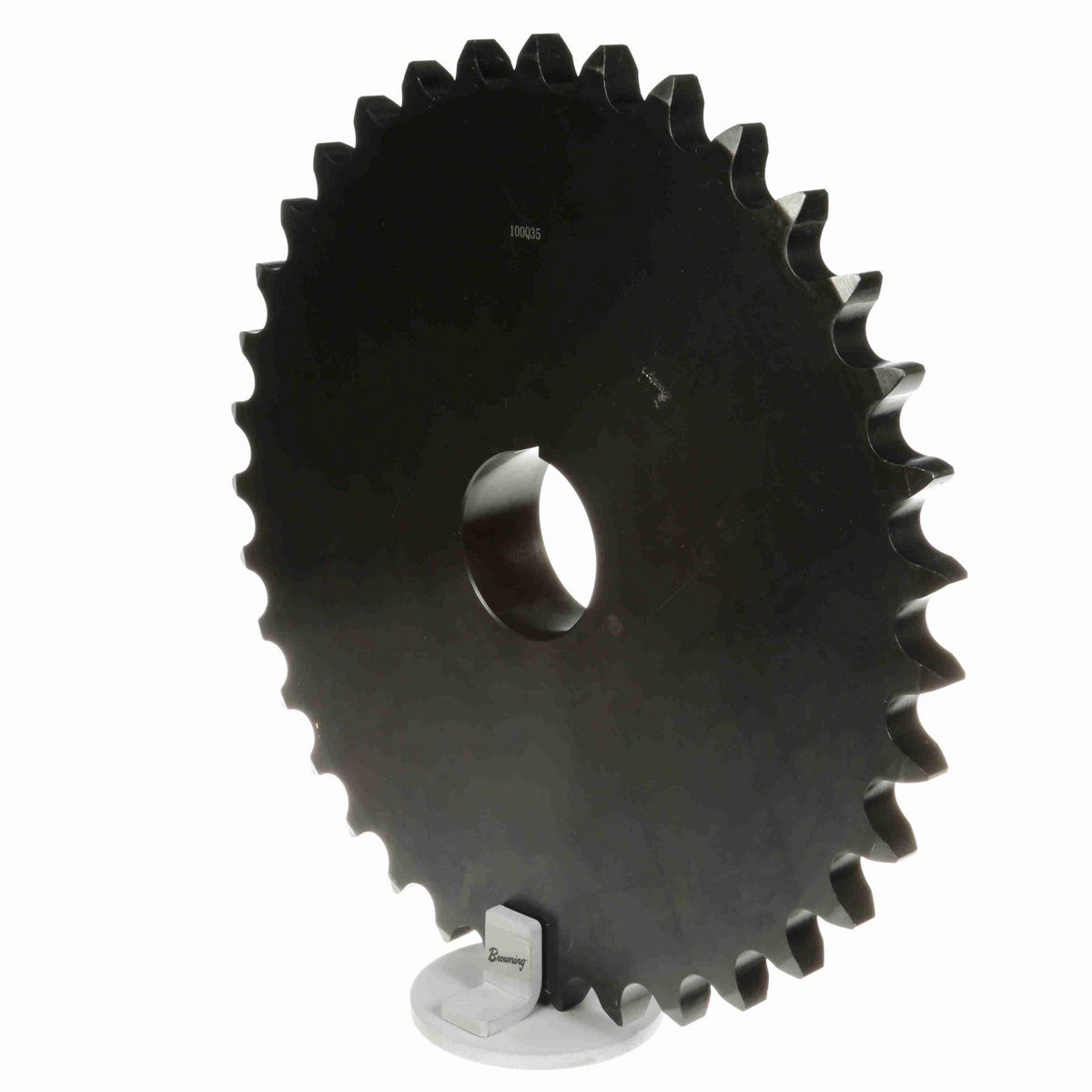

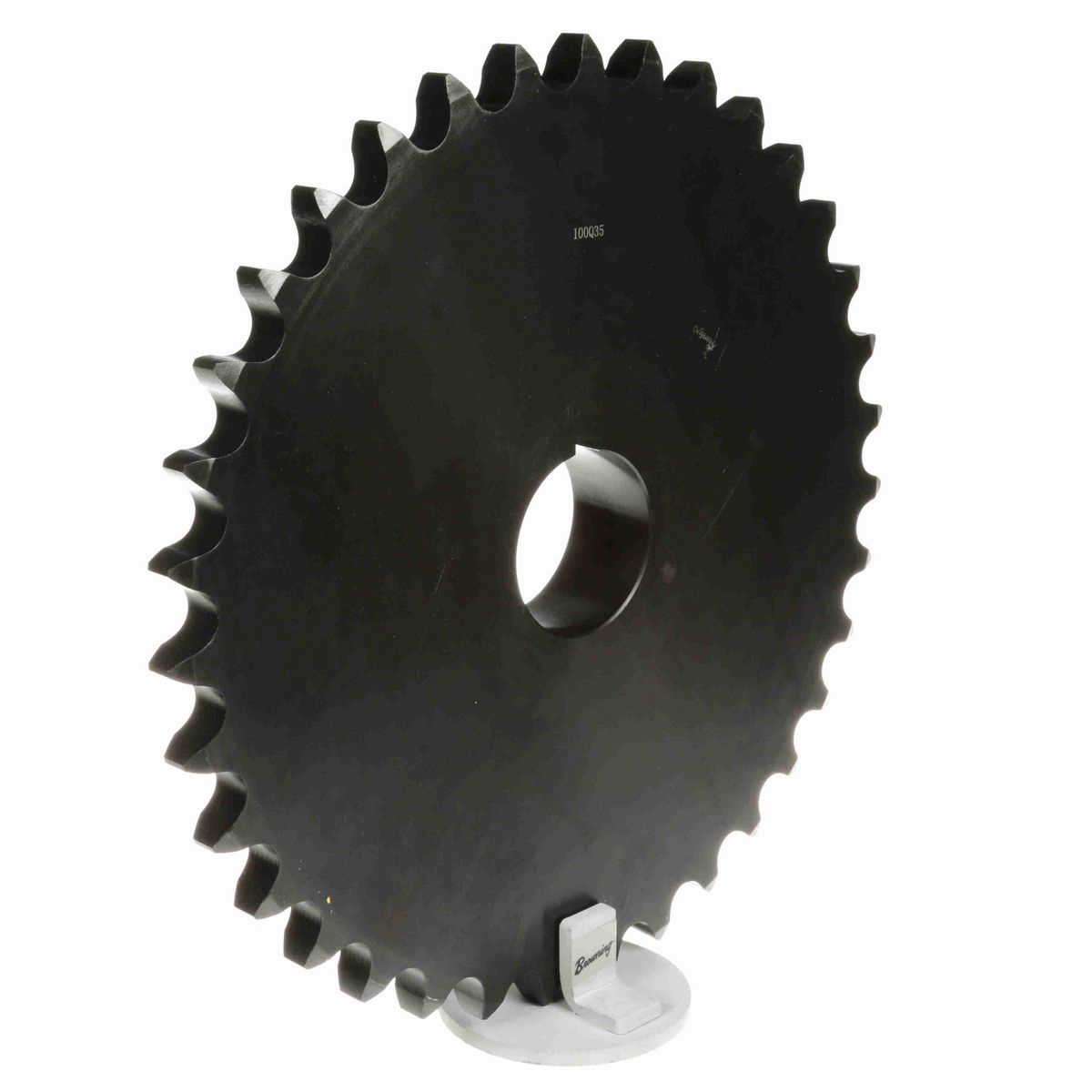

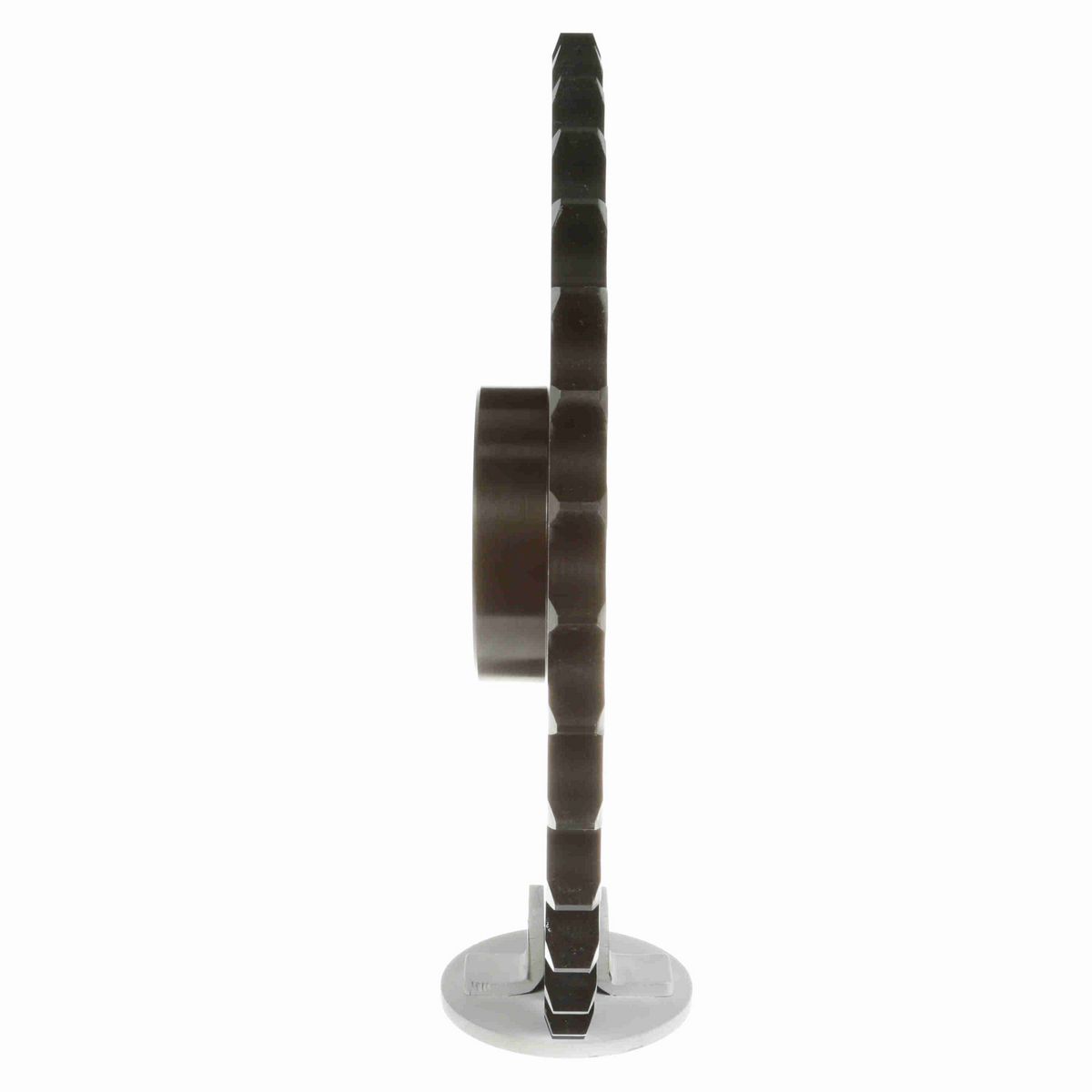

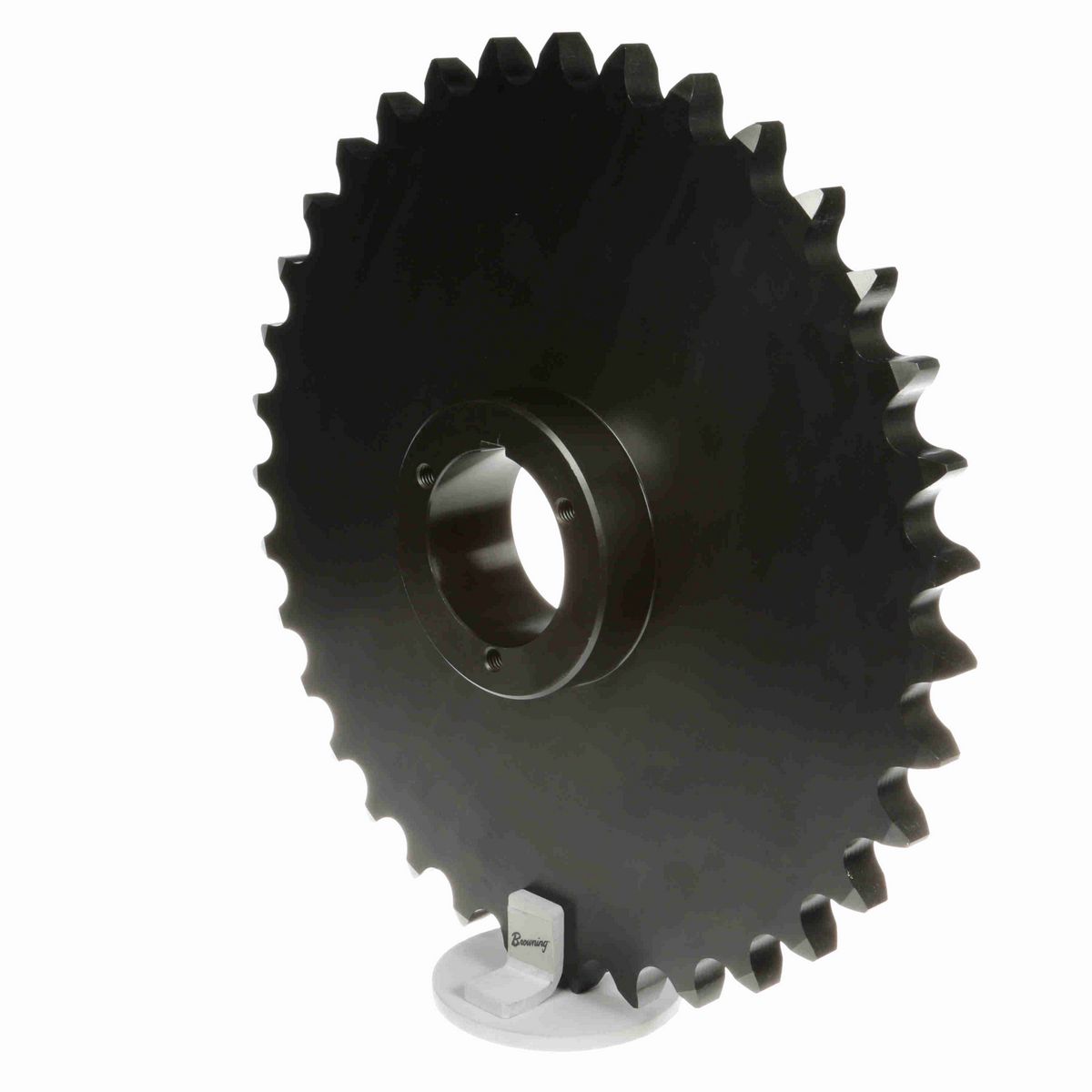

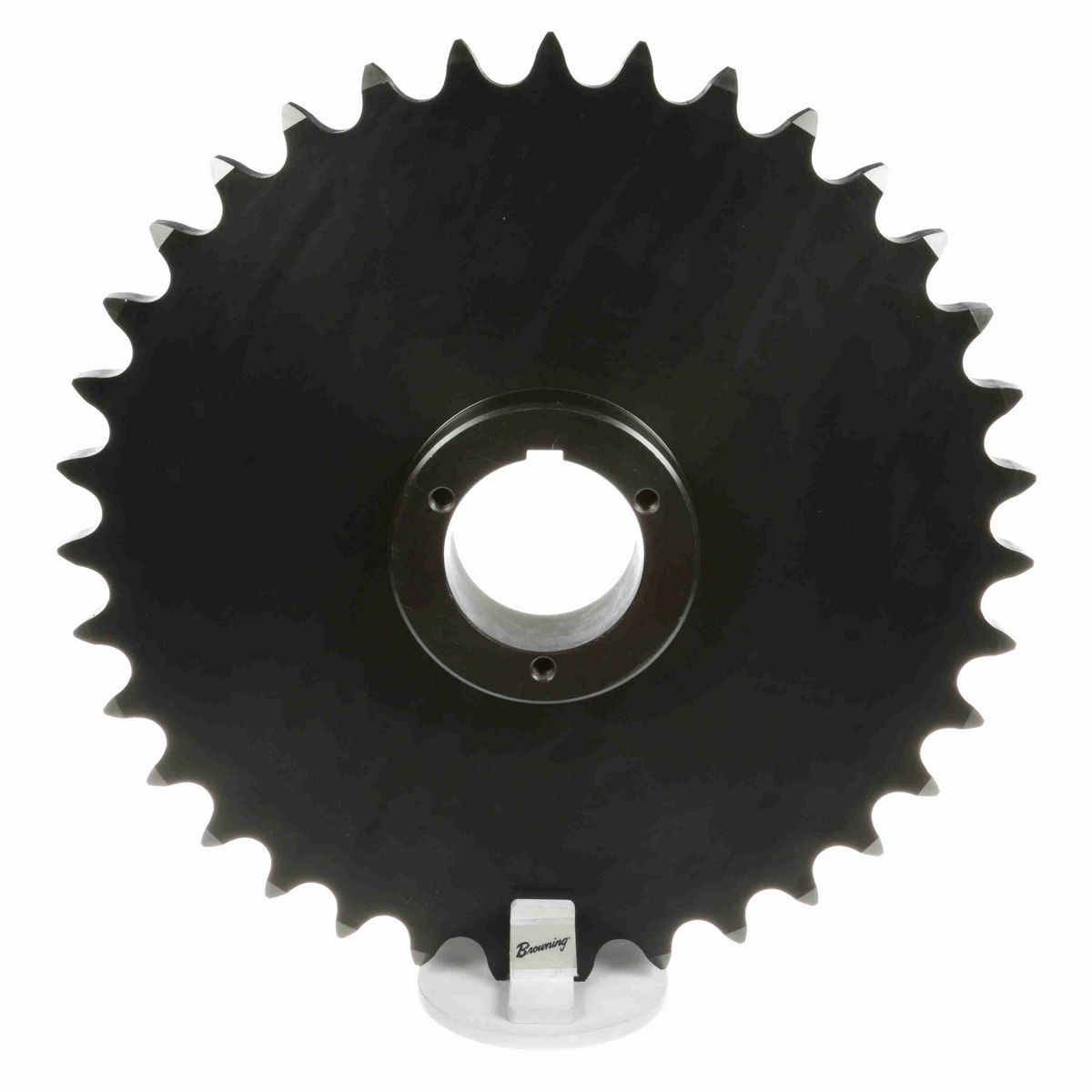

Product Type	Bushed Roller Chain Sprocket
Max Bore (in)	2.6875 in
Chain Used	No. 100, 1-1/4 in. Pitch ANSI Chain
Number of Teeth	35
Bushing Used	Split Taper
Min Bore (in)	0.75 in
Outside Diameter (in)	14.639 in
Bore Type	Bushed Bore
Overall Length (in)	2.887375 in
Number of Strands/Width	1
Length Through Bore (in)	2.5 in
Hub Diameter (in)	4.125 in
Tooth Width (in)	0.692 in
Maximum Bore (in)	2.6875 in
Maximum Bore (mm)	65 mm
Minimum Bore (mm)	18 mm
Hardened Teeth	No
Pitch Type	Single
Number of Hubs	1
Hub Projection (in)	1.906 in
Overall Width (in)	2.828125 in

General Specifications

UPC	662289227488
Weight	30.99 LB
Packaged Length	15.30 IN
Packaged Width	14.90 IN
Packaged Height	2.70 IN
HTC	8483.90.1050
Country of Origin	China
