• When you think Sprockets - Think Browning

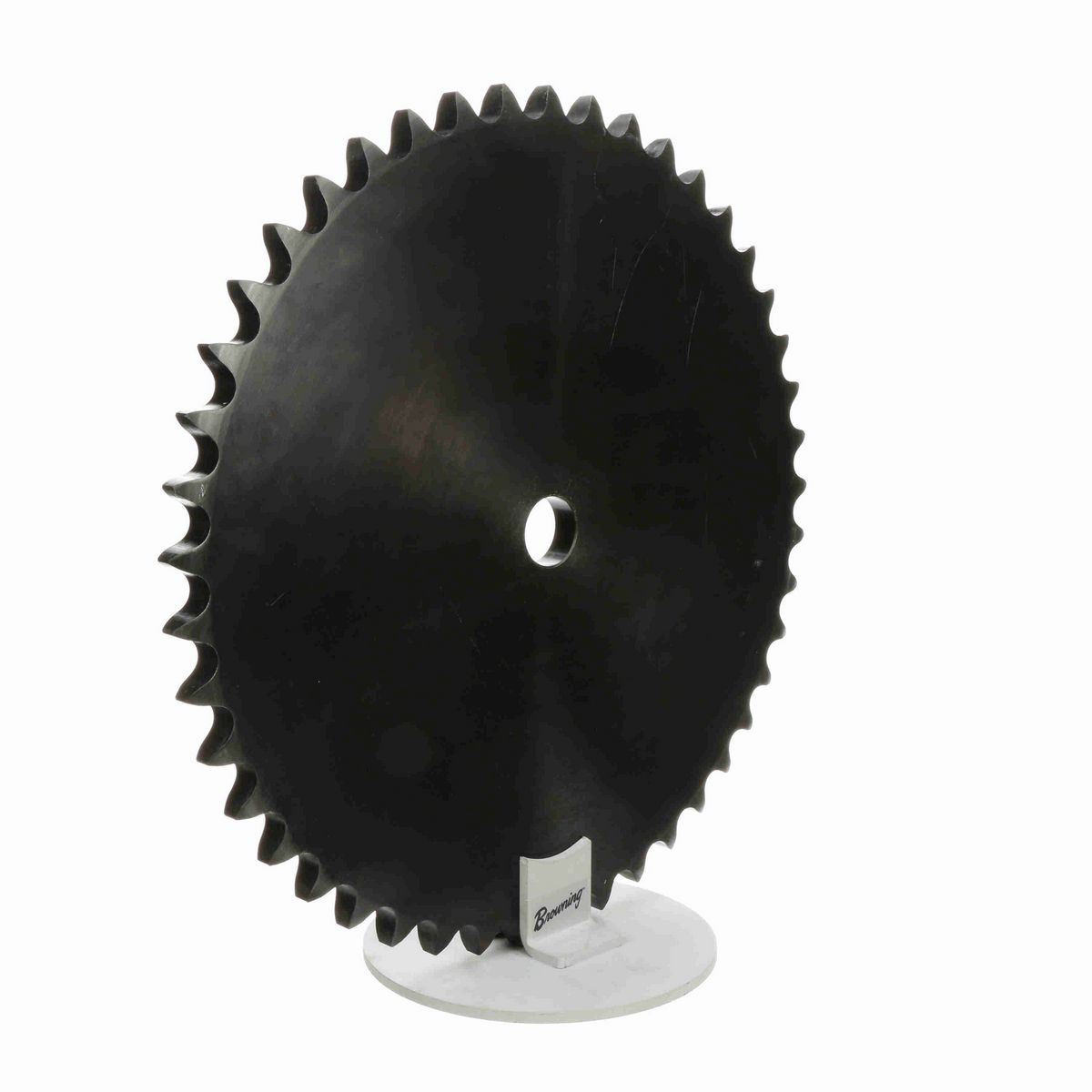

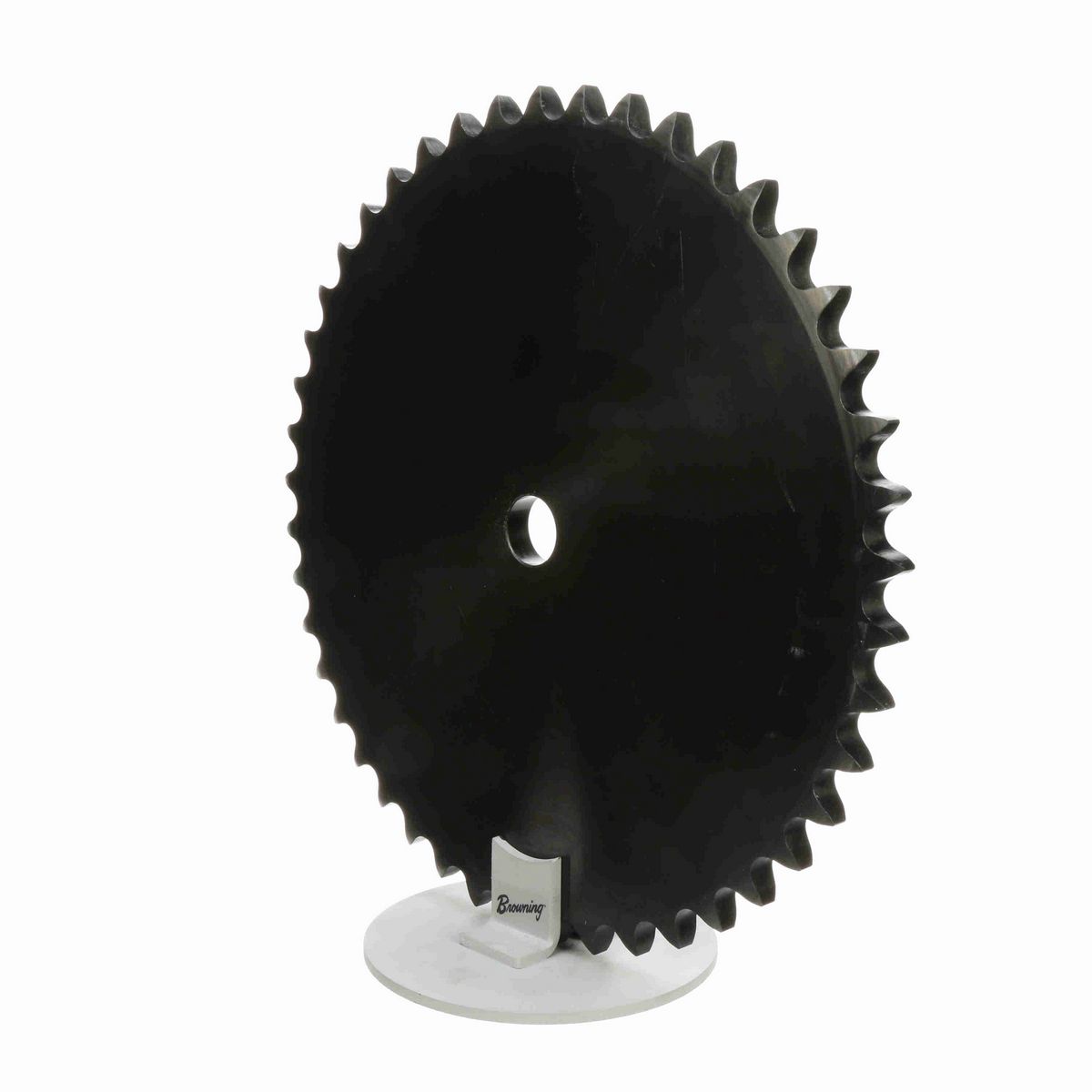

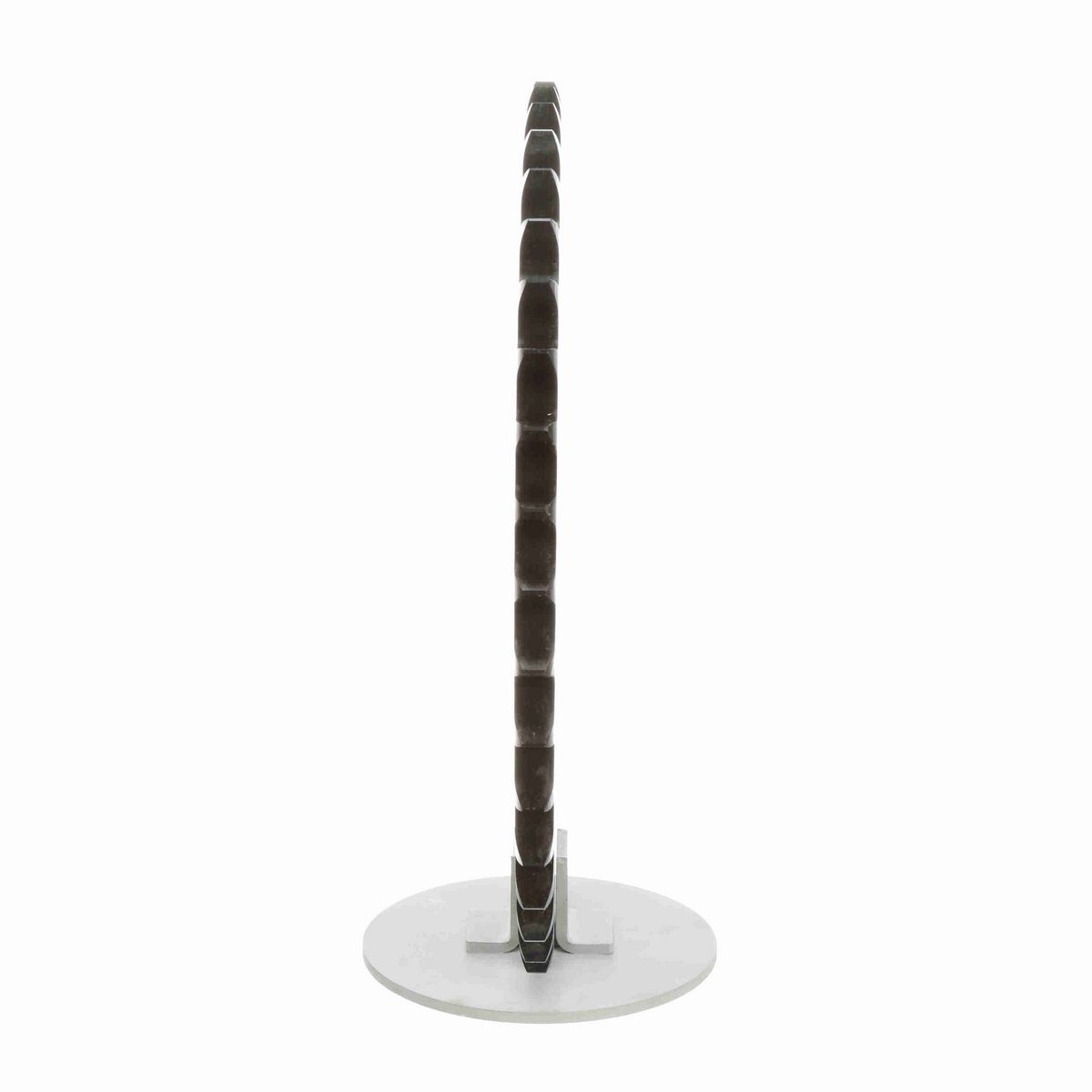

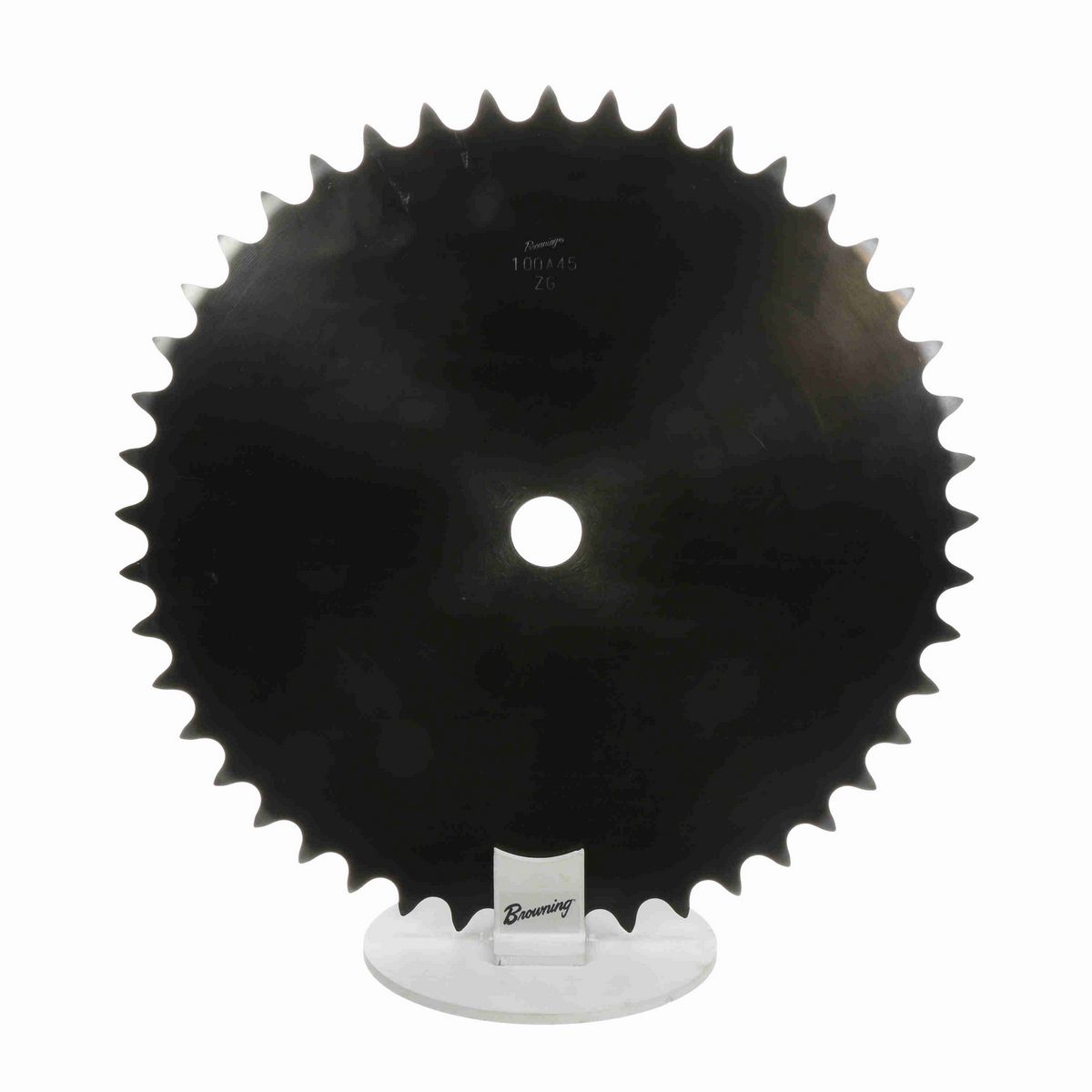

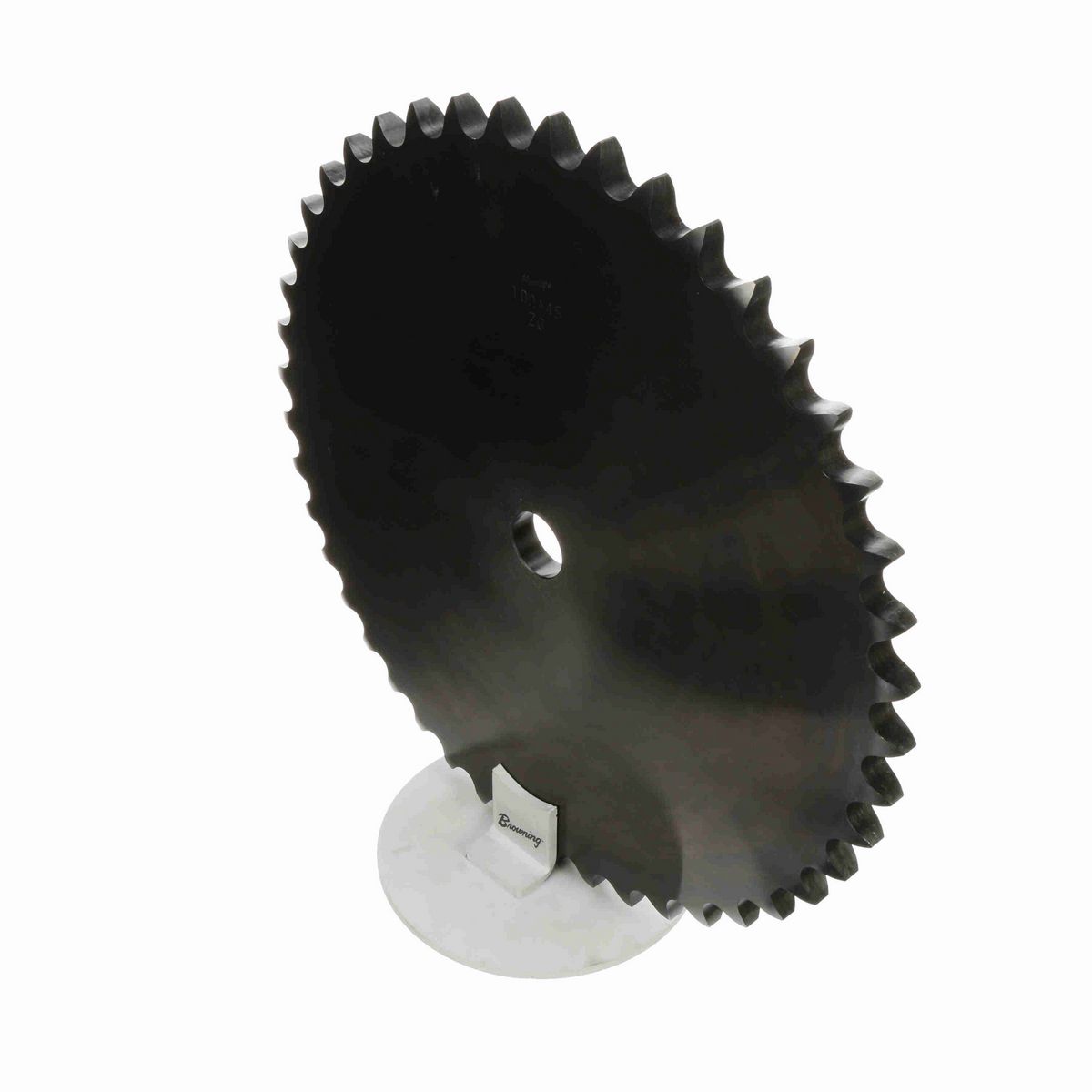

• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Material	Steel
Chain Pitch (in)	1.25 in
Number of Teeth	45
Product Type	Type "A" Plate Sprocket
Chain Used	No. 100, 1-1/4 in. Pitch ANSI Chain
Outside Diameter (in)	18.626 in
Bore Type	Minimum Plain Bore
Pitch Diameter (in)	17.919484 in
Bore Diameter (in)	1.5 in
Number of Strands/Width	1
Length Through Bore (in)	0.692 in
Hub Type	Type A
Maximum Bore (in)	4 in
Minimum Bore (mm)	26 mm
Maximum Bore (mm)	101 mm
Number of Hubs	0
Hardened Teeth	Non-Hardened Teeth

General Specifications

UPC	662289193073
Weight	44.50 LB
Packaged Length	0.69 IN
Packaged Width	18.63 IN
Packaged Height	18.63 IN
HTC	8483.90.1050
Country of Origin	China
