• When you think Sprockets - Think Browning

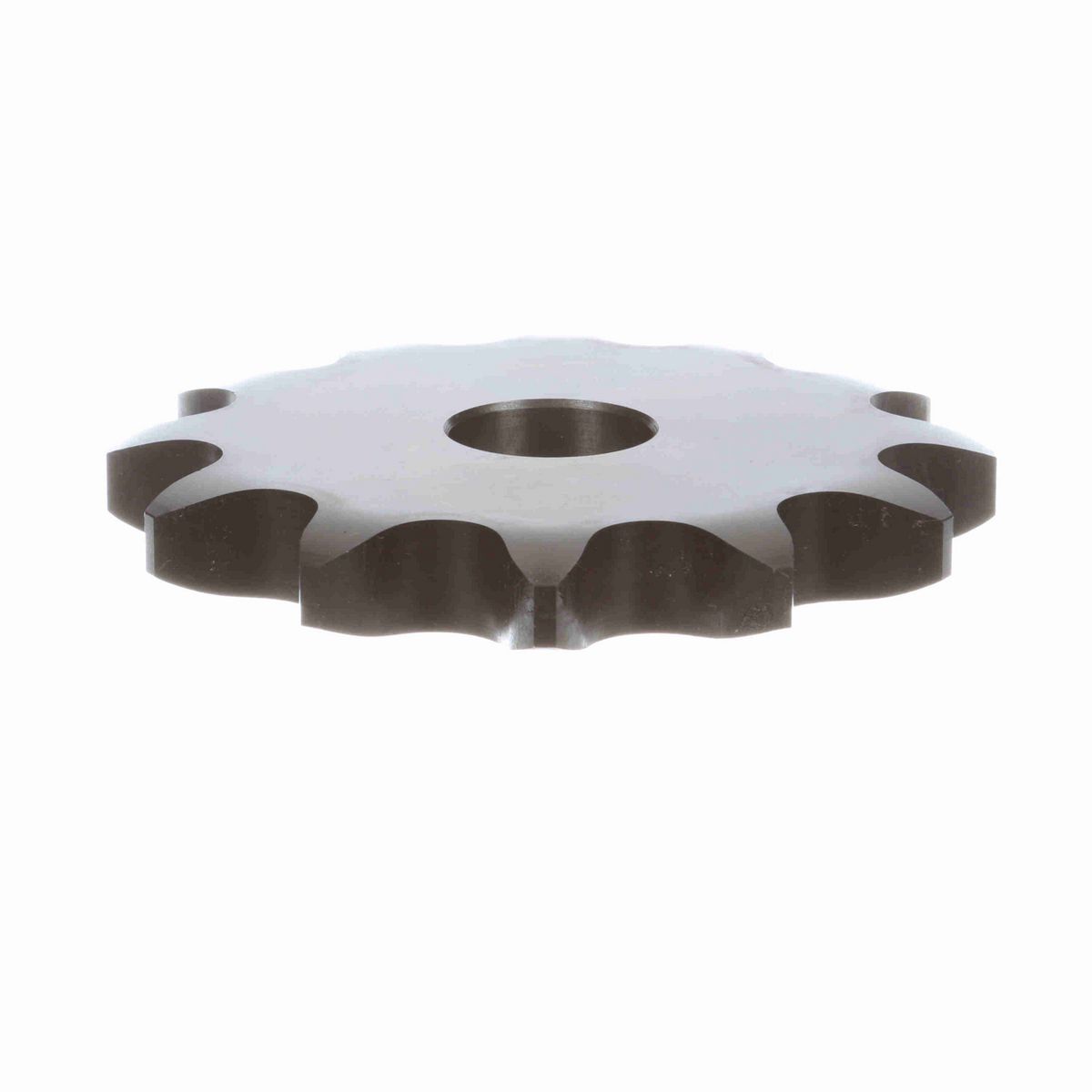

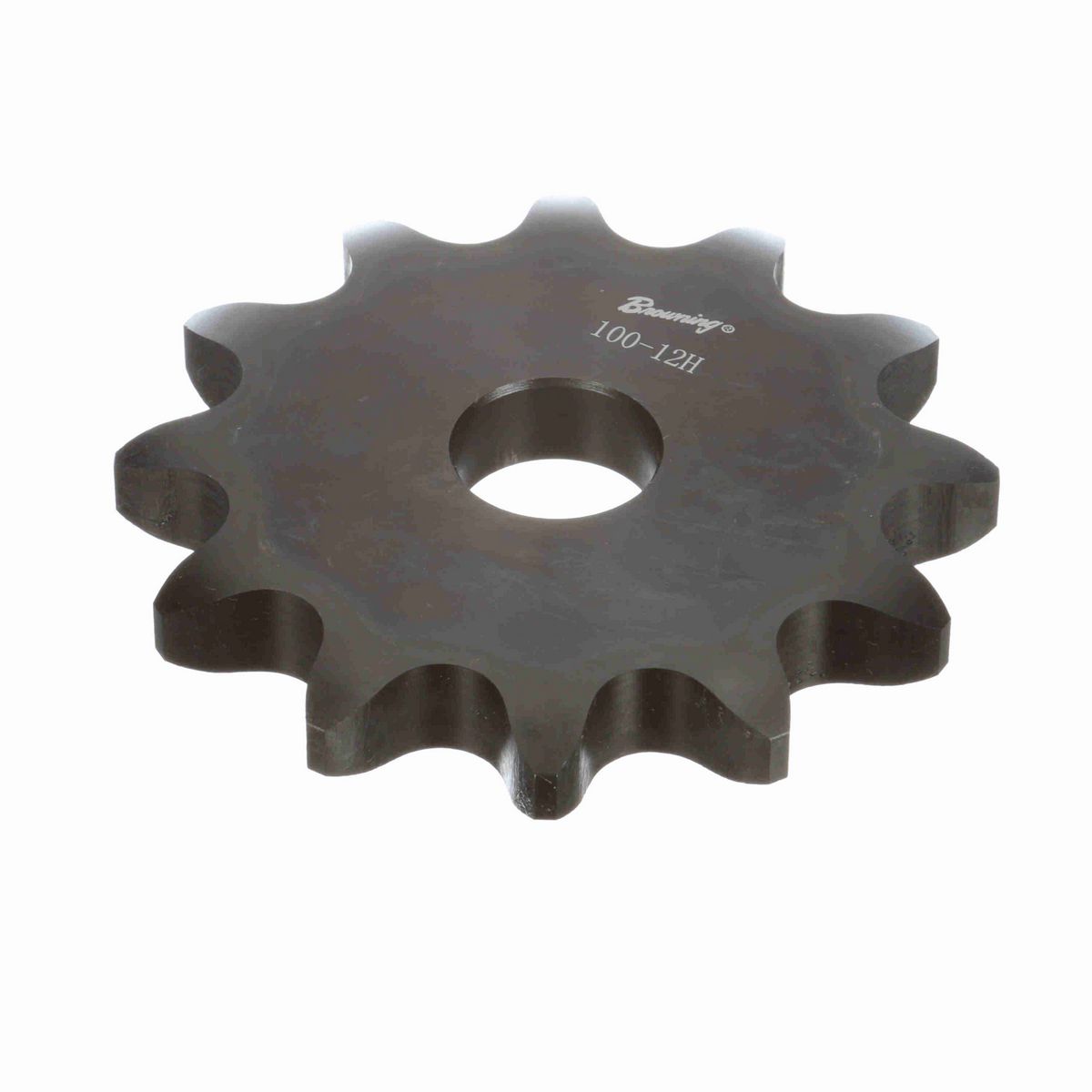

• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Number of Teeth	12
Product Type	Type "A" Plate Sprocket
Chain Pitch (in)	1.25 in
Material	Steel
Chain Used	No. 100, 1-1/4 in. Pitch ANSI Chain
Bore Type	Minimum Plain Bore
Sprocket Material	Steel, Hardened Teeth
Hub Type	Type A
Outside Diameter (in)	5.415 in
Tooth Width (in)	0.692 in
Overall Length (in)	0.692 in
Length Through Bore (in)	0.692 in
Chain Number	No. 100, 1-1/4 in. Pitch ANSI Chain
Pitch Diameter (in)	4.829629 in
Bore Diameter (in)	1.25 in
Number of Strands/Width	1
Maximum Bore (in)	2.375 in
Minimum Bore (mm)	26 mm
Maximum Bore (mm)	60 mm
Hardened Teeth	With Hardened Teeth
Number of Hubs	0

General Specifications

UPC	662289222780
Weight	2.80 LB
Packaged Length	9.25 IN
Packaged Width	9.25 IN
Packaged Height	3.75 IN
HTC	8483.90.1050
Country of Origin	China
