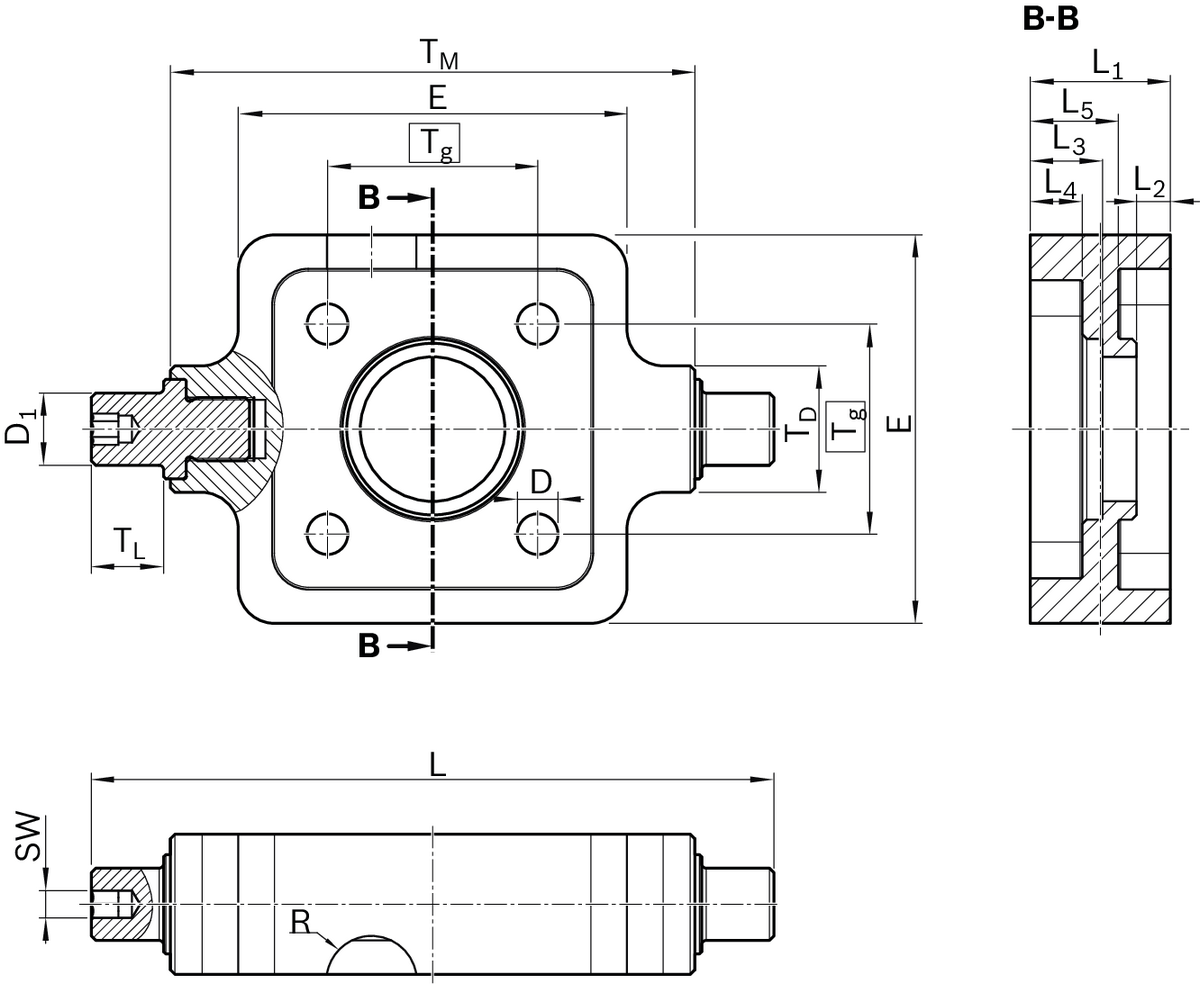

Цапфа для основания Bosch Rexroth EMC100 BG [R15616B013]

Fastening elements for electromechanical cylinders

Trunnion

Nominal size [mm]

100

Weight [kg]

2.9

Surface finishing

galvanized

Material of electromechanical cylinders

Steel

Dimension D H13 [mm]

11

Dimension D1 h7 [mm]

25

Dimension E [mm]

125

Dimension E tolerance [mm]

±0.5

Dimension L

233

Dimension L1

38

Dimension L1 tolerance [mm]

±0.5

Dimension L2 [mm]

7.5

Dimension L2 tolerance [mm]

±0.2

Dimension L3 [mm]

16.5

Dimension L3 tolerance [mm]

±0.2

Dimension L4 [mm]

11.5

Dimension L4 tolerance [mm]

±0.5

Dimension L5 [mm]

26.5

Dimension L5 tolerance [mm]

±0.5

Dimension R [mm]

10

Dimension SW [mm]

12

Dimension TD [mm]

38

Dimension TD tolerance [mm]

±0.5

Dimension Tg [mm]

89

Dimension TL [mm]

25

Dimension TL tolerance [mm]

±0.2

Dimension TM [mm]

180

Dimension TM tolerance [mm]

±0.3
