Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDRC2-20-WV-500 [R072032080]

Shaft diameter d [mm]

20

Version

Standard

Format of linear bushings

– Closed

Series

Torque-resistant compact

Seal

without wiper seals

Raceway grooves

2

Dynamic load capacity C [N]

1550

Note: dynamic load capacity C

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Dynamic torsional moment load capacity Mt [Nm]

12

Length of linear bushing [mm]

45

Outer diameter D [mm]

32

Mass m (kg/m) [kg/m]

2.45

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

1.32

Static load capacity C0 [N]

1050

Note: static load capacity C0

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Type

Linear bushing

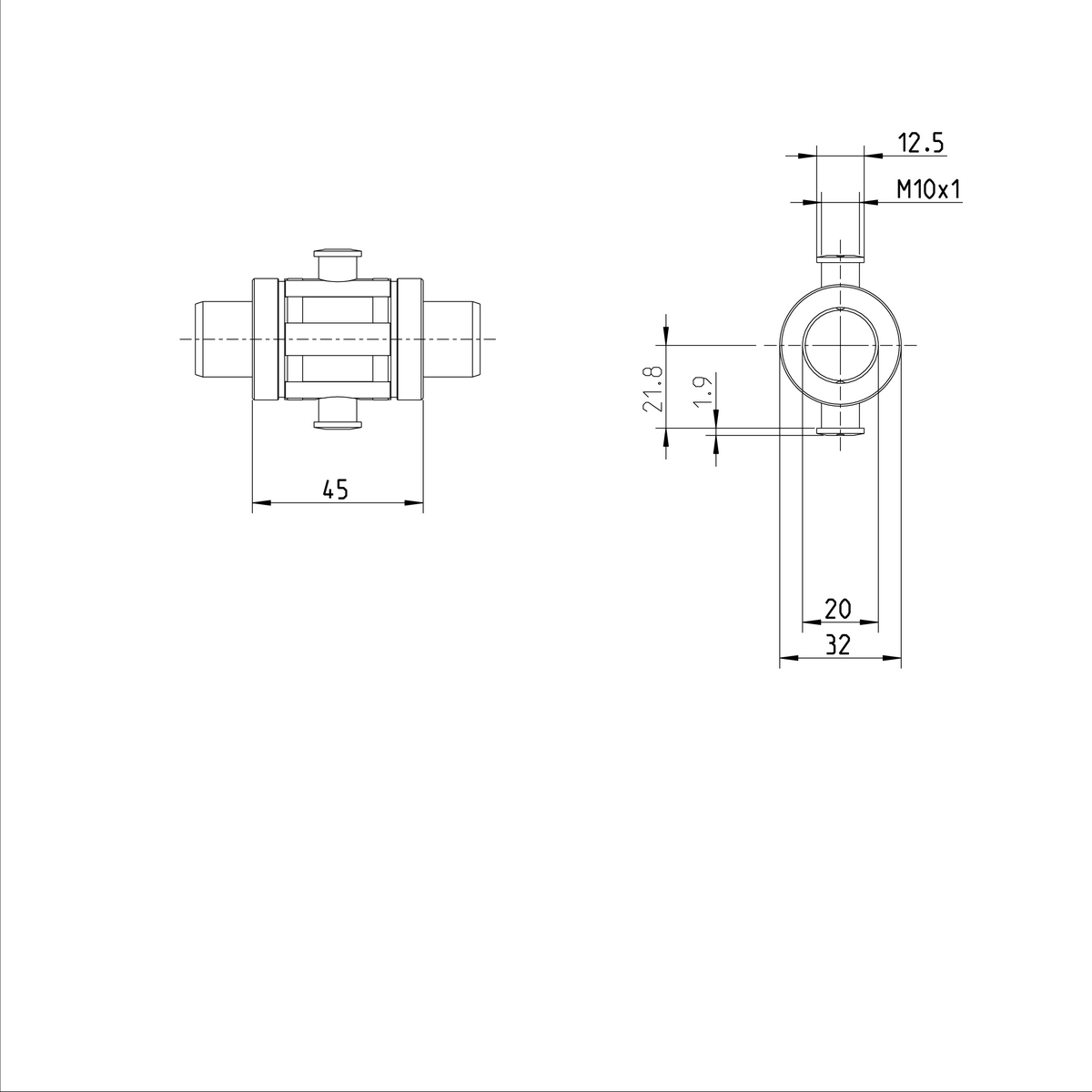

Dimension B (profiled rail systems) [mm]

45

Dimension D [mm]

32

Dimension M1 [mm]

12.5

Dimension N1 (profiled rail systems) [mm]

21.8

Dimension N2 (profiled rail systems) [mm]

1.9

Standard length l of the shaft footnote [mm]

R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm

Standard length l of the shaft [mm]

500
