Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR4-H-10DD [R072421000]

Shaft diameter d [mm]

10

Version

Standard

Format of linear bushings

H - Sleeve design

Series

Torque

Seal

2 integrated wiper seals

Raceway grooves

4

Lubrication

Not lubricated

Dynamic load capacity C [N]

2170

Note: dynamic load capacity C

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Dynamic torsional moment load capacity Mt [Nm]

3.5

Length of linear bushing [mm]

33

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

0.06

Footnote diameter d

Actual shaft diameter varies

Static load capacity C0 [N]

5070

Note: static load capacity C0

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Static torsional moment load capacity Mt0 [Nm]

8.2

Type

Linear bushing

Shaft diameter, detailed [mm]

10

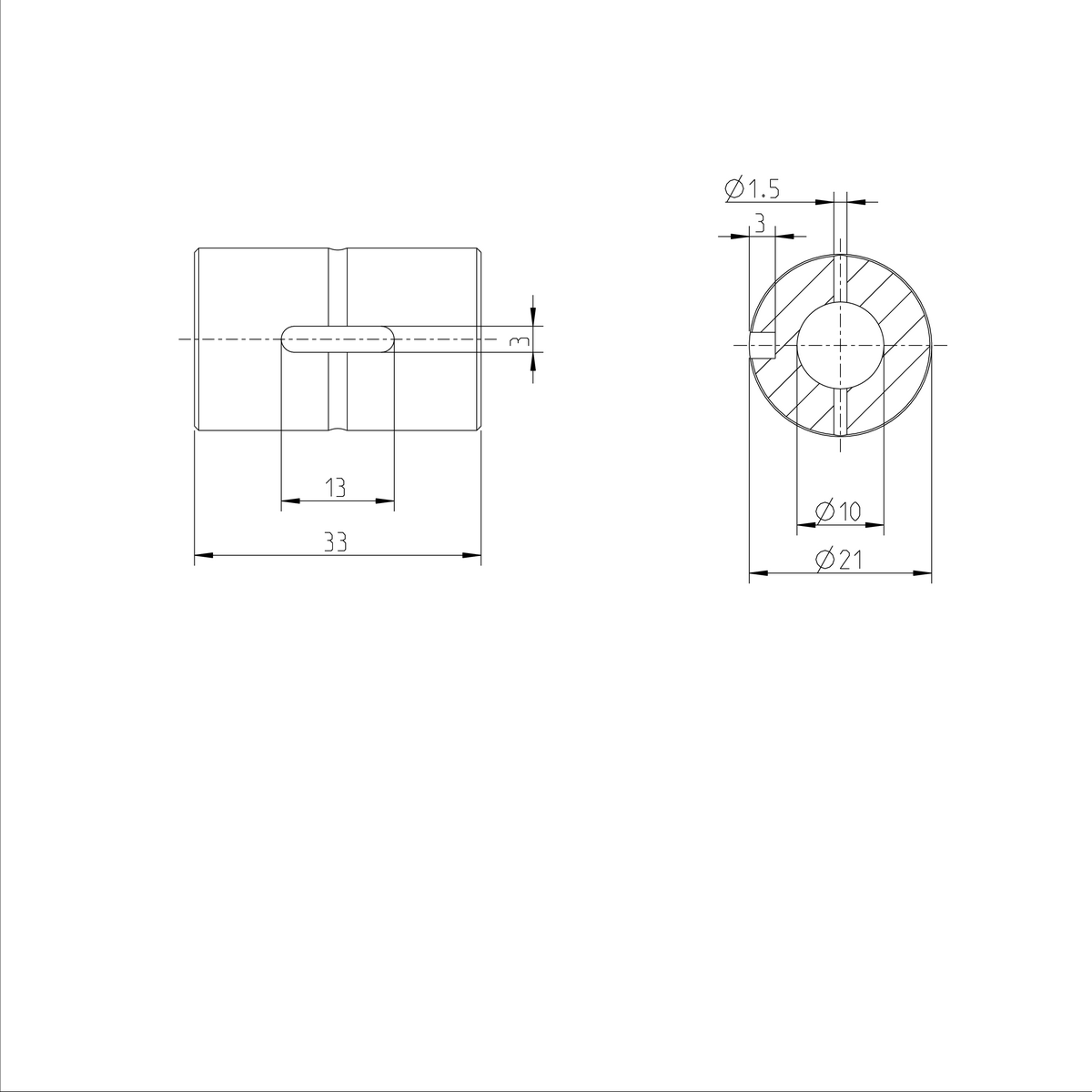

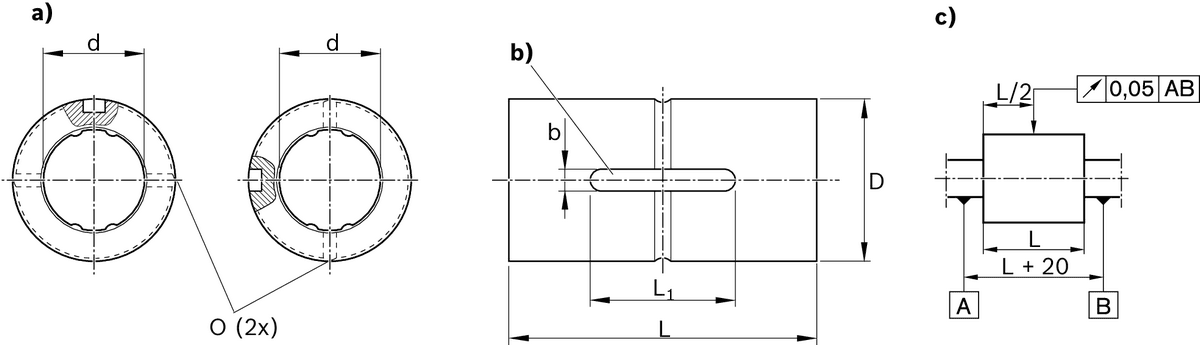

Dimension b [mm]

3

Dimension D [mm]

21

Dimension D h6 [mm]

21

Dimension L

33

Dimension L tolerance [mm]

-0.2

Dimension L1

13

Dimension t [mm]

1.5

Dimension t1 [mm]

3
