Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR4-FM-6DD [R072620600]

Shaft diameter d [mm]

6

Version

Standard

Format of linear bushings

FM - Miniature flanged version

Series

Torque

Seal

2 integrated wiper seals

Raceway grooves

4

Lubrication

Not lubricated

Dynamic load capacity C [N]

970

Note: dynamic load capacity C

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Dynamic torsional moment load capacity Mt [Nm]

1.2

Length of linear bushing [mm]

25

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

0.04

Footnote diameter d

Actual shaft diameter varies

Static load capacity C0 [N]

2280

Note: static load capacity C0

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Static torsional moment load capacity Mt0 [Nm]

2.4

Type

Linear bushing

Shaft diameter, detailed [mm]

6

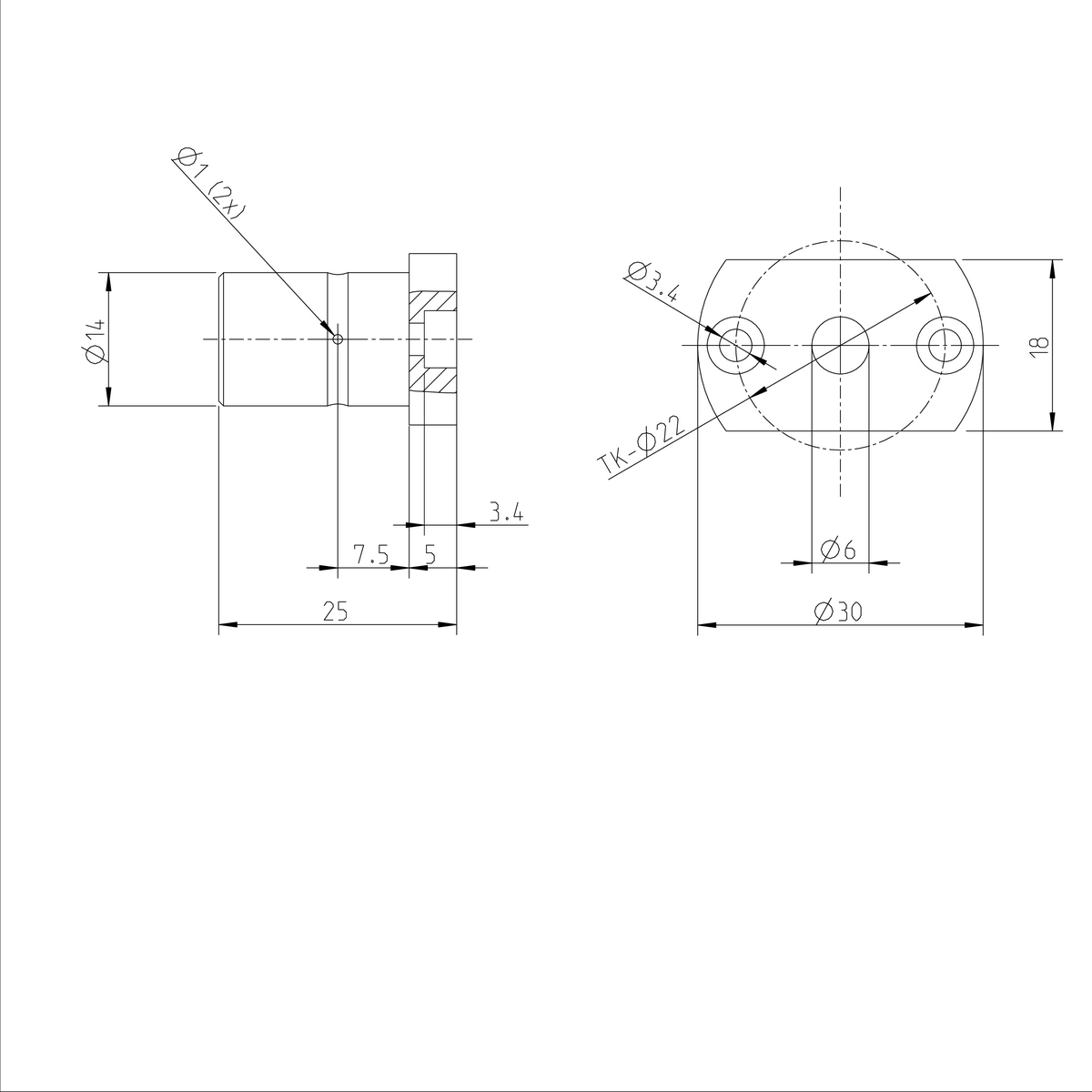

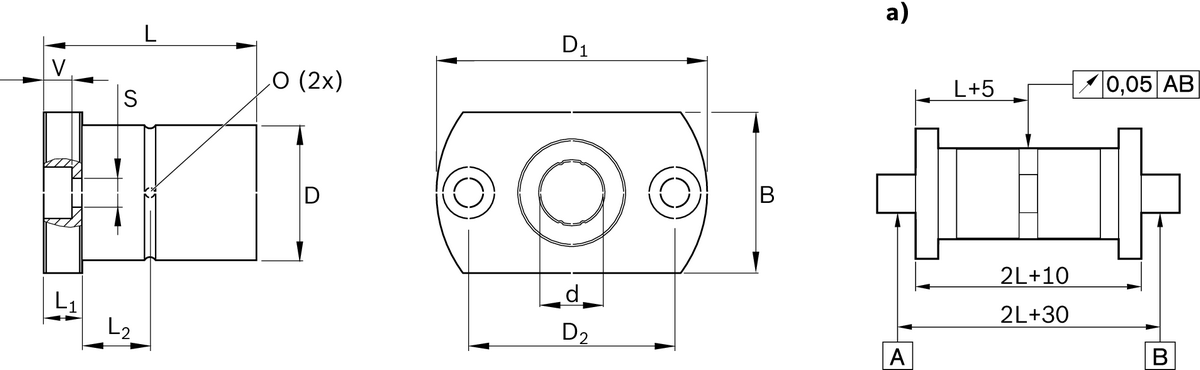

Dimension B (profiled rail systems) [mm]

18

Dimension D [mm]

14

Dimension D1 [mm]

30

Dimension D h6 [mm]

14

Dimension D2 [mm]

22

Dimension L

25

Dimension L tolerance [mm]

-0.2

Dimension L1

5

Dimension L2 [mm]

7.5

Dimension S [mm]

3.4

Dimension V [mm]

3.3
