Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR1-20-WV-K [R069602089]

Shaft diameter d [mm]

20

Version

Standard

Format of linear bushings

– Closed

Series

Torque

Seal

without wiper seals

Raceway grooves

1

Lubrication

Not lubricated

Dynamic load capacity C [N]

1550

Note: dynamic load capacity C

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Dynamic torsional moment load capacity Mt [Nm]

7.5

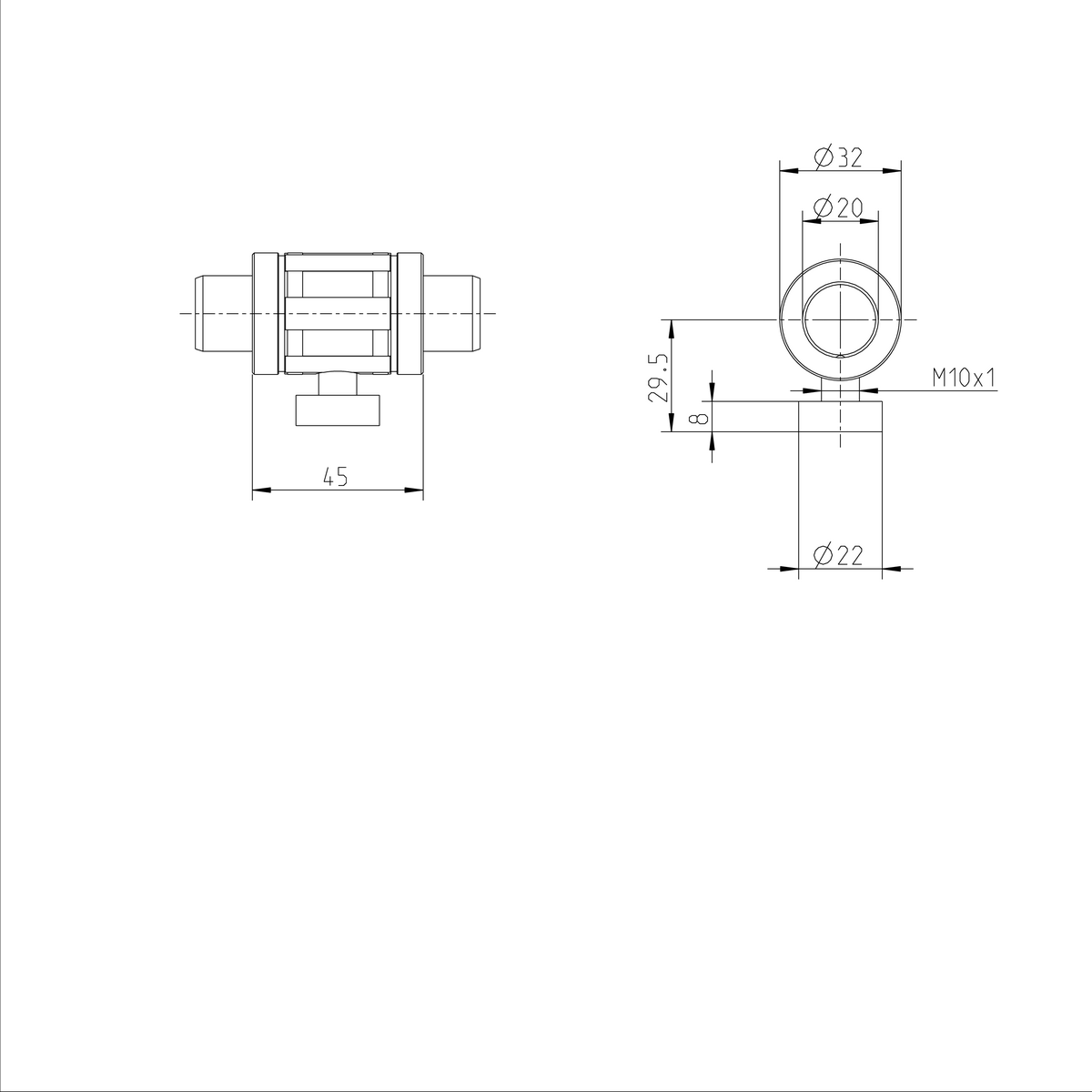

Length of linear bushing [mm]

45

Outer diameter D [mm]

32

Mass m (kg/m) [kg/m]

2.45

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

0

Static load capacity C0 [N]

1050

Note: static load capacity C0

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Type

Linear bushing

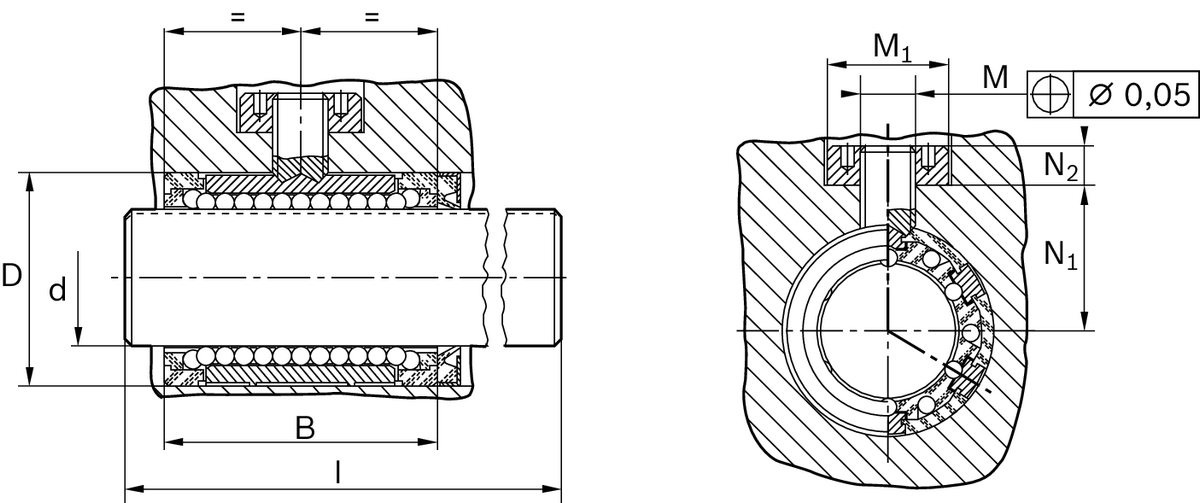

Dimension B (profiled rail systems) [mm]

45

Dimension D [mm]

32

Dimension M1 [mm]

22

Dimension N1 (profiled rail systems) [mm]

21.5

Dimension N2 (profiled rail systems) [mm]

8
