QUICK FLEX Standard Hubs with Keyway - Inch (Imperial) Bores Timken 88345043692

QUICK FLEX Standard Hubs with Keyway - Inch (Imperial) Bores Timken 88345043692
QUICK FLEX Standard Hubs with Keyway - Inch (Imperial) Bores Timken 88345043692
(0)
Нет в наличии
TIMKEN
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

QUICK FLEX Standard Hubs with Keyway - Inch (Imperial) Bores Timken 88345043692
QUICK FLEX Standard Hubs with Keyway - Inch (Imperial) Bores Timken 88345043692
(0)
Нет в наличии
0 руб.
В корзину
Описание Отзывы Доставка

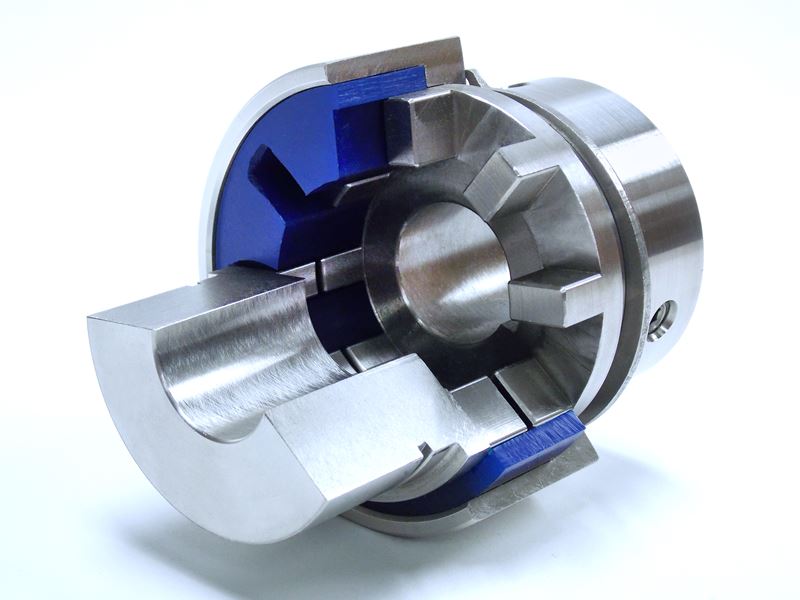

QUICK FLEX couplings consist of two hubs, one insert, and a cover.

Notes

DisclaimerLovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.

Specifications

DescriptionQF25X1-7/16U
Coupling TypeQUICK FLEX
MaterialAISI 1018
ColorMetallic

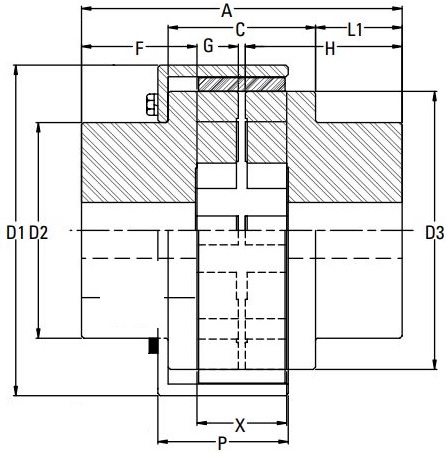

Dimensional Data

Bore Size1-7/16 in
Coupling Size25
Keyway Size (W x D)3/8x3/16 in
Length thru Bore1.81 in
Max. Bore2 1/8 in
Dimension D23.190 in
Dimension L11.42 in

Spider Performance

Spider PerformanceQUICK FLEX flexible urethane coupling inserts are resistant to most chemicals and available in four materials for varying temperature and torque needs: QUICK FLEX red insert (standard) The standard QUICK FLEX red insert is made from a relatively soft urethane compound. This insert is well suited for a wide range of applications. The standard insert excels in vibration dampening and cushioning of shock loads and is best for reversing applications or applications with quick starting and stopping of high-inertial loads. This insert offers an operational temperature range of -50° C to 100° C (-60° F to 212° F) with a 48D durometer. QUICK FLEX blue insert (high torque) The QUICK FLEX blue insert is made from a relatively stiff urethane compound. This insert is well suited for applications with moderate to high torque. QUICK FLEX couplings with the blue insert deliver high torque while maintaining a degree of torsional softness and the ability to dampen vibration. They are excellent replacements for gear, grid or chain-style couplings. This insert offers an operational temperature range of -50° C to 100° C (-60° F to 212° F) with a 60D durometer. QUICK FLEX black insert (highest torque) The QUICK FLEX black insert offers the highest torque ratings of any of our inserts. This insert is well suited for very high torque applications, and QUICK FLEX couplings with a black insert are excellent replacements for gear-style couplings. This insert offers an operational temperature range of -50° C to 100° C (-60° F to 212° F) with a 68D durometer. When using a highspeed cover, the use of a black insert is not recommended. In an application where high torque is present, use a split cover option. QUICK FLEX white insert (high temperature) The QUICK FLEX white insert is made of a heat-resistant urethane compound for use in applications where heat is a concern. This insert offers an operational temperature range of -50° C to 177° C (-60° F to 350° F) with a 60D durometer.

Features

FeaturesNo metal to metal contact
