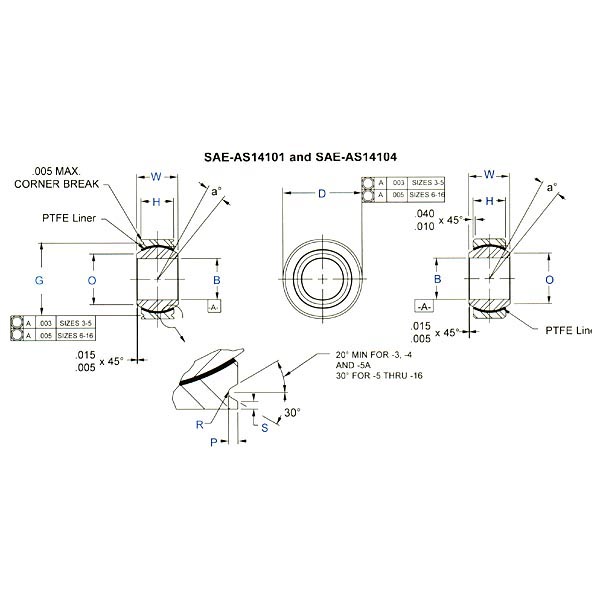

Aurora Bearing ANC-TG & ANC-T Spherical Bearings Narrow - SAE Series AS14101 and AS14104 Timken ANC-8TKD1

• Ball - 440C stainless steel per AMS 5630 - heat treated.
• Optional Ball - 13-8 Mo stainless steel per AMS 5629 - heat treated. (Specify by adding suffix "C" ex.: ATM-3TC)
• Race - 17-4 PH stainless steel per AMS 5643 - heat treated.
• Optional plating on race outside diameter can be added by adding suffix "P" for zinc nickel or cad plating or suffix "E" for zinc nickel plating (ex.: ANC-3TP/ANC-3TE)
• PTFE Liner - (AT 3200) Permanently bonded to race inside diameter, qualified to SAE-AS81820 Type A.
• Temperature Range: -65°F to + 325°F.
• "K" designates Low Torque Bearing fit. No load rotational breakaway torque can be varied to meet specific application requirements.
• Bearings can be ordered in an oversize outside diameter condition by adding suffix "D1" (.010") oversize or "D2" (.020") oversize (ex.: ANC-3TD1/ANC-3TD2)
• Bearings listed are manufactured to conform to the dimensions, materials and configurations of SAE Specifications AS14101 (grooved) and AS14104 (plain), and are approved for procurement under these specifications.

Specifications
