DI-6 Type Spacer Sub-Assemblies Timken 69790493345
(0) |
Нет в наличии
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Поделиться

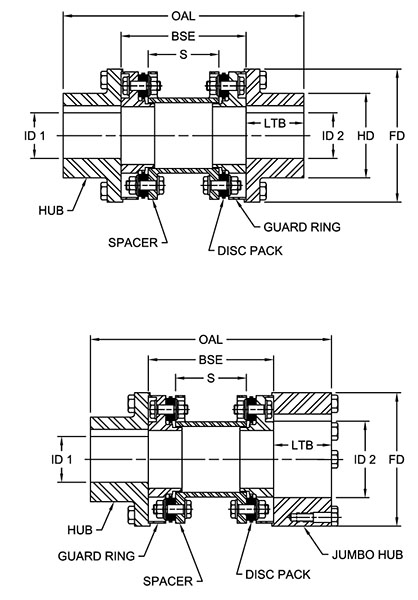

- The DI Type coupling has a “Drop-In” spacer assembly that is assembled at the factory. The coupling consists of two hubs and a spacer assembly comprising of the spacer, two unitized disc packs, and two guard rings. The disc packs are bolted to the spacer and guard rings at the factory using the torque values recommended by Lovejoy for the disc pack bolts. With the hubs mounted on the shafts, the entire disc pack assembly can be “Dropped In” place between the two hubs. The hubs are piloted to ensure proper centering of the spacer assembly. This piloting serves as an anti-flail feature and aids in the coupling’s ability to meet the balance standards mandated by API. This style coupling is designed to meet the balance and anti-flail requirements specified in API-610.
Oversized, or Jumbo, hubs are available for use with the DI Type coupling to allow for larger bore sizes on most DI coupling sizes. This allows for the use of smaller DI couplings in applications where a smaller size coupling can still accommodate the application torque.
Specifications
| Description | DI110-6-SUBASSY-BSE=3.5 |
| Hub Style | Standard |
| Type | Disc |
| Style | Spacer Assembly |
| Color | Metallic |
| Coupling Series | DI-6 |
| Coupling Type | Drop in Spacer Assembly |
| Weight | 6.38 lb |
| Weight (Complete Coupling w/ Max. Bores) | 12.00 lb |
Dimensional Data
| Height | 4.53 in |
| Between Shaft Ends | 3.50 in |
| Width | 4.53 in |
| Cubic inches | 71.82315 in³ |
Dimensional Data of Related Coupling
| Coupling Size | 110-6 |
| Length thru Bore | 1.97 in |
| Outside Diameter | 2.870 in |
| Overall Length | 7.440 in |
| Max. Bore (Dimensions ID) | 2.06 in |
| Flange Diameter (Dimension FD) | 4.53 in |
| Dimension PW | 3.500 in |
| Dimension S | 2.410 in |
| Distance between Shaft Ends (Dimension BSE) | 3.5 in |
Performance Data of Related Coupling
| Temperature | -40 to 450 ºF |
| Nominal Torque | 575.00 in·lb |
| Max. Torque | 10200 in·lb |
| Max. Speed (Unbalanced) | 7200 rpm |
| Max. Speed (Balanced) | 18000 rpm |
| Axial Misalignment (∆ Ka) | 0.083 in |
| Max. Angular Misalignment | 1.50 º |
| Torsional Stiffness x 106 | 3.4 in·lb/rad |
| Rated Power at 100 rpm | 8 hp |
Features
| Features | Designed to meet the API 610 Standard |
