Grid Coupling Hub w/ Keyway & Puller Hole Timken 69790405566
(0) |
Нет в наличии
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Поделиться
- Lovejoy is pleased to be able to provide quality grid couplings covering a large number of industry standard sizes and lengths. The Lovejoy grid style coupling has proven itself in performance and popularity over a wide range of applications.
Lovejoy’s grid style coupling design has demonstrated its ability to dampen vibration by as much as 30% and can cushion shock loads that could cause damage to both the driving and driven equipment. The tapered grid spring design absorbs impact energy by spreading the energy out over the full length of the grid spring thus reducing the magnitude of the torque spikes.
The Lovejoy design uses a curved hub tooth profile which creates a progressive contact with the flexible grid spring as the application torque increases. This feature provides a more effective and efficient transmission of power in properly aligned couplings.
Lovejoy’s versatile design of industry standard hubs and grid springs for both horizontal and vertical cover styles allow Lovejoy couplings to be interchangeable with other industry standard grid couplings and components.
Proper grid coupling installation and maintenance can add to a longer coupling life. Grid spring replacement is simple and can be performed at a fraction of the cost and time of a complete coupling.
- The Lovejoy Grid coupling is an ideal coupling for applications where excellent performance is desired and additional requirements for vibration dampening may exist. The Horizontal Split Cover design is recommended in applications where there may be some constraints on the diameter of the coupling. The vertical design is recommended for applications where higher speed is one of the requirements.
- Designed for ease of maintenance and grid spring replacement
- High tensile grid springs ensure superior coupling performance and longer coupling life
- Split covers allow for easy access to grid springs
- Interchangeable with industry standard grid couplings
Notes
| Disclaimer | Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details. |
| Notes | Size 1020 thru 1090 hubs are provided with clearance fit bores and 2 set screws at 90°. |
Specifications
| Description | 1140-HUB-5.4960/5.4975-1-1/4X5/8KW |
| Type | Grid Coupling |
| Hub Material | 1045 Steel |
| Style | Bored |
| Color | Gray/Metallic |
| Bore Type | Finished Bore and Keyway |
| Weight | 135.00 lb |

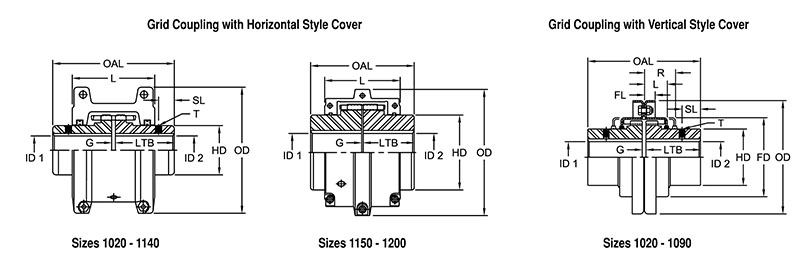

Dimensional Data
| Bore Size | 5 1/2 in |
| Set Screw Style Coupling Size (Dimension T) | No Setscrew |
| Keyway Size (W x D) | 1 1/4 x 5/8 in |
| Length thru Bore | 7.250 in |
| Overall Length | 14.630 in |
| Outside Diameter (Horiontal Style Cover) | 15.120 in |
| Outside Diameter (Vertical Style Cover) | 16.380 in |
| Min. Bore (Dimensions ID1/ID2) | 2.625 in |
| Max. Bore (Dimensions ID1/ID2) | 7.250 in |
| Dimension FD | 12.630 in |
| Dimension FL | 0.820 in |
| Dimension HD | 10.000 in |
| Dimension G1 | 0.236 in |
| Dimension L (Horizontal Style Cover) | 7.910 in |
| Dimension L (Vertical Style Cover) | 3.130 in |
| Dimension R | 6.130 in |
| Distance between Shaft Ends (Dimension G) - Normal Gap | 0.236 in |
| Cubic inches | 725.00000 in³ |
Performance Data
| Nominal Torque | 253000.00 in·lb |
| Max. Speed (Horizontal Style Cover) | 1650.00 rpm |
| Max. Speed (Vertical Style Cover) | 2200.00 rpm |
| Max. Parallel Misalignment at Installation (Dimension P) | 0.0110 in |
| Max. Parallel Misalignment during Operation (Dimension P) | 0.022 in |
| Max. Angular Misalignment at Installation (X-Y) | 0.013 in |
| Max. Angular Misalignment during Operation (X-Y) | 0.053 in |
Coupling Part Numbers
| Lovejoy® Grid Coupling Size | 1140 |
| Falk™ Steelflex® Horizontal Cover Style Coupling Part Number | 1140T10 |
| Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number | GF2140H |
| Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number | 1140T10 |
| Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number | 1140H |
| Falk™ Steelflex® Vertical Cover Style Coupling Part Number | 1140T20 |
| Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number | GF2140V |
| Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number | 1140T20 |
| Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number | 1140V |
Features
| Features | High tensile, shot-peened alloy steel grid springs and precision machined hubs ensure superior coupling performance and long life. |
