GS Series Elastomeric Spiders Timken 68514467248
(0) |
Нет в наличии
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Поделиться
Measurement and Control Systems
- The torsional stiffness of the GS Series coupling provides zero backlashes needed for the accuracy for measurement and control systems. The low torques of these applications give the GS Series the ability to provide zero backlashes due to the elastomeric pre-stress.
- The GS Series provides a zero backlash, flexible connection for servo and positioning drives. An added benefit of the GS Series is its damping capabilities.
For applications that have vibrations at critical speeds, the GS Series coupling can provide a zero backlash solution for vibration problems.
- The GS Series coupling is used in main spindle drives for machine tools. Torque spikes and cyclical loading are handled by the GS Series by damping or by shifting the vibratory frequency range to a non-critical speed range.
The GS Series spider features a straight center of the spider tooth, providing higher stiffness due to coupling prestress. The crowning of the ends of the spider legs allows for misalignment, while the curved jaws and solid spider center provide high-speed capability.The jaws of the hubs and the spider legs are chamfered to provide easy assembly. The GS Series coupling design also allows the blind assembly in tight spaces. Raised spider dots on the legs of the spider ensure proper spacing of hubs and spider.
Proper installation of the coupling can provide isolation of electrical currents. Check the CL dimension listed on this page to ensure the proper spacing between spiders and hubs.
The GS Series coupling has spiders available in four different shore hardnesses. Each spider offers benefits for different vibratory, environmental, and torque transmission requirements.
Specifications
| Description | GS14-SPIDER-92A YELLOW |
| Type | Jaw |
| Spider Type | 92 Shore A |
| Material | Urethane |
| Style | Solid Center Type |
| Color | Yellow |
| Weight | 0.01 lb |
| Stock Sizes | 14 - 55 |
Dimensional Data
| Spider Size | 14 |

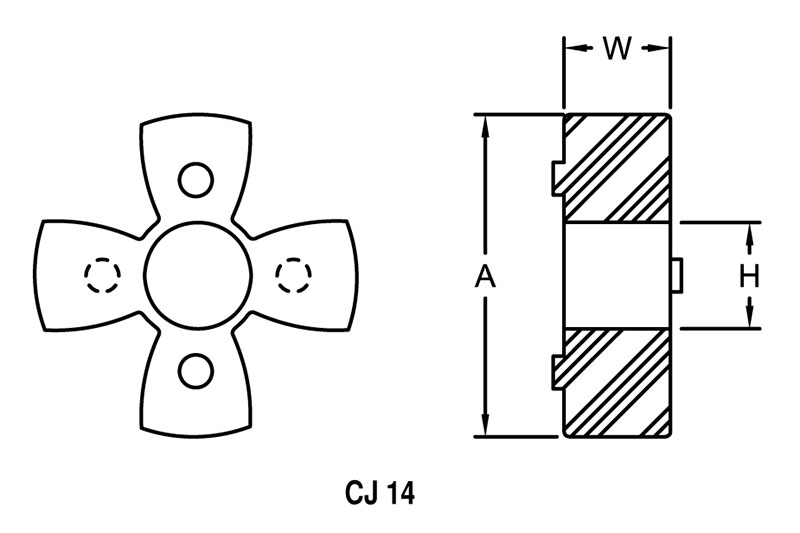

| Spider Outside Diameter (Dimension A) | 1.180 in |
| Spider Thickness (Dimension W) | 0.390 in |
| Cubic inches | 0.54304 in³ |
Dimensional Data of Related Coupling
| Set Screw Size | 8-32 |
| Set Screw Style Coupling Location Size (Dimension SL) | 0.200 in |
| Length thru Bore | 0.433 in |
| Dimension HD | 1.180 in |
| Min. Bore (Dimensions ID1/ID2) | Solid |
| Max. Bore (Dimensions ID1/ID2) | 0.625 in |
| Dimension CL | 0.060 in |
| Clamping Bolt Style Coupling Bolt Location Size (Dimension SL1) | 0.200 in |
| Dimension TH | 0.080 in |
| Clamping Bolt Style Coupling Bolt Size | M3 |
Performance Data
| Temperature | -40 to 194 ºF |
| Max. Temperature Range | -50 to 248 ºF |
| Nominal Torque | 66.40 in·lb |
| Max. Torque | 132.80 in·lb |
| Max. Speed for Clamping Style Hub | 12700.00 rpm |
| Max. Speed for Set Screw Style Hub | 15900.00 rpm |
Performance Data of Related Coupling
| Max. Speed for Locking Device Style Hub | 25400.00 rpm |
| Axial Misalignment | +0.039 -0.019 in |
| Angular Misalignment | 1.00 º |
| Radial Misalignment | 0.006 in |
| Dynamic Torsional Stiffness | 3044.00 in·lb/rad |
| Static Torsional Stiffness | 1014.00 in·lb/rad |
| Radial Stiffness | 1920.0000 in·lb |
Elastomer Characteristic
| Elastomer Characteristic | Four types of spiders are available for the CJ Series of couplings |
Misalignment Information
| Misalignment Information | The GS Series coupling handles the following types of misalignment: axial, angular, and radial. The coupling retains its zero backlash properties due to its spider design. |
Typical Applications
| Typical Applications | Electric Measuring Systems and Control Systems |
Features
| Features | Simple 3 piece jaw design |
