L Type Hubs with Keyway - Inch (Imperial) Bores Timken 68514410771
(0) |
Нет в наличии
0 руб.
- Standard L Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276).
- The L Type coupling consists of two standard L Type hubs and one spider.
- Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used.
Notes
| Disclaimer | Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details. |
| Notes | Jaw coupling hubs are standard with one set screw, for two set screws see RRS & RRC sections. |
Specifications
| Description | L090-HUB-5/8-3/16X3/32KW |
| Hub Style | 1 |
| Coupling Type | Jaw |
| Material | Sintered Iron |
| Color | Metallic |
| # of Jaws | 3 |
| Elastomeric Member | SOX (NBR) Rubber |
| Weight | 0.61 lb |
| Weight (Complete Coupling w/ Max. Bores) | 1.50 lb |
| Weight (Complete Coupling w/ Min. Bores) | 1.20 lb |

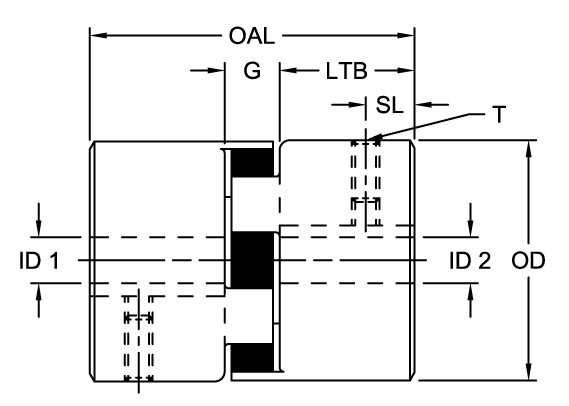

Dimensional Data
| Bore Size | 5/8 in |
| Coupling Size | L090 |
| Keyway Size (W x D) | 3/16 x 3/32 in |
| Length thru Bore | 0.82 in |
| Overall Length | 2.150 in |
| Outside Diameter | 2.11 in |
| Min. Bore (Dimensions ID1/ID2) | 0.250 in |
| Max. Bore (Dimensions ID1/ID2) | 1.000 in |
| Hub Length | 1.32 in |
| Dimension G | 0.52 in |
| Dimension SL | 0.440 in |
| Dimension T | 1/4-20 |
| Cubic inches | 5.87677 in³ |
Performance Data
| Nominal Torque | 144 in·lb |
| Max. Speed | 9000.00 rpm |
| Rated HP at 100 rpm | 0.23 hp |
| Rated HP at 1,200 rpm | 2.76 hp |
| Rated HP at 1,800 rpm | 4.11 hp |
| Rated HP at 3,600 rpm | 8.28 hp |
Spider Performance
| Spider Performance | Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.) |
Features
| Features | Fail-safe – will still perform if elastomer fails |
