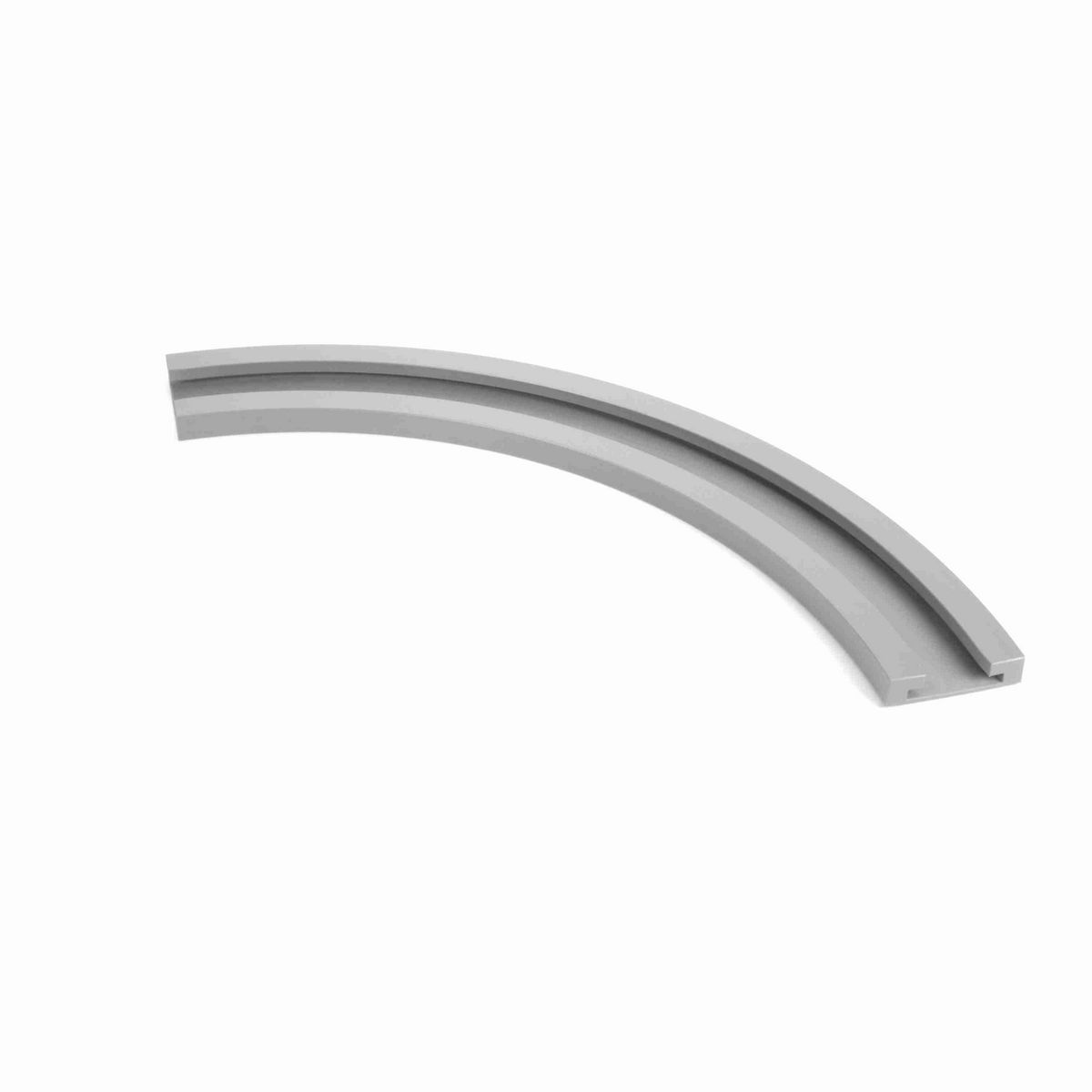

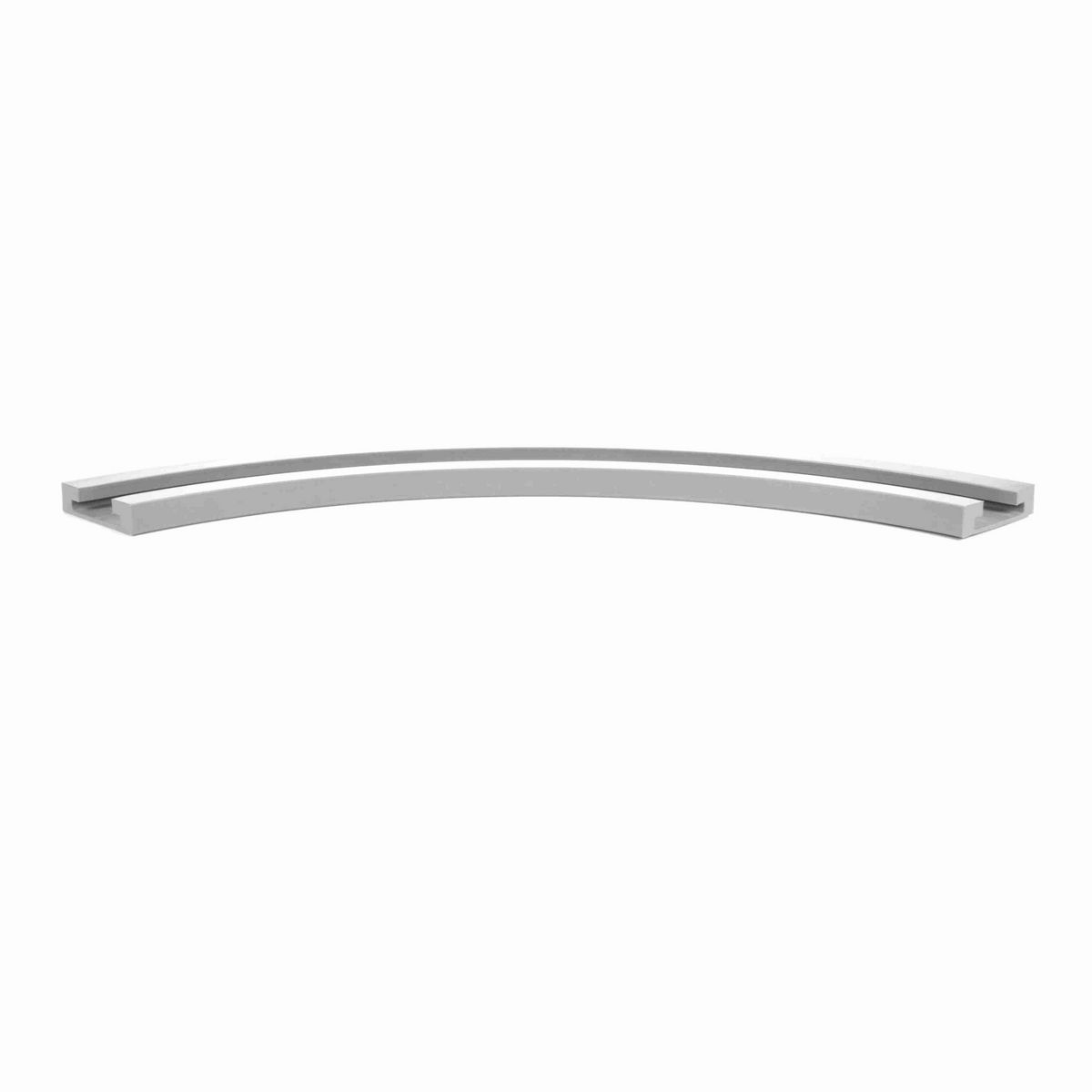

• ValuTrac Curve for tab chain.
• Nolu-SR is the same proprietary blend of UHMW-PE and solid lubricants as Nolu-S, however it has additional proprietary ingredients increasing the hardness of the material while providing superior wear resistance.
• Maintains excellent wear characteristics while significantly reducing coefficients of friction compared to standard UHMW.
• Benefits of Nolu-SR include high wear resistance, extended wear life, minimization of product pulsation and noise reduction.
• Reduces energy and water consumption
• Extends life of mating surfaces
• 24 inch radius
• Used with 882 series 4 1/2 inch wide tab chain.

Technical Specifications

Material	NOLU-SR
Type	Curve
Version	Tab
Carry or Return	Carry
Product Type	Curved and Straight Tracks (TAB)
Component Series	VT-SR-982
Product Line	Conveying Components
Base Diameter (in)	0 in
Radius (in)	24 in
Height (in)	1.188 in
Measurement System	Universal
Track Width (in)	5 in
Width (in)	5 in
Product Group	Curves and Tracks
Compatibility	882TAB-K4-1/2

General Specifications

UPC	787405528277
Weight	4.40 LB
Packaged Length	38.23 IN
Packaged Width	12.05 IN
Packaged Height	1.94 IN
