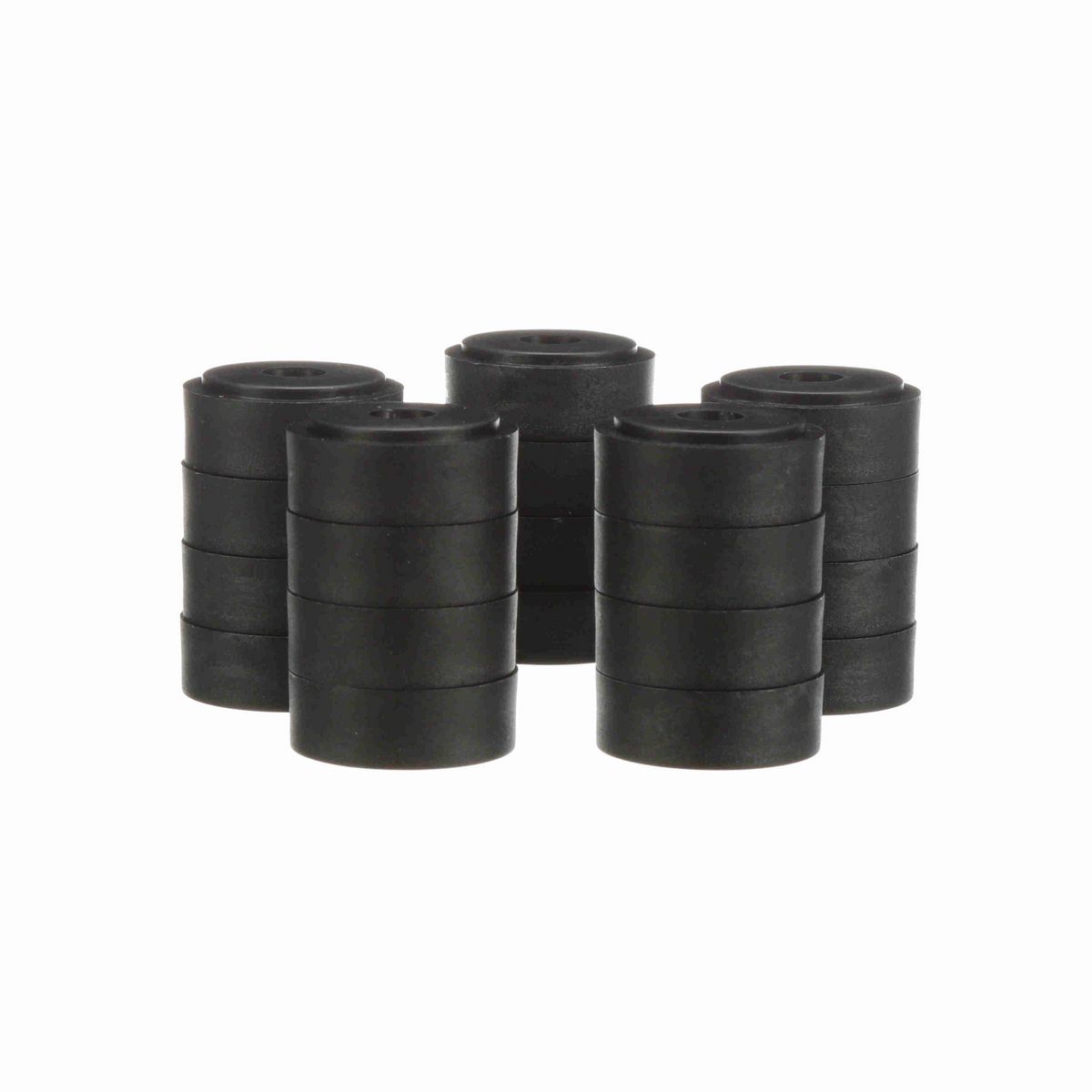

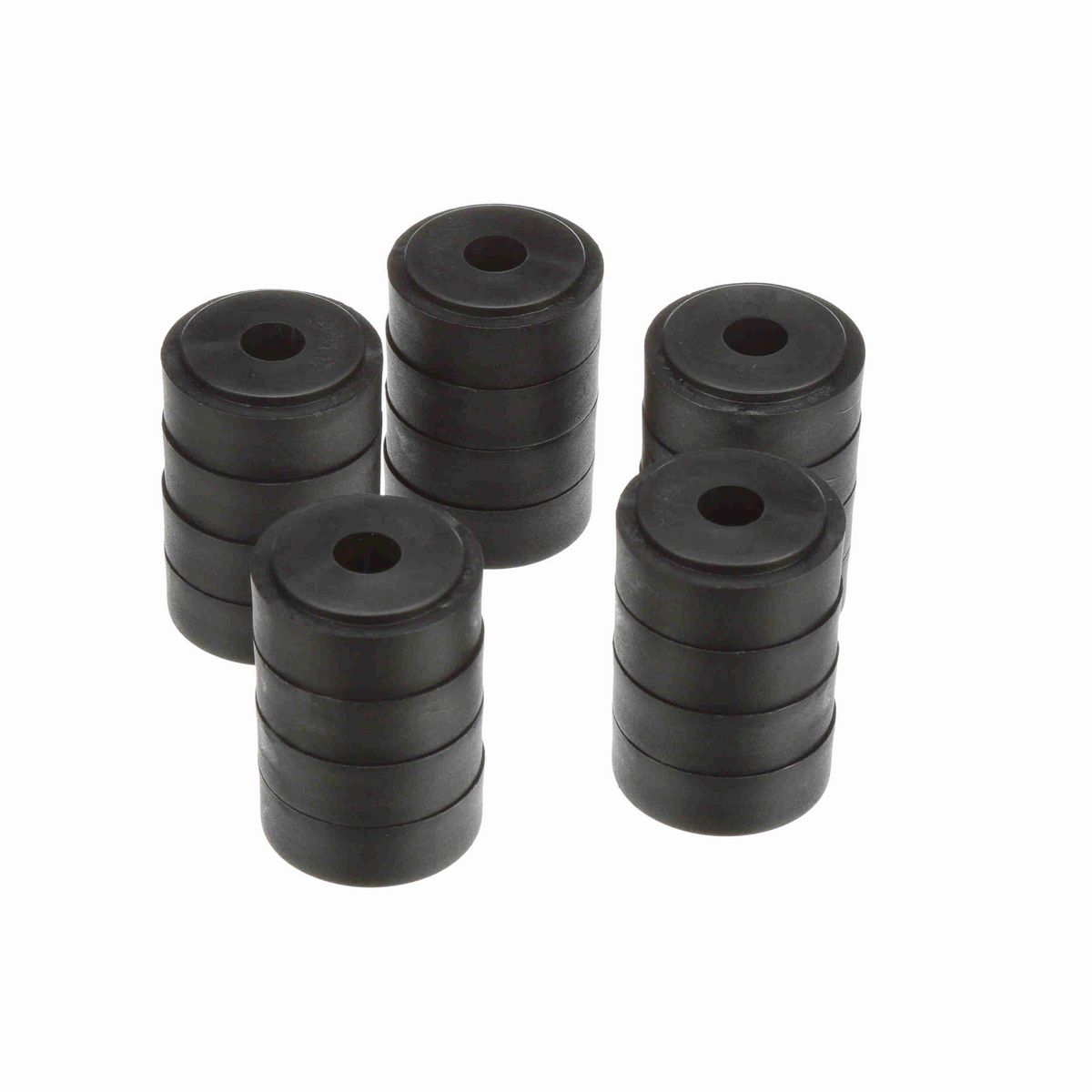

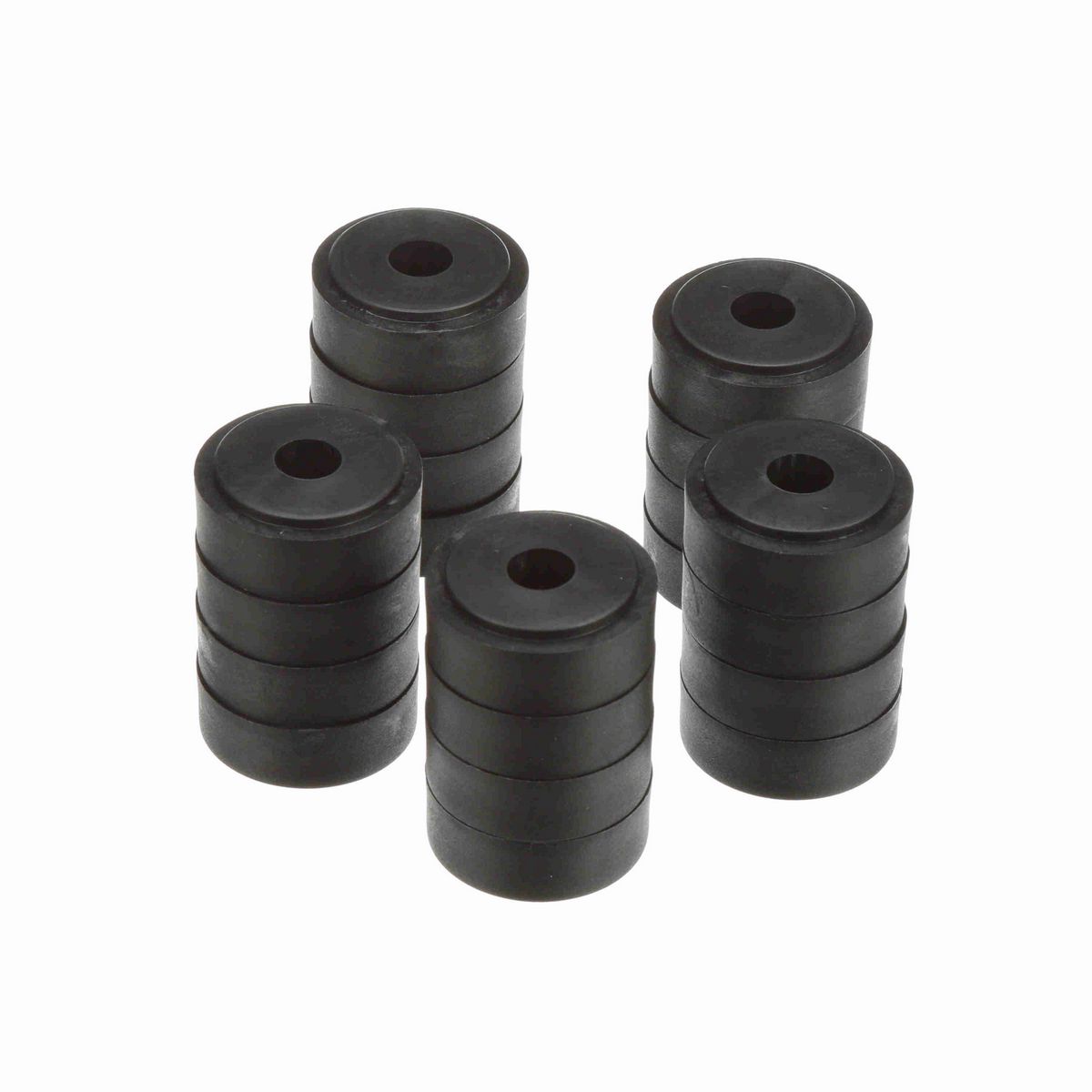

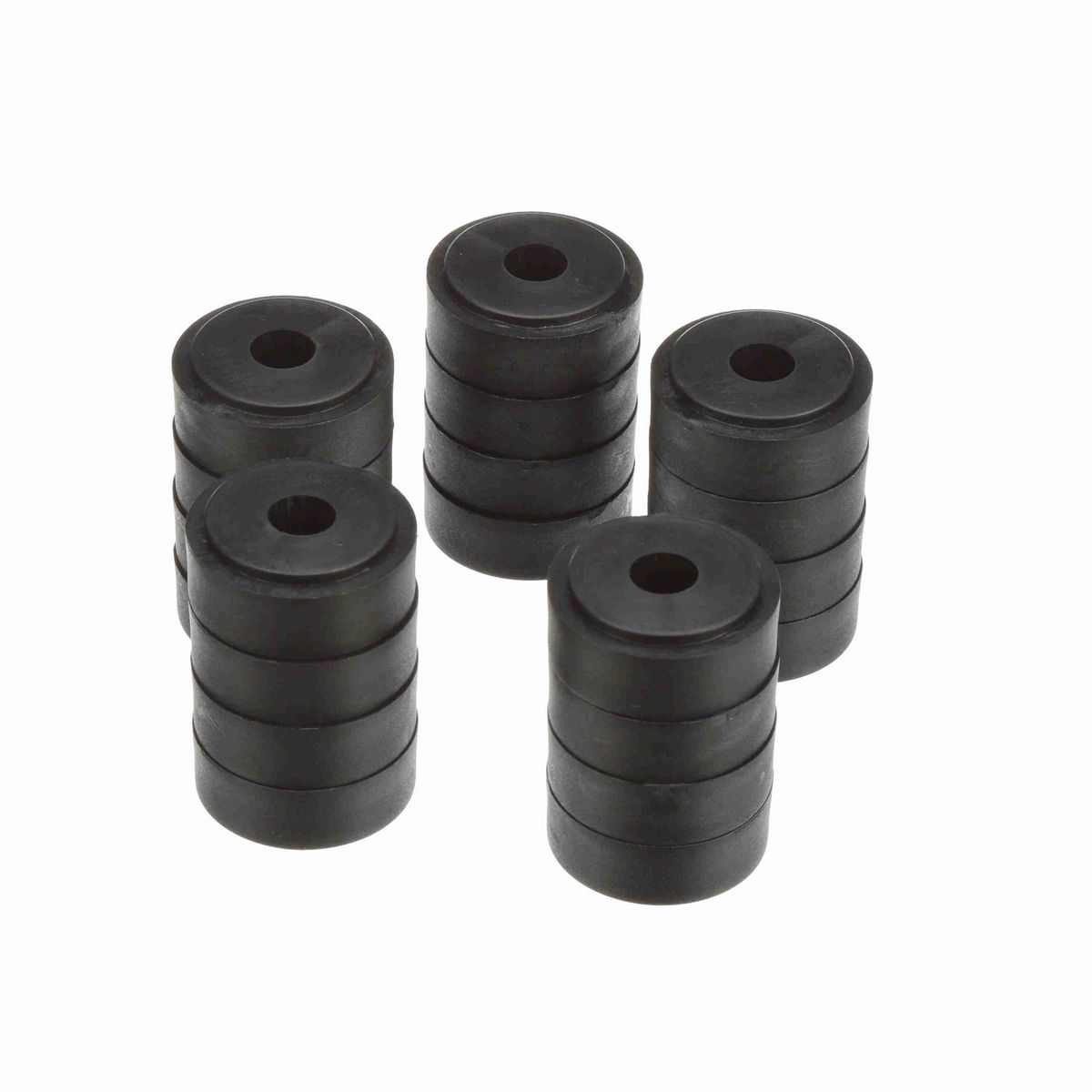

• Stacking ring used with VG-202/203 brackets and cap series where increased height is necessary.
• Polyamide material.
• When stacking rings are used the rod center line changes and a longer bolt is required.

Technical Specifications

Material	POLYAMIDE
Measurement System	Universal
Product Type	Bracket Accessories
Base Diameter (in)	0 in
Ring Width (in)	0.5 in
Product Group	Side Guide Brackets and Accessories
Component Series	VG-VSR
Product Line	Conveying Components
Ring Guide Diameter (in)	1.17 in
Rod Diameter (in)	0.75 in
Ring Outer Diameter (in)	1.4 in

General Specifications

UPC	787405523753
Weight	0.03 LB
Packaged Length	4.20 IN
Packaged Width	6.05 IN
Packaged Height	1.70 IN
HTC	8431.39.0010
Country of Origin	Mexico
