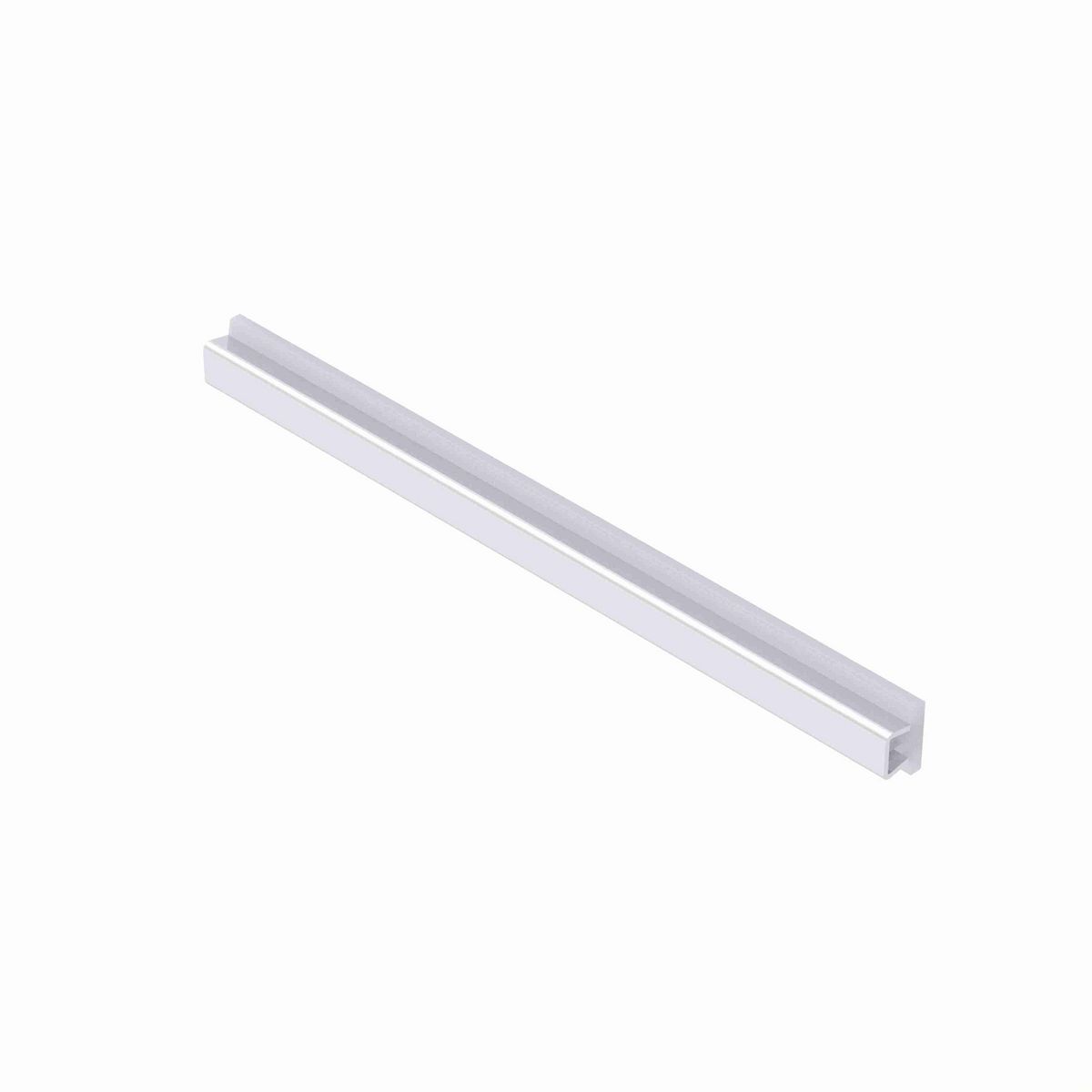

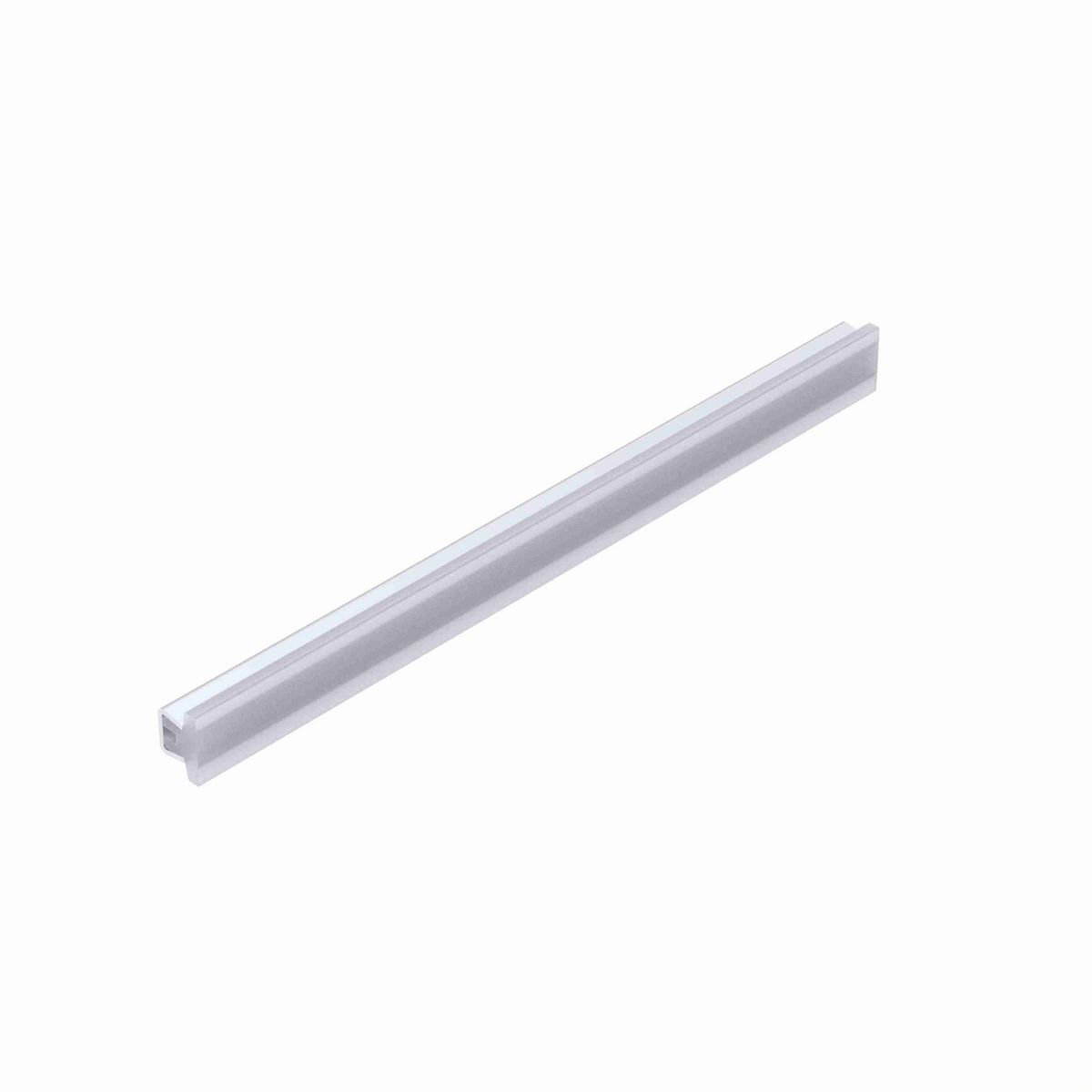

• Ram extruded UHMW-PE.
• Ultra high molecular weight material can be used in a variety of applications.
• Low friction characteristics of UHMW allow chains/belts and containers to move at high speed with minimum drag and noise as well as minimum container damage.
• Low friction
• High wear resistance
• FDA and USDA complaint material.
• 304 stainless steel sheath.

Technical Specifications

Sheath Material	Stainless Steel
Max Temp (°F)	180 °F
Height (mm)	17.5 mm
Measurement System	Imperial

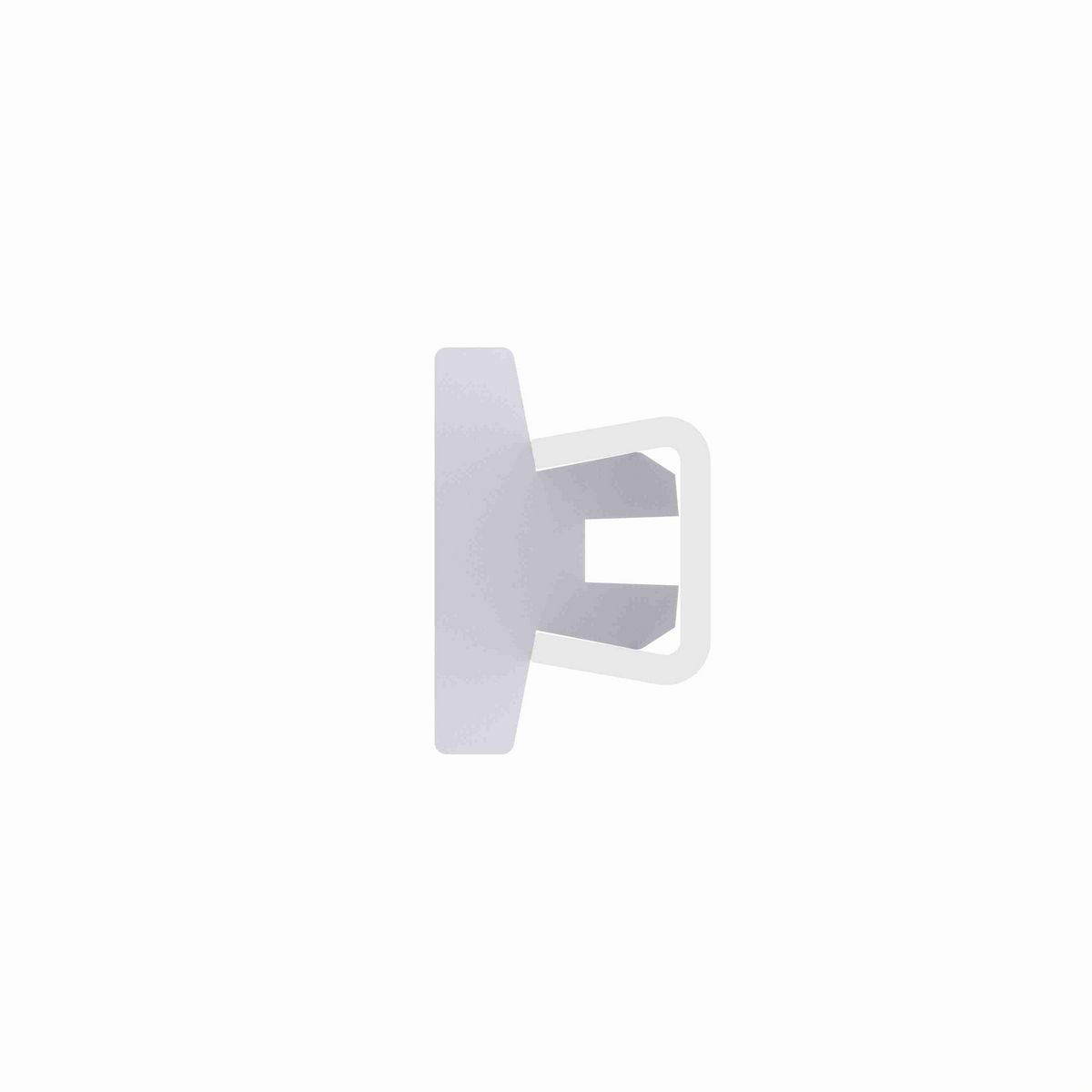

Profile	Wide Flat Guide Rail
Width (in)	1 in
Product Type	Conical Guides
Width (mm)	25.4 mm
Material	UHMW-PE
Product Line	Guide Products
Height (in)	0.69 in
Sheath Thickness (in)	0.078 in
Product Group	Guide RAILs
Length (in)	144 in
Minimum Bend Radius	4
Color	White
Steel Tensile Strength (psi)	70,000 psi
Density UHMW (lb/in³)	0.034
Steel Gauge (ga)	14
Rail Type	Standard
Dynamic Coefficient of Friction	0.09
UHMW Tensile Strength (psi)	4000 - 5500 psi
Density Stainless Steel (lb/in³)	0.283
FDA Compliant	Yes

General Specifications

UPC	787405475663
Weight	0.48 LB
Packaged Length	144.00 IN
Packaged Width	1.00 IN
Packaged Height	0.69 IN
HTC	8431.39.0010
Country of Origin	Mexico
