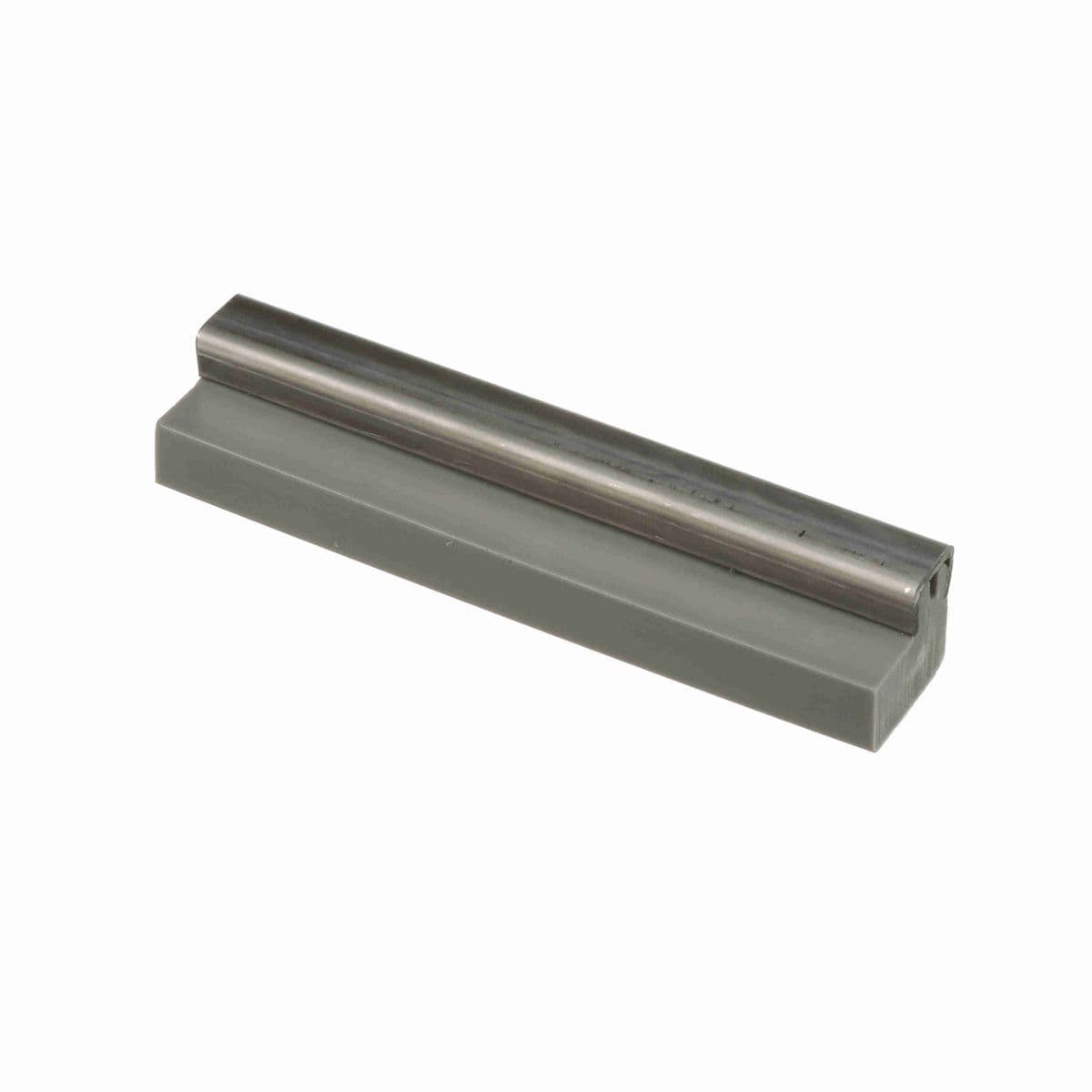

• Ram extruded ultra low friction dry lubricated UHMW-PE (NS) with 304 stainless steel sheath.
• Nolu-S is a proprietary blend of UHMW-PE and solid lubricants.
• Maintains good wear characteristics while significantly reducing coeffiecients of friction compared to standard UHMW.
• Unique self lubricating properties make it ideal for applications requiring reduced friction, noise reduction, and higher dry running speeds.
• Extends life of mating surfaces
• Reduces energy and water consumption
• Reduces conveyed product scratches and damages
• High wear resistance and impact strength
• Minimizes product pulsation on conveyors
• FDA and USDA complaint material.

Technical Specifications

Max Temp (°F)	140 °
Sheath Material	Stainless Steel
Width (in)	1.19 in
Product Type	Conical Guides
Length (in)	240 in
Height (in)	1.07 in
Height (mm)	27.2 mm
Profile	Tab Chain Guide Rail
Material	Nolu-S
Sheath Thickness (in)	0.078 in
Width (mm)	30.2 mm
Product Line	Guide Products
Minimum Bend Radius	4
Measurement System	Imperial
Color	Grey
Product Group	Guide RAILs
FDA Compliant	Yes

General Specifications

UPC	787405521018
Weight	0.63 LB
Packaged Length	240.00 IN
Packaged Width	1.19 IN
Packaged Height	1.07 IN
HTC	8431.39.0010
Country of Origin	Mexico
