• Ram extruded UHMW-PE with static dissipating additives (SD).
• Ultra high molecular weight material can be used in a variety of applications.
• Low friction characteristics of UHMW allow chains/belts and containers to move at high speed with minimum drag and noise as well as minimum container damage.
• Low friction
• High wear resistance
• Static dissipating additives
• FDA and USDA complaint material.
• 304 stainless steel sheath

Technical Specifications

Sheath Material	Stainless Steel
Max Temp (°F)	180 °F
Width (in)	2.25 in
Product Group	Guide RAILs
Height (in)	0.83 in
Material	Nolu-SD
Color	Black
Height (mm)	21.1 mm

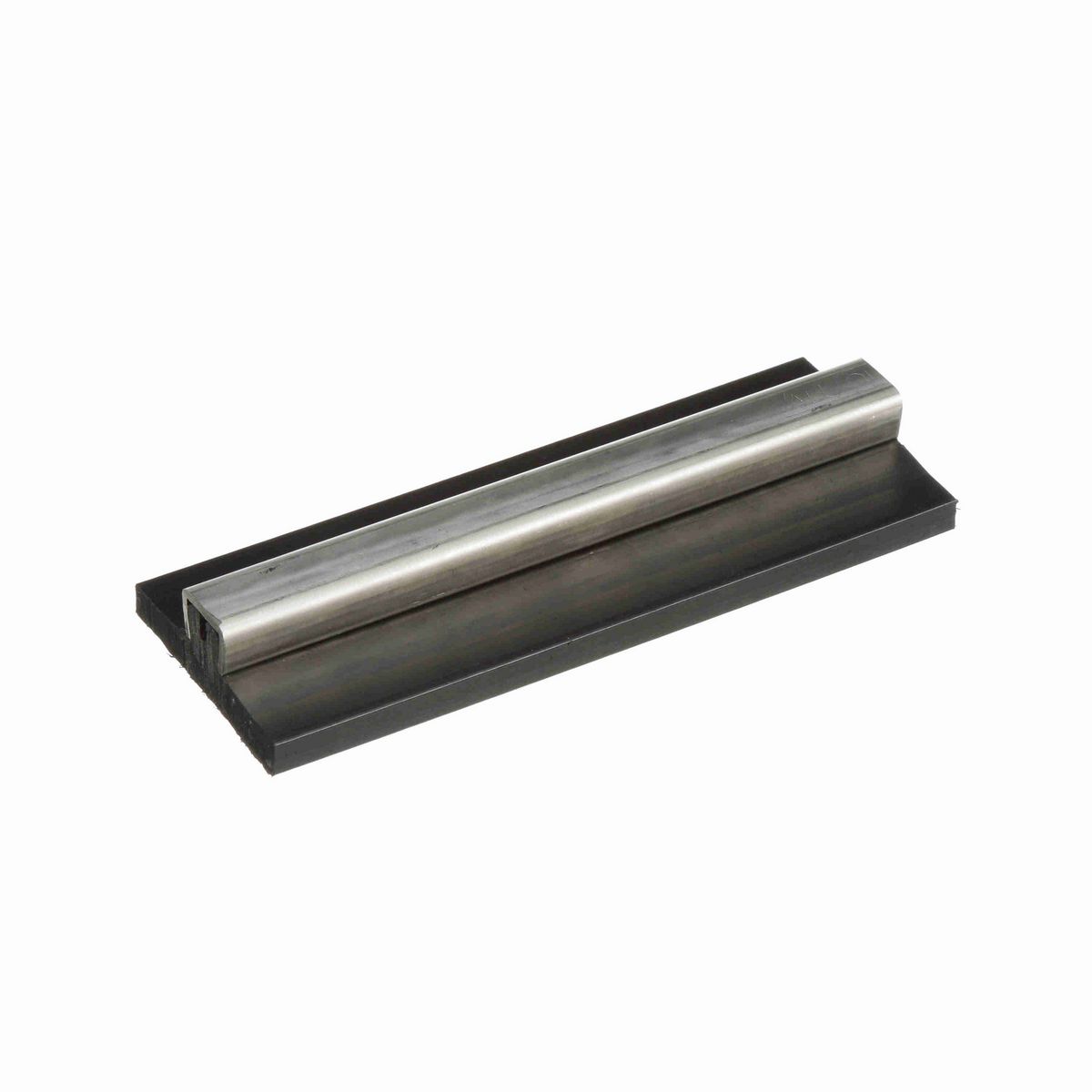

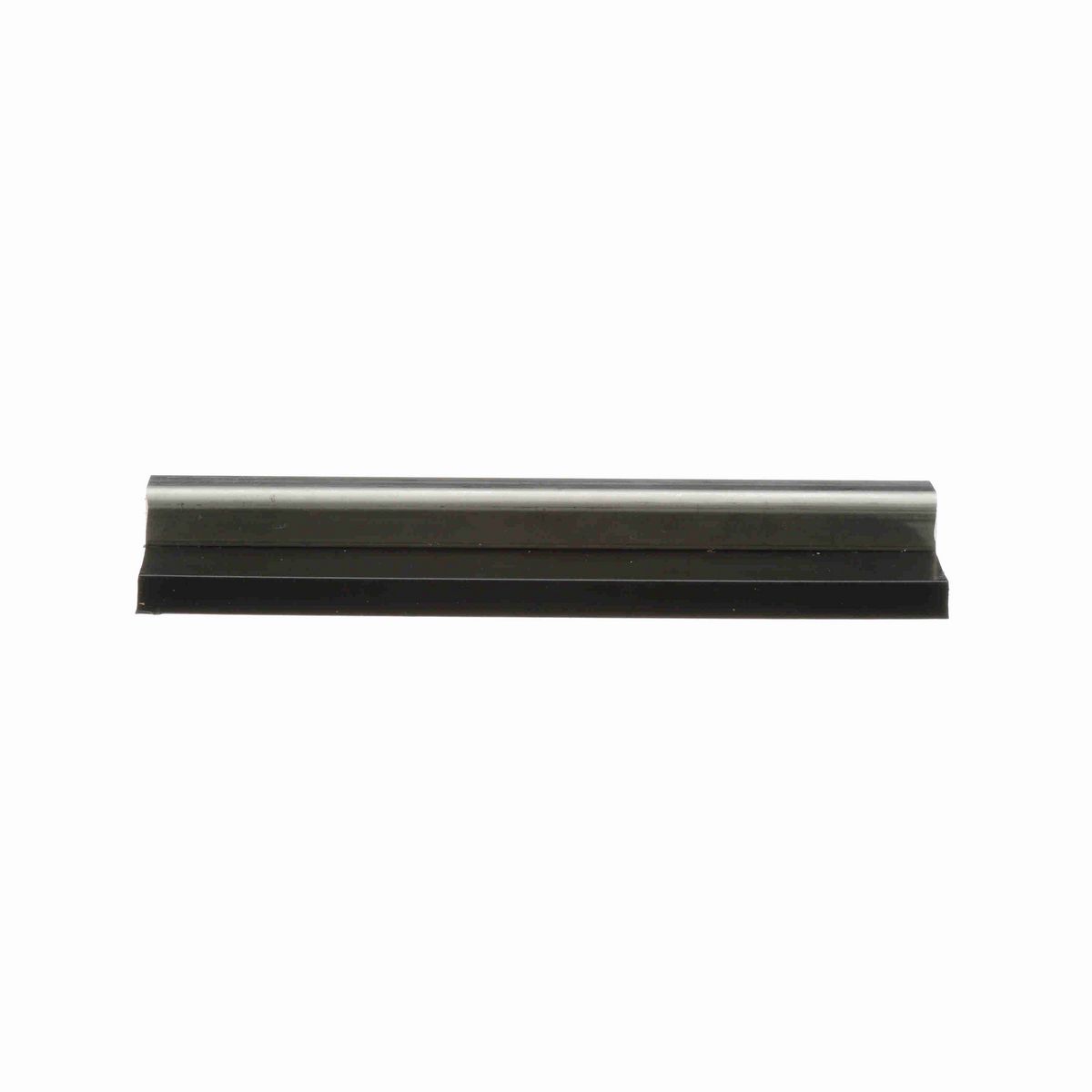

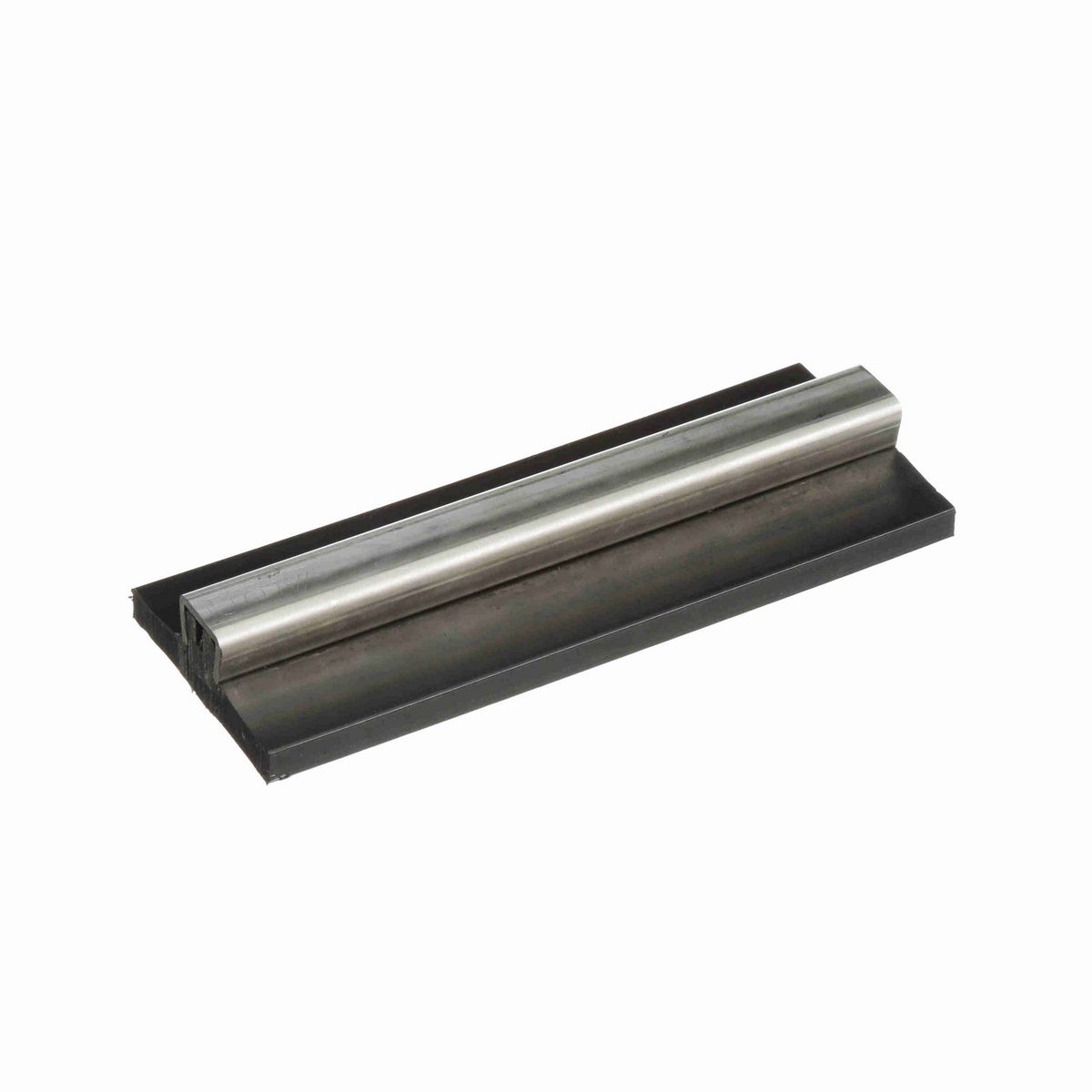

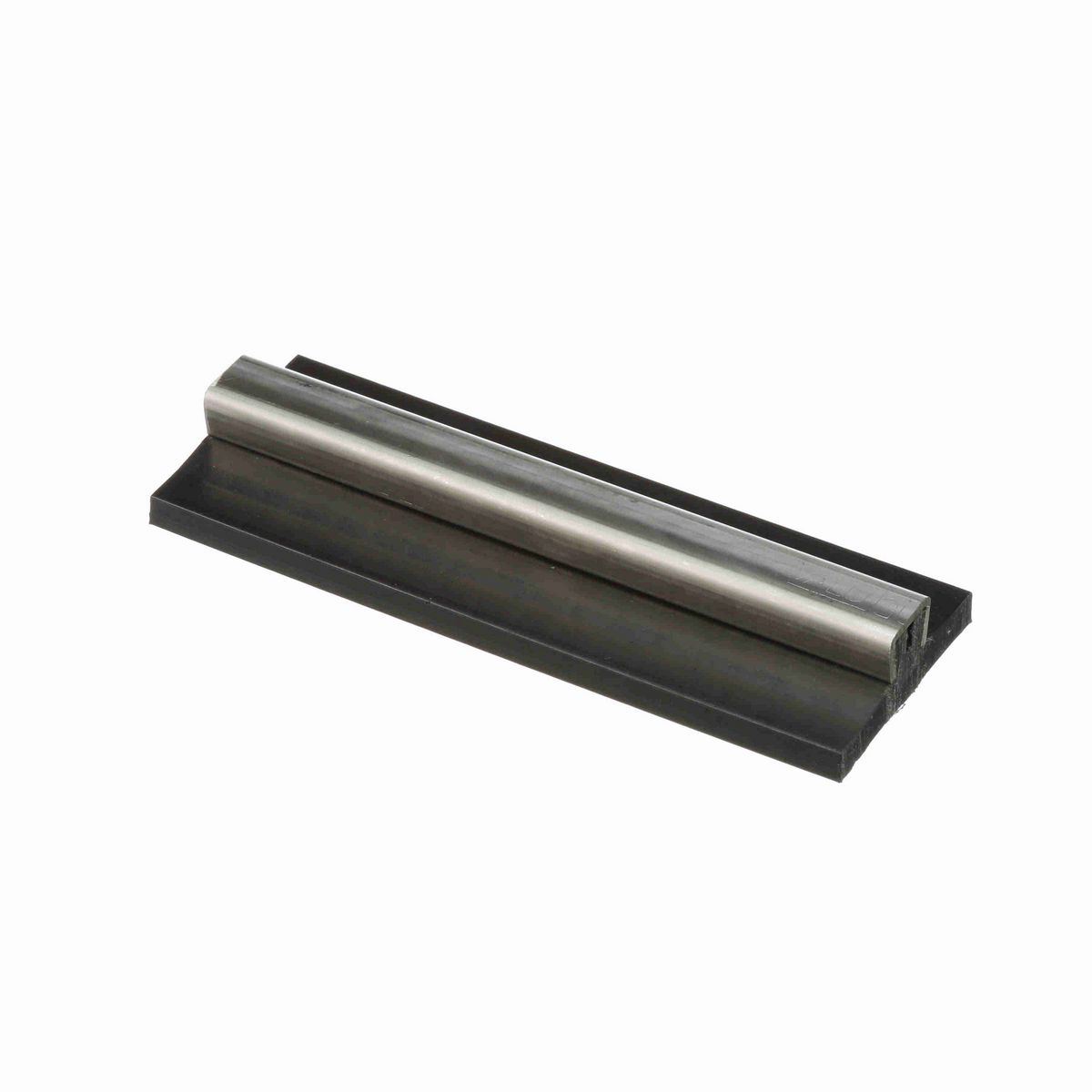

Profile	Tee Guide Rail
Measurement System	Imperial
Width (mm)	57.2 mm
Minimum Bend Radius	4
Length (in)	240 in
Product Type	Conical Guides
Product Line	Guide Products
Sheath Thickness (in)	0.078 in
Dynamic Coefficient of Friction	0.09
Rail Type	Standard - Static Dissipating
Density UHMW (lb/in³)	0.034
Density Stainless Steel (lb/in³)	0.283
Steel Gauge (ga)	14
UHMW Tensile Strength (psi)	4,000 - 5,500 psi
Steel Tensile Strength (psi)	70,000 psi
FDA Compliant	Yes

General Specifications

UPC	787405520646
Weight	0.55 LB
Packaged Length	240.00 IN
Packaged Width	2.25 IN
Packaged Height	0.83 IN
HTC	8431.39.0010
Country of Origin	Mexico
