• Ram extruded ultra low friction dry lubricated UHMW-PE (NS) with 304 stainless steel sheath.
• Nolu-S is a proprietary blend of UHMW-PE and solid lubricants.
• Maintains good wear characteristics while significantly reducing coeffiecients of friction compared to standard UHMW.
• Unique self lubricating properties make it ideal for applications requiring reduced friction, noise reduction, and higher dry running speeds.
• Extends life of mating surfaces
• Reduces energy and water consumption
• Reduces conveyed product scratches and damages
• High wear resistance and impact strength
• Minimizes product pulsation on conveyors
• FDA and USDA complaint material.

Technical Specifications

Sheath Material	Stainless Steel
Max Temp (°F)	140 °F
Product Type	Conical Guides

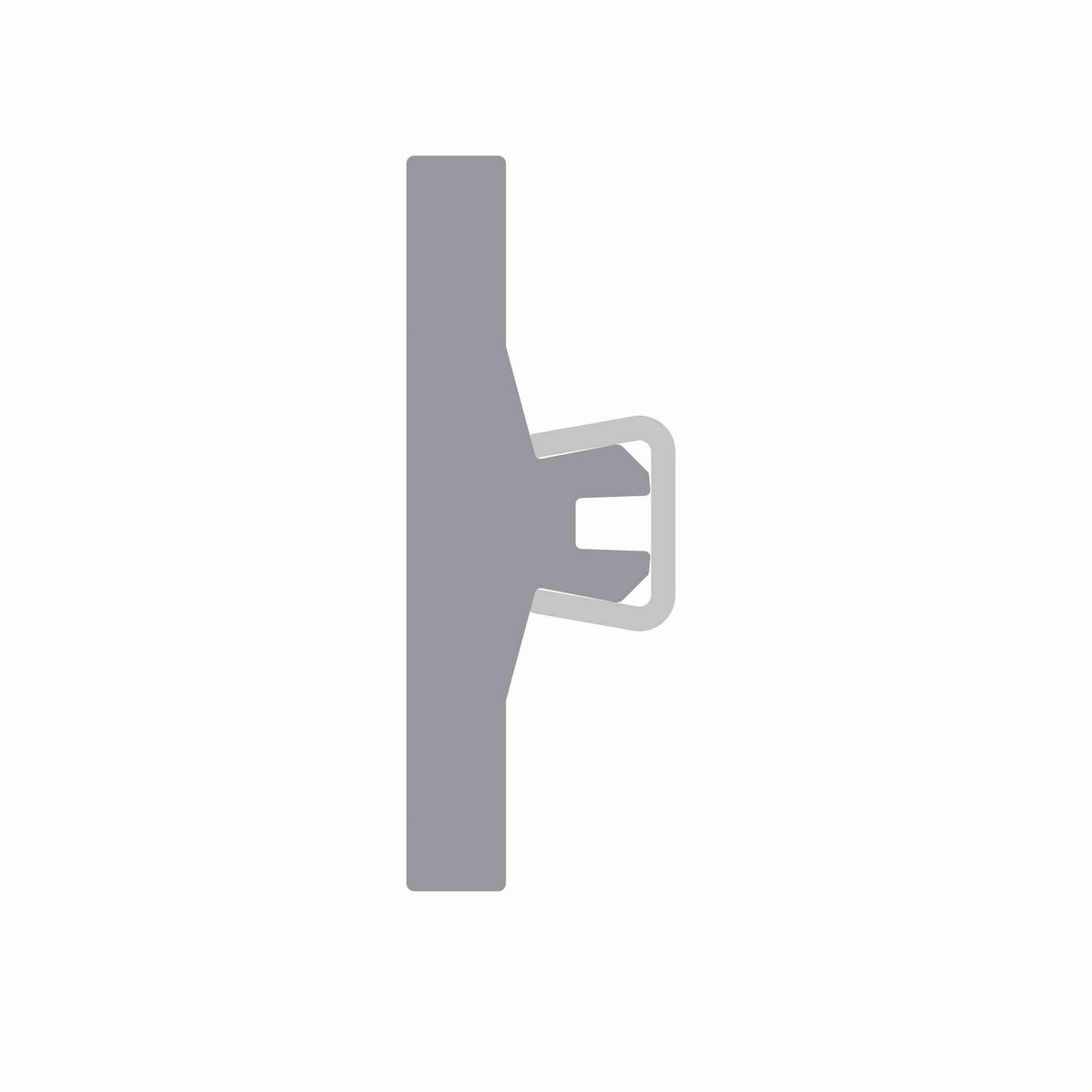

Profile	Tee Guide Rail
Length (in)	96 in
Color	Grey
Measurement System	Imperial
Height (mm)	21.1 mm
Minimum Bend Radius	4
Material	Nolu-S
Width (in)	2.25 in
Width (mm)	57.2 mm
Height (in)	0.83 in
Sheath Thickness (in)	0.078 in
Product Group	Guide RAILs
Product Line	Guide Products
Rail Type	Standard - Self Lubricating
Steel Gauge (ga)	14
Steel Tensile Strength (psi)	70,000 psi
Density UHMW (lb/in³)	0.034
UHMW Tensile Strength (psi)	4,000 - 5,500 psi
Density Stainless Steel (lb/in³)	0.283
Dynamic Coefficient of Friction	0.09
FDA Compliant	Yes

General Specifications

UPC	787405520608
Weight	0.66 LB
Packaged Width	2.25 IN
Packaged Height	0.83 IN
HTC	8431.39.0010
Country of Origin	Mexico
