• Ram extruded ultra low friction dry lubricated UHMW-PE (NS) with 304 stainless steel sheath.
• Nolu-S is a proprietary blend of UHMW-PE and solid lubricants.
• Maintains good wear characteristics while significantly reducing coeffiecients of friction compared to standard UHMW.
• Unique self lubricating properties make it ideal for applications requiring reduced friction, noise reduction, and higher dry running speeds.
• Extends life of mating surfaces
• Reduces energy and water consumption
• Reduces conveyed product scratches and damages
• High wear resistance and impact strength
• Minimizes product pulsation on conveyors
• FDA and USDA complaint material.

Technical Specifications

Sheath Material	Stainless Steel
Max Temp (°F)	140 °F
Product Line	Guide Products
Color	Grey
Length (in)	144 in
Minimum Bend Radius	4
Material	Nolu-S
Height (in)	0.83 in
Product Type	Conical Guides
Sheath Thickness (in)	0.078 in
Product Group	Guide RAILs
Measurement System	Imperial
Width (in)	1.6 in

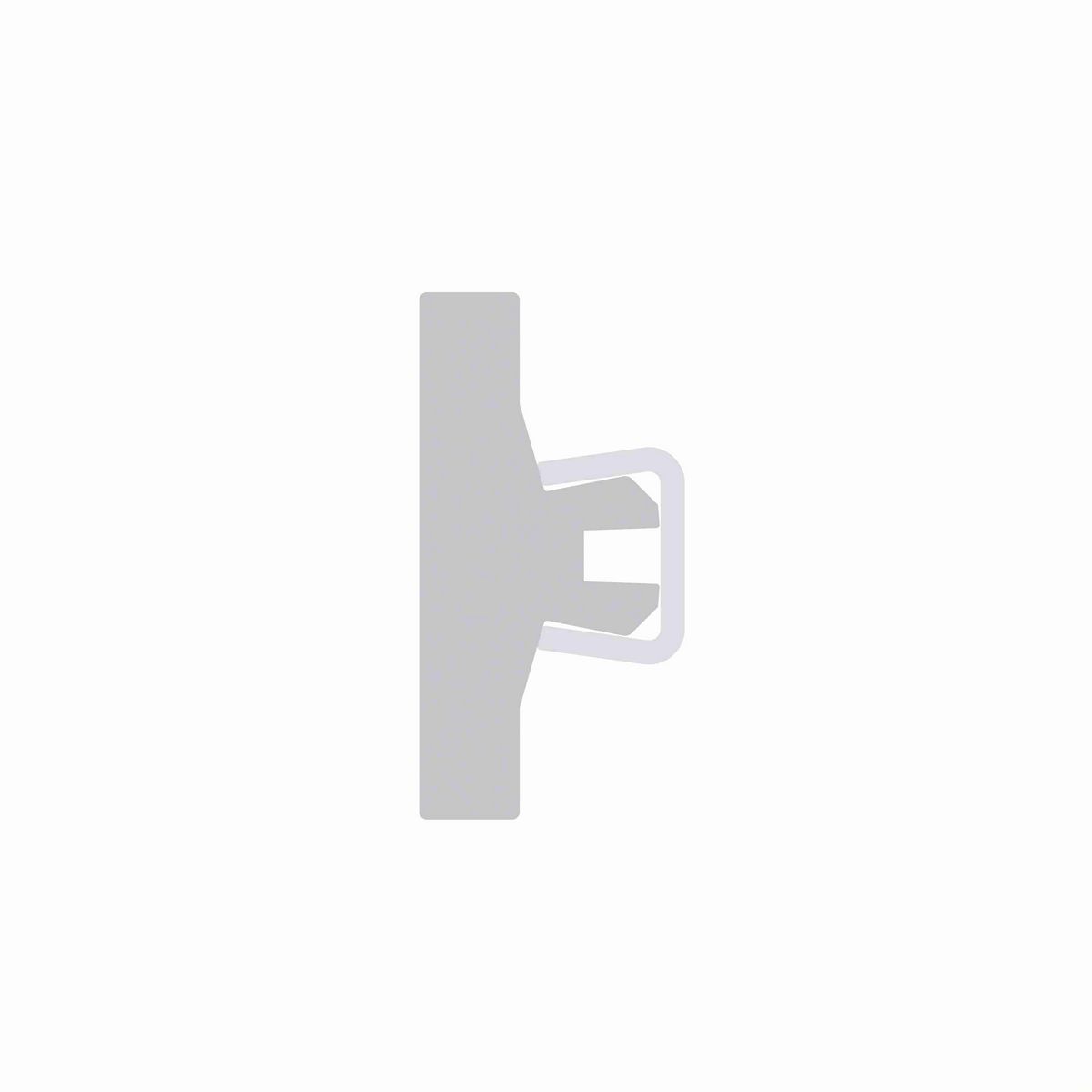

Profile	Tee Guide Rail
Height (mm)	21.1 mm
Width (mm)	40.6 mm
Dynamic Coefficient of Friction	0.09
Steel Gauge (ga)	14
Density UHMW (lb/in³)	0.034
Rail Type	Standard - Self Lubricating
Steel Tensile Strength (psi)	70,000 psi
UHMW Tensile Strength (psi)	4,000 - 5,500 psi
Density Stainless Steel (lb/in³)	0.283
FDA Compliant	Yes

General Specifications

UPC	787405520073
Weight	0.66 LB
Packaged Width	1.60 IN
Packaged Height	0.83 IN
HTC	8431.39.0010
Country of Origin	Mexico
