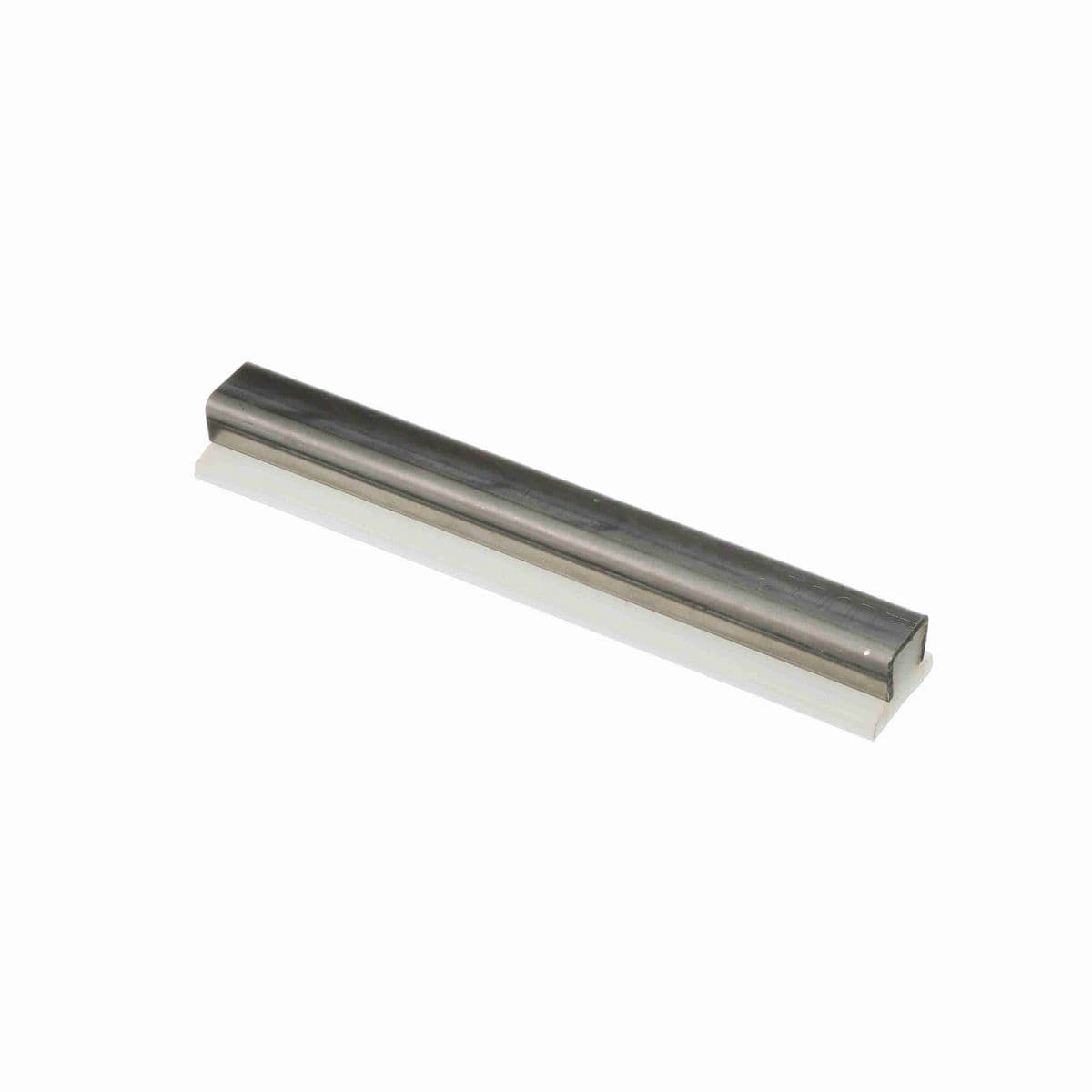

• Ram extruded ultra low friction dry lubricated UHMW-PE (NS) with 304 stainless steel sheath.
• Nolu-S is a proprietary blend of UHMW-PE and solid lubricants.
• Maintains good wear characteristics while significantly reducing coeffiecients of friction compared to standard UHMW.
• Unique self lubricating properties make it ideal for applications requiring reduced friction, noise reduction, and higher dry running speeds.
• Extends life of mating surfaces
• Reduces energy and water consumption
• Reduces conveyed product scratches and damages
• High wear resistance and impact strength
• Minimizes product pulsation on conveyors
• FDA and USDA complaint material.

Technical Specifications

Sheath Material	Stainless Steel
Max Temp (°F)	140 °F
Length (in)	120 in
Height (mm)	17 mm
Product Type	Conical Guides
Measurement System	Imperial
Profile	Modified Flat Guide Rail
Sheath Thickness (in)	0.078 in
Width (mm)	17 mm
Color	Grey
Width (in)	0.67 in
Minimum Bend Radius	3
Material	Nolu-S
Product Group	Guide RAILs
Height (in)	0.67 in
Product Line	Guide Products
Steel Tensile Strength (psi)	70,000 psi
Density Stainless Steel (lb/in³)	0.283
Density UHMW (lb/in³)	0.034
Rail Type	Solid - Self Lubricating
Dynamic Coefficient of Friction	0.06
Steel Gauge (ga)	14
UHMW Tensile Strength (psi)	4000 - 5500 psi
FDA Compliant	Yes

General Specifications

UPC	787405518520
Weight	0.35 LB
Packaged Length	120.00 IN
Packaged Width	0.67 IN
Packaged Height	0.67 IN
HTC	8431.39.0010
Country of Origin	Mexico
