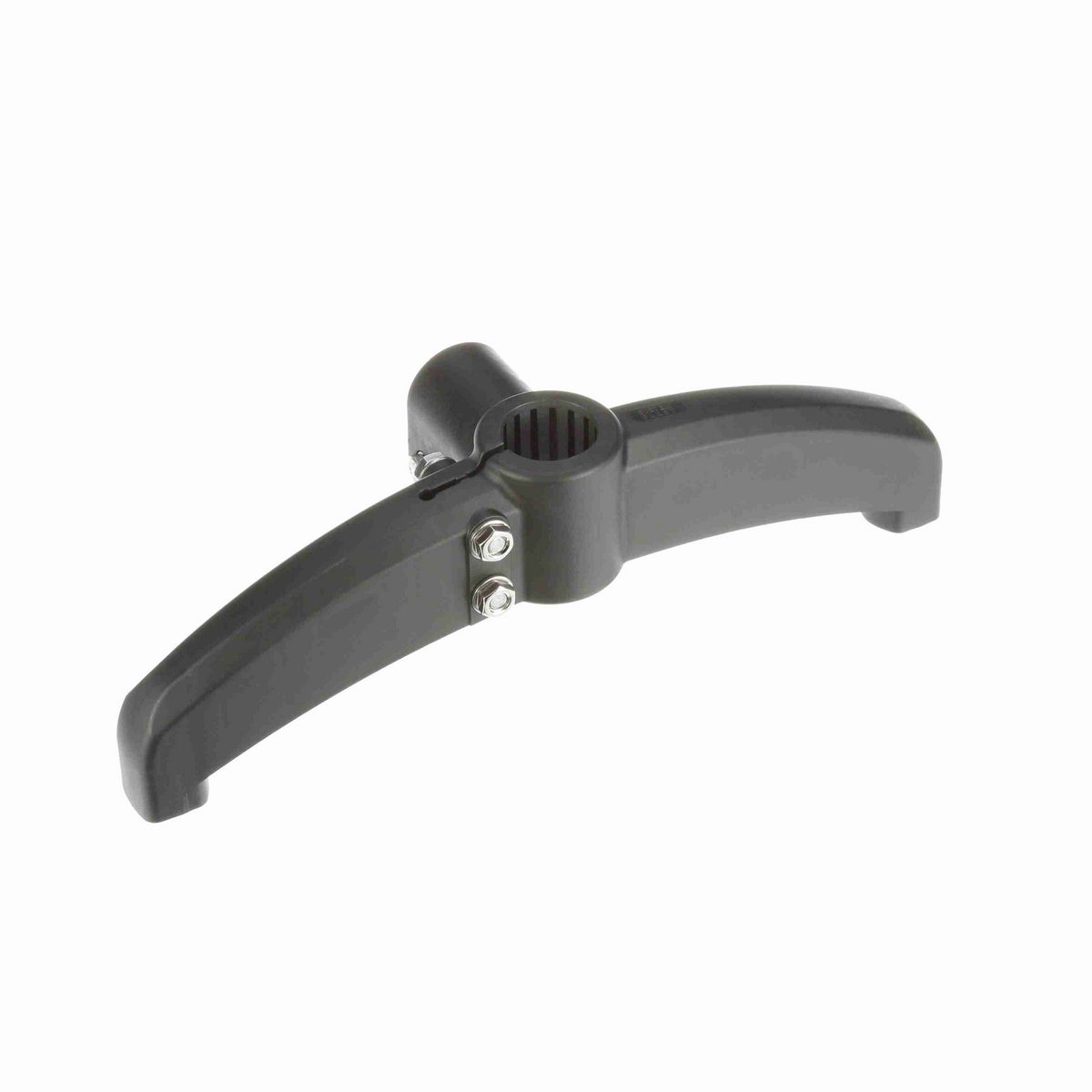

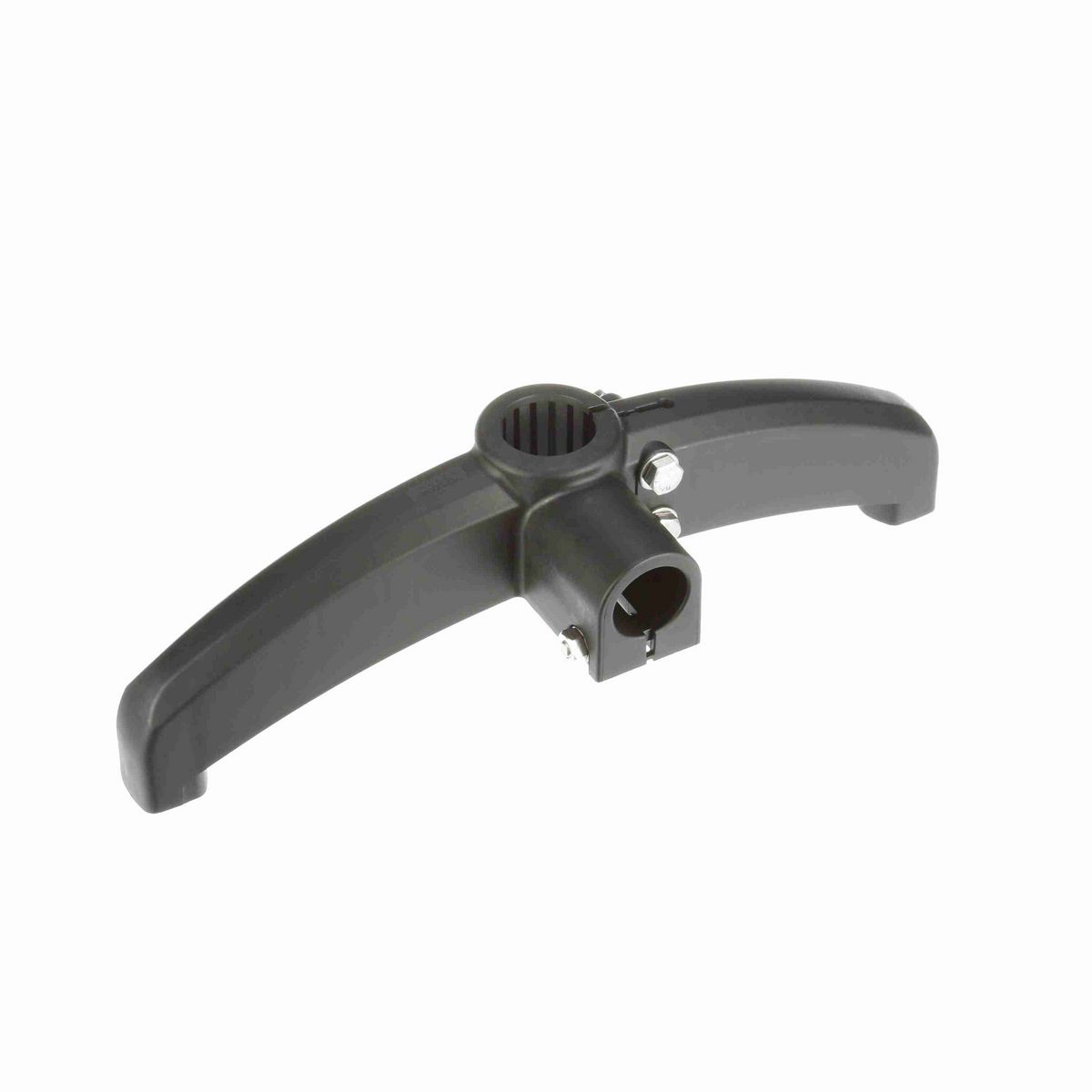

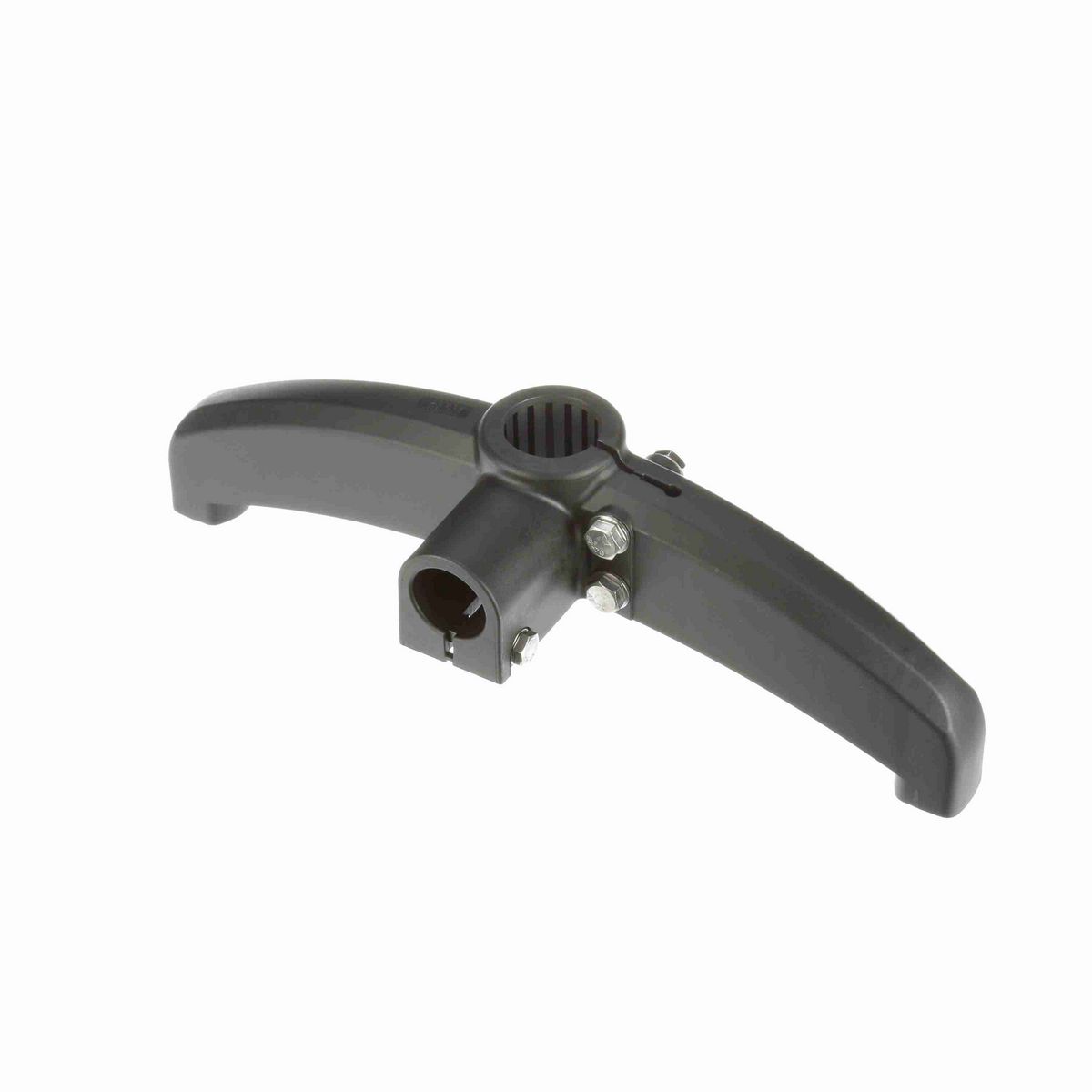

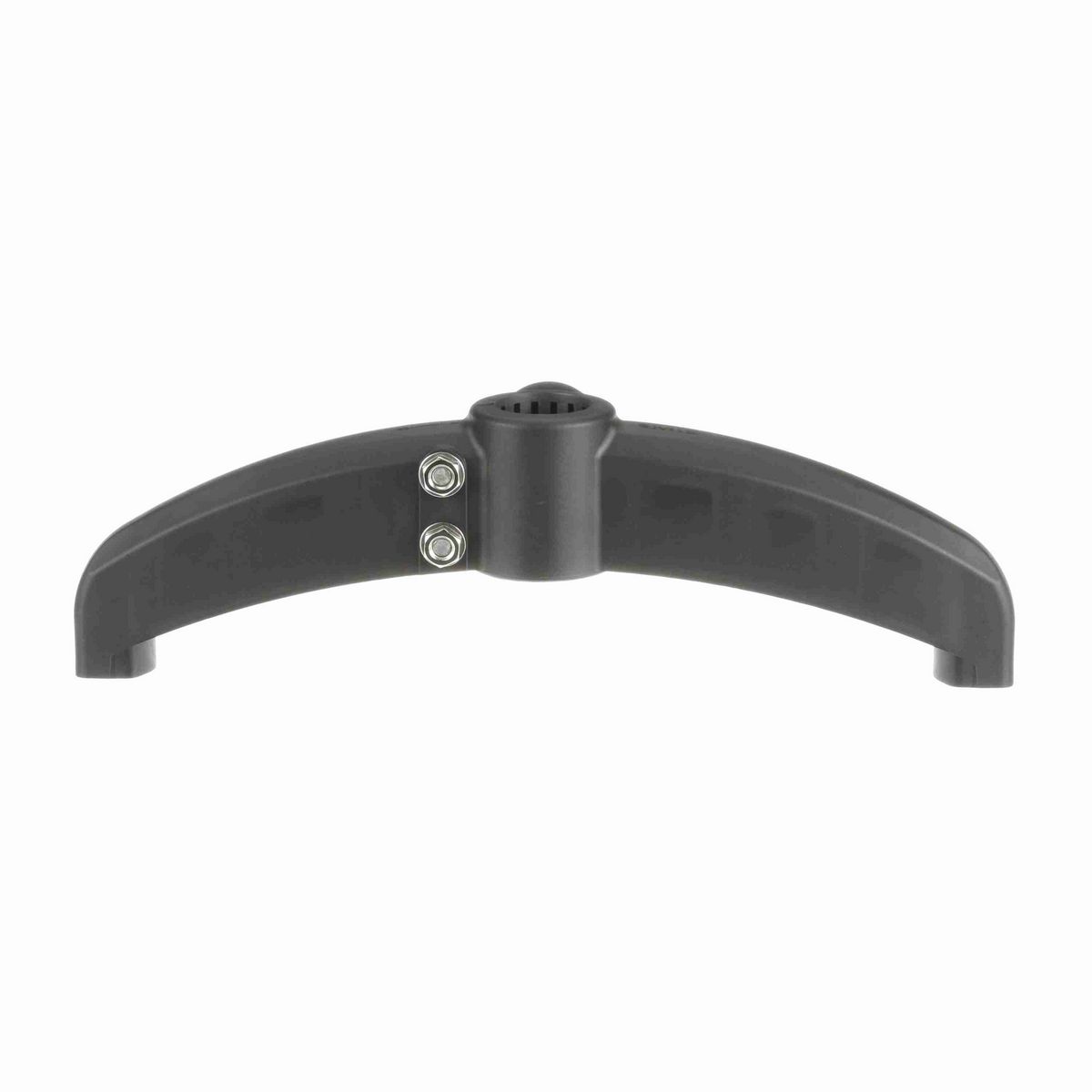

• Bipod Base and Cross Tie
• Leg base for conveyor or machinery support plus pipe cross tie arm openings for increased lateral stability.
• Threaded nickel plated brass inserts for adjustable levelers.
• Stainless steel hardware included.

Technical Specifications

Material	POLYAMIDE
Type	Bipod Base & Cross-Tie
Thread (mm)	M16 mm
Height (mm)	145 mm
Height (in)	5.71 in
Product Line	Conveying Components
Vertical Tube/Pipe Size (in)	2" Tube in
Horizontal Tube/Pipe Size (in)	1-1/4" pipe in
Component Series	VG-BPT
Horizontal Tie	1-1/4 pipe
Product Group	Frame and Structure Components
Measurement System	Metric
Product Type	Bipod Base w/ Cross-Tie
Feet Ring Diameter (in)	17.72 in
Outer Diameter (in)	19.29 in

General Specifications

UPC	787405762855
Weight	3.18 LB
Packaged Length	6.05 IN
Packaged Width	19.40 IN
Packaged Height	5.85 IN
HTC	8431.39.0010
Country of Origin	Germany
