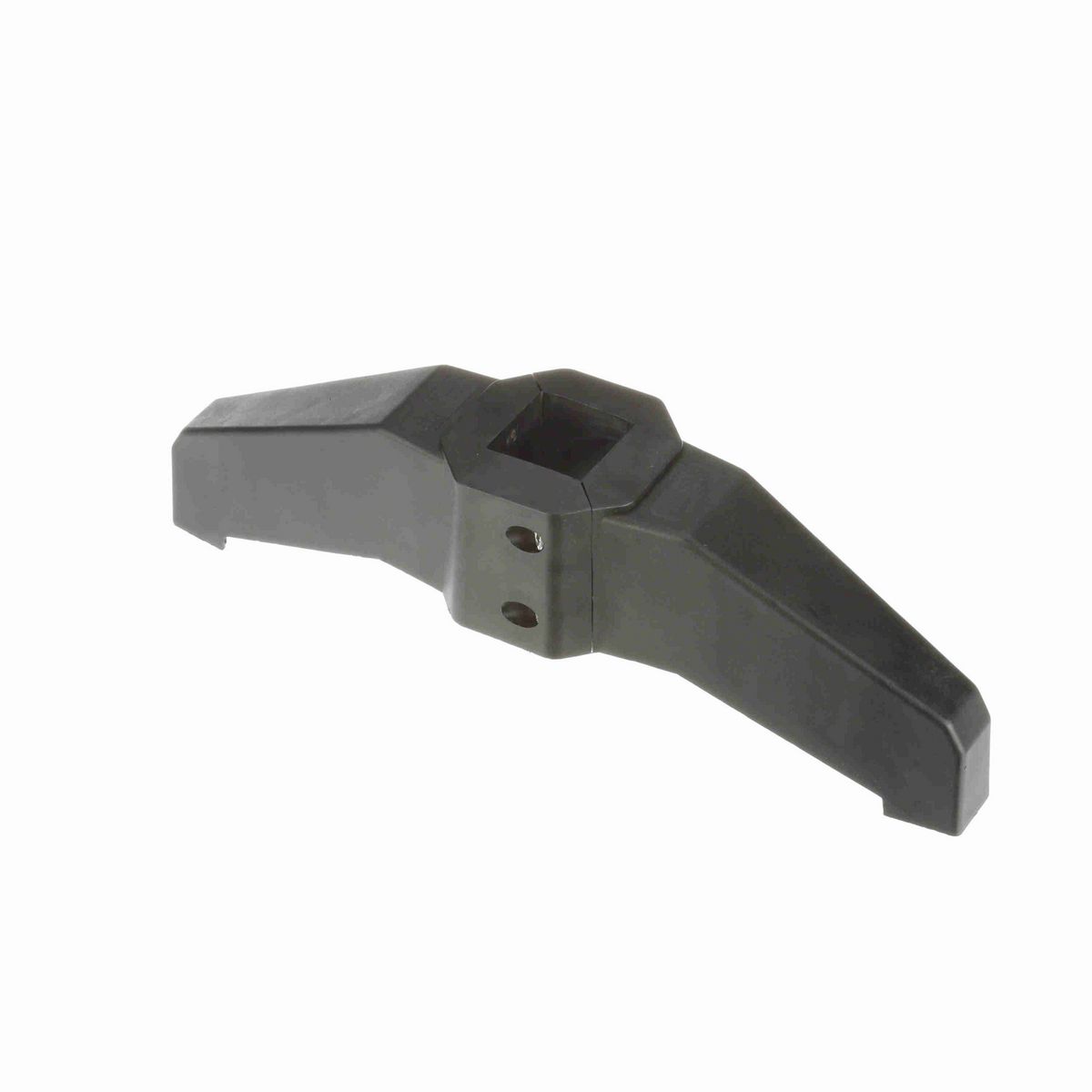

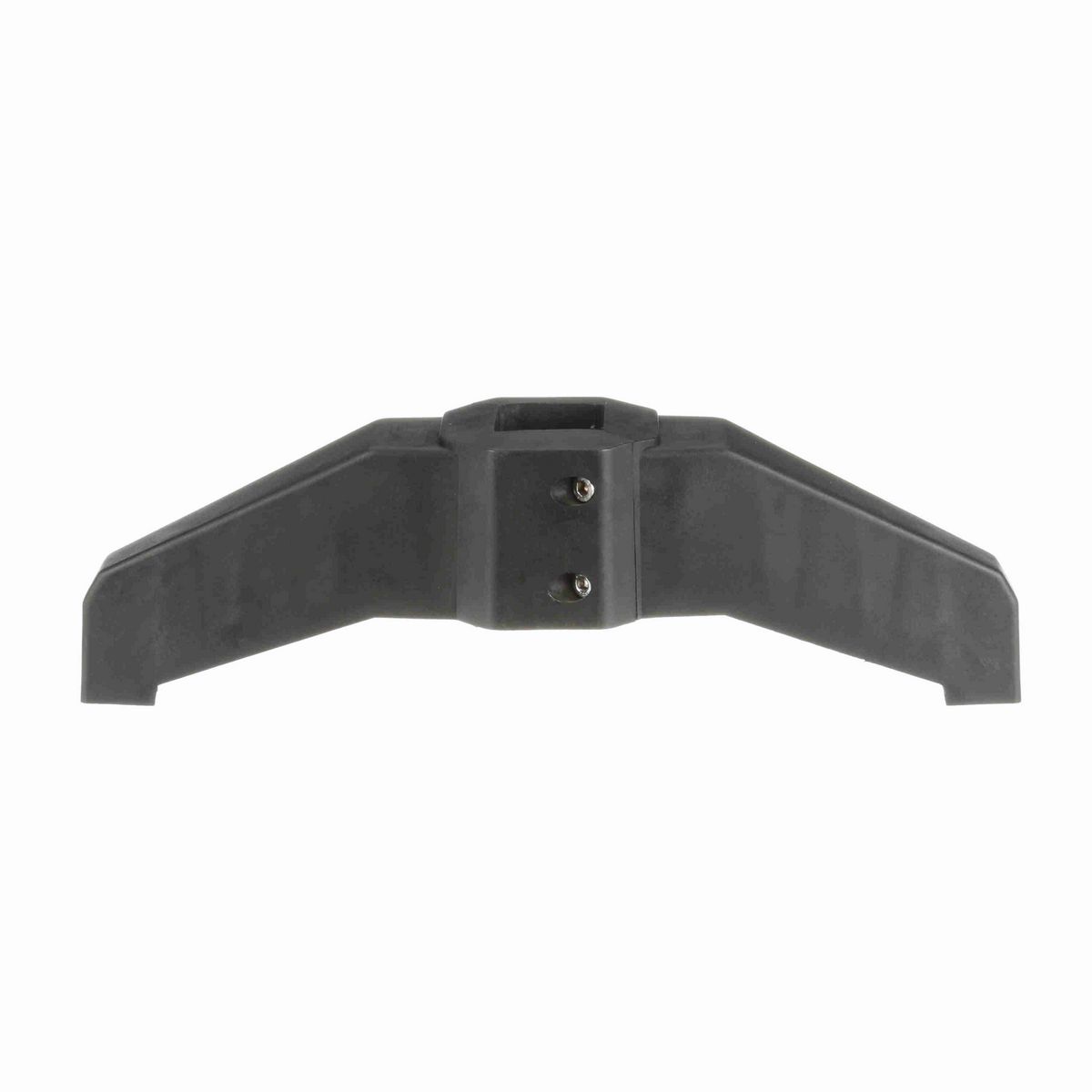

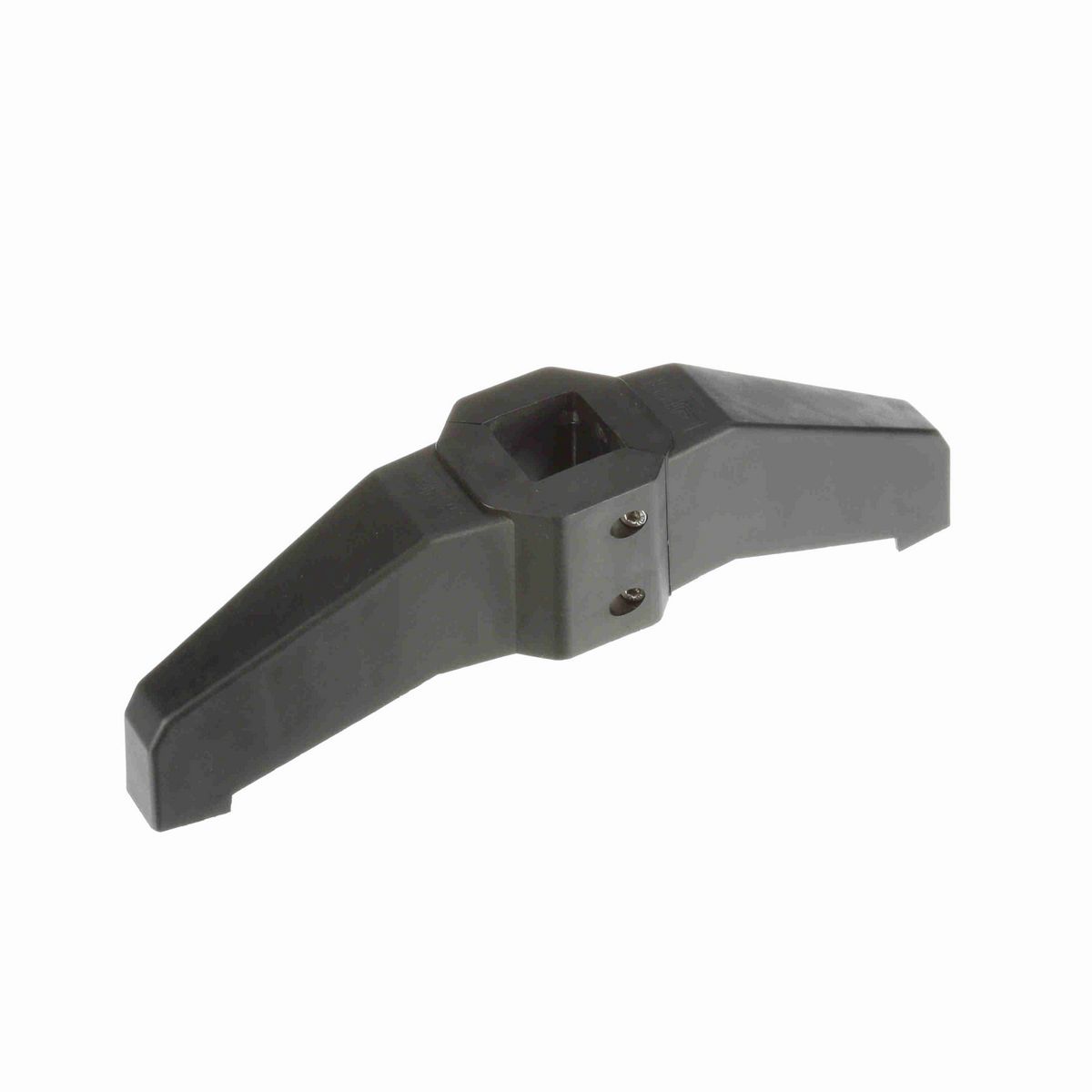

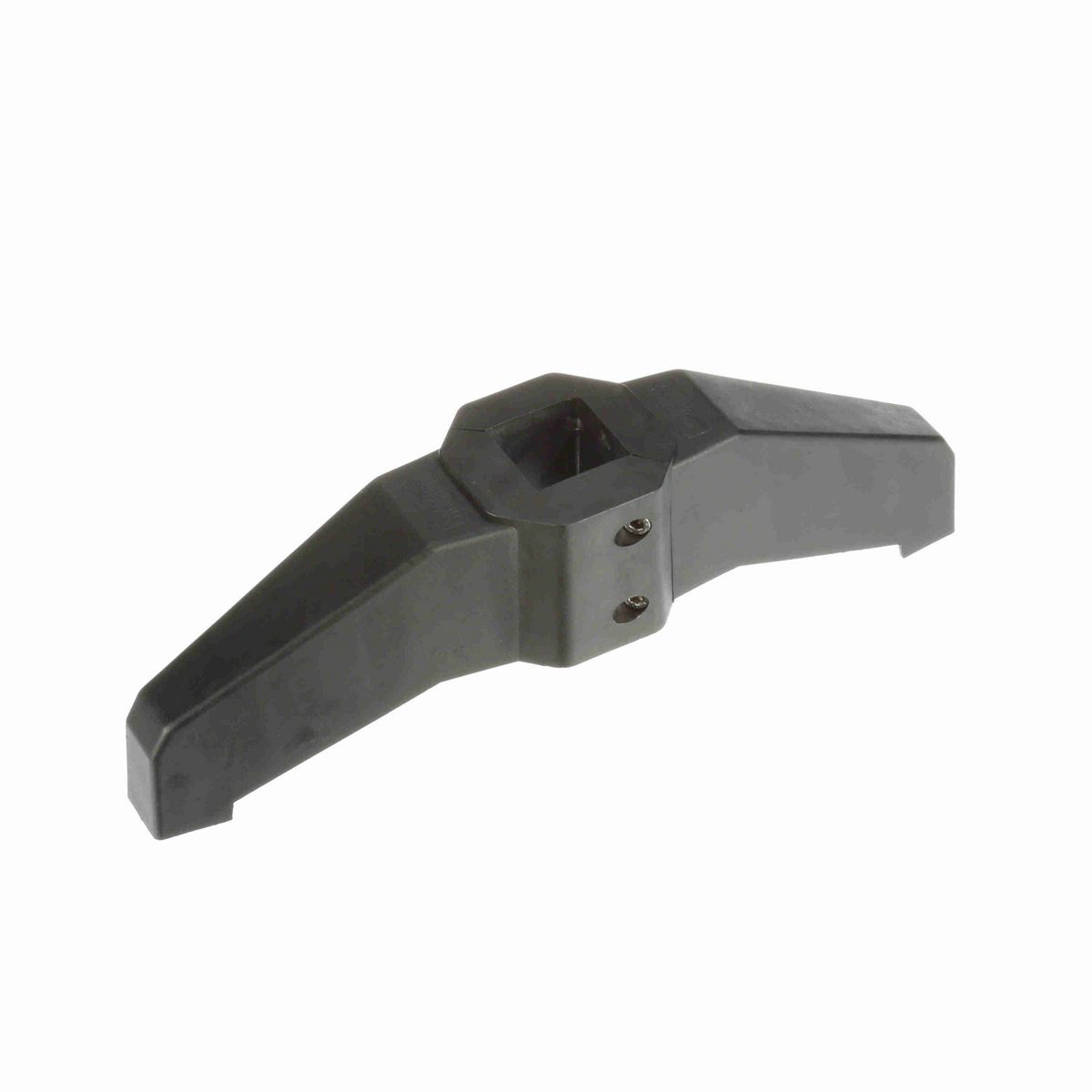

• Bipod Base
• Leg base for conveyor or machinery support.
• Threaded nickel plated brass inserts for adjustable levelers.
• Stainless steel hardware included.

Technical Specifications

Material	POLYAMIDE
Type	Split Bipod Base
Thread (mm)	M16 mm
Product Line	Conveying Components
Measurement System	Metric
Product Group	Frame and Structure Components
Component Series	VG-BPS
Horizontal Tube/Pipe Size (in)	0 in
Height (mm)	135 mm
Vertical Tube/Pipe Size (in)	2" Square Tube in
Product Type	Split Bipod Base
Height (in)	5.31 in
Pipe Size Diameter (mm)	50 mm
Feet Ring Diameter (in)	15.75 in
Outer Diameter (in)	17.13 in

General Specifications

UPC	787405120594
Weight	3.48 LB
Packaged Length	4.45 IN
Packaged Width	17.00 IN
Packaged Height	5.80 IN
HTC	8431.39.0010
Country of Origin	Germany
