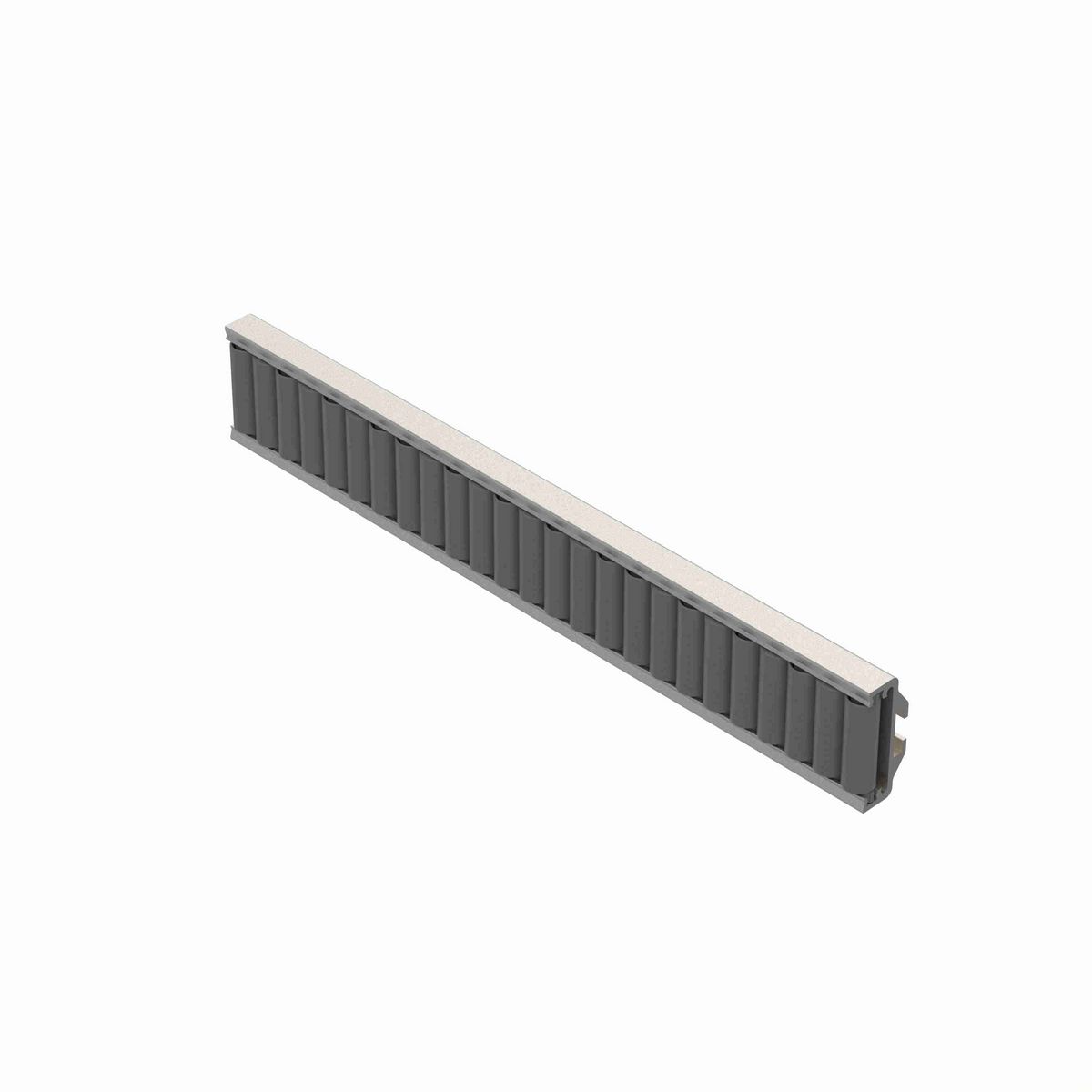

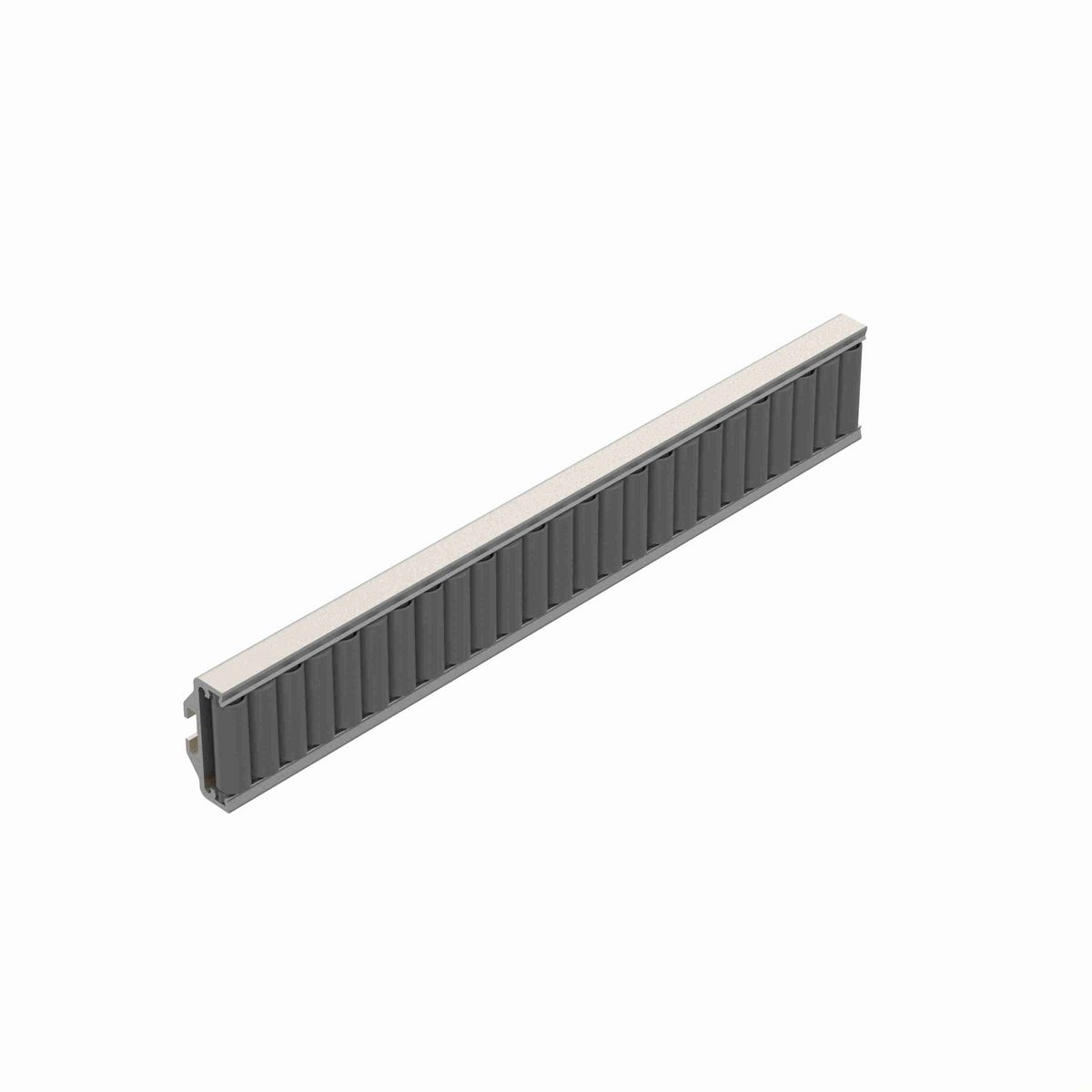

• SpeedRoll
• Low friction rollers.
• Easy mounting using the included VG-1568-02 t-bolts.
• Great for polywrapped containers or PET.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal rollers.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Max Temp (°F)	180 °F
Pins Material	PBT Poly
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Surface Guide Material	Acetal
Color	Grey
Product Line	Guide Products
Minimum Bend Radius	12
Height (in)	1.9 in
Profile	Speedroll
Height (mm)	48.3 mm
Product Type	Aluminum Channel Speed RAIL
Width (in)	0.86 in
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Measurement System	Imperial
Material	Aluminum
Width (mm)	21.8 mm
Product Group	Bead and Roller Guides
Length (in)	84 in
Design	Roller Rail-Single Strand
Rail Size	1.4
Modifiable	Allows for field Modification
Maximum Deflection 36 in. Length	0.034
Maximum Deflection 24 in. Length	0.01
Rolling Surface Height (in)	1.44 in
Bead Roller Width (in)	0.45 in
FDA Compliant	Yes

General Specifications

UPC	787405500013
Weight	5.04 LB
Packaged Length	84.00 IN
Packaged Width	0.86 IN
Packaged Height	1.90 IN
