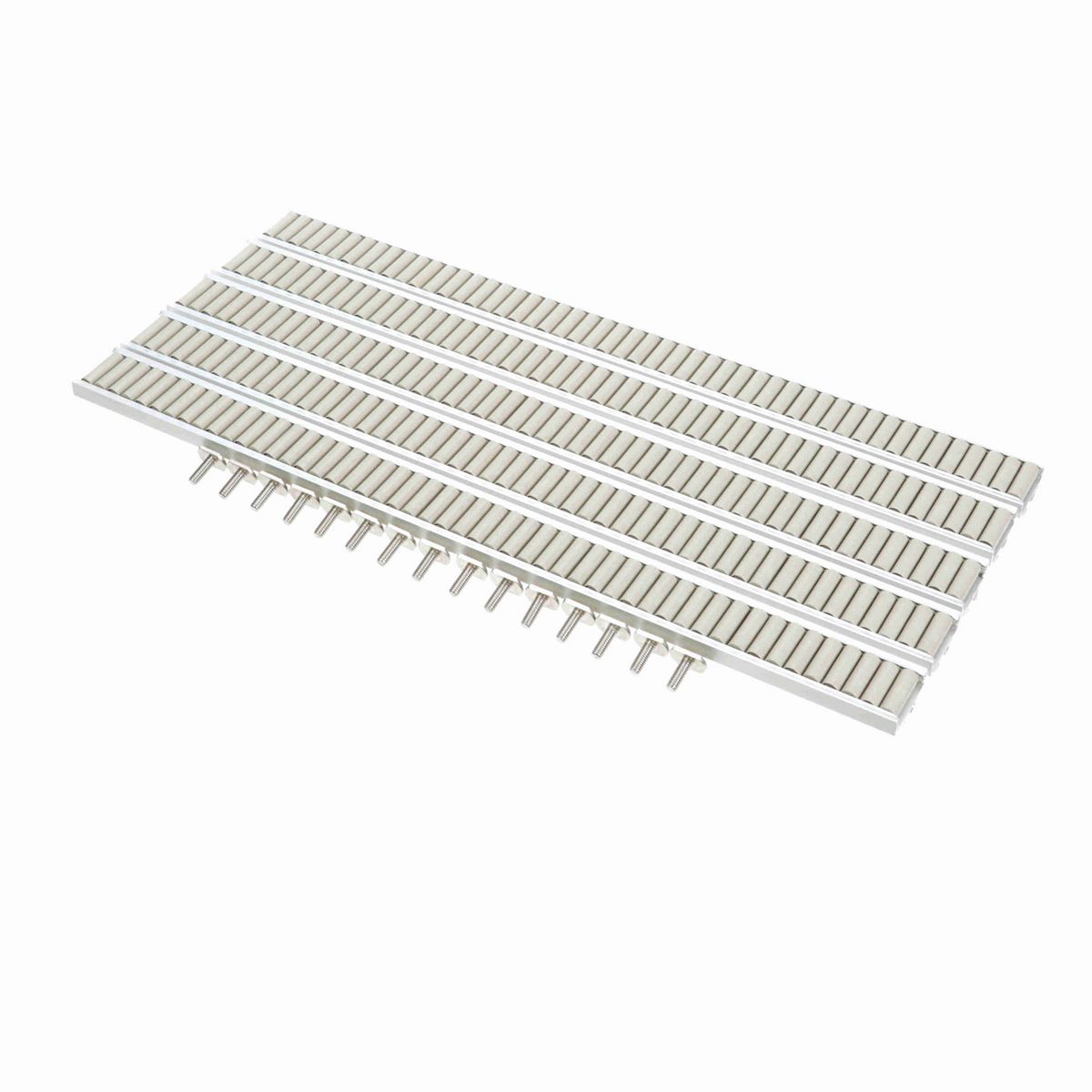

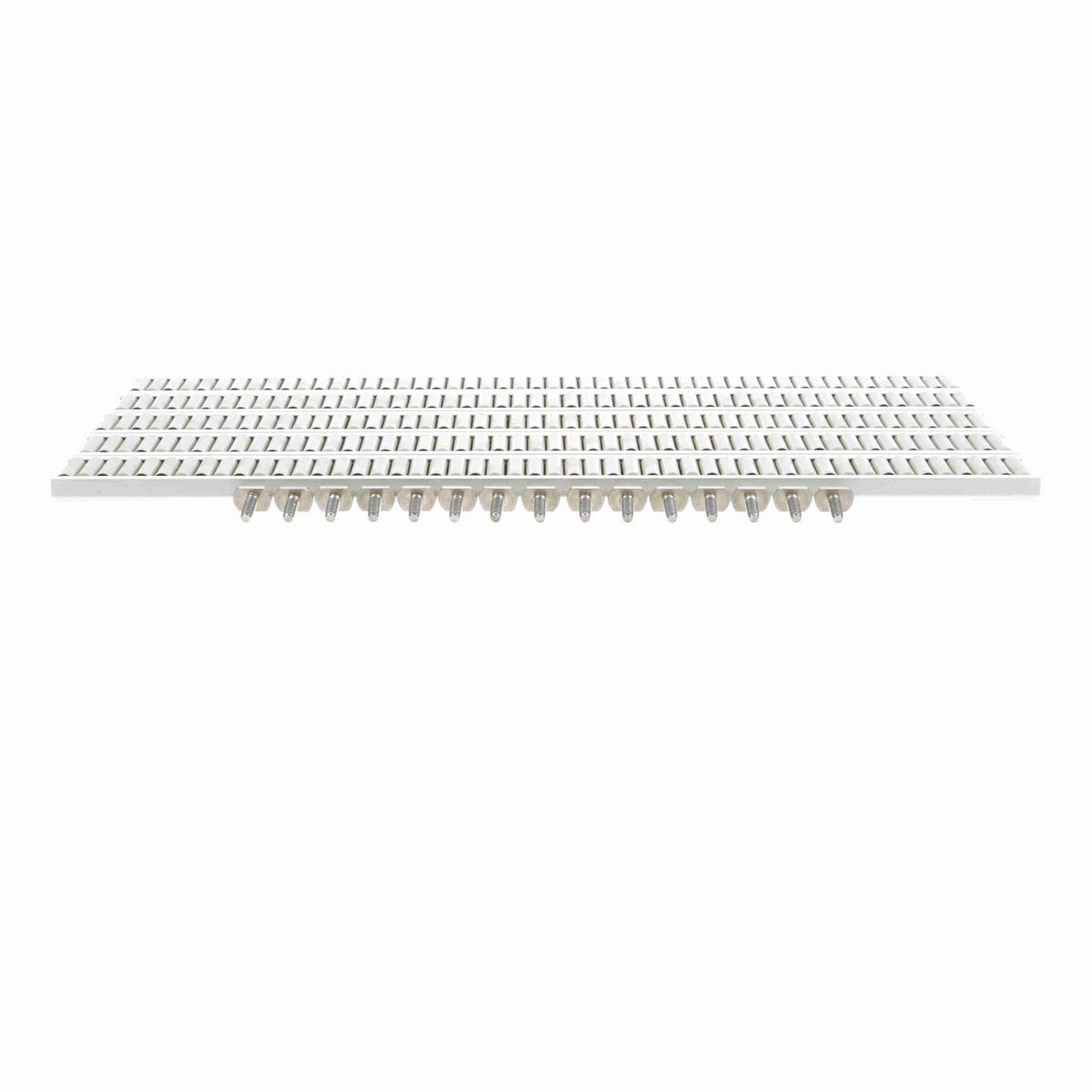

• SpeedRoll
• Low friction rollers.
• Easy mounting using the included VG-1568-02 t-bolts.
• Great for polywrapped containers or PET.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal rollers.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Max Temp (°F)	180 °F
Pins Material	PBT Poly
Surface Guide Material	Acetal
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Product Line	Guide Products
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Color	Grey
Minimum Bend Radius	12
Profile	Speedroll
Height (mm)	48.3 mm
Height (in)	1.9 in
Measurement System	Imperial
Product Group	Bead and Roller Guides
Length (in)	24 in
Width (in)	0.86 in
Material	Aluminum
Product Type	Aluminum Channel Speed RAIL
Width (mm)	21.8 mm
Design	Roller Rail-Single Strand
Modifiable	Allows for field Modification
Rail Size	1.4
Maximum Deflection 24 in. Length	0.01
Maximum Deflection 36 in. Length	0.034
FDA Compliant	Yes
Rolling Surface Height (in)	1.44 in
Bead Roller Width (in)	0.45 in

General Specifications

UPC	787405499966
Weight	1.44 LB
Packaged Length	24.00 IN
Packaged Width	0.86 IN
Packaged Height	1.90 IN
