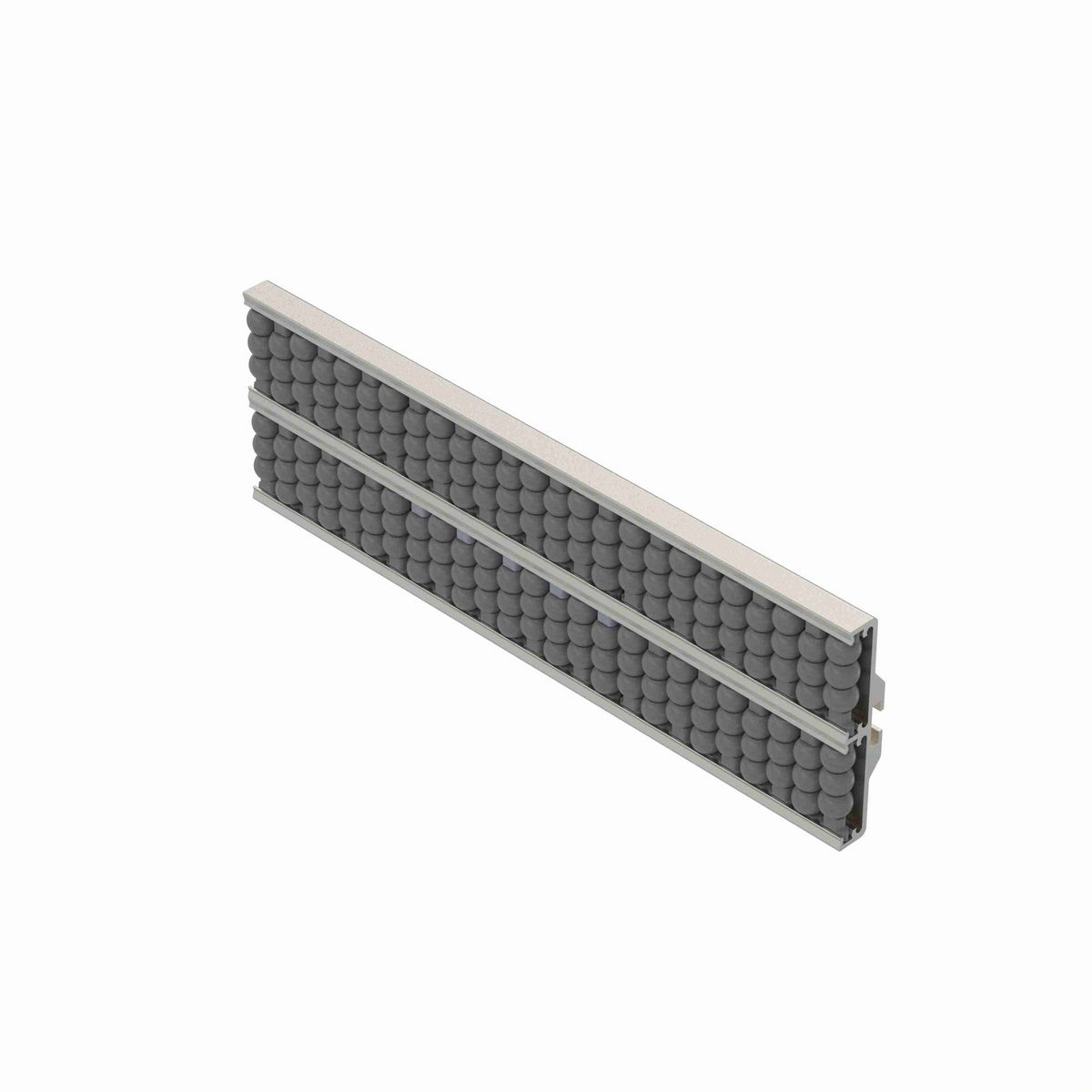

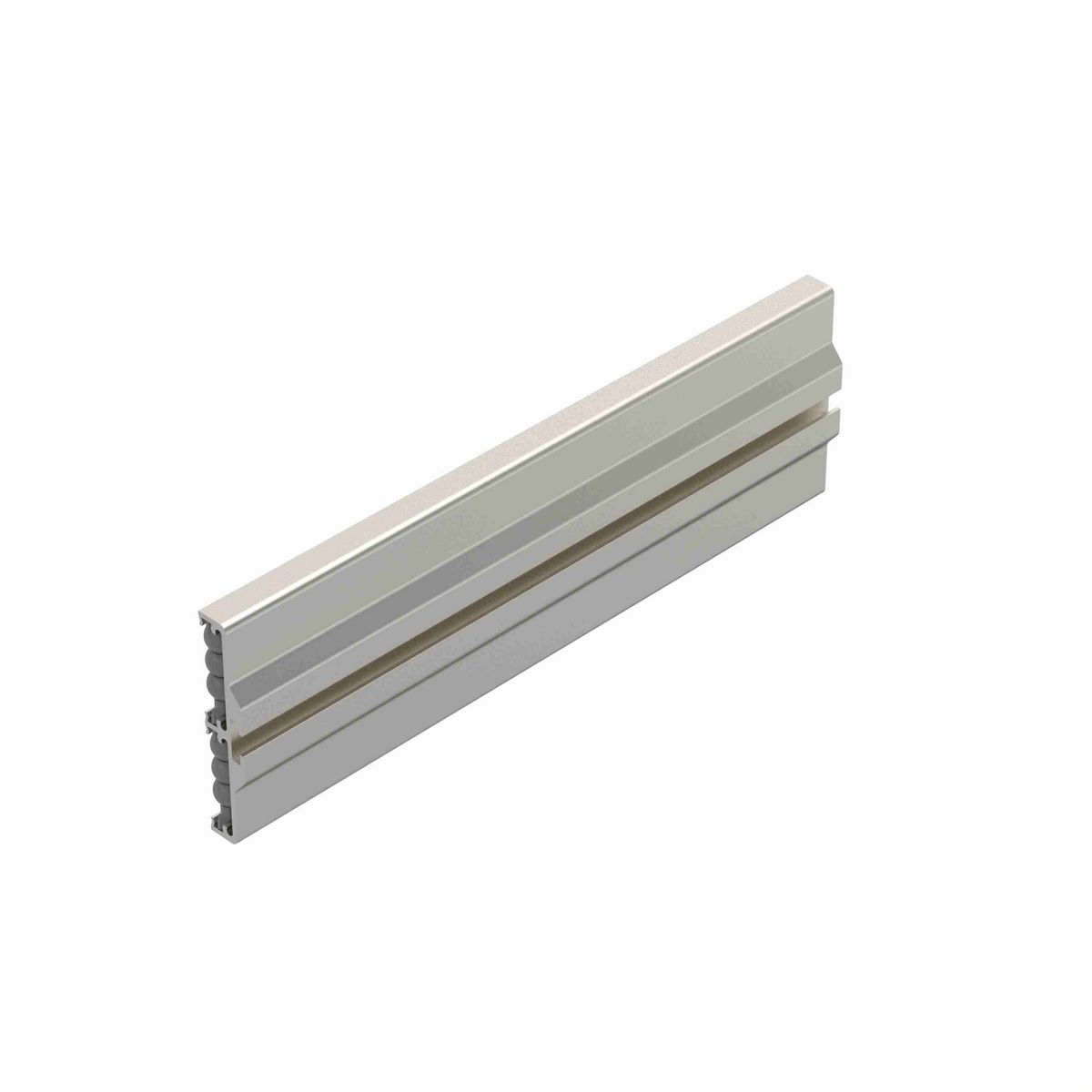

• 2-Strand SpeedRail SB
• A wider bead guide with low friction smaller beads to help guide smaller containers.
• Easy mounting using the included VG-1568-02 t-bolts.
• Great for polywrapped containers or PET.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal beads.
• 20 inch minimum bending radius in either direction.

Technical Specifications

Pins Material	PBT Poly
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Max Temp (°F)	180 °F
Surface Guide Material	Acetal
Product Line	Guide Products
Width (mm)	21.8 mm
Material	Aluminum
Height (mm)	94.5 mm
Minimum Bend Radius	20
Width (in)	0.86 in
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Measurement System	Imperial
Product Group	Bead and Roller Guides
Color	Grey
Product Type	Aluminum Channel Speed RAIL
Height (in)	3.72 in
Profile	Speedrail
Length (in)	120 in
Design	Beaded Rail-Double Strand
Rail Size	3.3
Modifiable	Allows for field Modification
Maximum Deflection 24 in. Length	0.006
Maximum Deflection 36 in. Length	0.019
Bead Roller Width (in)	0.49 in
FDA Compliant	Yes
Rolling Surface Height (in)	3.26 in

General Specifications

UPC	787405499393
Weight	13.16 LB
Packaged Length	120.00 IN
Packaged Width	0.86 IN
Packaged Height	3.72 IN
