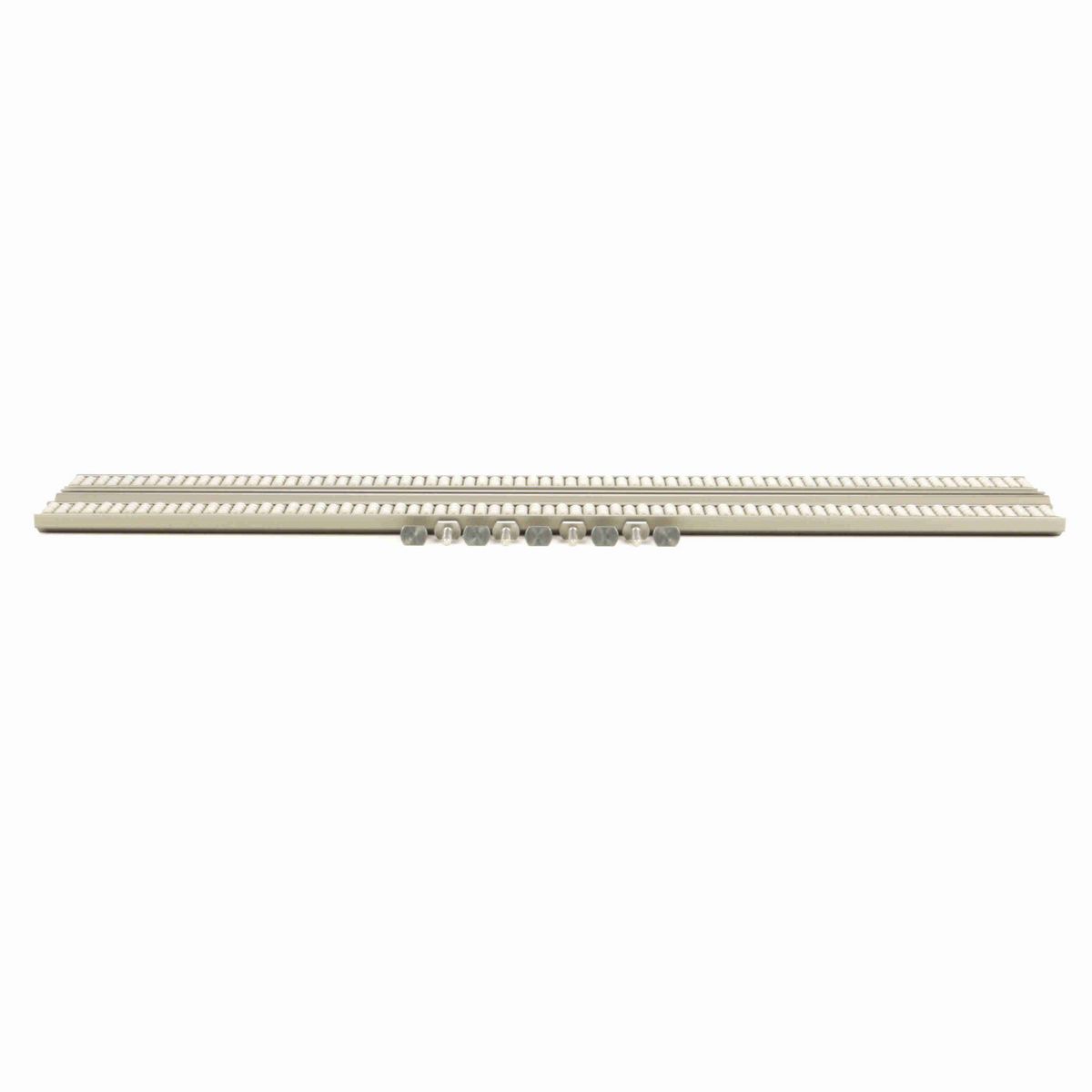

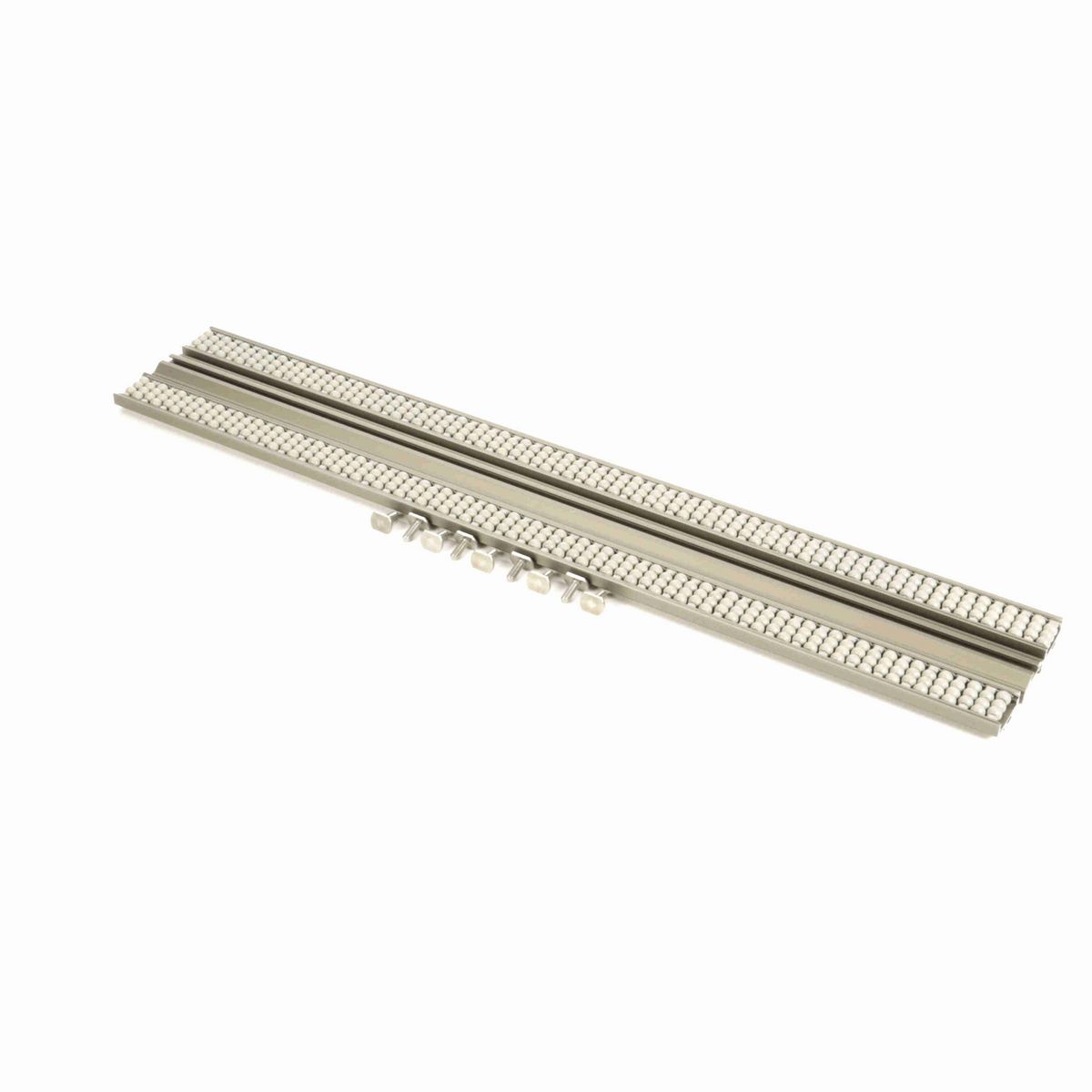

• 2-Strand SpeedRail SB
• A wider bead guide with low friction smaller beads to help guide smaller containers.
• Easy mounting using the included VG-1568-02 t-bolts.
• Great for polywrapped containers or PET.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal beads.
• 20 inch minimum bending radius in either direction.

Technical Specifications

Pins Material	PBT Poly
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Surface Guide Material	Acetal
Max Temp (°F)	180 °F
Measurement System	Imperial
Product Type	Aluminum Channel Speed RAIL
Width (mm)	21.8 mm
Product Line	Guide Products
Width (in)	0.86 in
Length (in)	36 in
Profile	Speedrail
Color	Grey
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Height (mm)	94.5 mm
Minimum Bend Radius	20
Height (in)	3.72 in
Material	Aluminum
Product Group	Bead and Roller Guides
Rail Size	3.3
Design	Beaded Rail-Double Strand
Modifiable	Allows for field Modification
Maximum Deflection 36 in. Length	0.019
Maximum Deflection 24 in. Length	0.006
FDA Compliant	Yes
Rolling Surface Height (in)	3.26 in
Bead Roller Width (in)	0.49 in

General Specifications

UPC	787405499324
Weight	3.94 LB
Packaged Length	36.00 IN
Packaged Width	0.86 IN
Packaged Height	3.72 IN
