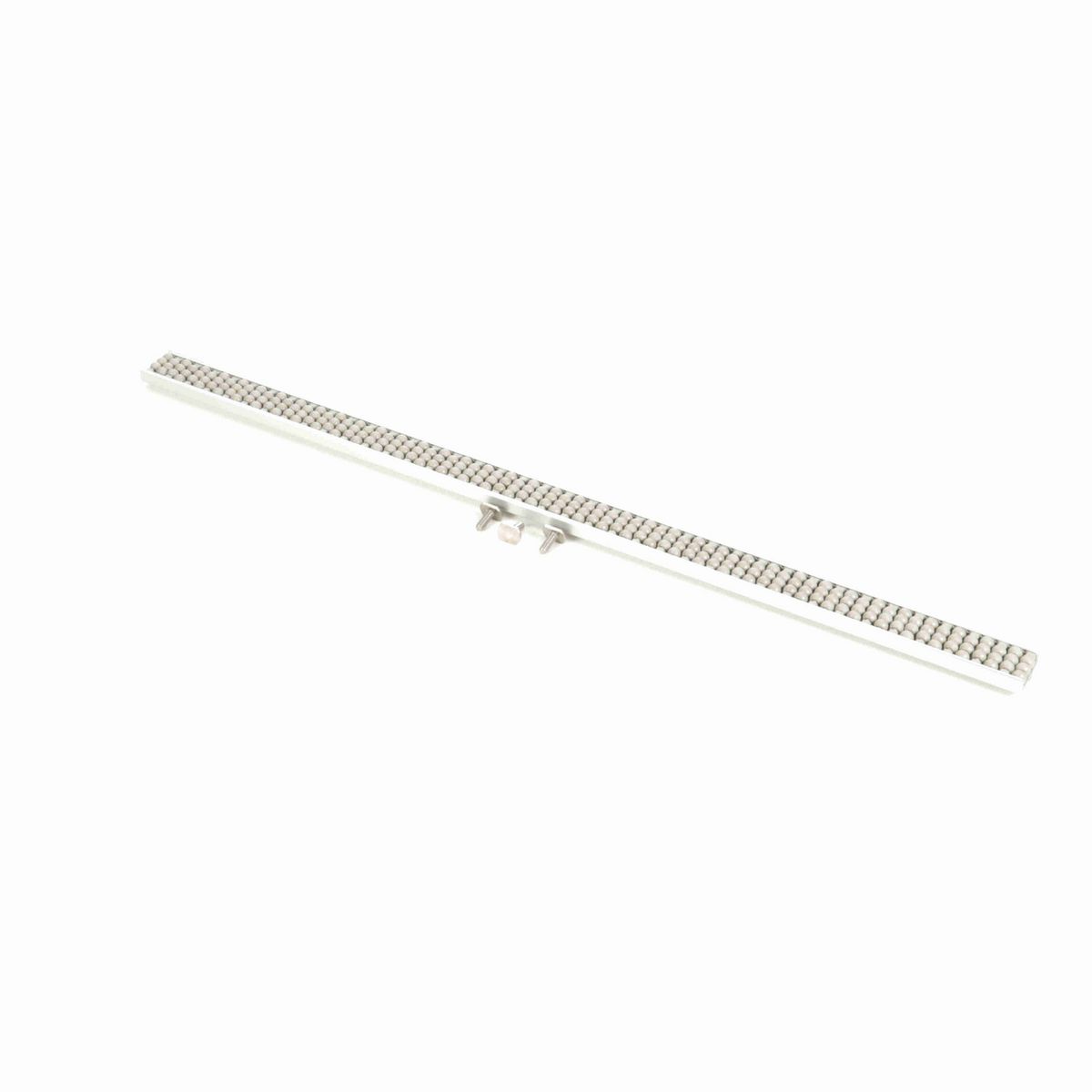

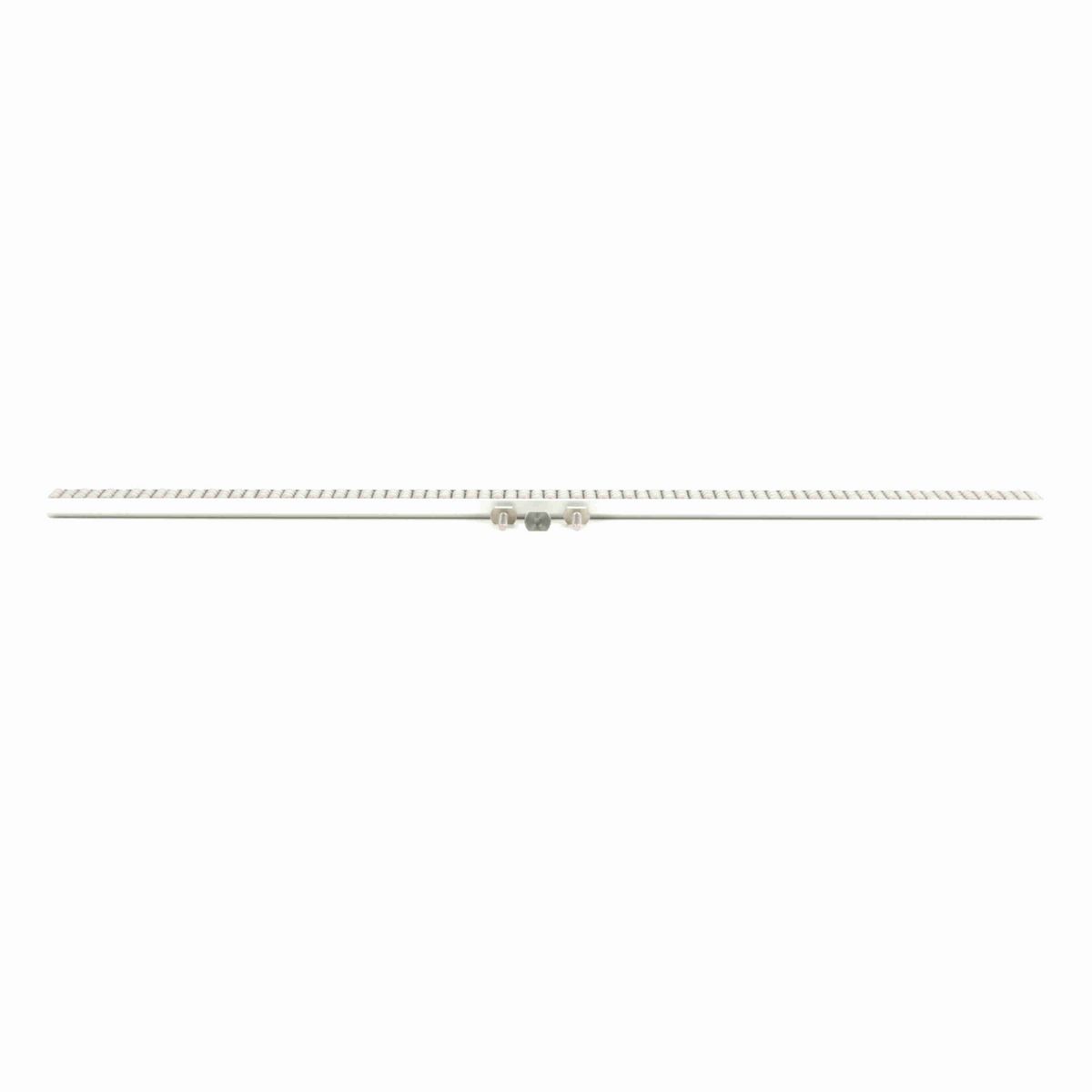

• SpeedRail SB
• Low friction smaller beads help guide smaller containers.
• Easy mounting using the included VG-1568-02 t-bolts.
• Great for polywrapped containers or PET.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal beads.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Pins Material	PBT Poly
Max Temp (°F)	180 °F
Surface Guide Material	Acetal
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Length (in)	36 in
Measurement System	Imperial
Minimum Bend Radius	12
Profile	Speedrail
Product Line	Guide Products
Material	Aluminum
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Width (in)	0.86 in
Height (mm)	48.3 mm
Product Type	Aluminum Channel Speed RAIL
Product Group	Bead and Roller Guides
Color	Grey
Width (mm)	21.8 mm
Height (in)	1.9 in
Design	Beaded Rail-Single Strand
Rail Size	1.4
Modifiable	Allows for field Modification
Maximum Deflection 24 in. Length	0.01
Maximum Deflection 36 in. Length	0.034
Bead Roller Width (in)	0.49 in
Rolling Surface Height (in)	1.44 in
FDA Compliant	Yes

General Specifications

UPC	787405499225
Weight	2.16 LB
Packaged Length	36.00 IN
Packaged Width	0.86 IN
Packaged Height	1.90 IN
