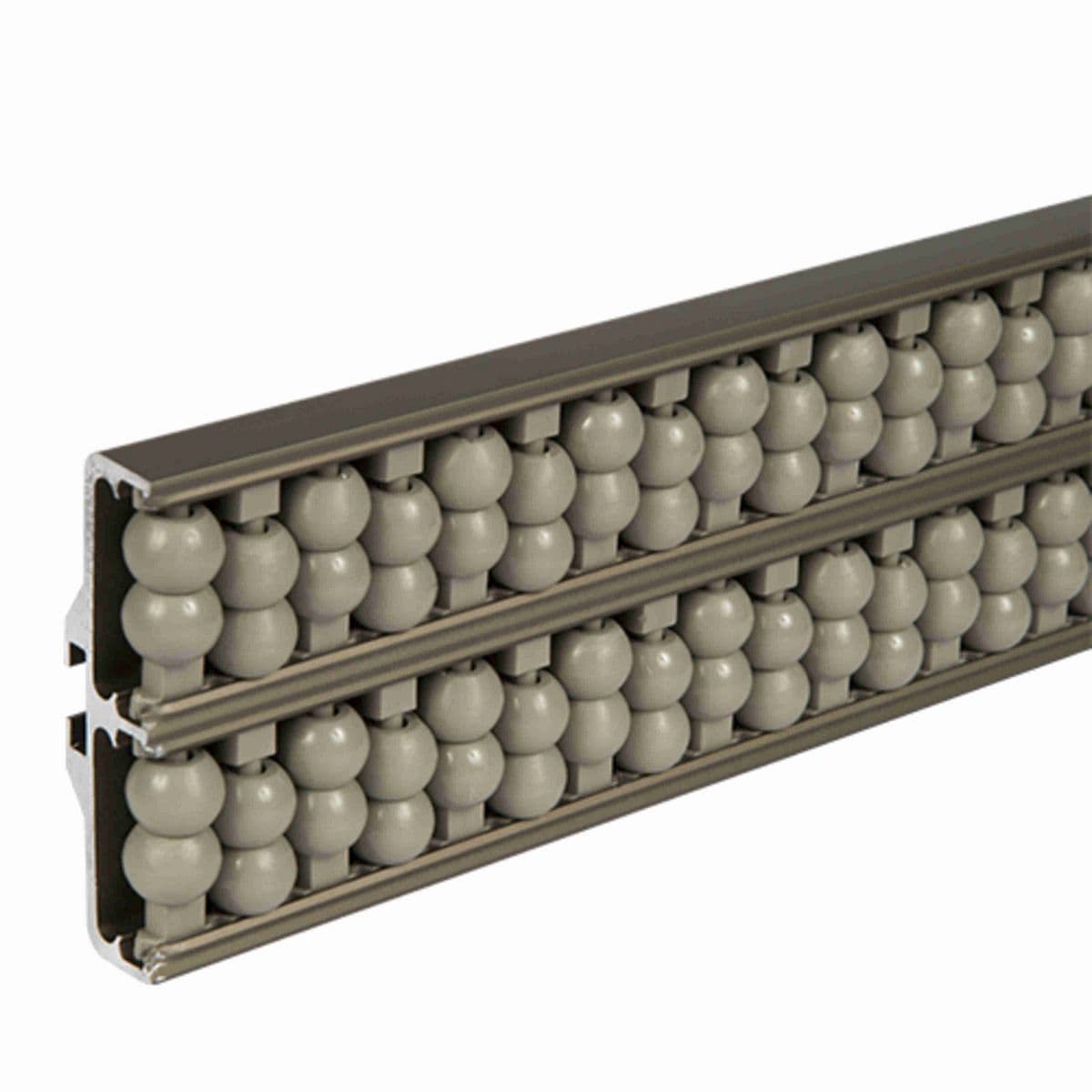

• 2-Strand SpeedRail
• A wider bead guide used for carry surfaces or side rails.
• Easy fastening frame slot with included VG-1568 t-bolt for horizontal and vertical applications.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal beads.
• 20 inch minimum bending radius in either direction.

Technical Specifications

Max Temp (°F)	180 °F
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Surface Guide Material	Acetal
Pins Material	PBT Poly
Product Group	Bead and Roller Guides
Height (mm)	86.6 mm
Product Line	Guide Products
Height (in)	3.41 in
Width (in)	0.98 in
Material	Aluminum
Length (in)	60 in
Color	Grey
Measurement System	Imperial
Profile	Speedrail
Minimum Bend Radius	20
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Product Type	Aluminum Channel Speed RAIL
Width (mm)	24.9 mm
Modifiable	Allows for field Modification
Rail Size	3
Design	Beaded Rail-Double Strand
Maximum Deflection 36 in. Length	0.016
Maximum Deflection 24 in. Length	0.005
FDA Compliant	Yes
Rolling Surface Height (in)	1.3 in
Bead Roller Width (in)	0.62 in

General Specifications

UPC	787405498648
Weight	6.97 LB
Packaged Length	60.00 IN
Packaged Width	0.98 IN
Packaged Height	3.41 IN
