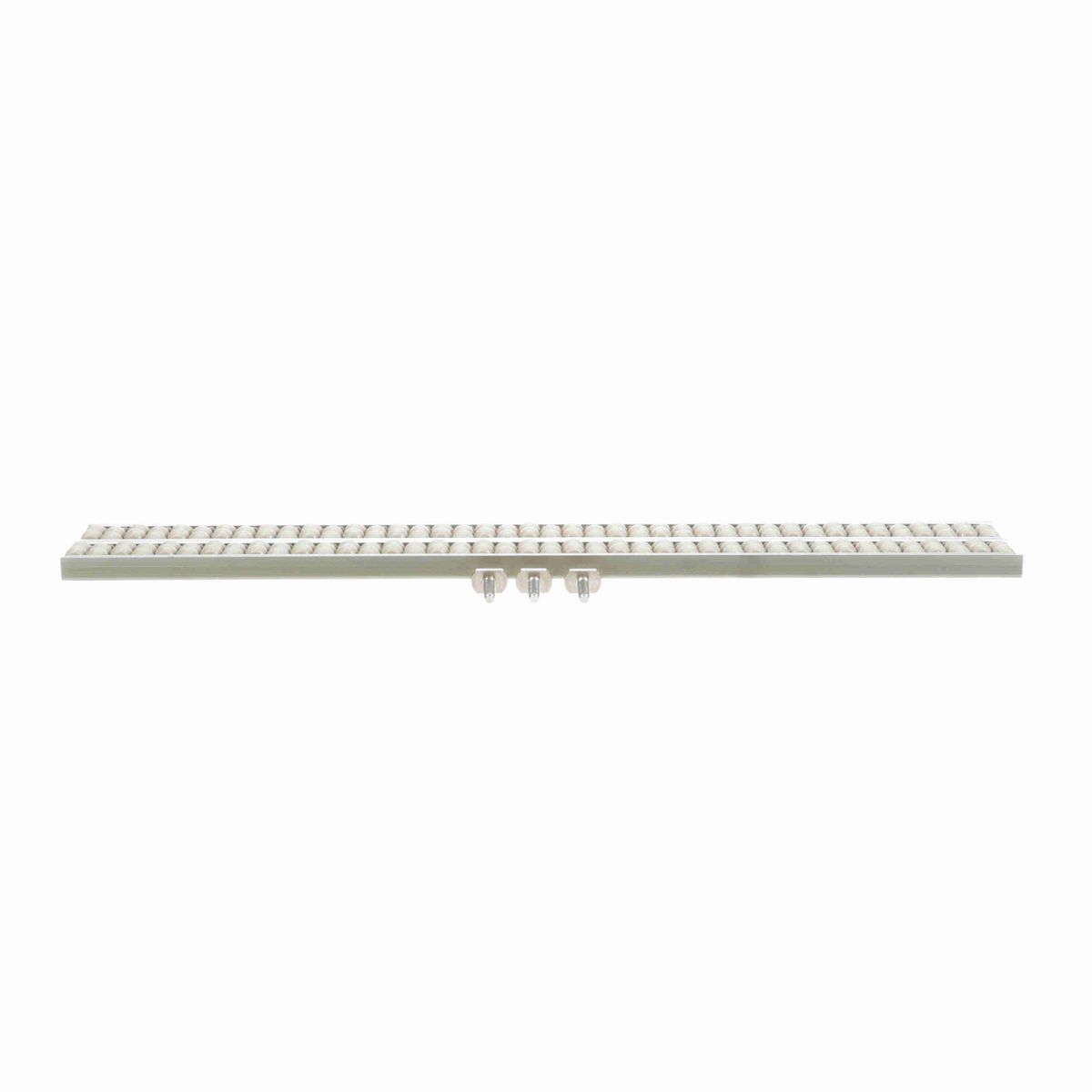

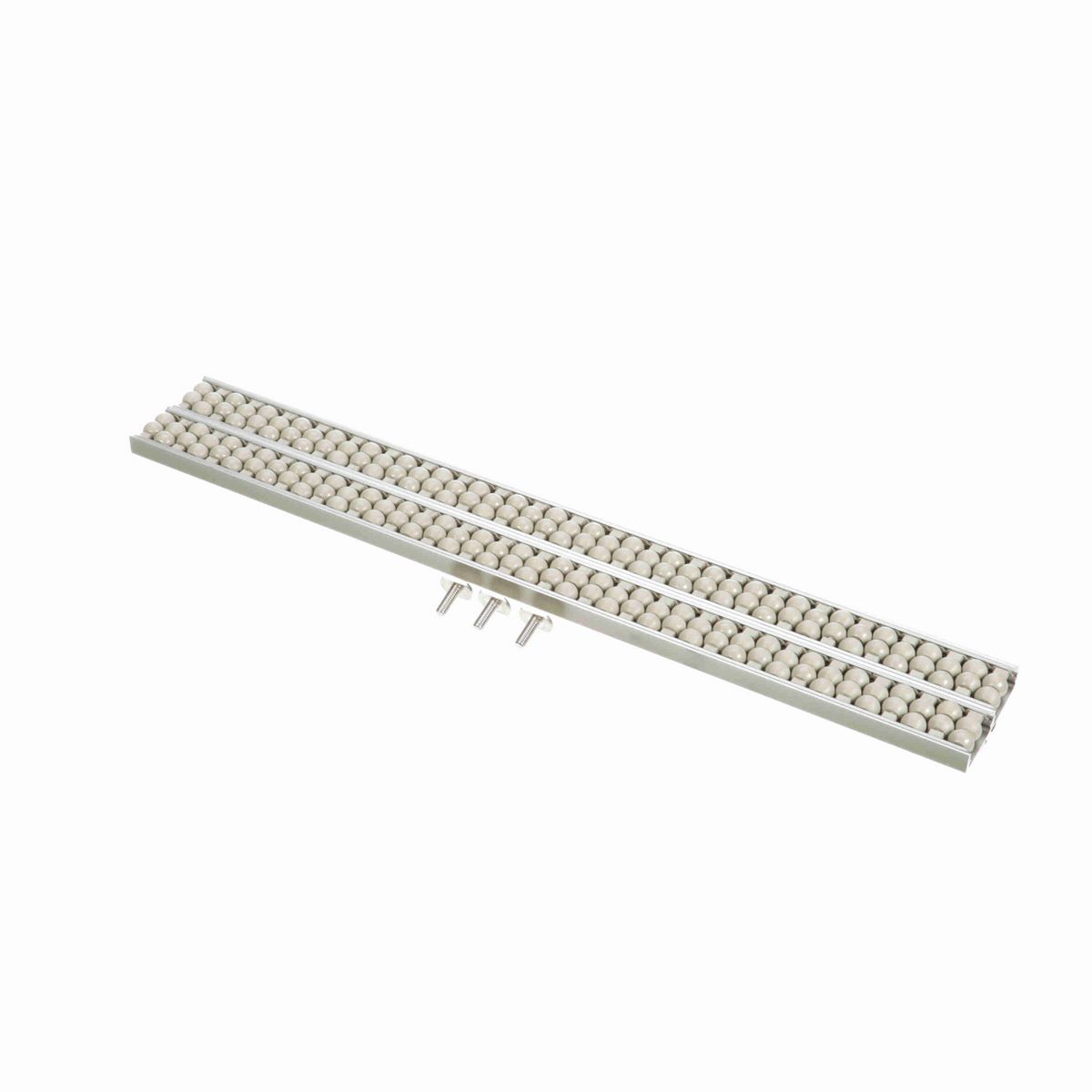

• 2-Strand SpeedRail
• A wider bead guide used for carry surfaces or side rails.
• Easy fastening frame slot with included VG-1568 t-bolt for horizontal and vertical applications.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal beads.
• 20 inch minimum bending radius in either direction.

Technical Specifications

Max Temp (°F)	180 °F
Surface Guide Material	Acetal
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Pins Material	PBT Poly
Profile	Speedrail
Product Type	Aluminum Channel Speed RAIL
Length (in)	24 in
Product Line	Guide Products
Height (mm)	86.6 mm
Product Group	Bead and Roller Guides
Material	Aluminum
Color	Grey
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Height (in)	3.41 in
Width (mm)	24.9 mm
Minimum Bend Radius	20
Width (in)	0.98 in
Measurement System	Imperial
Design	Beaded Rail-Double Strand
Rail Size	3
Modifiable	Allows for field Modification
Maximum Deflection 24 in. Length	0.005
Maximum Deflection 36 in. Length	0.016
Rolling Surface Height (in)	1.3 in
Bead Roller Width (in)	0.62 in
FDA Compliant	Yes

General Specifications

UPC	787405498617
Weight	2.79 LB
Packaged Length	24.00 IN
Packaged Width	0.98 IN
Packaged Height	3.41 IN
