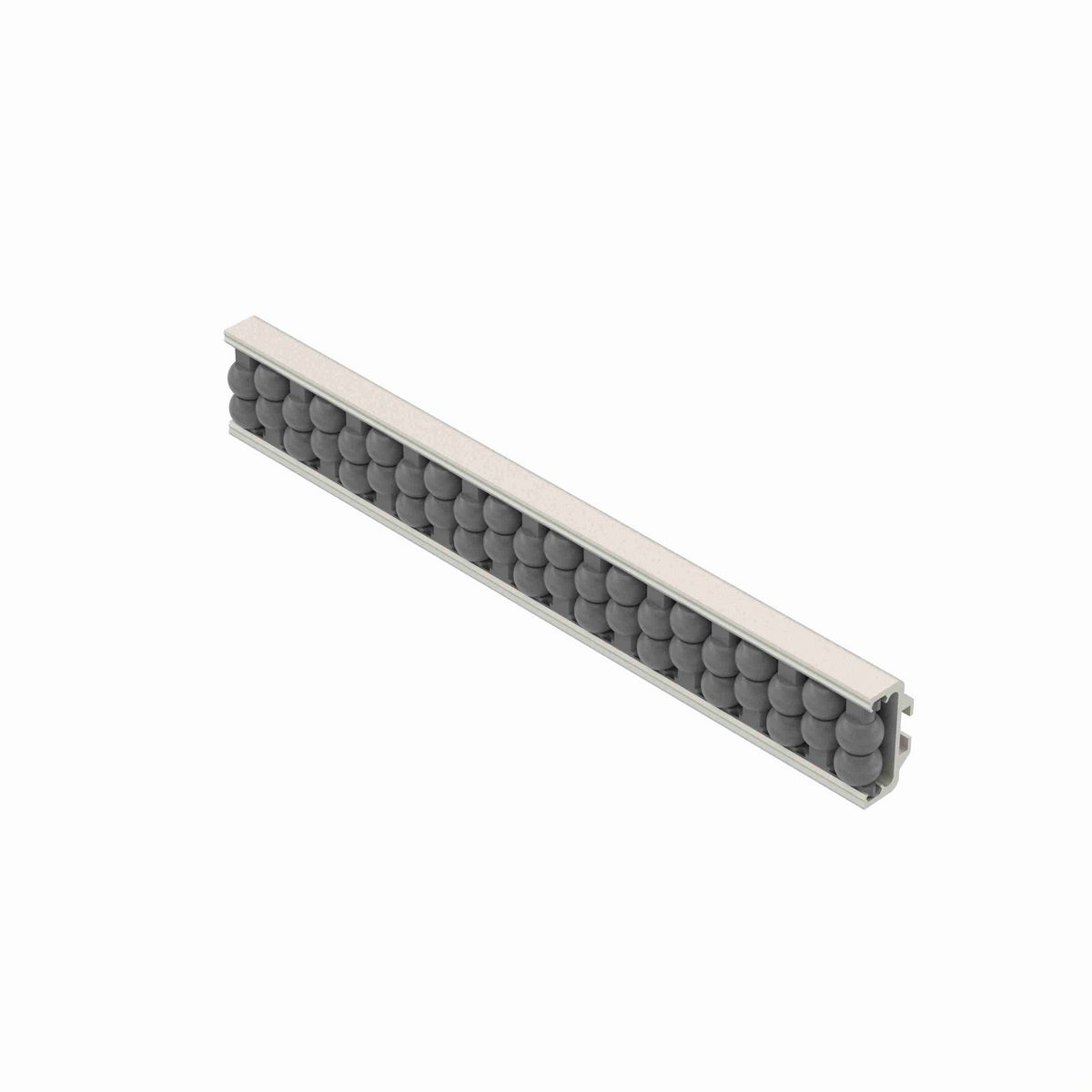

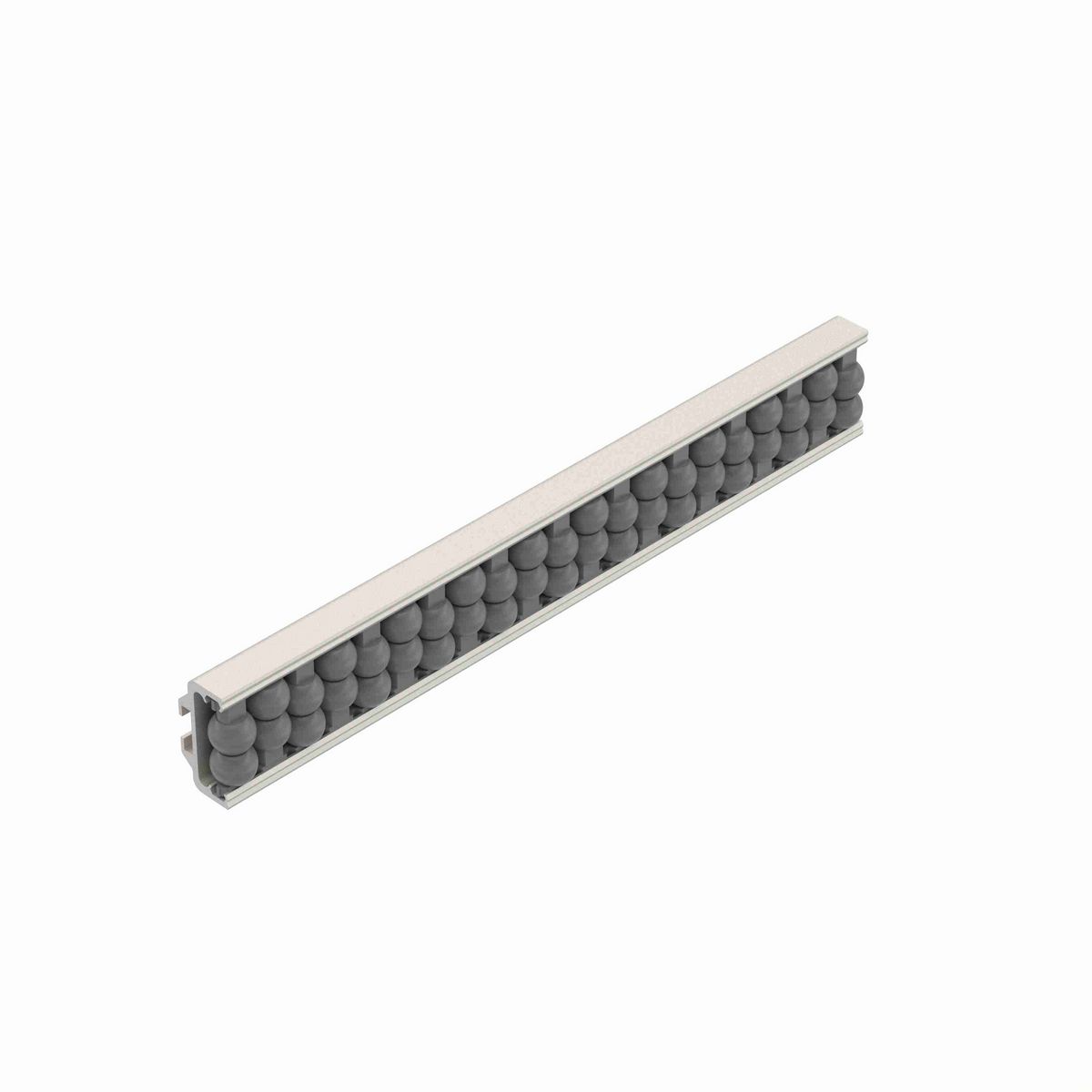

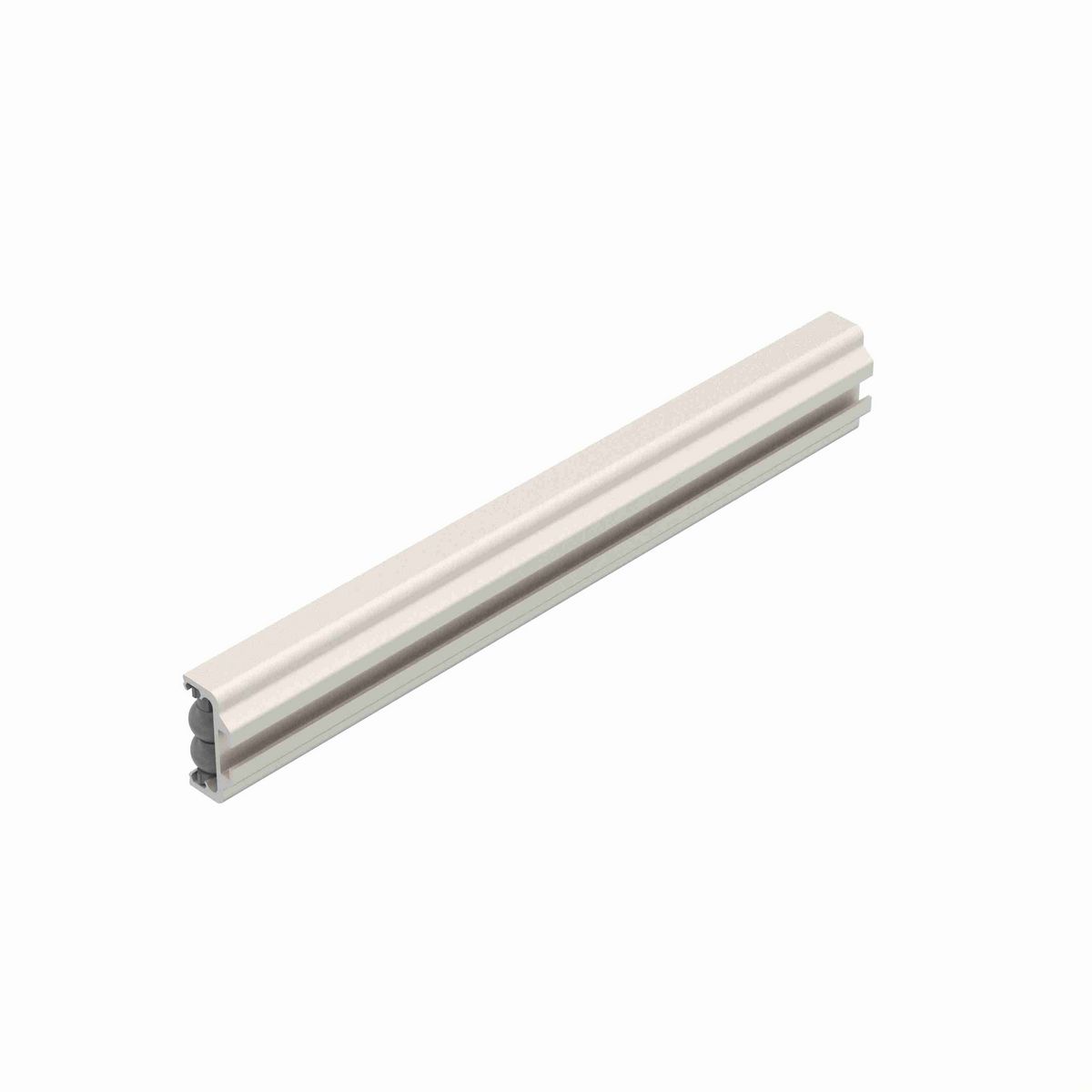

• SpeedRail
• Economical bead guide used for carry surfaces or side rails.
• Easy fastening frame slot with included VG-1568 t-bolt for horizontal and vertical applications.
• Aluminum channel.
• FDA compliant engineered plastic polymer pins.
• Gray acetal beads.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Pins Material	PBT Poly
Max Temp (°F)	180 °F
Surface Guide Material	Acetal
Mounting Hardware	5/16" T-Head Bolt or Carriage Bolt
Length (in)	36 in
Profile	Speedrail
Color	Grey
Mounting Hardware Size	5/16"-18 T-Bolt (VG-1568-02 included)
Width (in)	0.98 in
Product Line	Guide Products
Minimum Bend Radius	12
Measurement System	Imperial
Material	Aluminum
Product Group	Bead and Roller Guides
Height (mm)	44.5 mm
Height (in)	1.75 in
Width (mm)	24.9 mm
Product Type	Aluminum Channel Speed RAIL
Rail Size	1.25
Modifiable	Allows for field Modification
Design	Beaded Rail-Single Strand
Maximum Deflection 24 in. Length	0.007
Maximum Deflection 36 in. Length	0.024
FDA Compliant	Yes
Bead Roller Width (in)	0.62 in
Rolling Surface Height (in)	1.28 in

General Specifications

UPC	787405498518
Weight	2.08 LB
Packaged Length	36.00 IN
Packaged Width	0.98 IN
Packaged Height	1.75 IN
