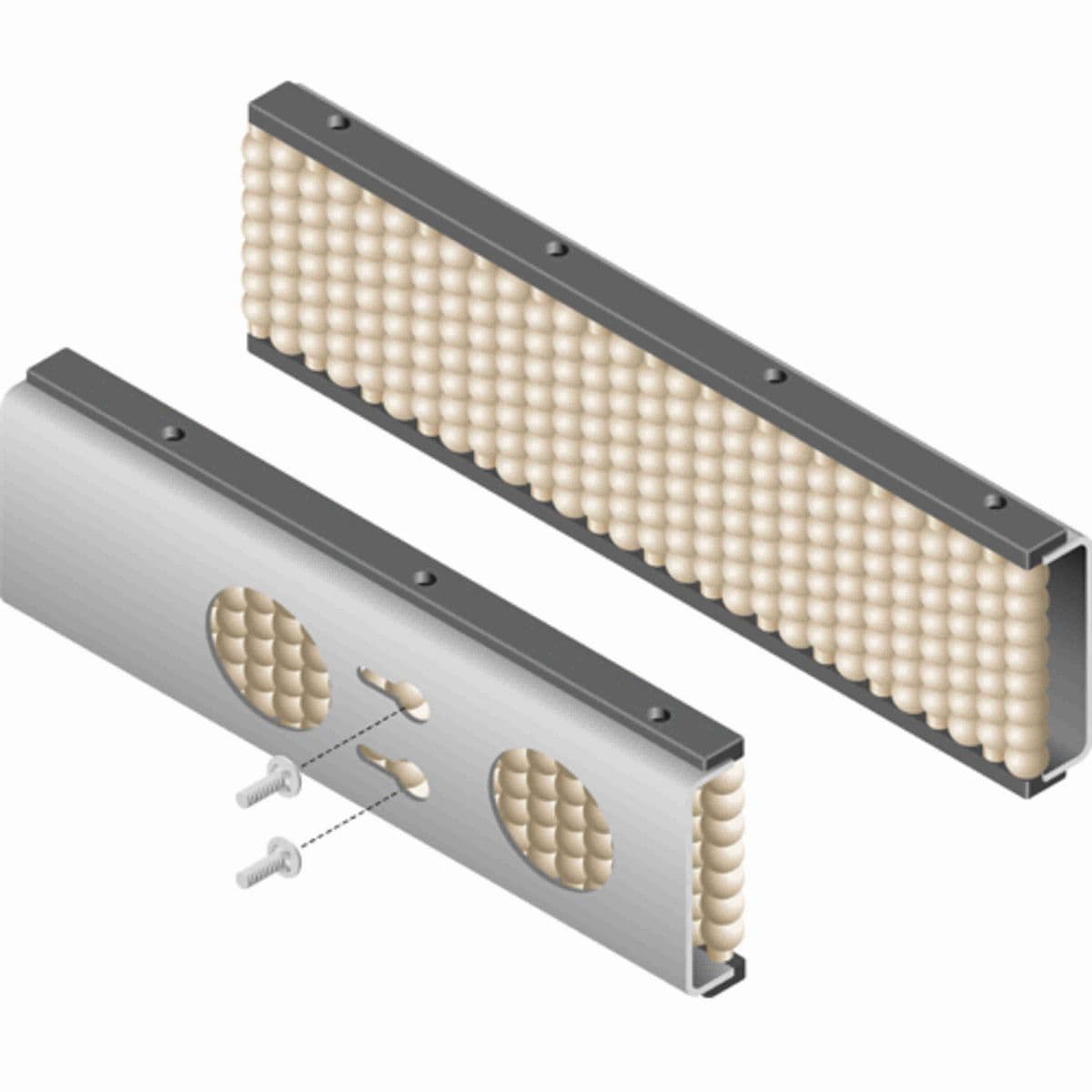

• Heavy duty BeadWall.
• Low friction guiding surface with high density bead pattern.
• Larger bead on larger pins accommodate larger load capacities.
• Excellent for combiner or accumulation areas.
• 10 ga stainless steel channel.
• Polyamide pin rails.
• 1/4 inch stainless steel pins, support larger loads
• Acetal beads.
• 18 inch minimum bending radius in either direction.
• 3/8 inch carriage bolt (not included) is available as hardware kit VG-205-HDW-03-S38

Technical Specifications

Pin Material	Stainless Steel
Material	Stainless Steel
Max Temp (°F)	170 °F
Channel Material	Stainless Steel
Surface Guide Material	Acetal
Height (in)	8.38 in
Product Group	Bead and Roller Guides
Product Type	Steel Channel Bead Wall
Measurement System	Imperial
Minimum Bend Radius	18
Profile	Beadwall
Height (mm)	212.9 mm
Length (in)	120 in
Color	Beige
Product Line	Guide Products
Width (mm)	37.3 mm
Width (in)	1.47 in
Mounting Hardware Size	3/8" Carriage Bolt (Not Included)
Rail Size	8
Maximum Pin Deflection	0.023
Pin Diameter (in)	0.25 in
Design	Beaded Rail-Single Strand
Steel Gauge (ga)	10
Maximum Deflection 24 in. Length	0.004
Maximum Deflection 36 in. Length	0.013
Rolling Surface Height (in)	7.65 in
Bead Roller Width (in)	0.68 in

General Specifications

UPC	787405272385
Weight	91.40 LB
Packaged Length	120.00 IN
Packaged Width	1.47 IN
Packaged Height	8.38 IN
