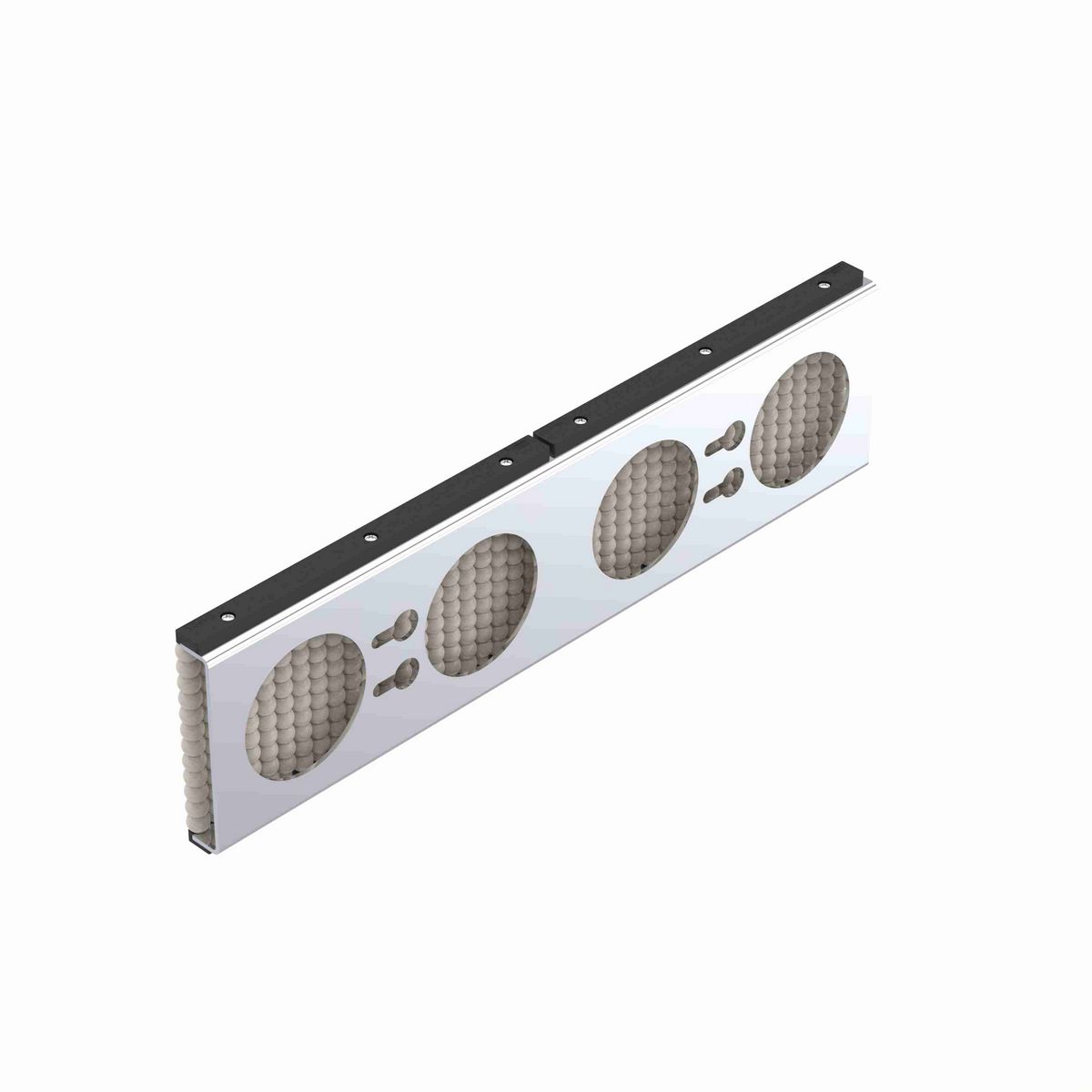

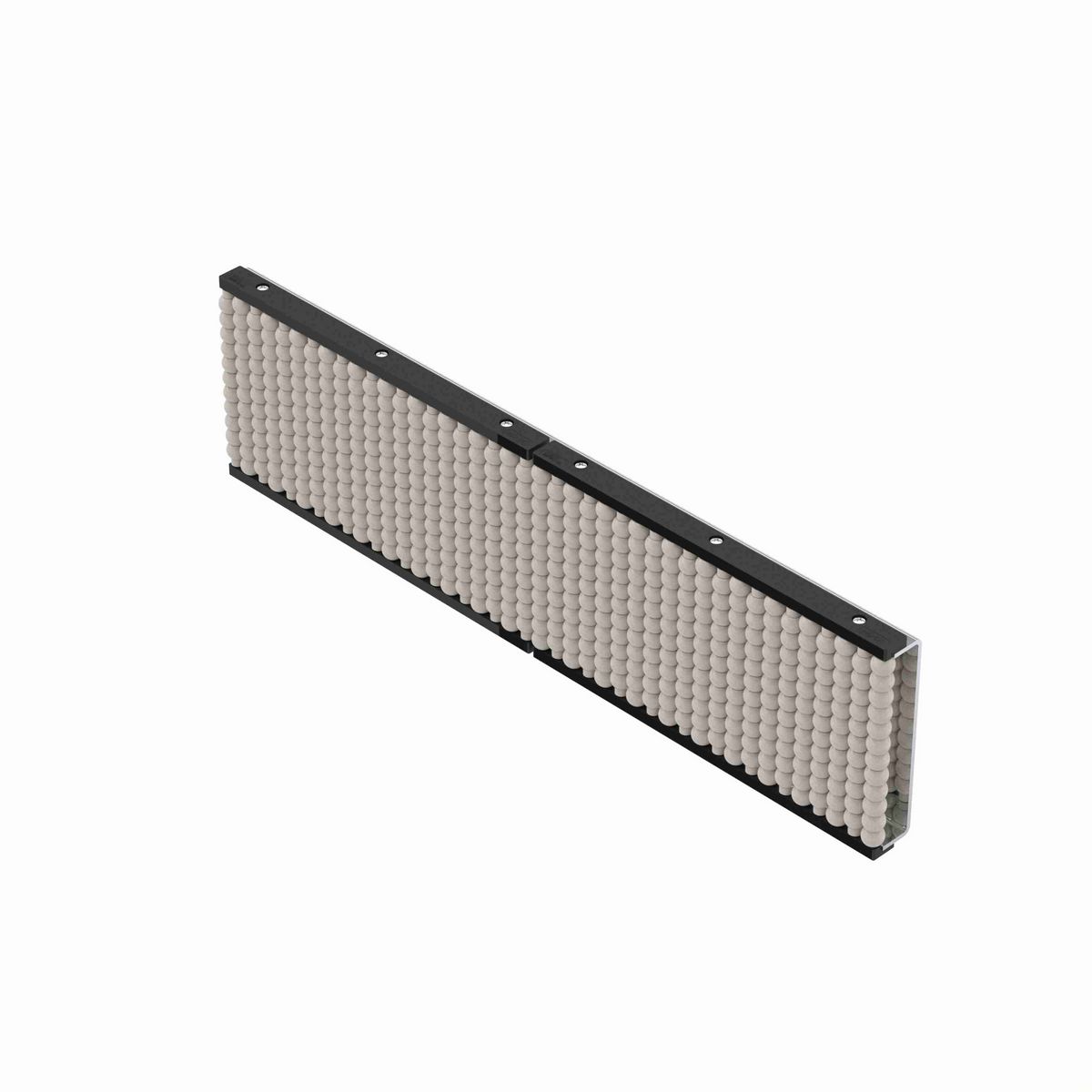

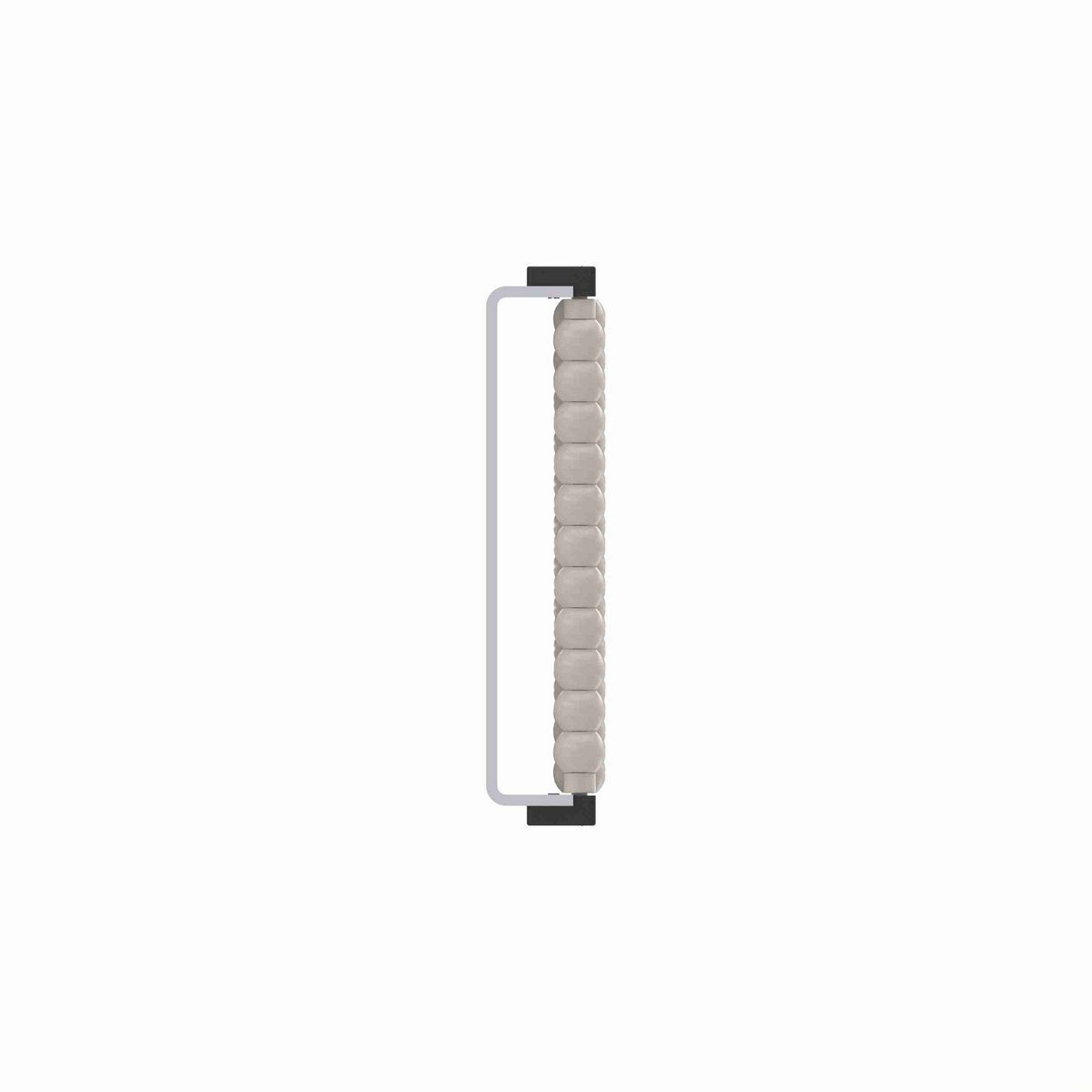

• Heavy duty BeadWall.
• Low friction guiding surface with high density bead pattern.
• Larger bead on larger pins accommodate larger load capacities.
• Excellent for combiner or accumulation areas.
• 10 ga stainless steel channel.
• Polyamide pin rails.
• 1/4 inch stainless steel pins, support larger loads
• Acetal beads.
• 18 inch minimum bending radius in either direction.
• 3/8 inch carriage bolt (not included) is available as hardware kit VG-205-HDW-03-S38

Technical Specifications

Channel Material	Stainless Steel
Material	Stainless Steel
Surface Guide Material	Acetal
Max Temp (°F)	170 °F
Pin Material	Stainless Steel
Width (in)	1.47 in
Color	Beige
Height (mm)	164.6 mm
Width (mm)	37.3 mm
Height (in)	6.48 in
Profile	Beadwall
Minimum Bend Radius	18
Mounting Hardware Size	3/8" Carriage Bolt (Not Included)
Measurement System	Imperial
Product Type	Steel Channel Bead Wall
Product Line	Guide Products
Length (in)	120 in
Product Group	Bead and Roller Guides
Rail Size	6
Pin Diameter (in)	0.25 in
Design	Beaded Rail-Single Strand
Maximum Pin Deflection	0.01
Steel Gauge (ga)	10
Maximum Deflection 24 in. Length	0.004
Maximum Deflection 36 in. Length	0.014
Rolling Surface Height (in)	5.78 in
Bead Roller Width (in)	0.68 in

General Specifications

UPC	787405272286
Weight	52.70 LB
Packaged Length	120.00 IN
Packaged Width	1.47 IN
Packaged Height	6.48 IN
