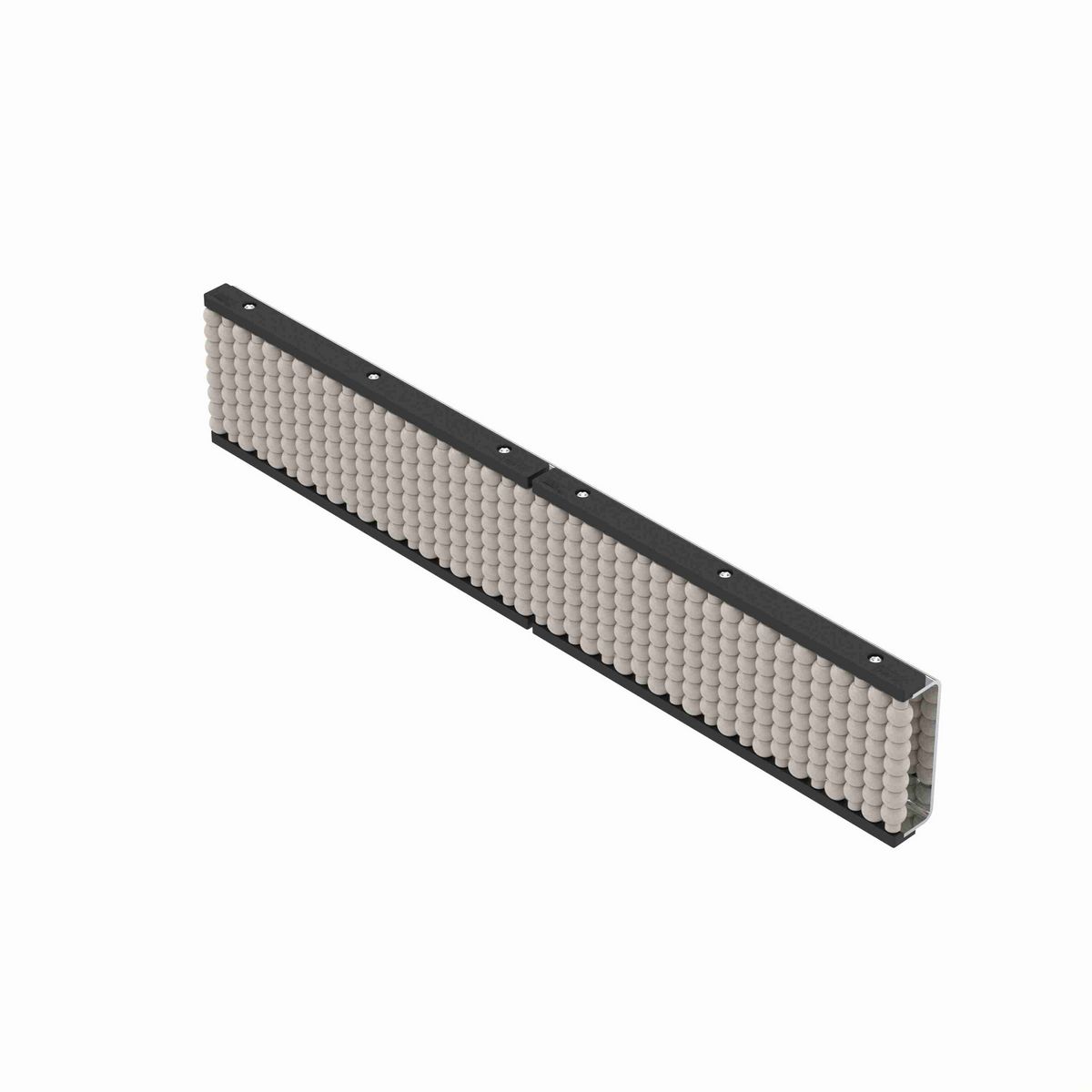

• Heavy duty BeadWall.
• Low friction guiding surface with high density bead pattern.
• Larger bead on larger pins accommodate larger load capacities.
• Excellent for combiner or accumulation areas.
• 10 ga stainless steel channel.
• Polyamide pin rails.
• 1/4 inch stainless steel pins, support larger loads
• Acetal beads.
• 18 inch minimum bending radius in either direction.
• 3/8 inch carriage bolt (not included) is available as hardware kit VG-205-HDW-03-S38

Technical Specifications

Pin Material	Stainless Steel
Material	Stainless Steel
Surface Guide Material	Acetal
Channel Material	Stainless Steel
Max Temp (°F)	170 °F
Product Group	Bead and Roller Guides
Mounting Hardware Size	3/8" Carriage Bolt (Not Included)
Height (mm)	117.1 mm
Width (mm)	37.3 mm
Profile	Beadwall
Height (in)	4.61 in
Minimum Bend Radius	18
Width (in)	1.47 in
Length (in)	96 in
Product Type	Steel Channel Bead Wall
Product Line	Guide Products
Measurement System	Imperial
Color	Beige
Maximum Pin Deflection	0.003
Pin Diameter (in)	0.25 in
Rail Size	4
Design	Beaded Rail-Single Strand
Steel Gauge (ga)	10
Maximum Deflection 36 in. Length	0.015
Maximum Deflection 24 in. Length	0.004
Rolling Surface Height (in)	3.87 in
Bead Roller Width (in)	0.68 in

General Specifications

UPC	787405272163
Weight	32.20 LB
Packaged Length	96.00 IN
Packaged Width	1.47 IN
Packaged Height	4.61 IN
