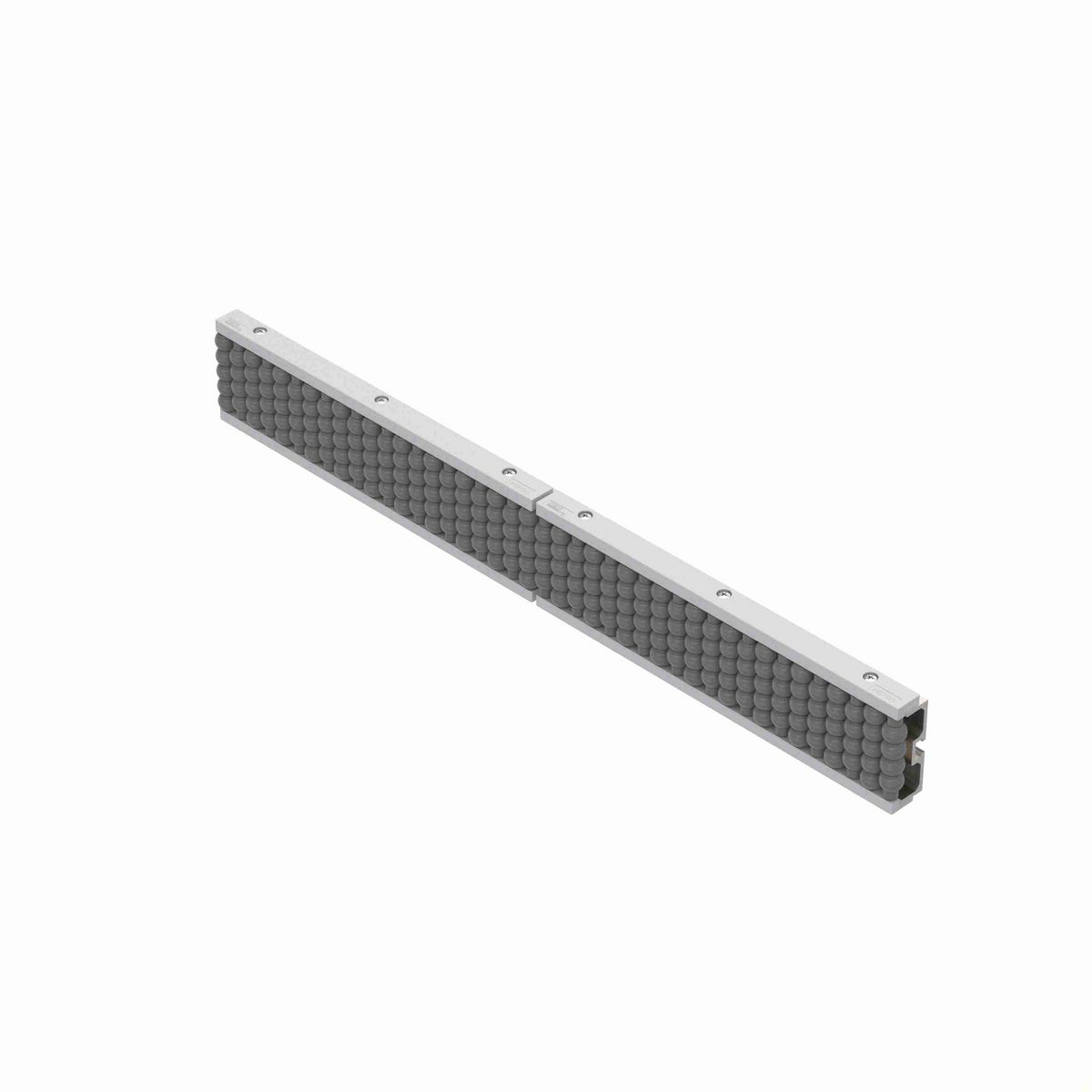

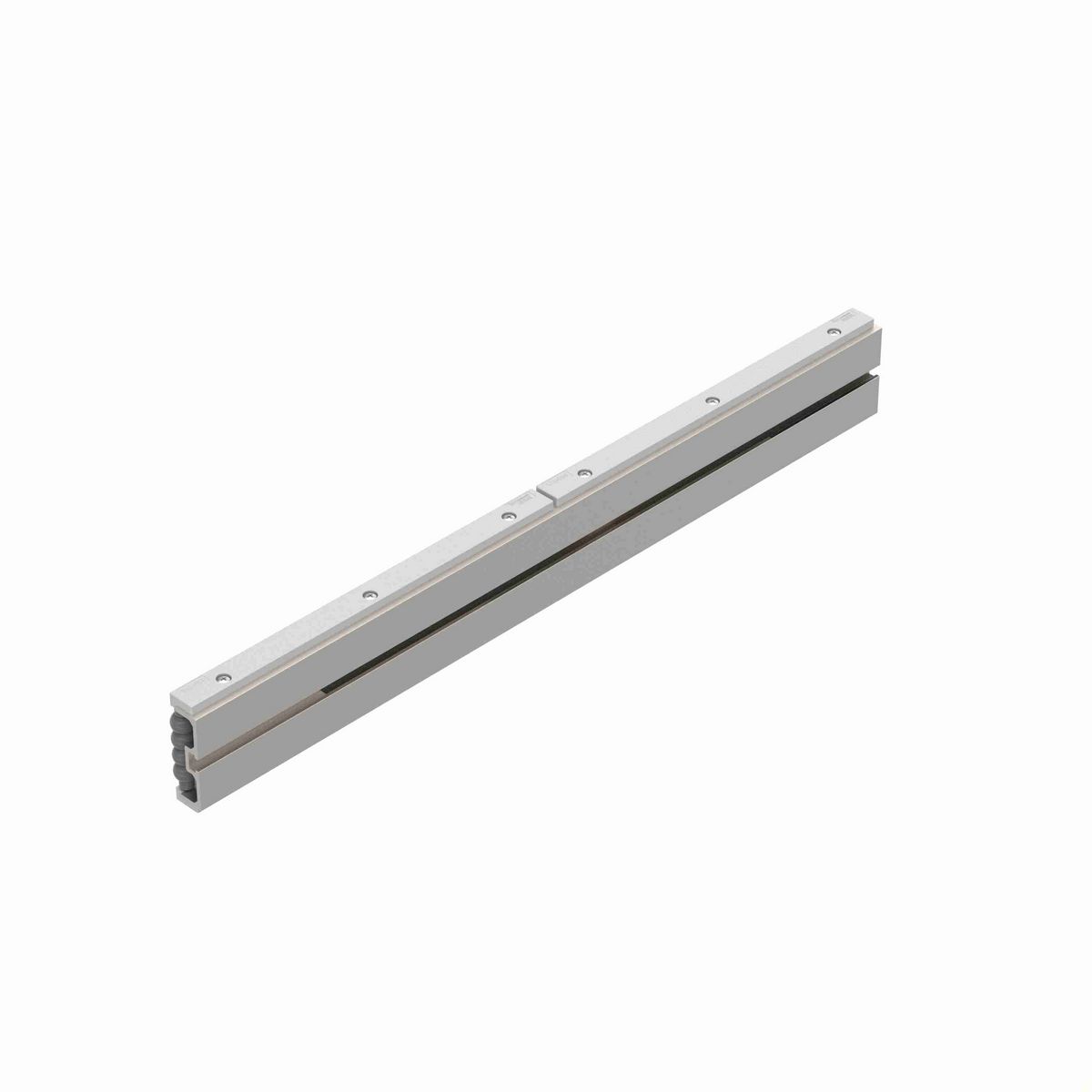

• Aluminum channel BeadRail
• Economical bead guide used for carry surfaces or side rails.
• Easy fastening frame slot for horizontal and vertical applications.
• Aluminum channel.
• Gray polyamide pin rails.
• Carbon steel pins.
• Gray acetal beads.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Pin Material	Carbon Steel
Surface Guide Material	Acetal
Material	Aluminum
Max Temp (°F)	170 °F
Channel Material	Aluminum
Product Group	Bead and Roller Guides
Minimum Bend Radius	12
Product Type	Aluminum Channel Bead Wall
Height (in)	3.16 in
Mounting Hardware Size	5/16" Hex Head Cap Screw (Not Included)
Measurement System	Imperial
Width (mm)	28.7 mm
Color	Grey
Length (in)	120 in
Height (mm)	80.3 mm
Product Line	Guide Products
Width (in)	1.13 in
Profile	Beadwall
Design	Channel Beaded Rail-Single Strand
Rail Size	3
Maximum Deflection 36 in. Length	0.024
Maximum Deflection 24 in. Length	0.007
Rolling Surface Height (in)	2.46 in
Sheath Channel Width (in)	1.01 in
Bead Roller Width (in)	0.62 in

General Specifications

UPC	787405270022
Weight	25.00 LB
Packaged Length	120.00 IN
Packaged Width	3.16 IN
Packaged Height	1.13 IN
