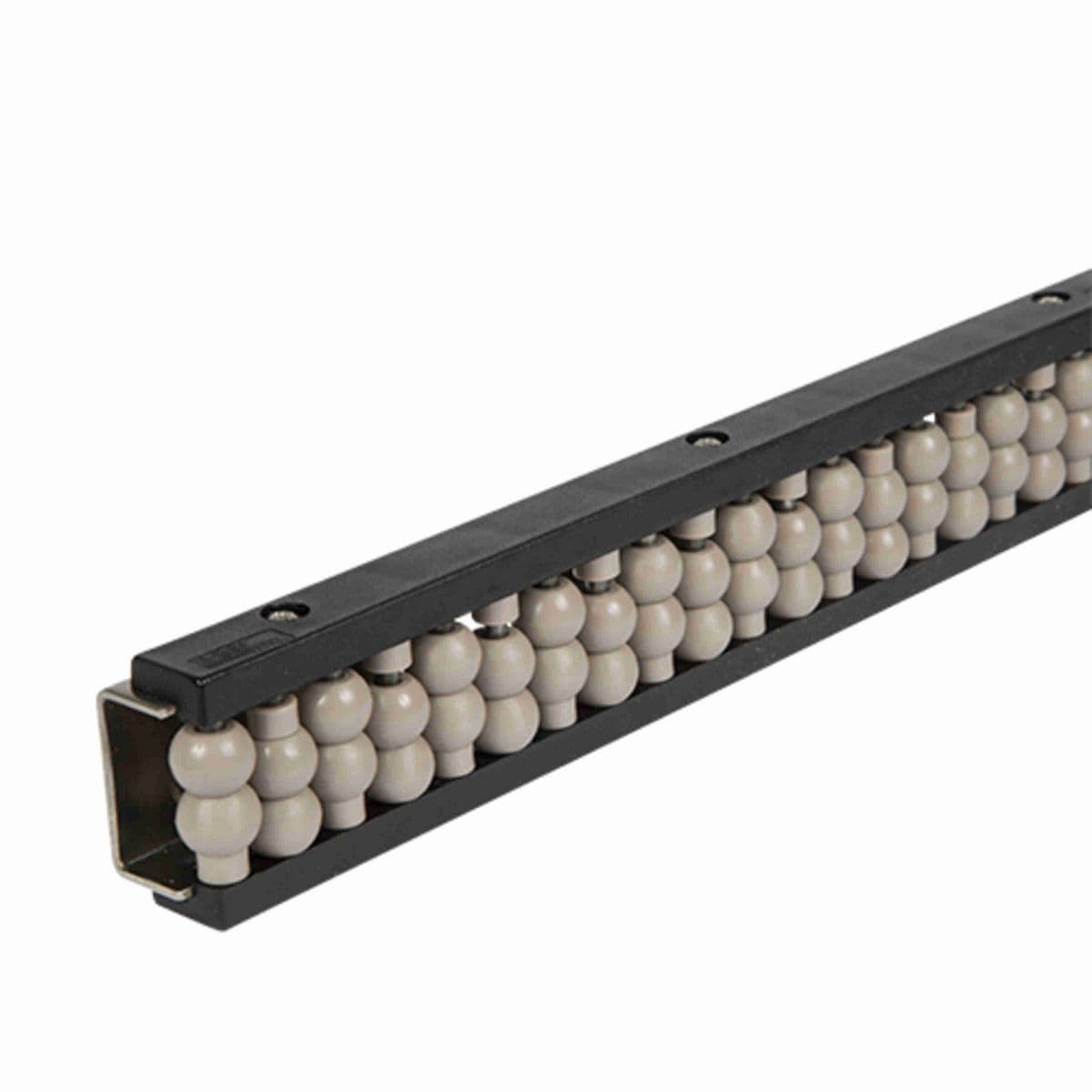

• Stainless steel channel BeadRail
• Economical bead guide used for carry surfaces or side rails.
• Easy fastening frame slot for horizontal and vertical applications.
• 14 ga stainless steel channel.
• Black polyamide pin rails.
• Stainless steel pins.
• Tan acetal beads.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Pin Material	Stainless Steel
Max Temp (°F)	170 °F
Material	Aluminum
Channel Material	Stainless Steel
Surface Guide Material	Acetal
Mounting Hardware Size	5/16" Carriage Bolt (Not Included)
Profile	Beadwall
Product Type	Aluminum Channel Bead Wall
Product Group	Bead and Roller Guides
Measurement System	Imperial
Product Line	Guide Products
Minimum Bend Radius	12
Color	Grey
Height (mm)	49.5 mm
Length (in)	60 in
Width (mm)	28.7 mm
Width (in)	1.13 in
Height (in)	1.95 in
Rail Size	1.5
Pin Diameter (in)	0.1875 in
Design	Channel Beaded Rail-Single Strand
Sheath Channel Width (in)	1.01 in
Rolling Surface Height (in)	1.28 in
Bead Roller Width (in)	0.62 in

General Specifications

UPC	787405269842
Weight	6.60 LB
Packaged Length	60.00 IN
Packaged Width	1.13 IN
Packaged Height	1.95 IN
