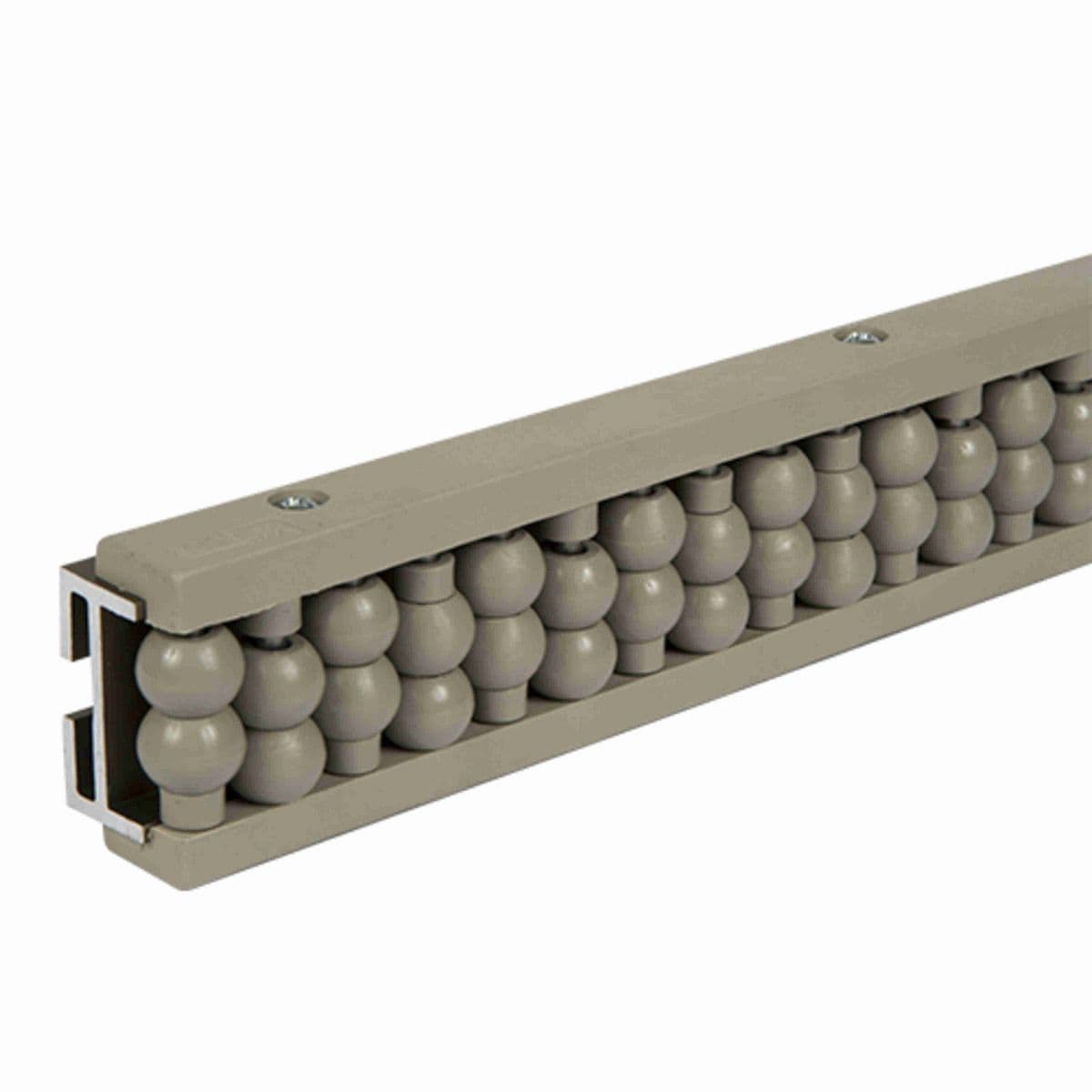

• Aluminum channel BeadRail
• Economical bead guide used for carry surfaces or side rails.
• Easy fastening frame slot for horizontal and vertical applications.
• Aluminum channel.
• Gray polyamide pin rails.
• Carbon steel pins.
• Gray acetal beads.
• 12 inch minimum bending radius in either direction.

Technical Specifications

Pin Material	Carbon Steel
Channel Material	Aluminum
Surface Guide Material	Acetal
Max Temp (°F)	170 °F
Material	Aluminum
Product Group	Bead and Roller Guides
Mounting Hardware Size	5/16" Carriage Bolt (Not Included)
Profile	Beadwall
Height (mm)	49.5 mm
Measurement System	Imperial
Width (in)	1.13 in
Height (in)	1.95 in
Product Line	Guide Products
Minimum Bend Radius	12
Product Type	Aluminum Channel Bead Wall
Color	Grey
Length (in)	48 in
Width (mm)	28.7 mm
Pin Diameter (in)	0.1875 in
Design	Channel Beaded Rail-Single Strand
Rail Size	1.5
Maximum Deflection 36 in. Length	0.031
Maximum Deflection 24 in. Length	0.009
Rolling Surface Height (in)	1.28 in
Sheath Channel Width (in)	1.01 in
Bead Roller Width (in)	0.62 in

General Specifications

UPC	787405269705
Weight	4.56 LB
Packaged Length	48.00 IN
Packaged Width	1.13 IN
Packaged Height	1.95 IN
