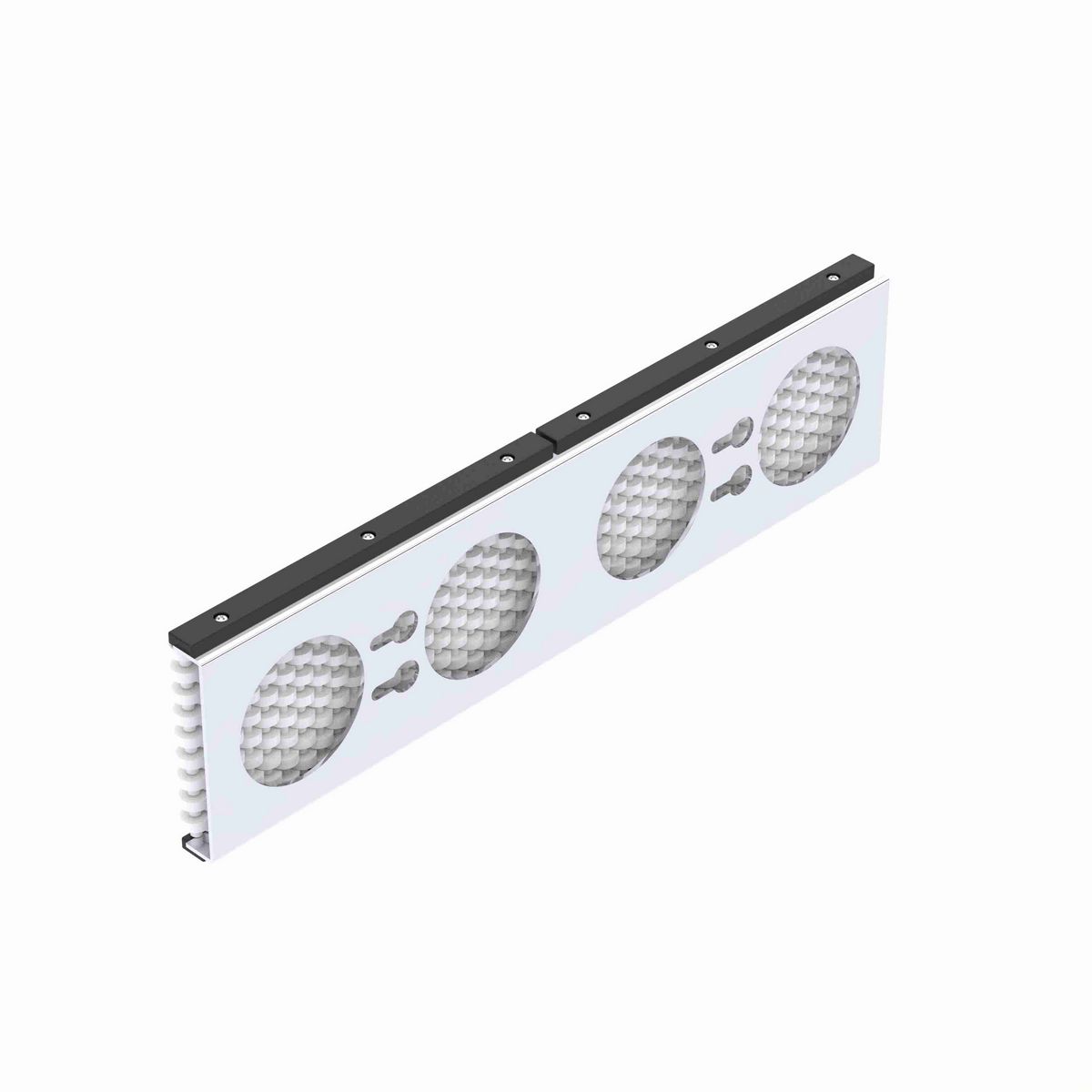

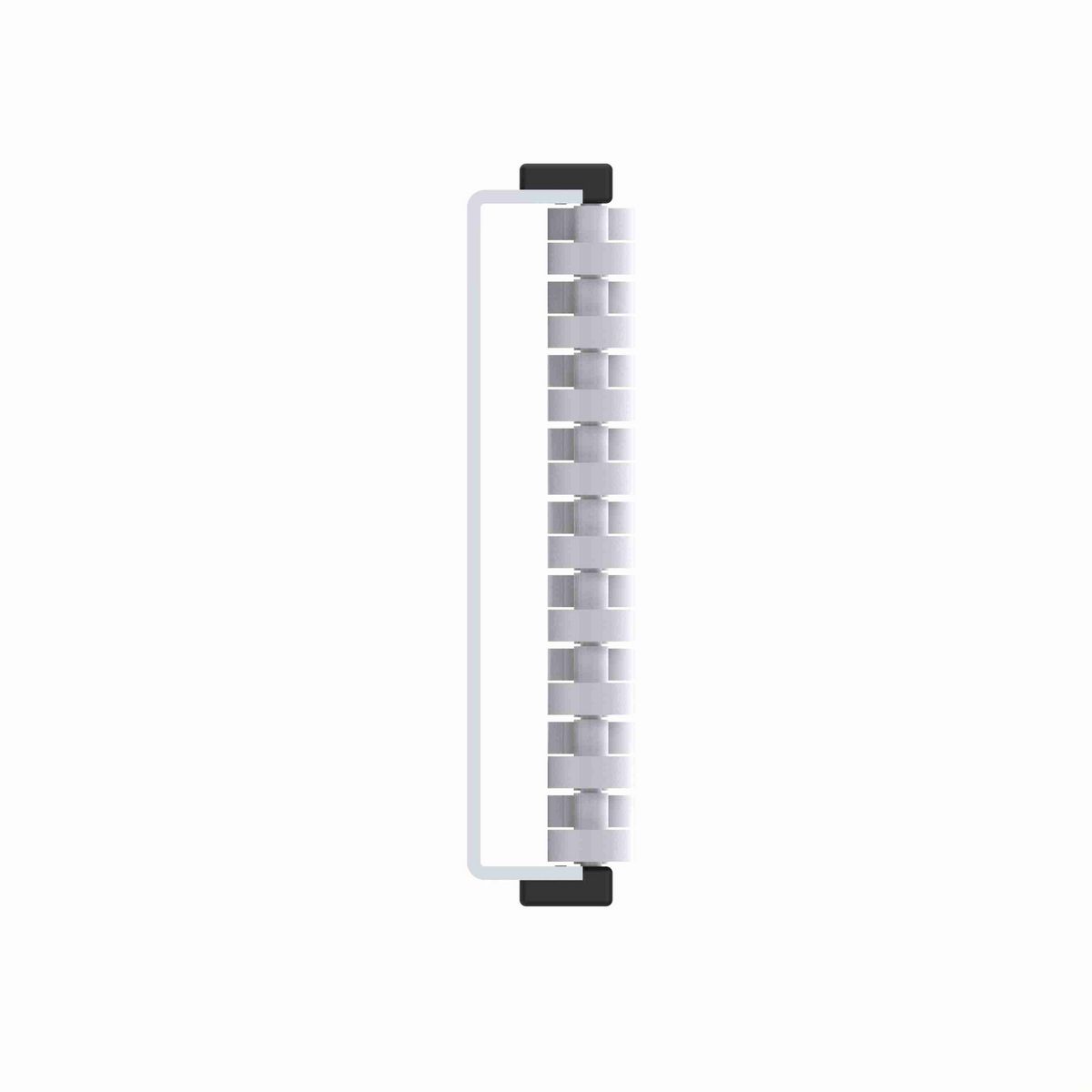

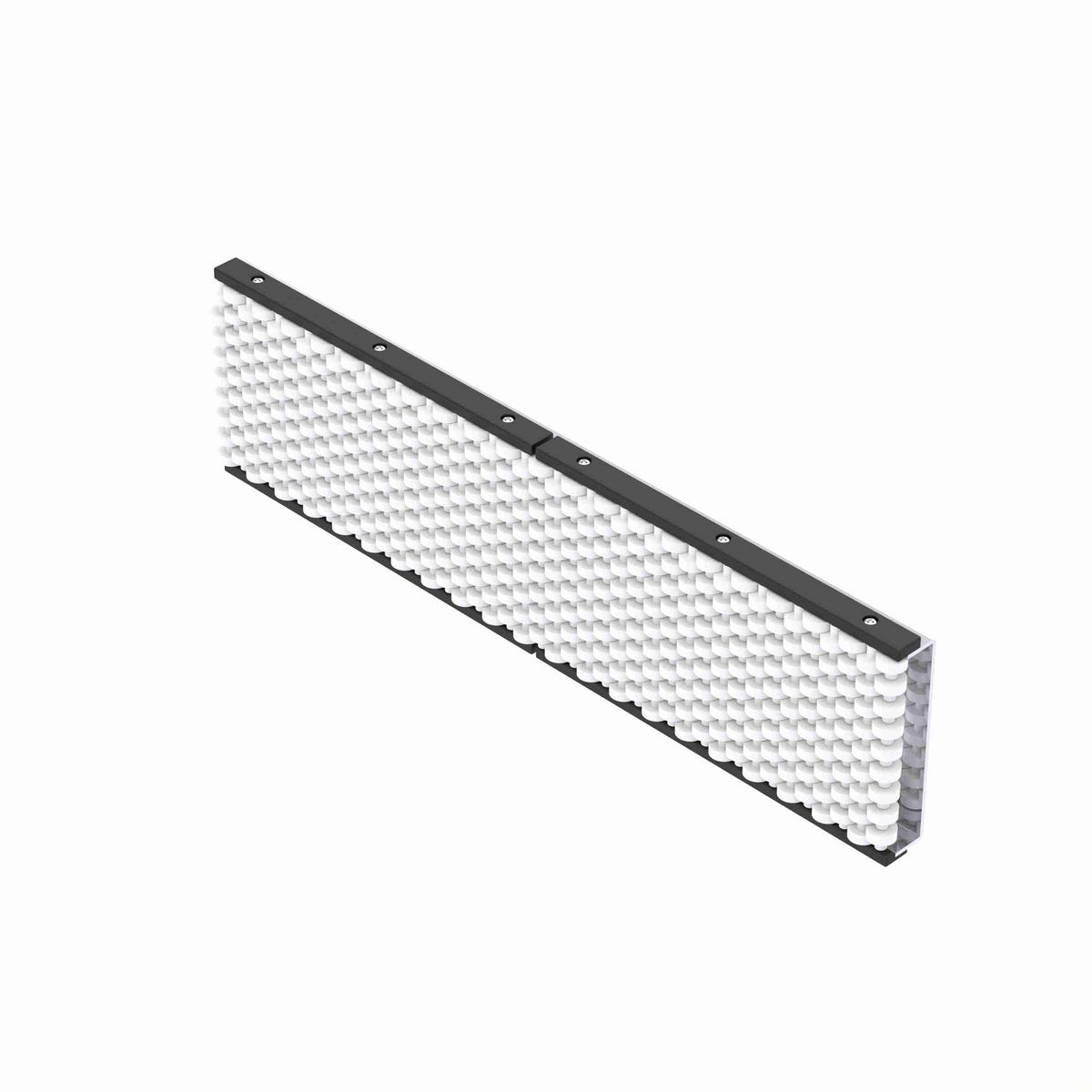

• Roller combiner.
• Low friction guiding surface.
• Excellent for combiner or accumulation areas.
• 10 ga stainless steel channel.
• Polyamide pin rails.
• 1/4 inch stainless steel pins, support larger loads
• Acetal rollers.
• 18 inch minimum bending radius in either direction.
• 3/8 inch carriage bolt (not included) is available as hardware kit VG-205-HDW-03-S38

Technical Specifications

Channel Material	Stainless Steel
Pin Material	Stainless Steel
Material	Stainless Steel
Surface Guide Material	Acetal
Max Temp (°F)	170 °F
Minimum Bend Radius	18
Height (mm)	164.6 mm
Product Group	Bead and Roller Guides
Width (in)	1.5 in
Width (mm)	38.1 mm
Profile	Roller Combiner Rail
Length (in)	24 in
Measurement System	Imperial
Mounting Hardware Size	3/8" Carriage Bolt (Not Included)
Product Type	Steel Channel Bead Wall
Height (in)	6.48 in
Product Line	Guide Products
Color	Beige
Pin Diameter (in)	0.25 in
Design	Roller Combiner
Maximum Pin Deflection	0.01
Rail Size	6
Steel Gauge (ga)	10
Maximum Deflection 36 in. Length	0.014
Maximum Deflection 24 in. Length	0.004
Rolling Surface Height (in)	5.66 in
Bead Roller Width (in)	0.76 in

General Specifications

UPC	787405268807
Weight	10.30 LB
Packaged Length	24.00 IN
Packaged Width	1.50 IN
Packaged Height	6.48 IN
