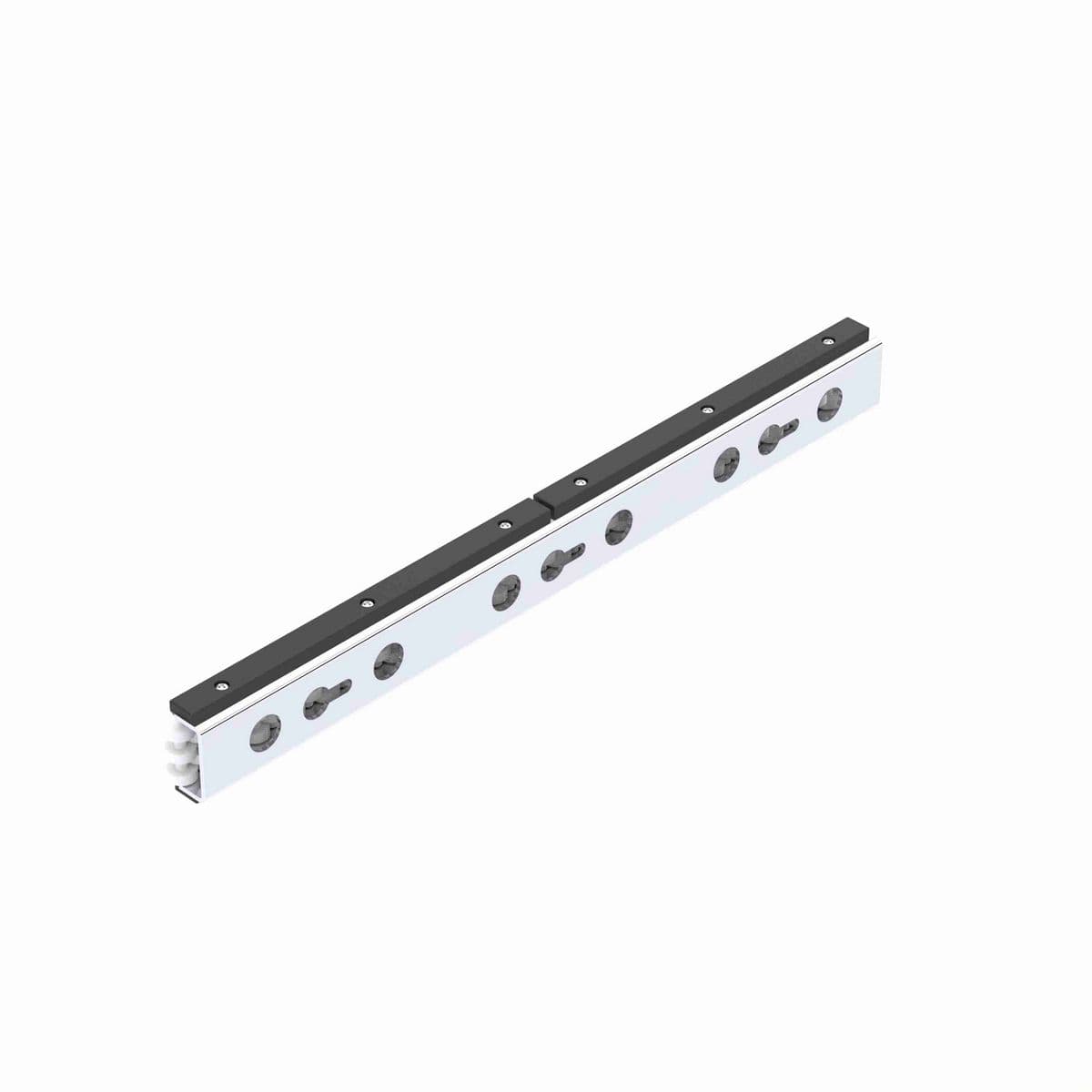

• Roller combiner.
• Low friction guiding surface.
• Excellent for combiner or accumulation areas.
• 10 ga stainless steel channel.
• Polyamide pin rails.
• 1/4 inch stainless steel pins, support larger loads
• Acetal rollers.
• 18 inch minimum bending radius in either direction.
• 3/8 inch carriage bolt (not included) is available as hardware kit VG-205-HDW-03-S38

Technical Specifications

Pin Material	Stainless Steel
Channel Material	Stainless Steel
Surface Guide Material	Acetal
Max Temp (°F)	170 °F
Material	Stainless Steel
Product Group	Bead and Roller Guides
Height (in)	2.7 in
Mounting Hardware Size	3/8" Carriage Bolt (Not Included)
Width (in)	1.5 in
Height (mm)	68.6 mm
Product Line	Guide Products
Product Type	Steel Channel Bead Wall
Length (in)	24 in
Minimum Bend Radius	18
Color	Beige
Width (mm)	38.1 mm
Profile	Roller Combiner Rail
Measurement System	Imperial
Pin Diameter (in)	0.25 in
Design	Roller Combiner
Rail Size	2
Steel Gauge (ga)	10
Maximum Deflection 36 in. Length	0.017
Maximum Deflection 24 in. Length	0.005
Rolling Surface Height (in)	1.85 in
Bead Roller Width (in)	0.76 in

General Specifications

UPC	787405268616
Weight	5.30 LB
Packaged Length	24.00 IN
Packaged Width	1.50 IN
Packaged Height	2.70 IN
