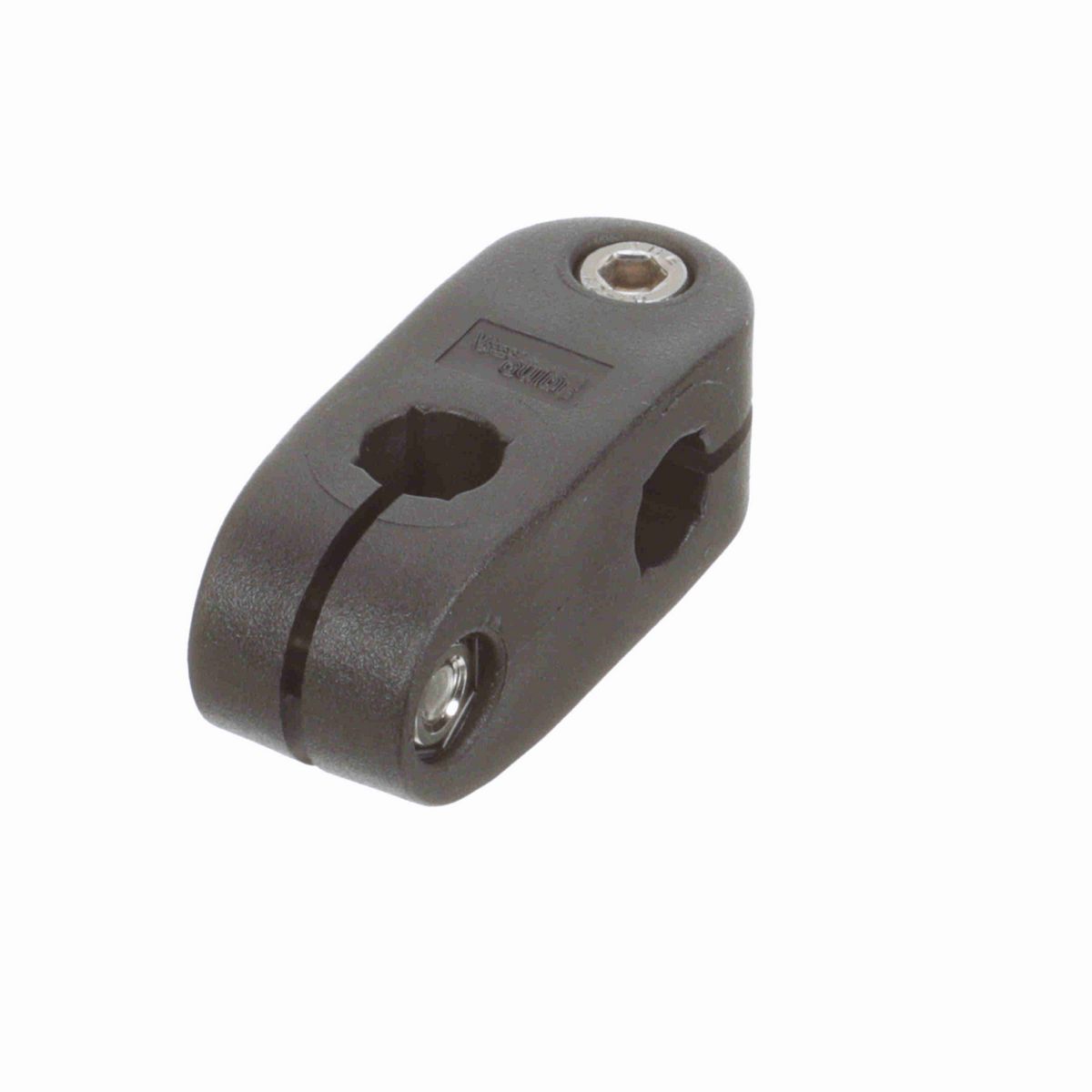

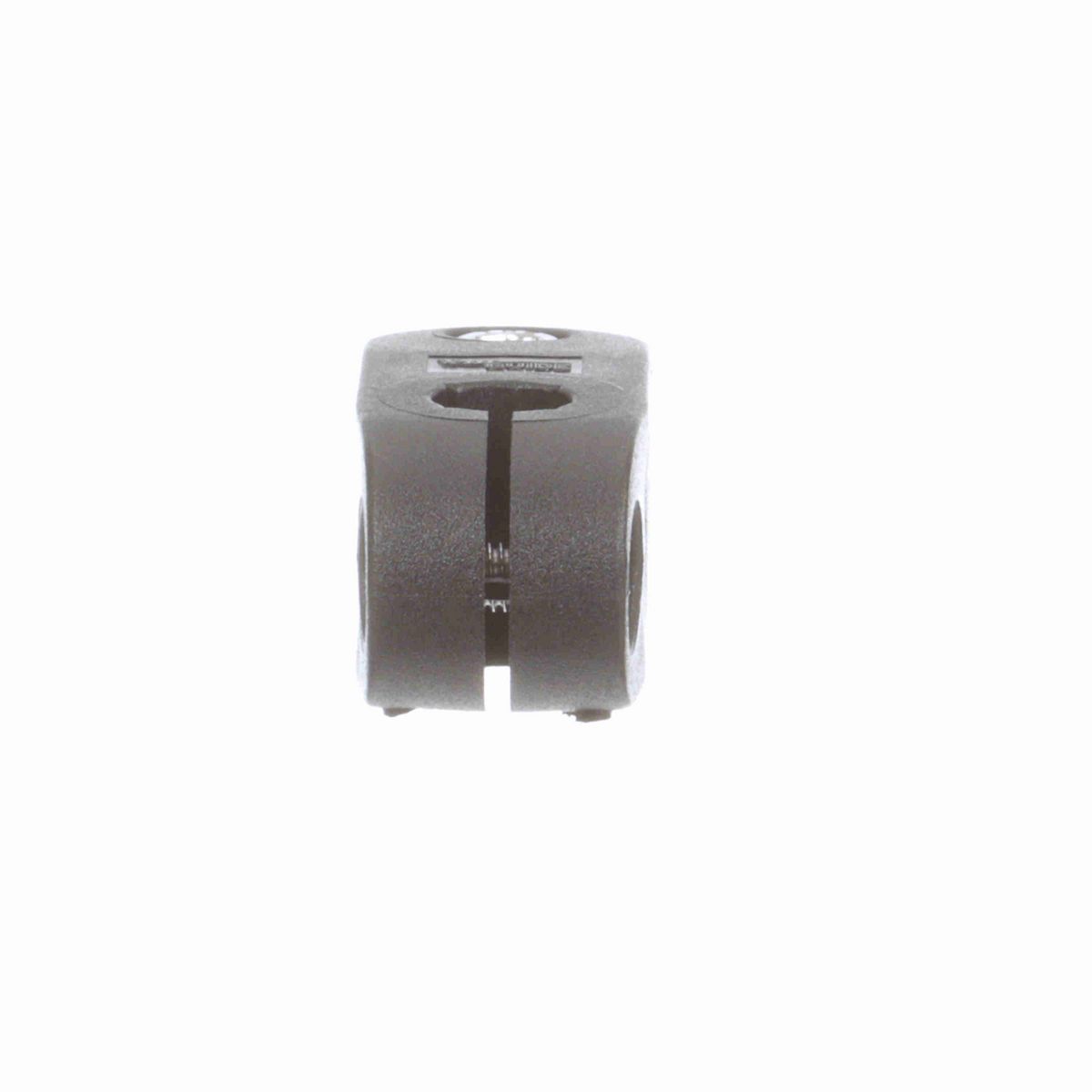

• Rod to Rod cross block.
• Connects one round rod and/or one square rod at 90 degrees.
• Reinforced acetal with stainless steel bolt and nickel plated brass nut.

Technical Specifications

Material	ACETAL
Height (in)	2.11 in
Width (in)	0.83 in
Bolt Size	M5
Length (in)	0.83 in
Product Line	Conveying Components
Product Group	Side Guide Solutions
Measurement System	Universal
Component Series	VG-619
Product Type	Cross Block
Base Diameter (in)	0 in
Rod Diameter (in)	0 in
Rod 2 Diameter (mm)	10 mm
Rod Diameter (mm)	8 mm

General Specifications

UPC	787405497467
Weight	0.07 LB
Packaged Length	2.05 IN
Packaged Width	2.40 IN
Packaged Height	1.00 IN
