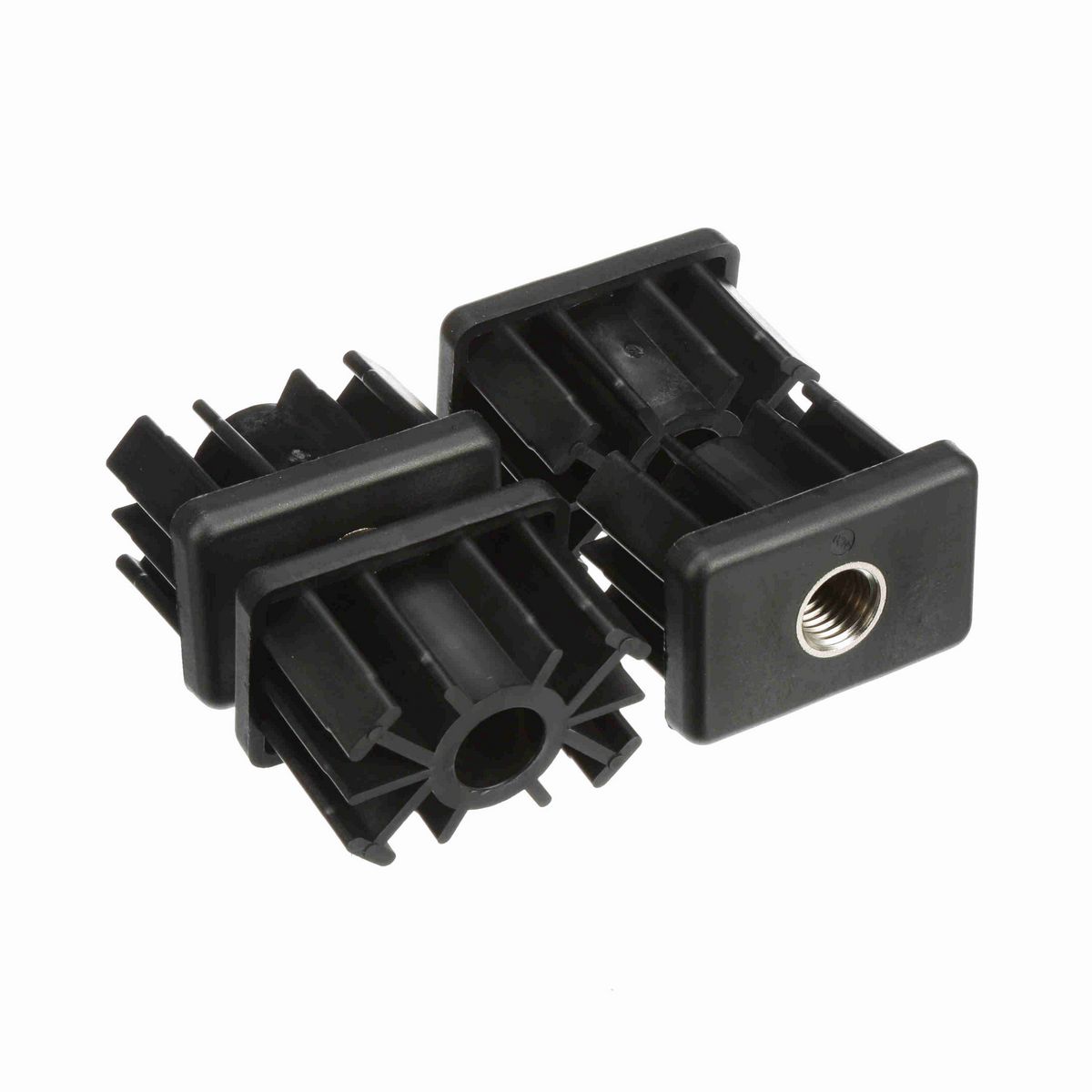

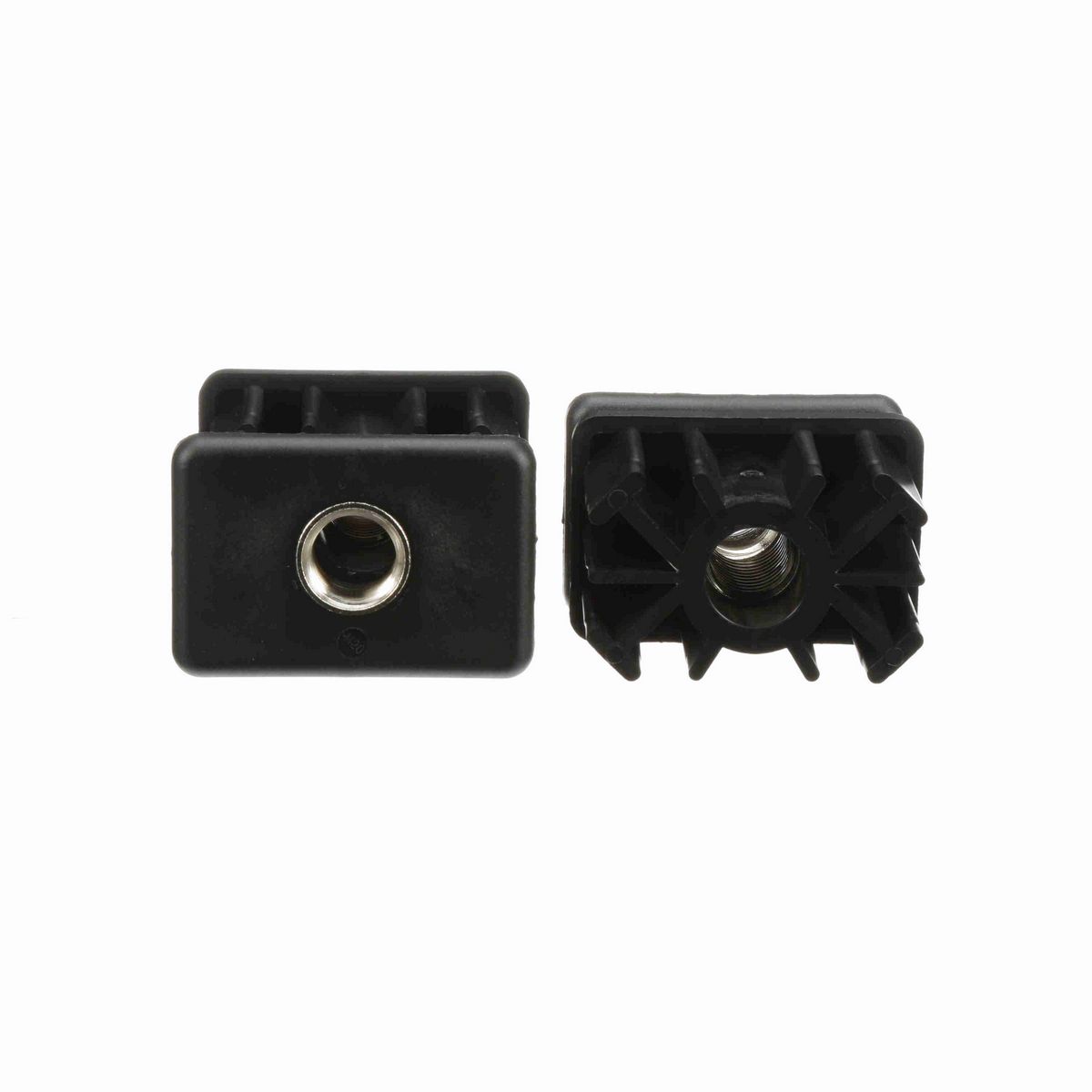

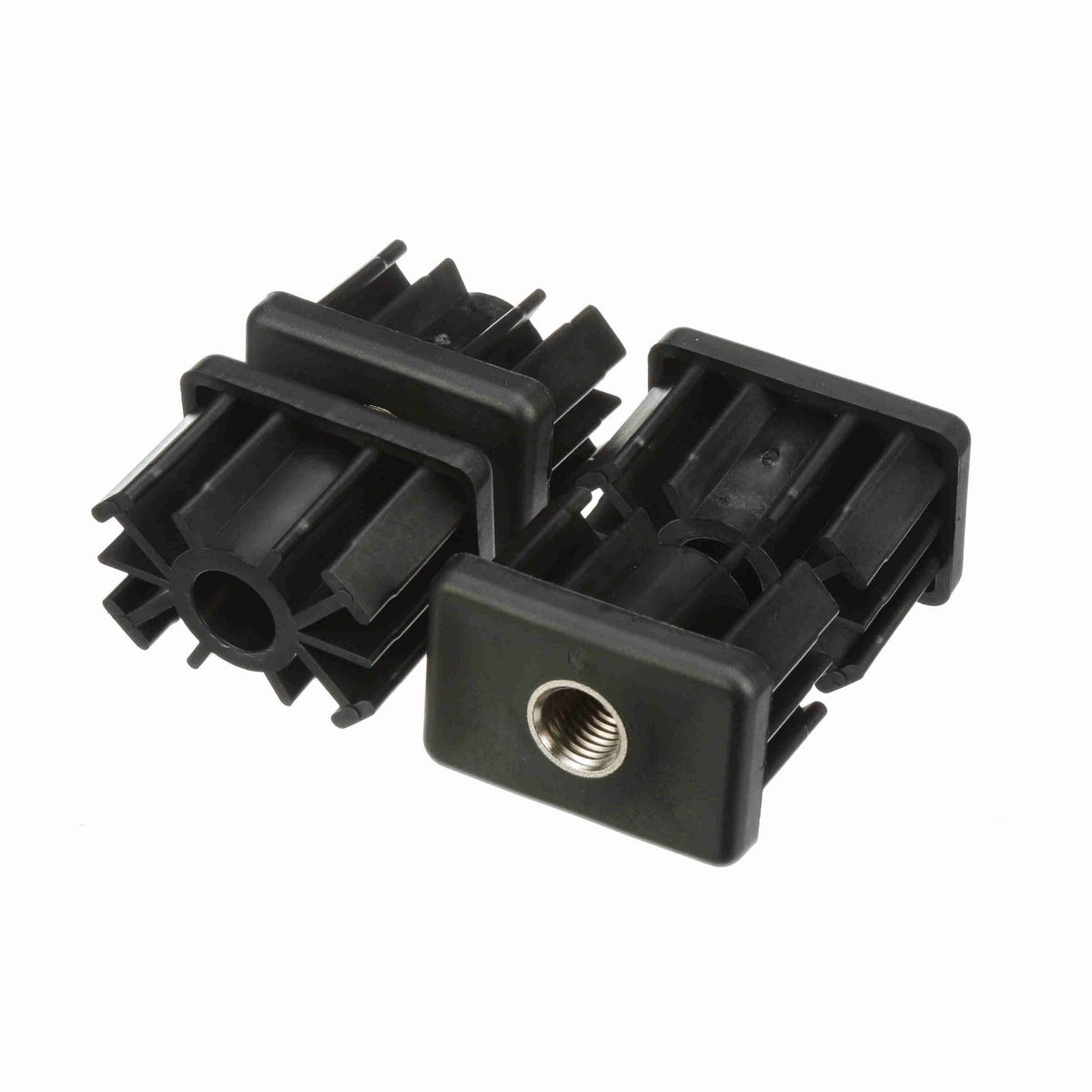

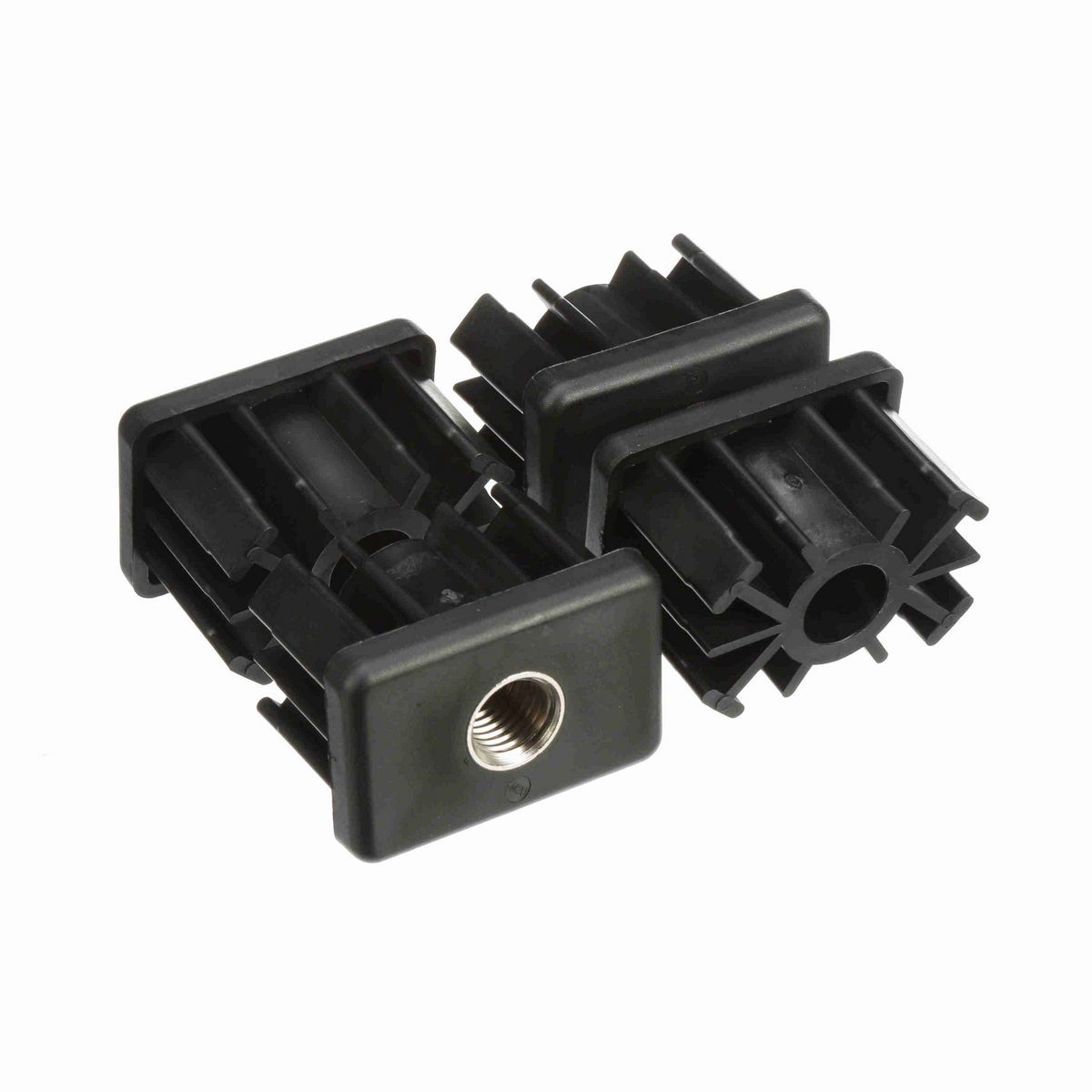

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Material	Reinforced polyamide with brass threaded insert
Tube Size (sq) x Wall Thickness (in)	0.125 in
Type	Square Tube Ends
Height (in)	1.95 in
Thread (mm)	M20 mm
Vertical Tube/Pipe Size (in)	2 X 3 Tube in
Base Diameter (in)	0 in
Component Series	VG-561
Product Group	Frame and Structure Components
Product Type	Tube End (Square)
Product Line	Conveying Components
Measurement System	Metric
Static Load (lb)	1,760 lb

General Specifications

UPC	787405497139
Weight	0.33 LB
Packaged Length	6.15 IN
Packaged Width	7.35 IN
Packaged Height	2.30 IN
HTC	8431.39.0010
Country of Origin	Mexico
