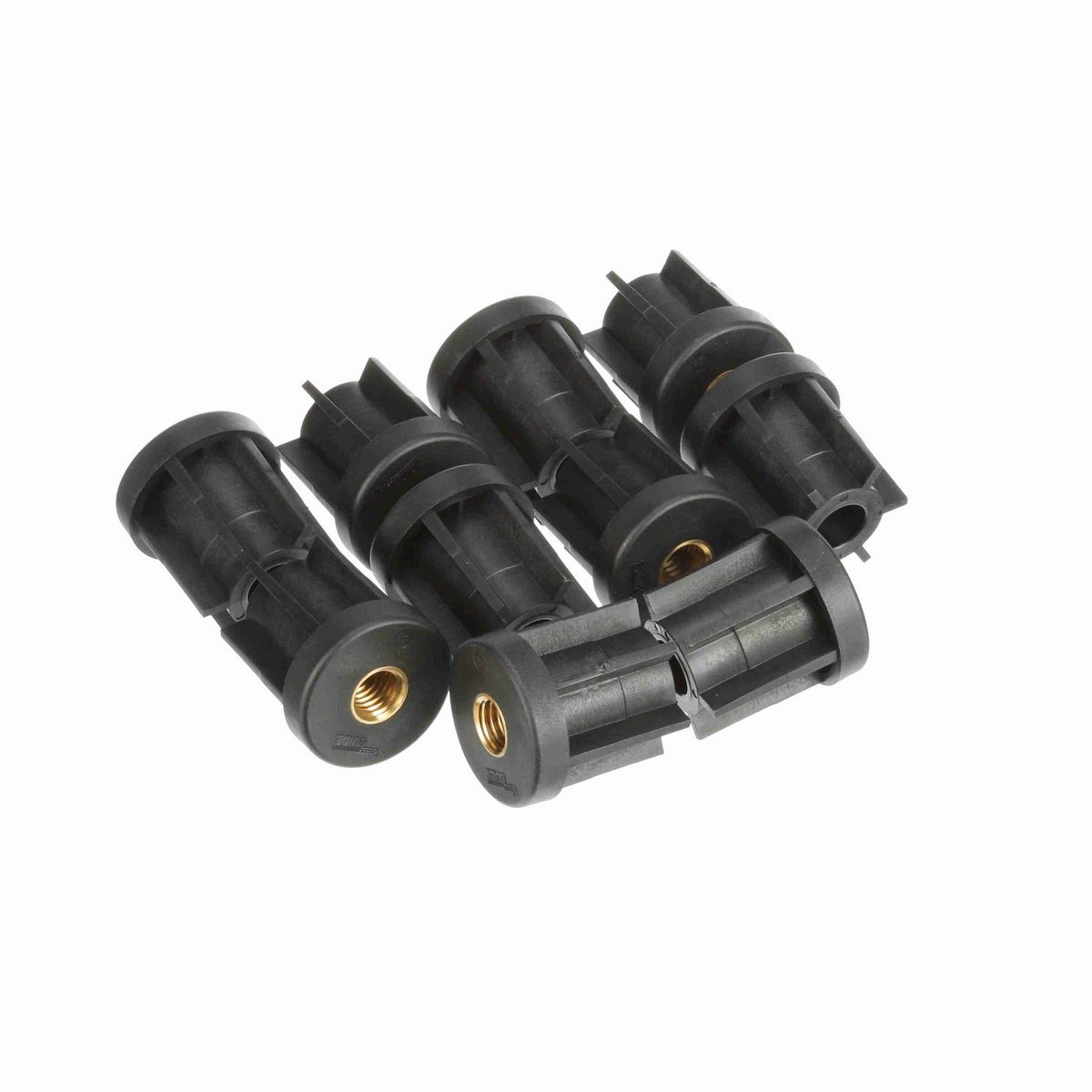

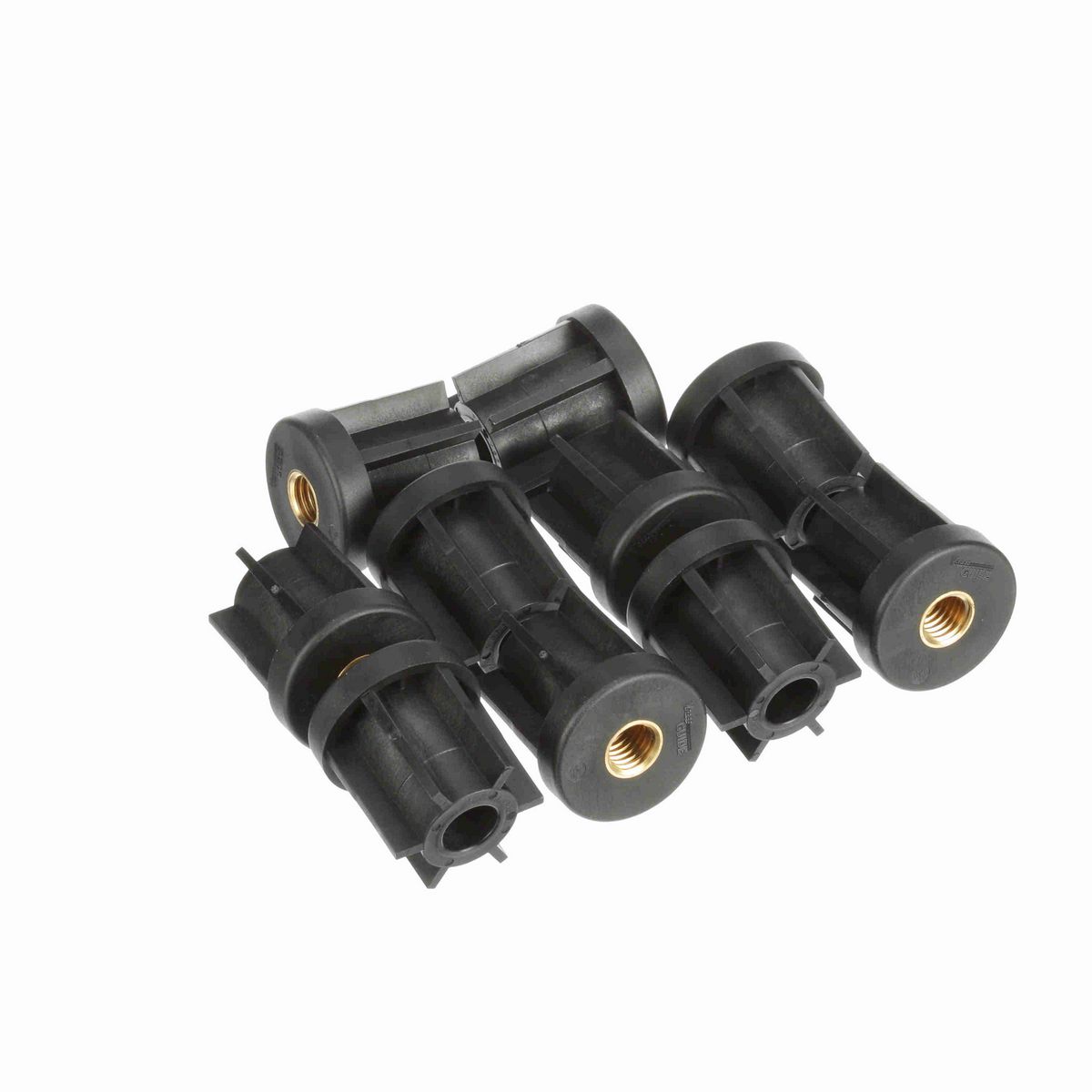

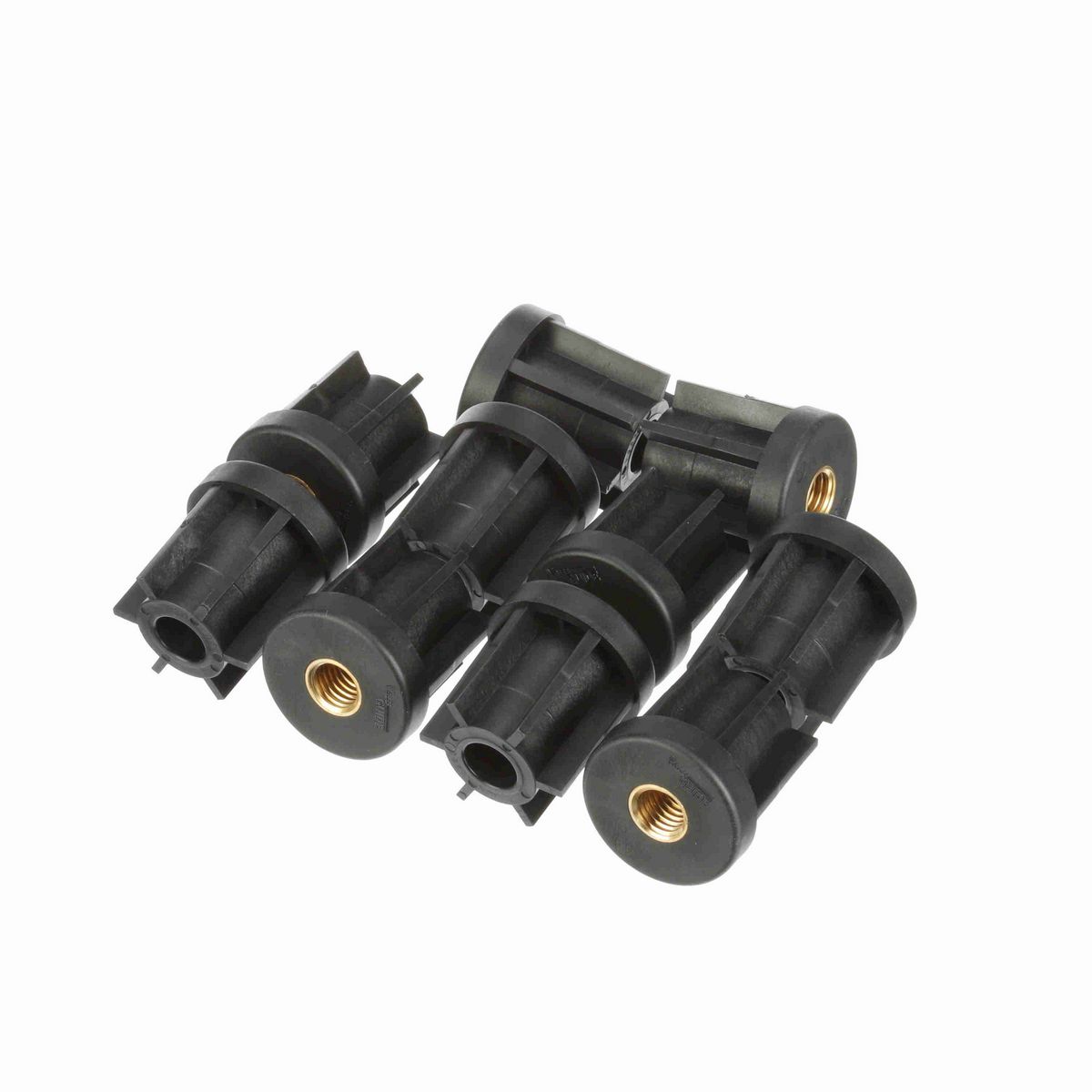

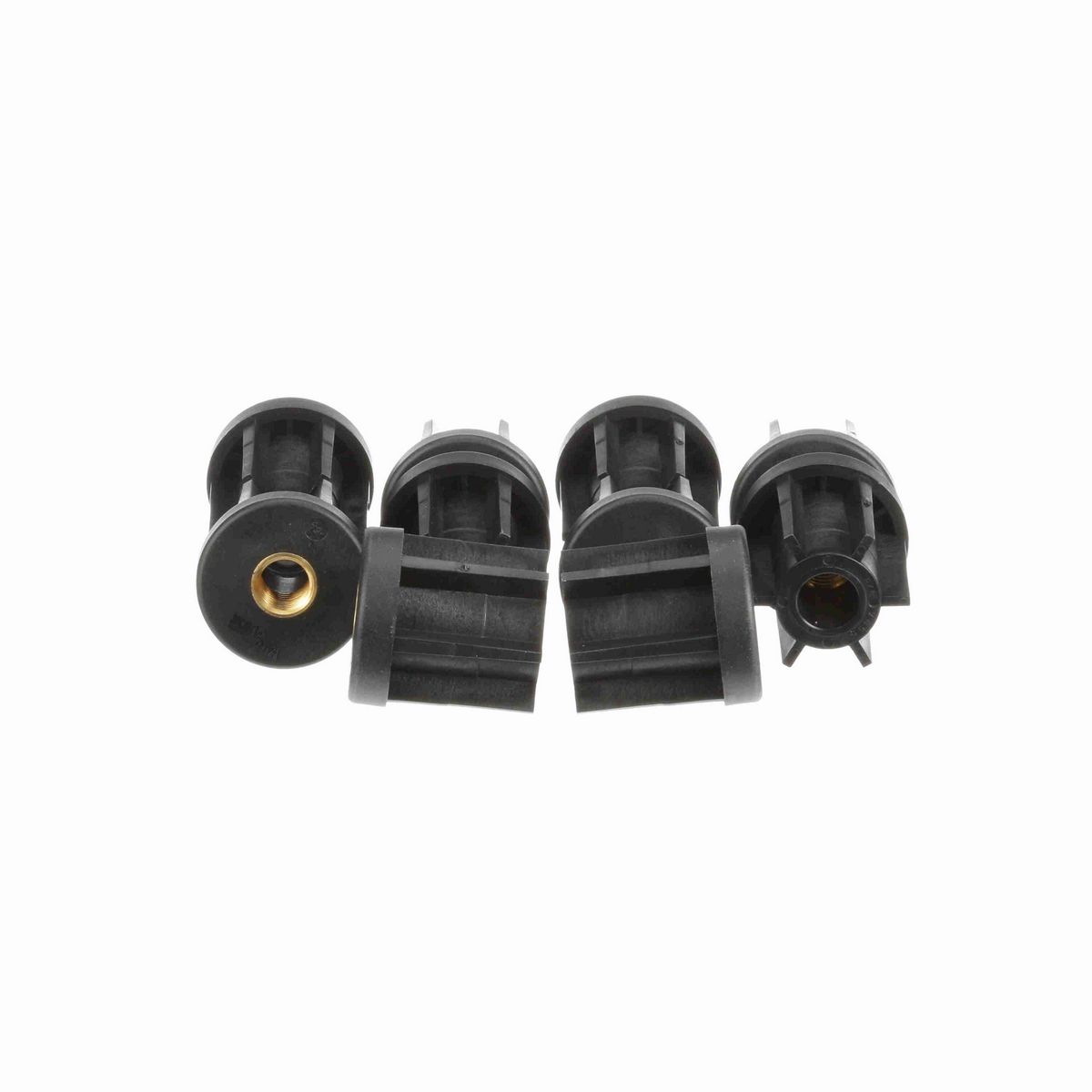

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Insert Depth (mm)	39 mm
Insert Depth (in)	1.54 in
Height (in)	1.95 in
Insert Width / Diameter (mm)	45 mm
Thread (in)	5/8-11 in
Material	Reinforced polyamide with brass threaded insert
Face Width / Diameter (in)	1.97 in
Insert Width / Diameter (in)	1.78 in
Face Width / Diameter (mm)	50 mm
Tube Size (sq) x Wall Thickness (in)	0.065 in
Type	Round Tube Ends
Product Type	Tube End (Round)
Measurement System	Imperial
Component Series	VG-558
Base Diameter (in)	0 in
Product Group	Frame and Structure Components
Product Line	Conveying Components
Vertical Tube/Pipe Size (in)	1-1/2 Sch. 5 Pipe in
Height (mm)	50 mm
Static Load (lb)	1,000 lb

General Specifications

UPC	787405256668
Weight	0.16 LB
Packaged Length	6.30 IN
Packaged Width	8.65 IN
Packaged Height	2.15 IN
HTC	8431.39.0010
Country of Origin	Mexico
