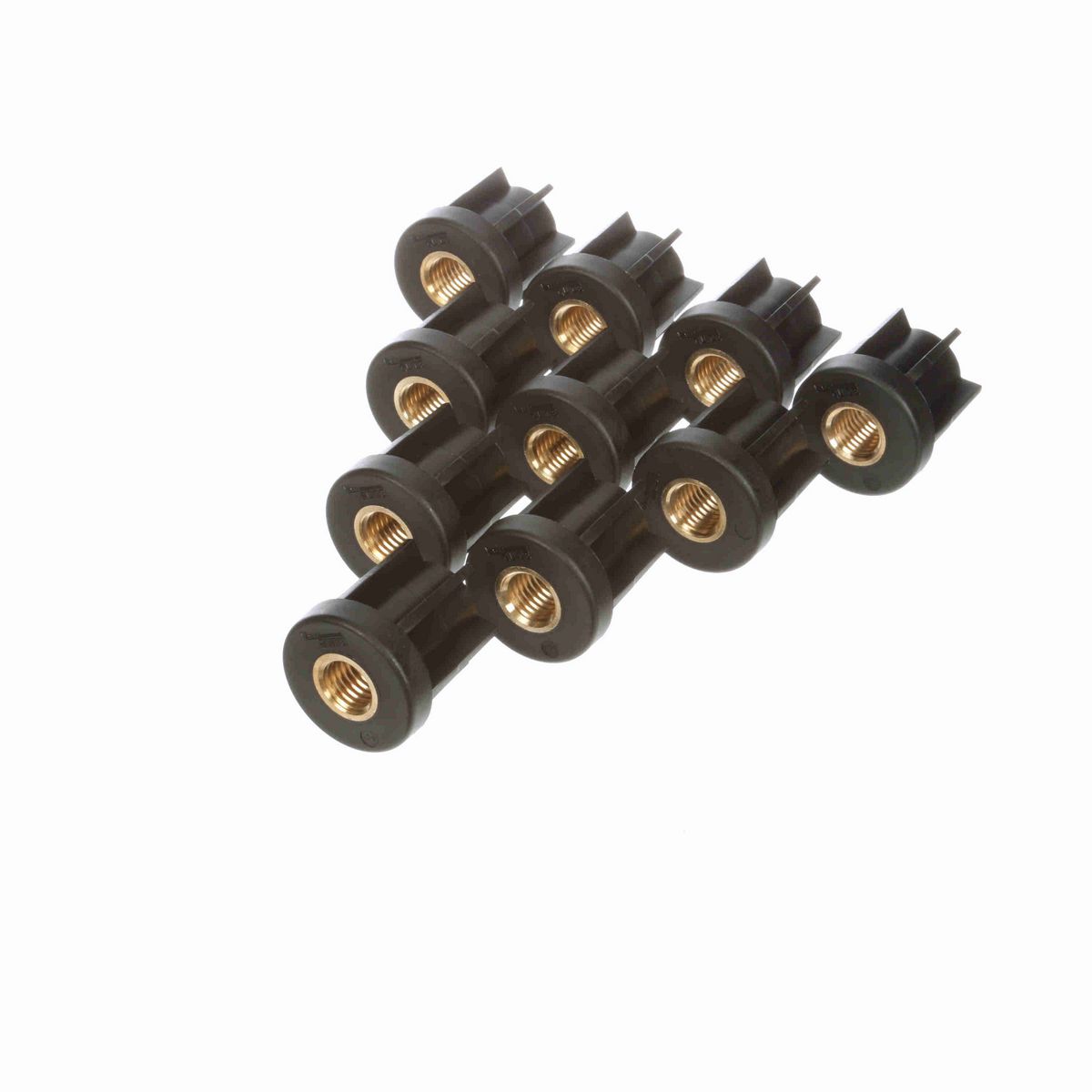

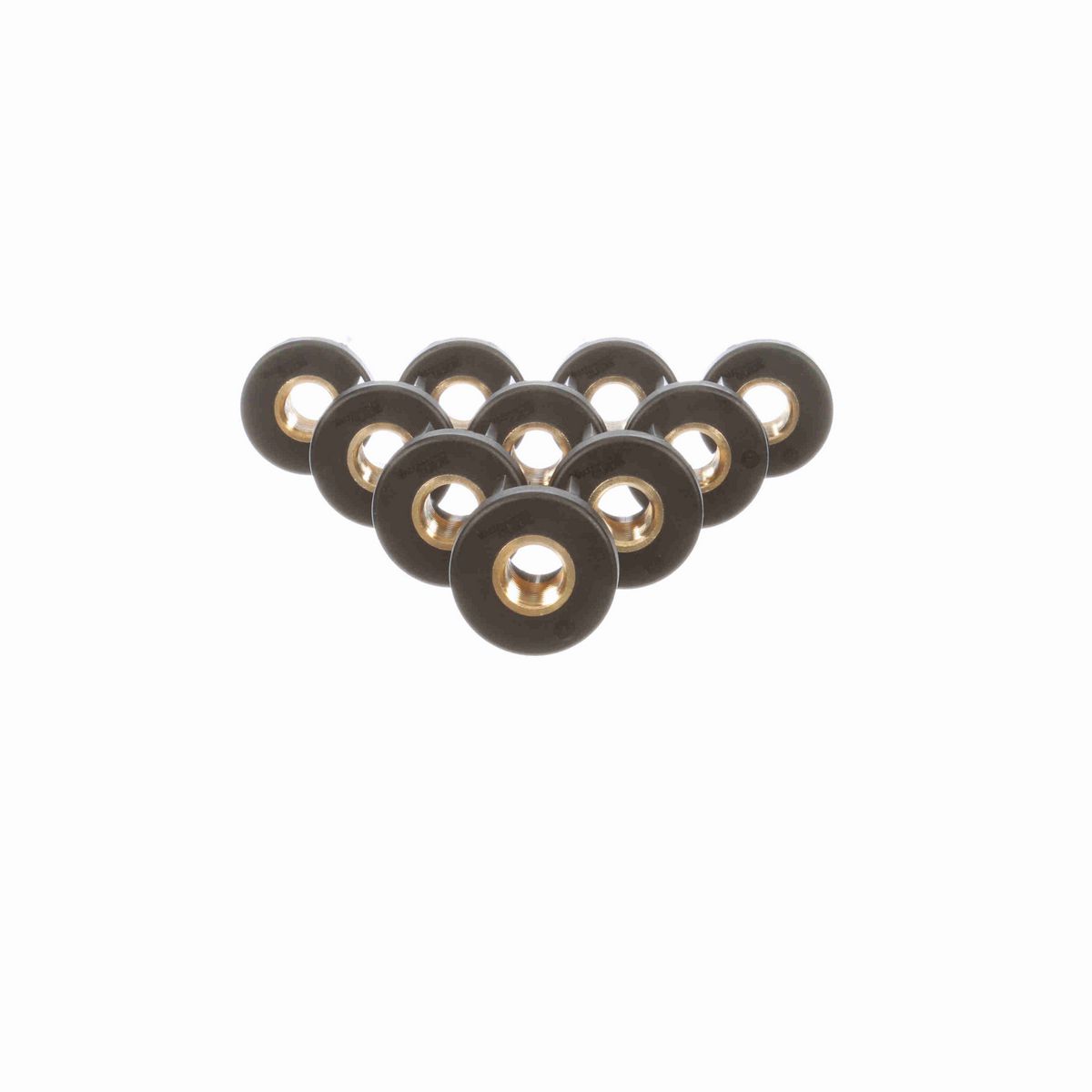

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Type	Round Tube Ends
Insert Width / Diameter (mm)	45 mm
Insert Depth (mm)	39 mm
Face Width / Diameter (in)	1.97 in
Insert Width / Diameter (in)	1.78 in
Insert Depth (in)	1.54 in
Thread (in)	3/4-10 in
Height (in)	1.95 in
Tube Size (sq) x Wall Thickness (in)	0.065 in
Face Width / Diameter (mm)	50 mm
Material	Reinforced polyamide with brass threaded insert
Product Type	Tube End (Round)
Vertical Tube/Pipe Size (in)	1-1/2 Sch. 5 Pipe in
Height (mm)	50 mm
Measurement System	Imperial
Component Series	VG-558
Product Line	Conveying Components
Product Group	Frame and Structure Components
Static Load (lb)	1,000 lb

General Specifications

UPC	787405256651
Weight	0.20 LB
Packaged Length	4.85 IN
Packaged Width	9.20 IN
Packaged Height	1.95 IN
HTC	8431.39.0010
Country of Origin	Mexico
