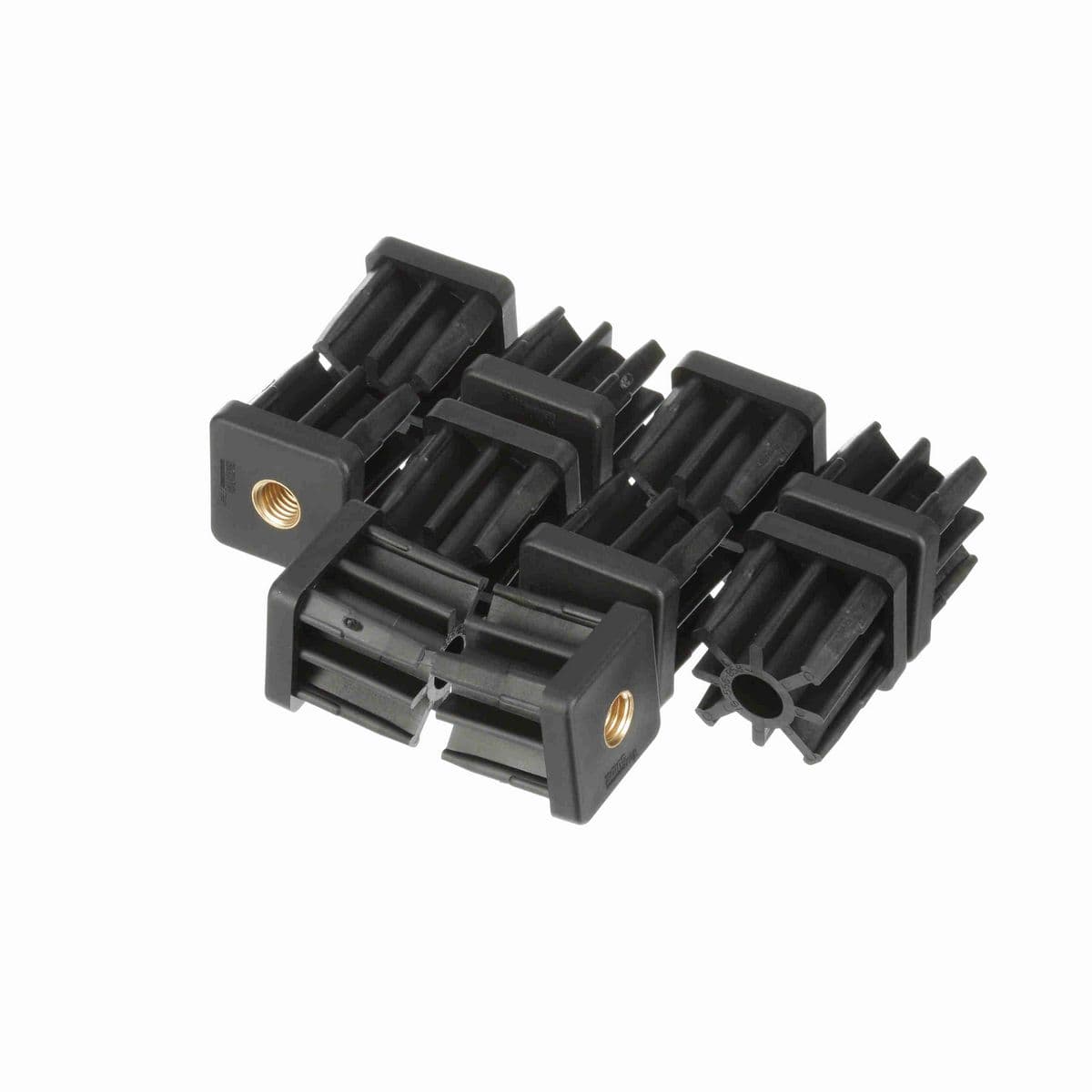

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Material	Reinforced polyamide with brass threaded insert
Face Width / Diameter (mm)	50 mm
Thread (in)	3/8-16 in
Tube Size (sq) x Wall Thickness (in)	.109-.120 in
Type	Square Tube Ends
Insert Width / Diameter (mm)	45 mm
Insert Depth (in)	1.55 in
Insert Width / Diameter (in)	1.78 in
Insert Depth (mm)	39 mm
Face Width / Diameter (in)	1.97 in
Height (in)	1.96 in
Height (mm)	50 mm
Product Type	Tube End (Square)
Product Group	Frame and Structure Components
Component Series	VG-556
Base Diameter (in)	0 in
Product Line	Conveying Components
Measurement System	Imperial
Vertical Tube/Pipe Size (in)	2 Sq. Tube in
Static Load (lb)	1,000 lb

General Specifications

UPC	787405256576
Weight	0.22 LB
Packaged Length	5.05 IN
Packaged Width	11.60 IN
Packaged Height	3.35 IN
HTC	8431.39.0010
Country of Origin	Mexico
