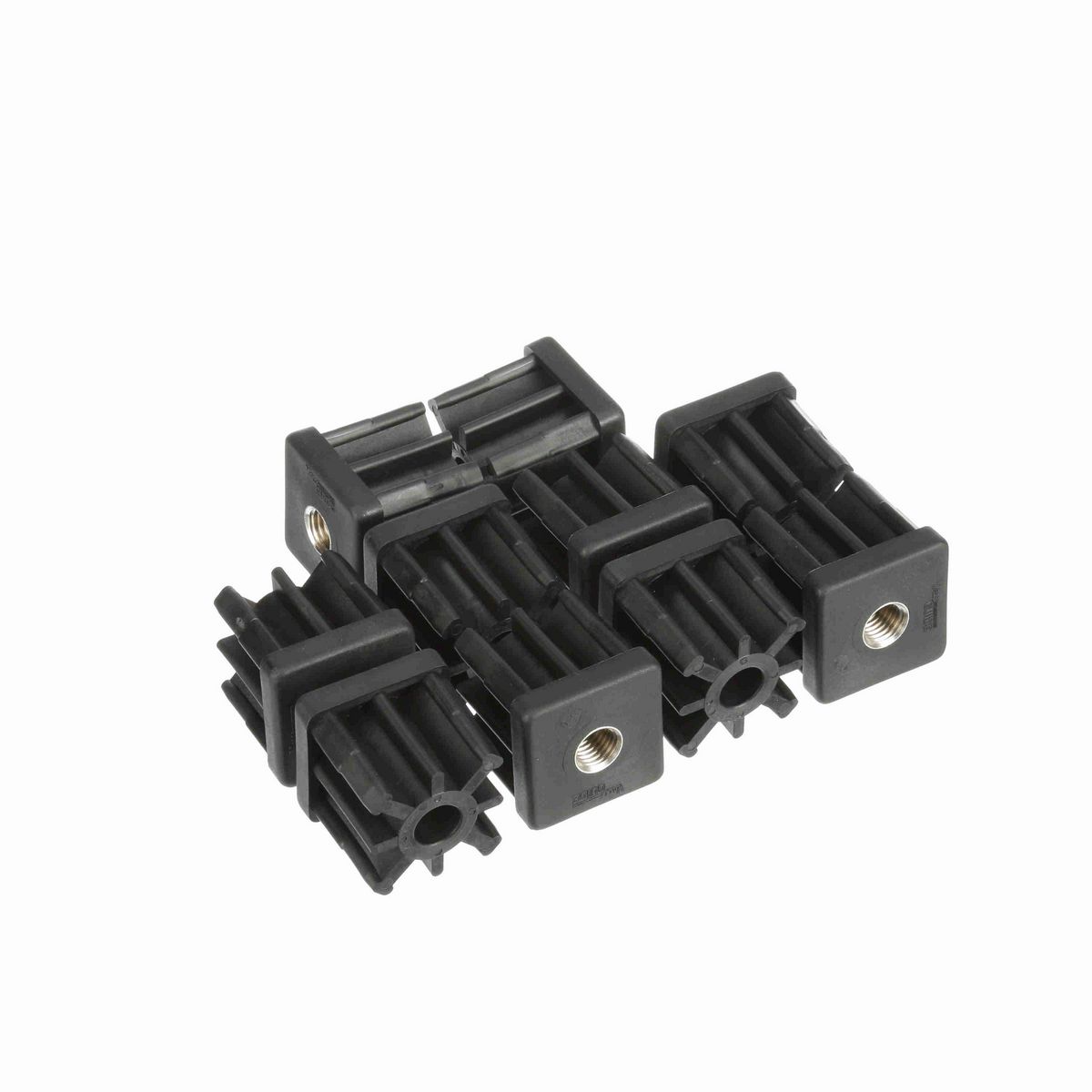

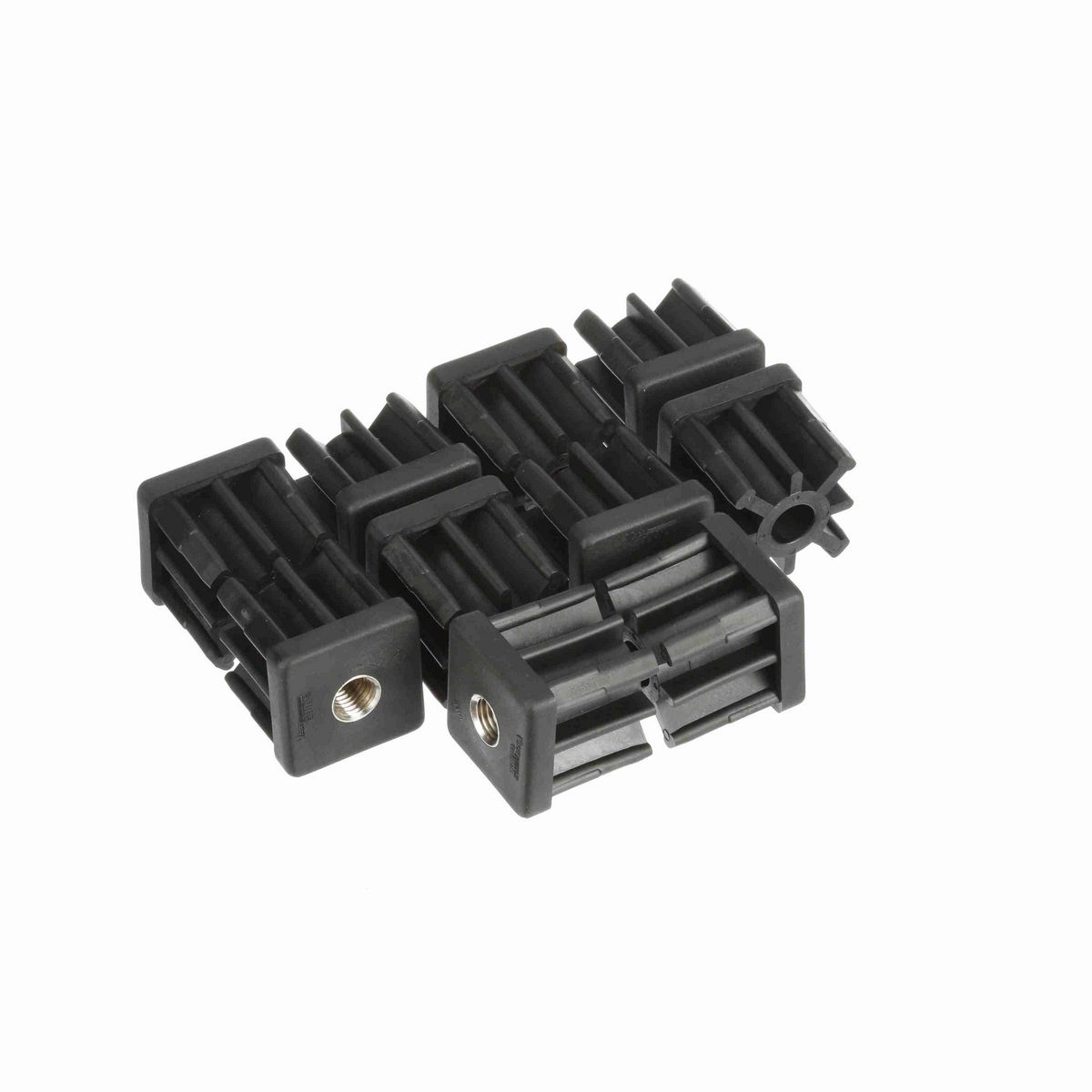

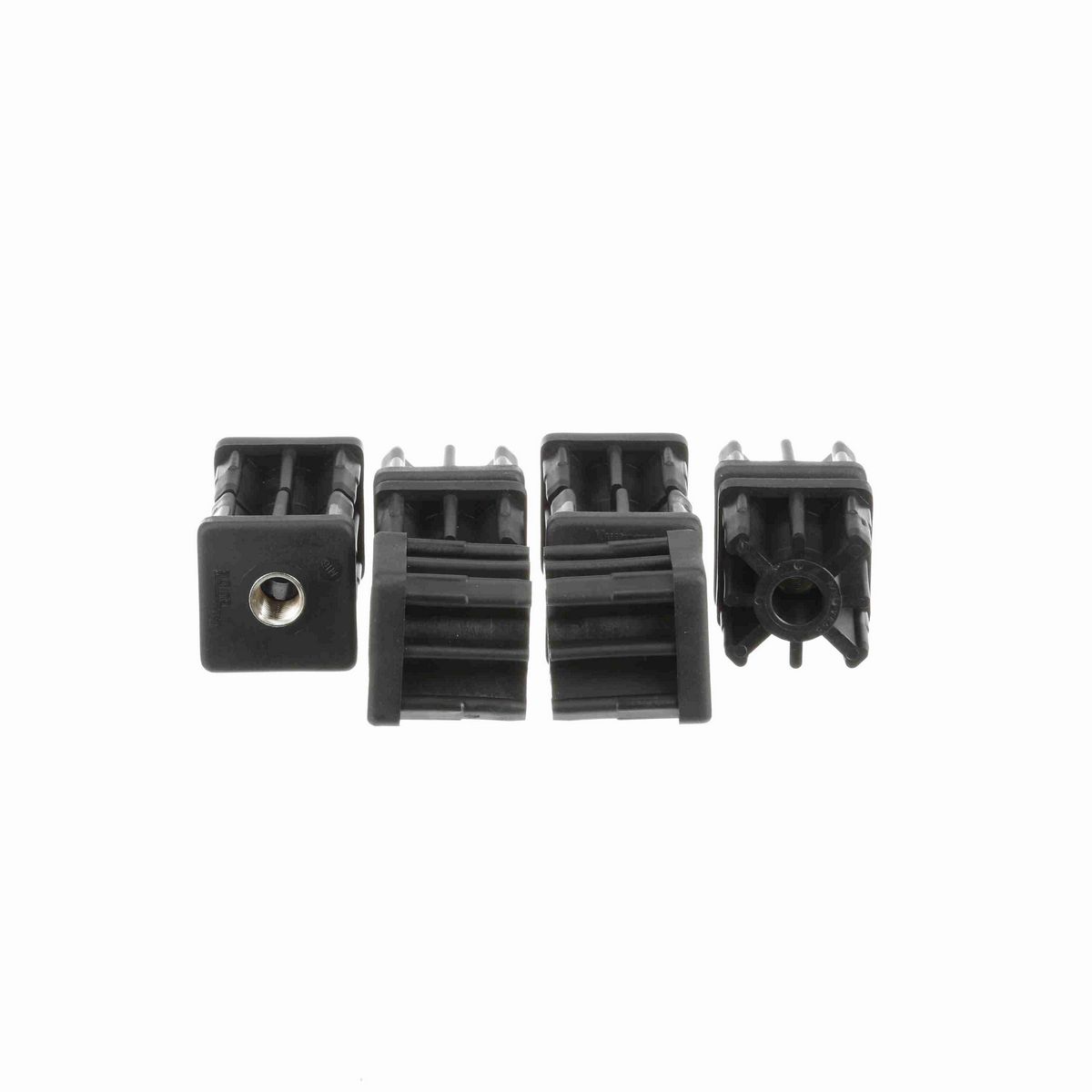

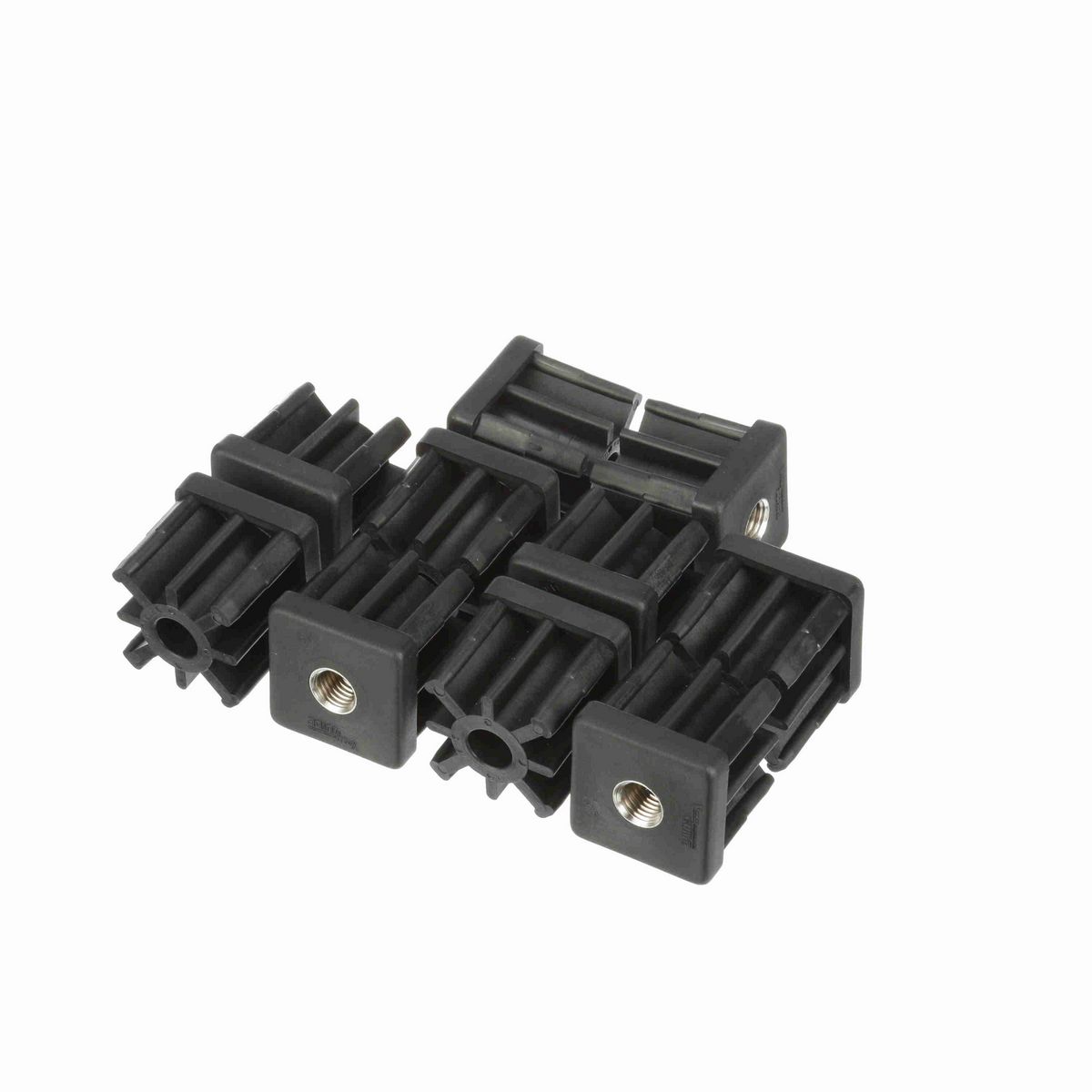

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Face Width / Diameter (mm)	50 mm
Thread (mm)	M16 mm
Material	Reinforced polyamide with brass threaded insert
Insert Width / Diameter (mm)	47 mm
Insert Width / Diameter (in)	1.87 in
Height (in)	1.96 in
Insert Depth (mm)	39 mm
Insert Depth (in)	1.55 in
Tube Size (sq) x Wall Thickness (in)	0.065 in
Face Width / Diameter (in)	1.97 in
Type	Square Tube Ends
Product Type	Tube End (Square)
Measurement System	Metric
Vertical Tube/Pipe Size (in)	2 Sq. Tube in
Component Series	VG-555
Product Group	Frame and Structure Components
Product Line	Conveying Components
Base Diameter (in)	0 in
Height (mm)	50 mm
Static Load (lb)	1,760 lb

General Specifications

UPC	787405256507
Weight	0.21 LB
Packaged Length	7.45 IN
Packaged Width	8.95 IN
Packaged Height	2.30 IN
HTC	8431.39.0010
Country of Origin	Mexico
